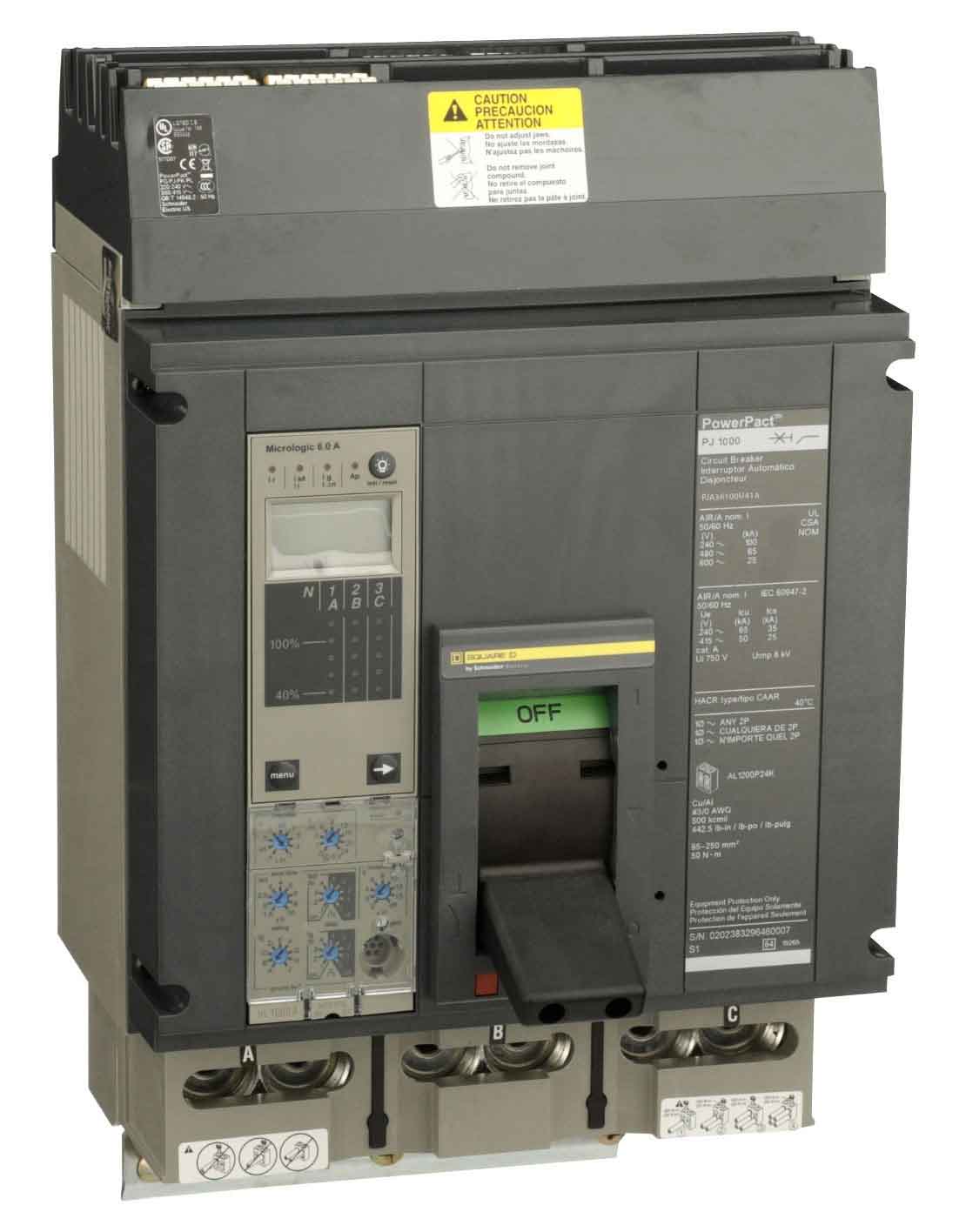

Square D PJA36100U41A Circuit Breaker | Powerpact PJA 600V 1000A

Product Description:
The Square D PJA36100U41A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 1000A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection. It is designed for industrial and commercial applications.

Key Features:
✔ Part Number: PJA36100U41A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PJA
✔ Voltage: 600V
✔ Amperage: 1000A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: P Frame
✔ Wire Size: 3/0 AWG to 350KCmil
✔ Certification: IEC, CSA, UL, RoHS
✔ UPC: 785901973171
✔ GTIN: 00785901973171
✔ Country of Origin: Mexico

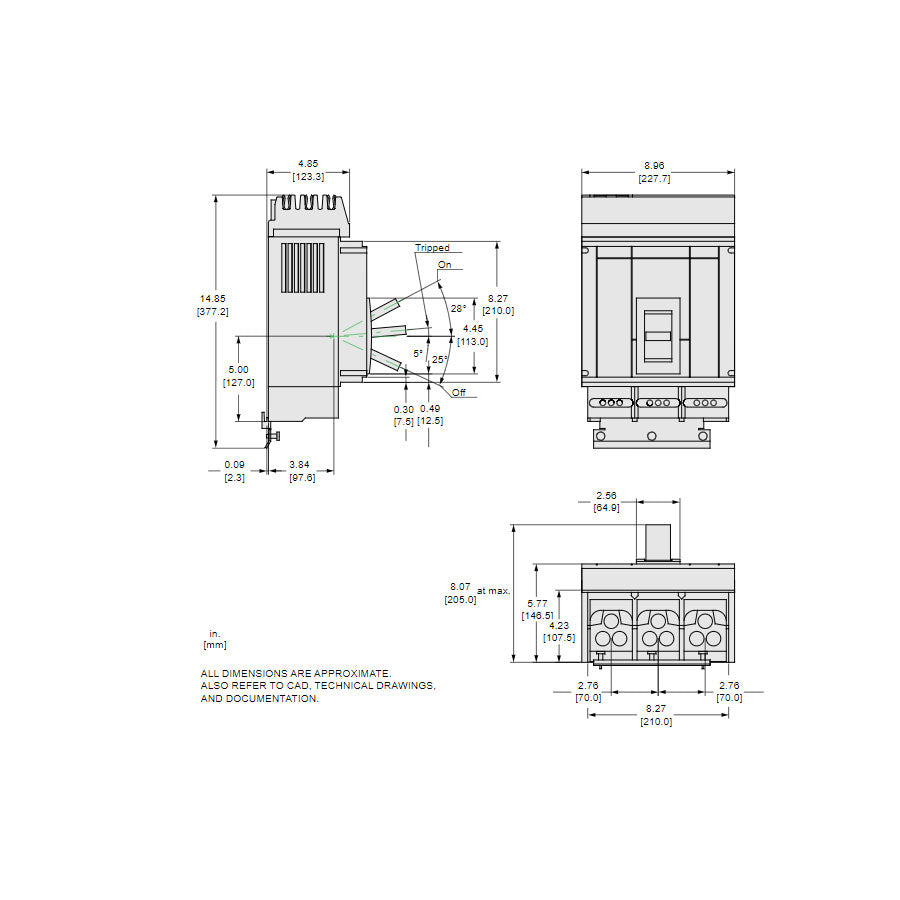

✔ Dimensions: Depth
