Square D PJA36100U44A Circuit Breaker | Powerpact PJA 600V 1000A
Square D PJA36100U44A Circuit Breaker | Powerpact PJA 600V 1000A
Price:
Sale
Sold out
Regular price
$8,143.84 USD
Regular price
$26,211.00 USD
Sale price
$8,143.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
26 in stock
Couldn't load pickup availability
Product Description:
The Square D PJA36100U44A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 1000A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection with LSIG functions. Key Features:
✔ Part Number: PJA36100U44A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PJA
✔ Voltage: 600V
✔ Amperage: 1000A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
✔ Frame Size: P Frame
✔ UPC: 785901282235
✔ GTIN: 00785901282235
✔ Country of Origin: United States

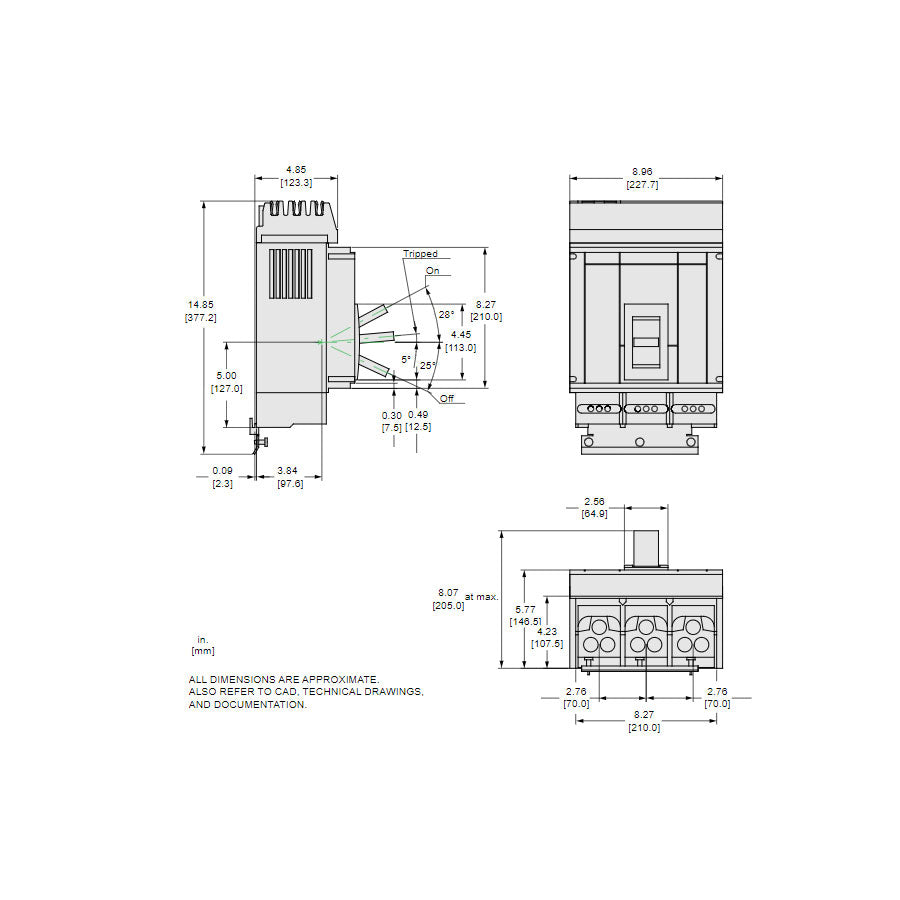

✔ Dimensions: 8.05" D x 8.27" W x 16.16" H
✔ Weight: 38 lb
✔
