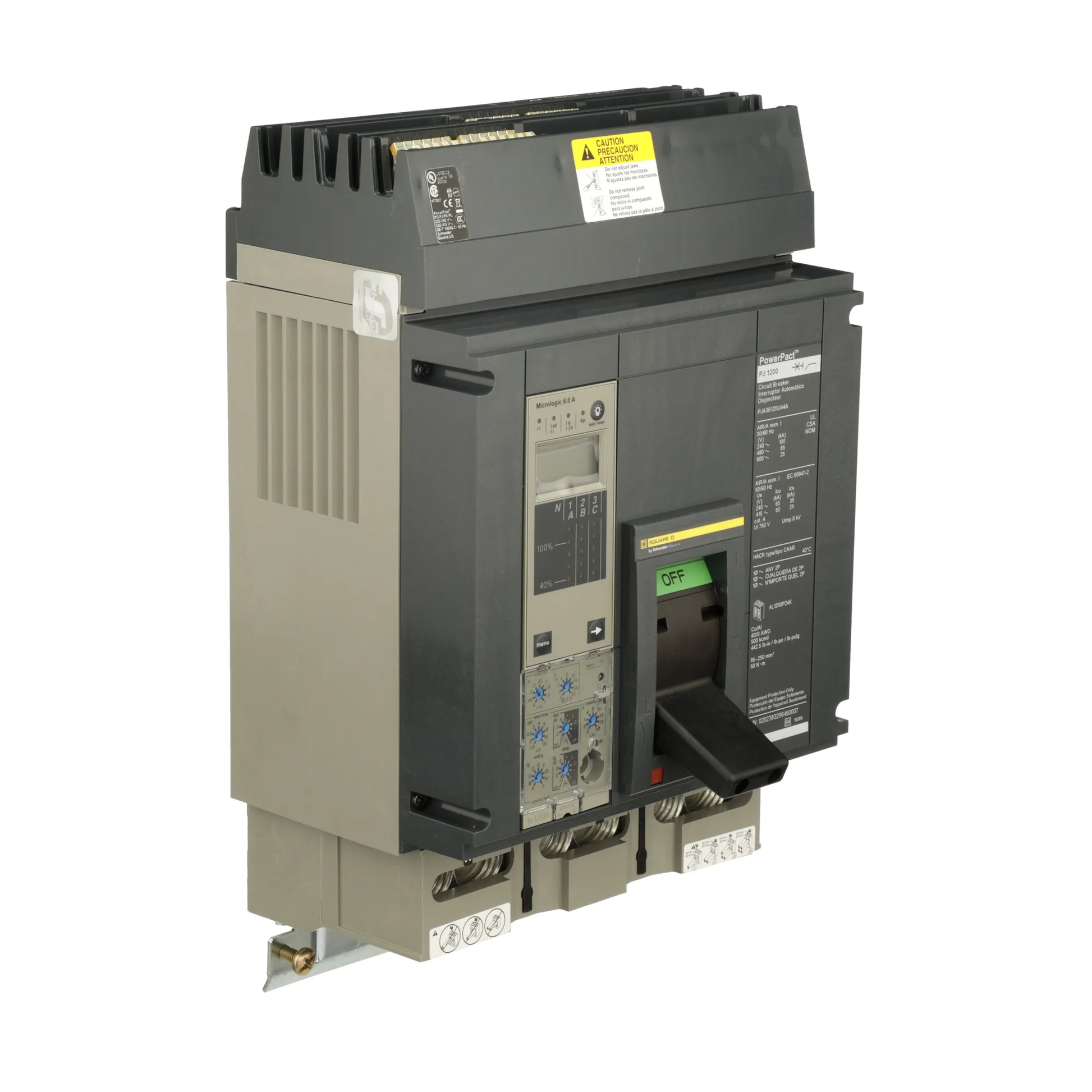

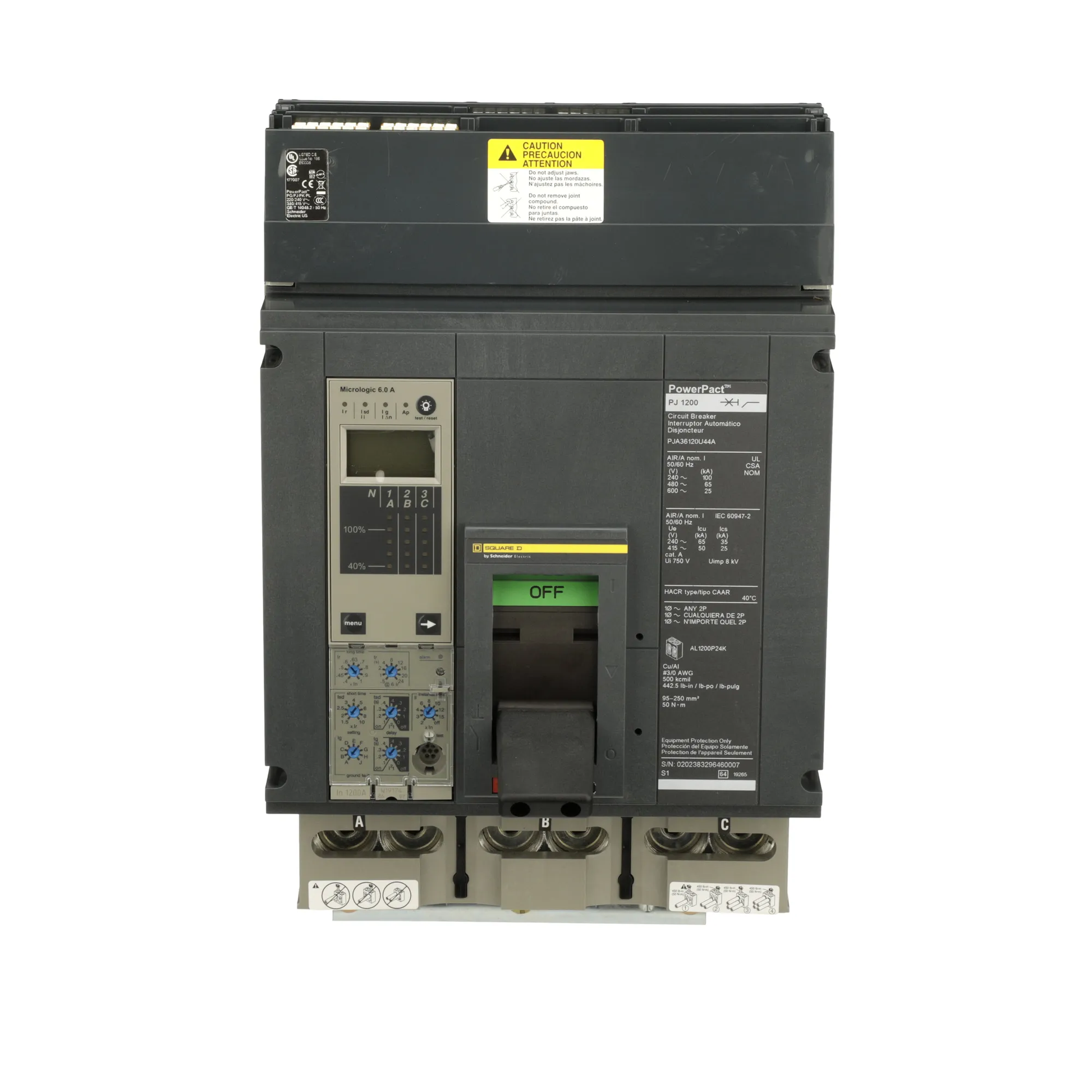

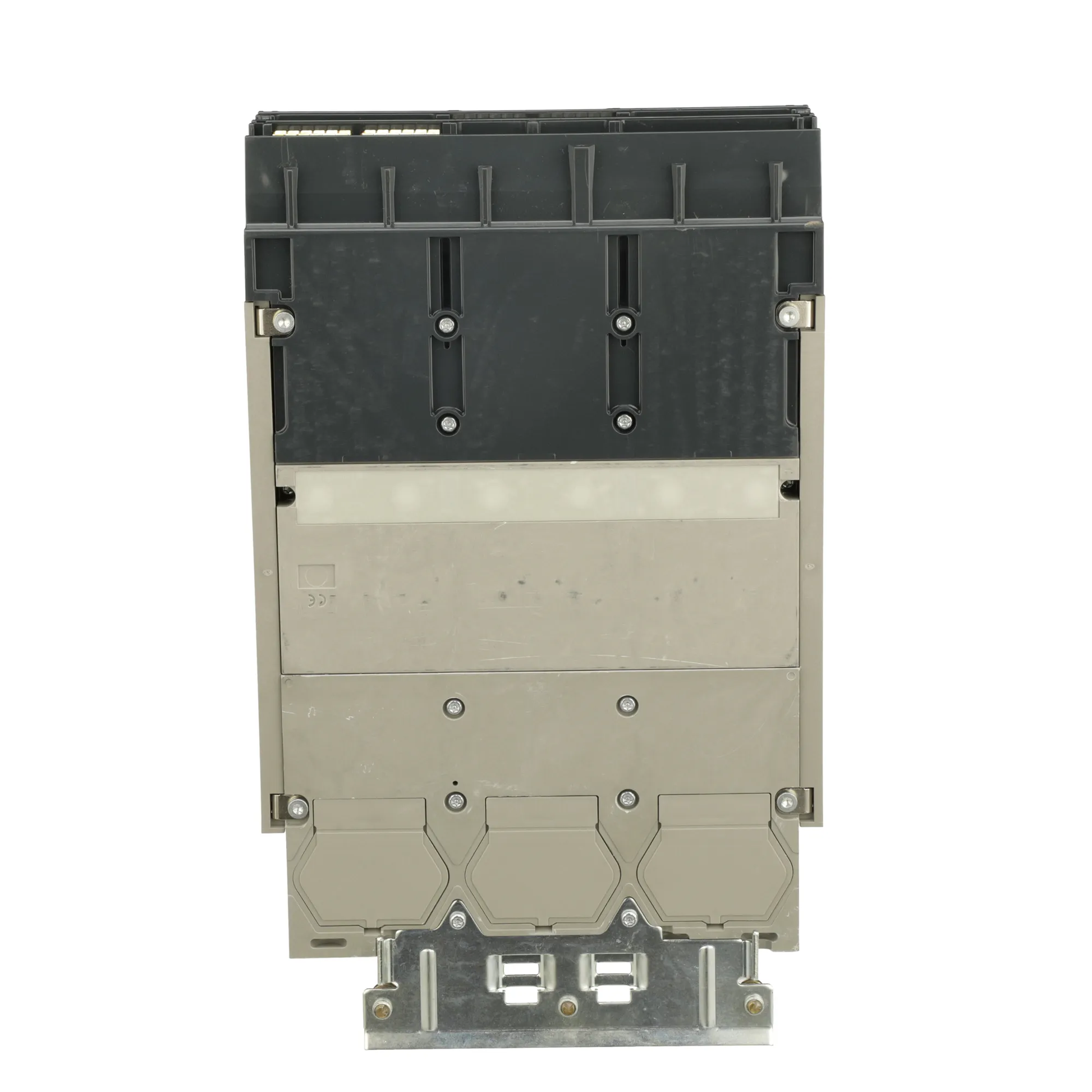

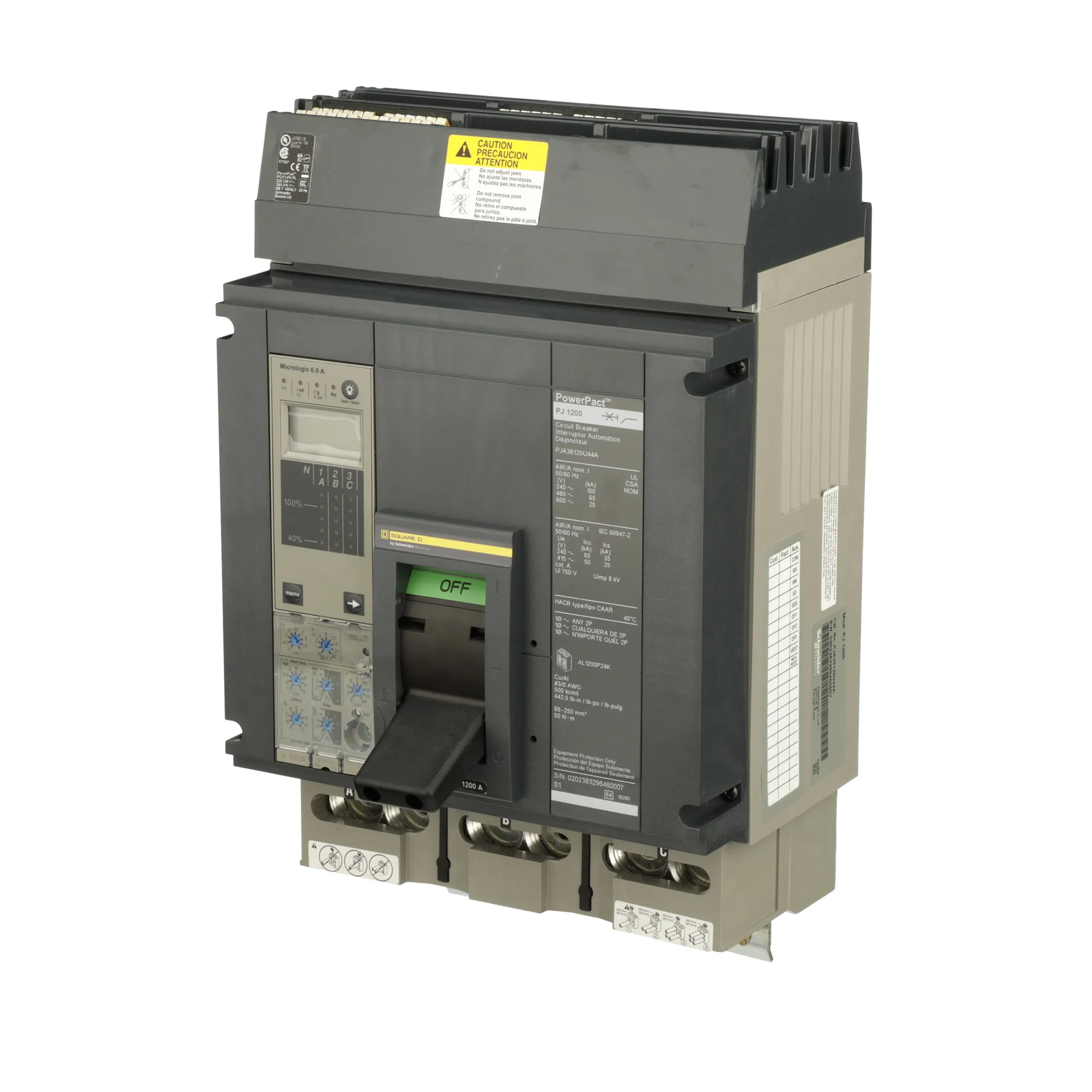

Square D PJA36120U44A Circuit Breaker | Powerpact PJA 600V 1200A
Square D PJA36120U44A Circuit Breaker | Powerpact PJA 600V 1200A
Price:
Sale
Sold out
Regular price
$9,329.76 USD
Regular price
$26,211.00 USD
Sale price
$9,329.76 USD
Unit price
per
Shipping calculated at checkout.
Stock:
17 in stock
Couldn't load pickup availability
Product Description:
The Square D PJA36120U44A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 1200A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection with LSIG functions (Long-Time, Short-Time, Instantaneous, and Ground Fault).
Key Features:
✔ Part Number: PJA36120U44A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PJA
✔ Voltage: 600V
✔ Amperage: 1200A
✔ Certification: UL, CSA, IEC
✔ UPC: 785901282273
✔ GTIN: 00785901282273
✔ Phase: 3
✔ Poles: 3
✔ Connection: I-Line Style Plug-In
✔ Frame Size: P Frame
✔ Wire Size: AWG 3/0, 500KCmil Aluminum/Copper
The Square D PJA36120U44A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 1200A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection with LSIG functions (Long-Time, Short-Time, Instantaneous, and Ground Fault).
Key Features:
✔ Part Number: PJA36120U44A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PJA
✔ Voltage: 600V
✔ Amperage: 1200A
✔ Certification: UL, CSA, IEC
✔ UPC: 785901282273
✔ GTIN: 00785901282273
✔ Phase: 3
✔ Poles: 3
✔ Connection: I-Line Style Plug-In
✔ Frame Size: P Frame
✔ Wire Size: AWG 3/0, 500KCmil Aluminum/Copper
