Product Description:

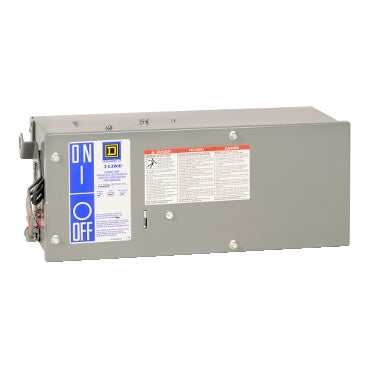

The Square D PJG36175GN is a 3-phase, 4-wire, 600V busway switch rated for 175A. It is a breaker-type bus plug from the I-Line series with an AIC rating of 35kA@480V. The plug features a compact design and is UL and CSA certified for safety and compliance.
Key Features:
✔ Part Number: PJG36175GN
✔ Manufacturer: Square D
✔ Category: Bus Plug
✔ Subcategory: Breaker Type
✔ Family: I-Line
✔ Type: PJG
✔ Voltage: 600V
✔ Amperage: 175A
✔ Phase: 3
✔ AIC Rating: 35kA@480V
✔ Wire: 4
✔ Certification: UL listed file E22182 - CSA C22.2 No 27
✔ UPC: 606487115925
✔ GTIN: 03606490000000
✔ Dimensions: 8.50 in (H) x 3.09 in (D) x 4.44 in (W)
✔ Weight: 14.52 lbs
