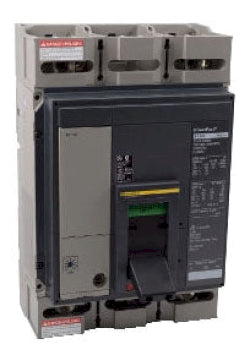

Square D PJL36080U31A Molded Case Circuit Breaker | 600V 800A 3P 65kA@480V Feed-Thru Powerpact

Product Description:
The Square D PJL36080U31A is a Powerpact family molded case circuit breaker designed for robust electrical protection. It features a 3-pole configuration rated for 800 amps and 600 volts, with a high interrupting capacity of 65kA at 480V. This breaker utilizes solid state protection and a feed-thru connection for reliable performance in industrial applications.

Key Features:
✔ Part Number: PJL36080U31A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PJL
✔ Voltage: 600
✔ Amperage: 800
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: P Frame
✔ Protection: Solid State
✔ UPC: 785901982623
✔ GTIN: 00785901982623
✔ Country of Origin: Italy
✔ Dimensions: Height 16.16 in (410.46 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 14.52
✔ Wire Size: 3 x AWG 3/0...500 kcmil aluminum/copper
