Square D PJL36100U31A Molded Case | 600V 1000A 3P 65kA@480V Feed-Thru Powerpact
Square D PJL36100U31A Molded Case | 600V 1000A 3P 65kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$11,684.78 USD
Regular price
$21,038.00 USD
Sale price
$11,684.78 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 4 left
Couldn't load pickup availability
Product Description:

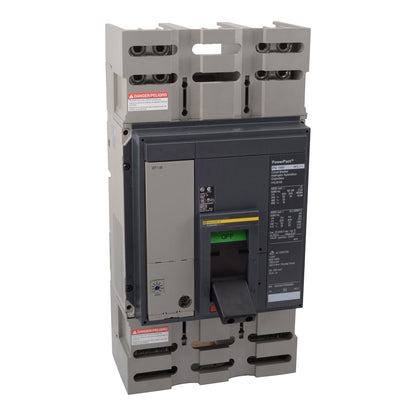

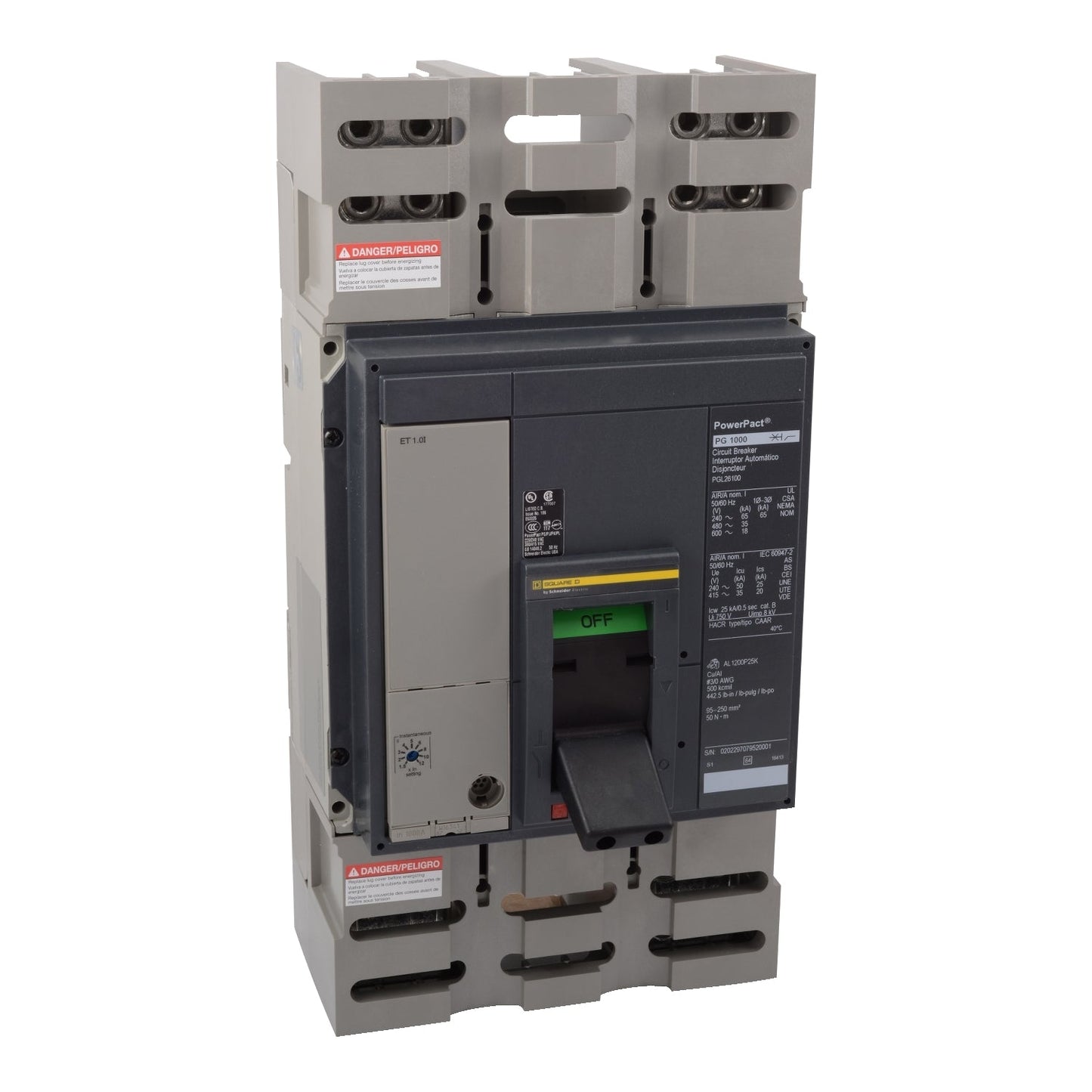

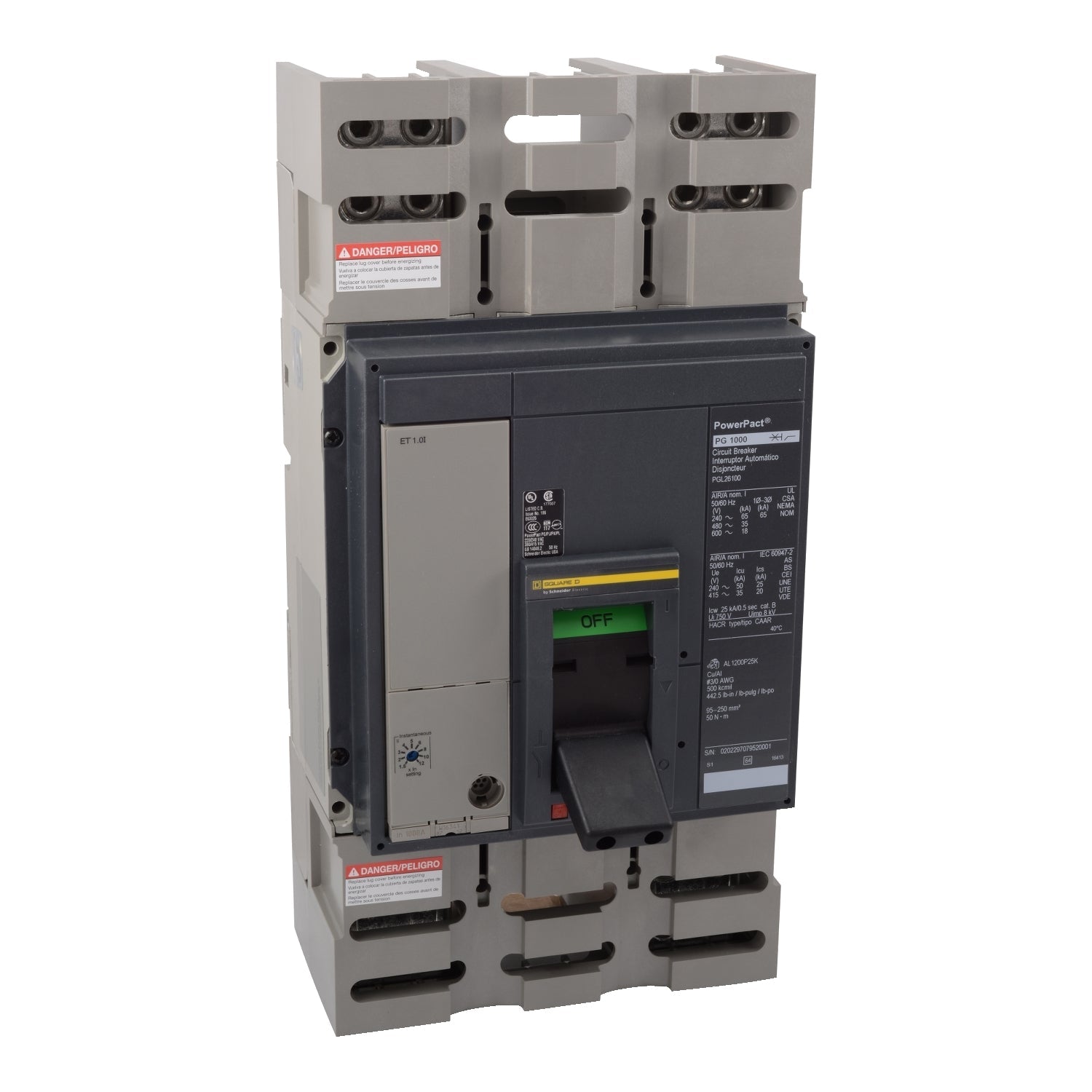

This Square D Powerpact PJL molded case circuit breaker is designed for heavy-duty electrical distribution systems. It is rated for 1000A at 600V in a 3-phase configuration, providing reliable circuit protection. The feed-thru connection and 65kA interrupting capacity make it suitable for industrial and commercial applications.
Key Features:
✔ Part Number: PJL36100U31A
✔ Manufacturer: Square D
✔ Category: Distribution Equipment
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PJL
✔ Voltage: 600
✔ Amperage: 1000
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ UPC: 785901869474
✔ Dimensions: 8.1 in L x 8.3 in W x 16.2 in H
✔ Weight: 14.52 lb
This Square D Powerpact PJL molded case circuit breaker is designed for heavy-duty electrical distribution systems. It is rated for 1000A at 600V in a 3-phase configuration, providing reliable circuit protection. The feed-thru connection and 65kA interrupting capacity make it suitable for industrial and commercial applications.
Key Features:
✔ Part Number: PJL36100U31A
✔ Manufacturer: Square D
✔ Category: Distribution Equipment
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PJL
✔ Voltage: 600
✔ Amperage: 1000
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ UPC: 785901869474
✔ Dimensions: 8.1 in L x 8.3 in W x 16.2 in H
✔ Weight: 14.52 lb
