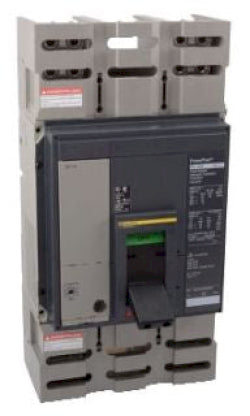

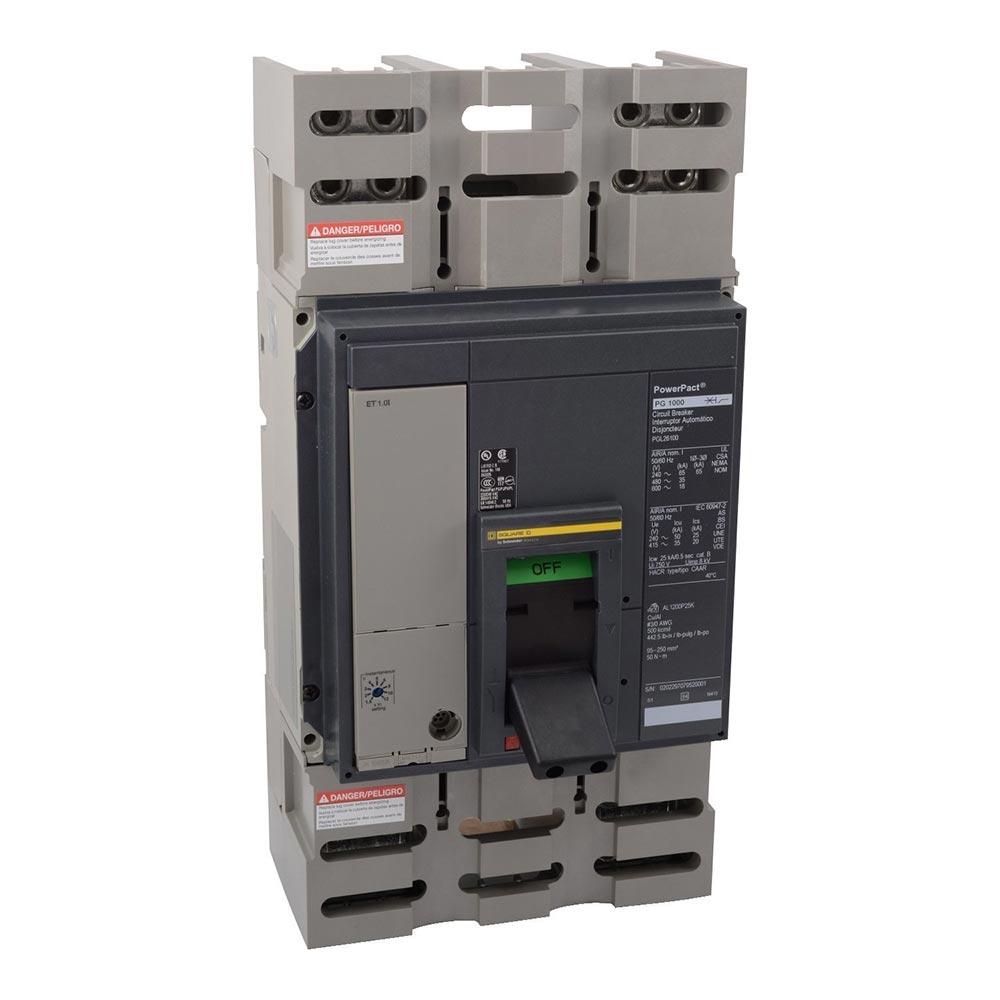

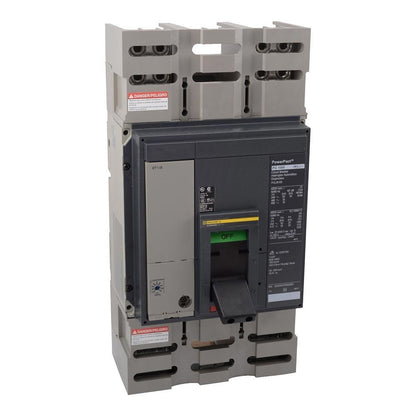

Square D PJL36120 Circuit Breaker | Powerpact PJL 600V 1200A

Product Description:
The Square D PJL36120 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 1200A rating and an AIC rating of 65kA@480V. This breaker includes solid-state protection and uses a feed-thru connection. It is designed for industrial and commercial applications.

Key Features:
✔ Part Number: PJL36120
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PJL
✔ Voltage: 600V
✔ Amperage: 1200A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: P Frame
✔ Temp Rating: 28-158 °F (-2-70 °C)
✔ Wire Size: 4 x AWG 3/0...500 kcmil aluminum/copper
✔ Certification: BS, CCC, CEI, CSA, IEC, NEMA, NMX, UL, UNE, UTE, VDE
