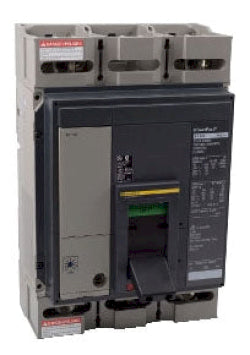

Square D PJL36120M70 Molded Case Circuit Breaker | 600V 1200A 3P 65kA@480V Feed-Thru Powerpact
Square D PJL36120M70 Molded Case Circuit Breaker | 600V 1200A 3P 65kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$10,106.60 USD
Regular price
$0.00 USD
Sale price
$10,106.60 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D PJL36120M70 is a Powerpact family Molded Case Circuit Breaker. This 3-pole breaker is rated for 1200 amps and 600 volts, with an interrupting capacity of 65kA at 480V. It features a feed-thru connection and magnetic-only protection for reliable circuit interruption.
Key Features:
✔ Part Number: PJL36120M70
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PJL
✔ Voltage: 600
✔ Amperage: 1200
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: I - Instantaneous
✔ Frame Size: P Frame
✔ Protection: Magnetic Only
✔ UPC: 762179036364
✔ Dimensions: Height 16.16 in (410.46 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 37
✔ Wire Size: 4 x AWG 3/0...500 kcmil aluminum/copper
The Square D PJL36120M70 is a Powerpact family Molded Case Circuit Breaker. This 3-pole breaker is rated for 1200 amps and 600 volts, with an interrupting capacity of 65kA at 480V. It features a feed-thru connection and magnetic-only protection for reliable circuit interruption.
