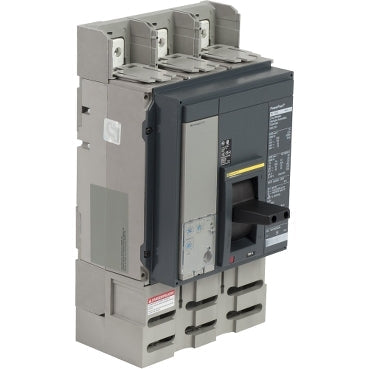

Square D PJP36100U44A Molded Case Circuit Breaker | 600V 1000A 3P 65kA@480V LSIG Bolt-On Powerpact

Product Description:
The Square D PJP36100U44A is a Molded Case Circuit Breaker from the Powerpact family. This 3-pole breaker is rated for 1000 amps and 600 volts, with an interrupting capacity of 65kA at 480V. It features a bolt-on connection and solid-state protection with LSIG functions.

Key Features:
✔ Part Number: PJP36100U44A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PJP
✔ Voltage: 600
✔ Amperage: 1000
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Frame Size: P Frame
✔ Protection: Solid State
✔ UPC: 762179036494
✔ Dimensions: Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 16.16 in (410.46 mm)
✔ Weight: 37
