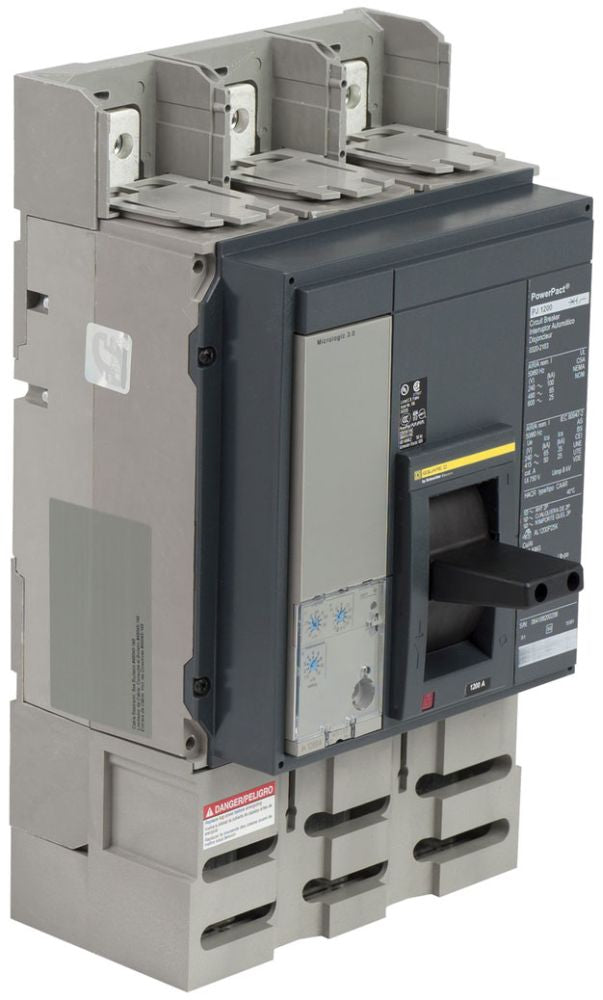

Square D PJP36120U31E Circuit Breaker | Powerpact PJP 600V 1200A

Product Description:
The Square D PJP36120U31E is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 1200A current rating with a 65kA@480V AIC rating. This breaker uses a Bolt-On connection and includes solid-state protection for reliable performance.

Key Features:
✔ Part Number: PJP36120U31E
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PJP
✔ Voltage: 600V
✔ Amperage: 1200A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: P Frame
✔ UPC: 060648628577
✔ GTIN: 03606486285770
✔ Depth: 8.05 in (204.47 mm)
✔ Width: 8.27 in (210.06 mm)
✔ Height: 16.16 in (410.46 mm)
✔ Weight: 34 lbs
