Square D PKL36000S60 Circuit Breaker | Powerpact PKL 600V 600A
Square D PKL36000S60 Circuit Breaker | Powerpact PKL 600V 600A
Price:
Sale
Sold out
Regular price
$9,170.81 USD
Regular price
$0.00 USD
Sale price
$9,170.81 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:

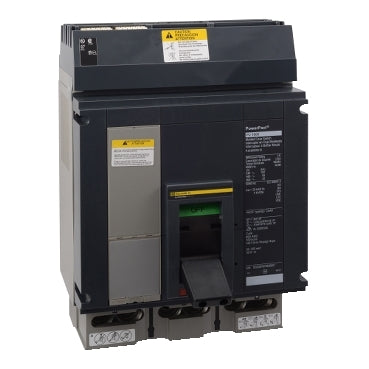

The Square D PKL36000S60 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 50kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Non-Automatic protection. It is UL listed, IEC, and CSA certified.
Key Features:
✔ Part Number: PKL36000S60
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PKL
✔ Voltage: 600V
✔ Amperage: 600A
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 50kA@480V
✔ Connection: Feed-Thru
✔ Functions: NA - No Overcurrent Protection
✔ Frame Size: P Frame
✔ Wire Size: 3 x AWG 3/0...500 kcmil (aluminum/copper)
✔ UPC: 060648628932
✔ GTIN: 03606486289327
✔ Dimensions: 16.24 x 3.09 x 4.44 in (412.50
