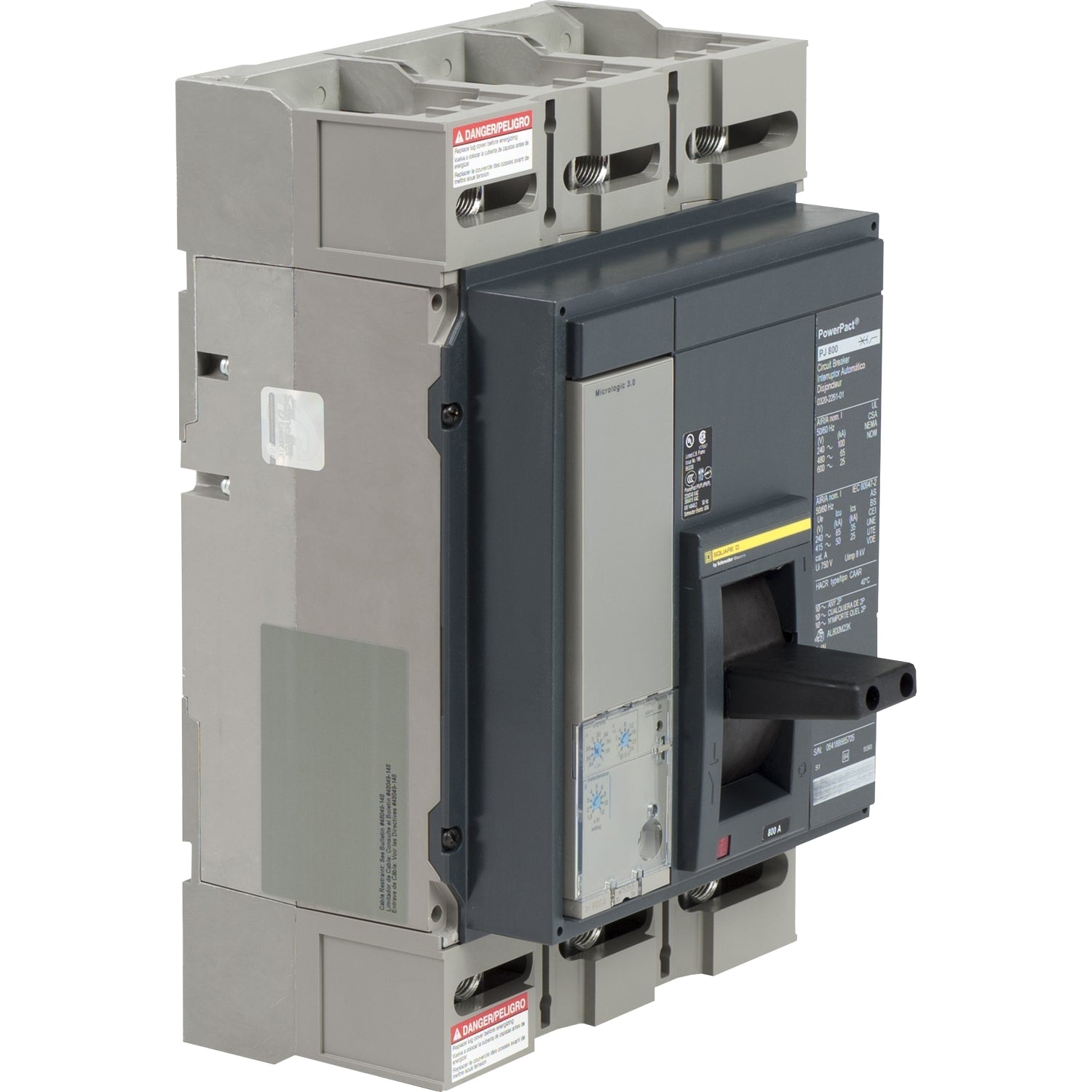

Square D PKL36060CU31A Circuit Breaker | Powerpact PKL 600V 600A
Square D PKL36060CU31A Circuit Breaker | Powerpact PKL 600V 600A
Price:
Sale
Sold out
Regular price
$13,974.08 USD
Regular price
$0.00 USD
Sale price
$13,974.08 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D PKL36060CU31A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 50kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: PKL36060CU31A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PKL
✔ Voltage: 600V
✔ Amperage: 600A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 50kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: P Frame
✔ Temp Rating: 28-158 °F (-2-70 °C)
✔ Dimensions: 12.86 x 3.09 x 4.44 in (326.64 x 78.49 x 112.78 mm)
✔ Weight: 32 lbs
✔ Wire Size: 3 x AWG 3/0...500
The Square D PKL36060CU31A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 50kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: PKL36060CU31A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PKL
✔ Voltage: 600V
✔ Amperage: 600A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 50kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: P Frame
✔ Temp Rating: 28-158 °F (-2-70 °C)
✔ Dimensions: 12.86 x 3.09 x 4.44 in (326.64 x 78.49 x 112.78 mm)
✔ Weight: 32 lbs
✔ Wire Size: 3 x AWG 3/0...500
