Square D PLM34120CU44A Circuit Breaker | Powerpact PLM 480V 1200A
Square D PLM34120CU44A Circuit Breaker | Powerpact PLM 480V 1200A
Price:
Sale
Sold out
Regular price
$13,767.84 USD
Regular price
$38,270.00 USD
Sale price
$13,767.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:

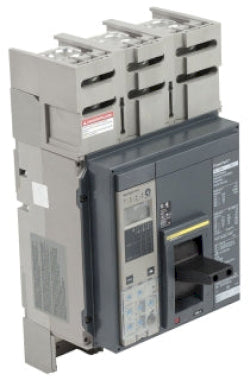

The Square D PLM34120CU44A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 480V, 1200A rating and a 100kA@480V AIC rating. This breaker includes solid-state protection and uses a bolt-on connection for secure installation.
Key Features:
✔ Part Number: PLM34120CU44A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PLM
✔ Voltage: 480V
✔ Amperage: 1200A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 100kA@480V
✔ Connection: Bolt-On
✔ Functions: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
✔ Terminal Connection: Lug, Terminal Nut
✔ Frame Size: P
✔ MCM Size: Min. Wire Size (4) 3/0 AWG (Cu/Al), Max. Wire Size 500 kcmil (Cu/Al)
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ UPC: 785901779186
