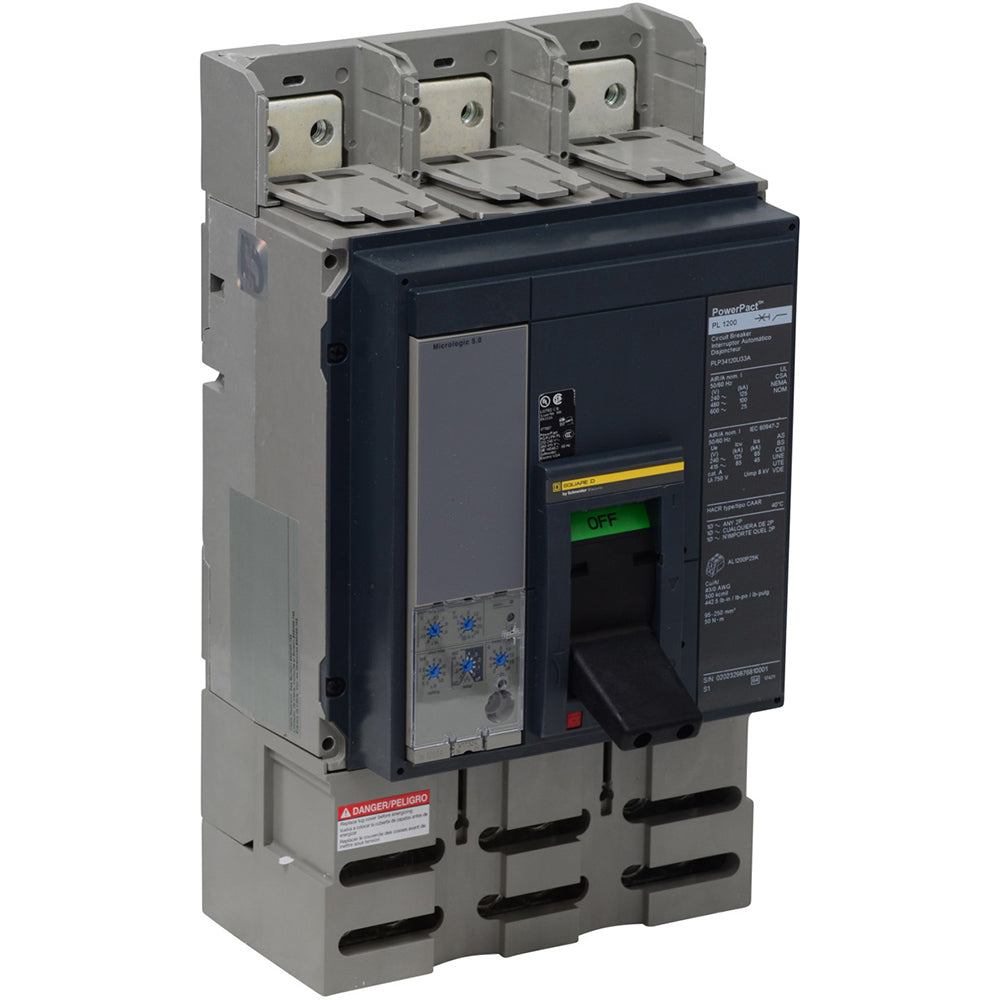

Square D PLP34120U33A Circuit Breaker | Powerpact PLP 480V 1200A
Square D PLP34120U33A Circuit Breaker | Powerpact PLP 480V 1200A
Price:
Sale
Sold out
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D PLP34120U33A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 480V, 1200A rating and a 100kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Solid State protection with LSI functions. Its frame size is P Frame, and it has compact dimensions for easy installation.
Key Features:
✔ Part Number: PLP34120U33A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PLP
✔ Voltage: 480V
✔ Amperage: 1200A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 100kA@480V
✔ Connection: Bolt-On
✔ Functions: LSI (Long-Time, Short-Time, Instantaneous)
✔ Frame Size: P Frame
✔ Dimensions: 8.05 in (Depth) x 8.27 in (Width) x 16.16 in (Height)
✔ Weight: 34 lbs
The Square D PLP34120U33A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 480V, 1200A rating and a 100kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Solid State protection with LSI functions. Its frame size is P Frame, and it has compact dimensions for easy installation.
Key Features:
✔ Part Number: PLP34120U33A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PLP
✔ Voltage: 480V
✔ Amperage: 1200A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 100kA@480V
✔ Connection: Bolt-On
✔ Functions: LSI (Long-Time, Short-Time, Instantaneous)
✔ Frame Size: P Frame
✔ Dimensions: 8.05 in (Depth) x 8.27 in (Width) x 16.16 in (Height)
✔ Weight: 34 lbs
