Square D PQ3620G Bus Plug | 200A 600VAC 3P Fusible I-Line

Product Description:

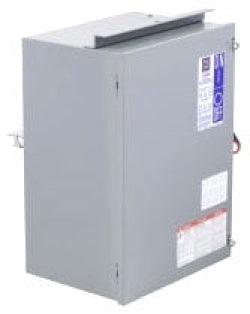

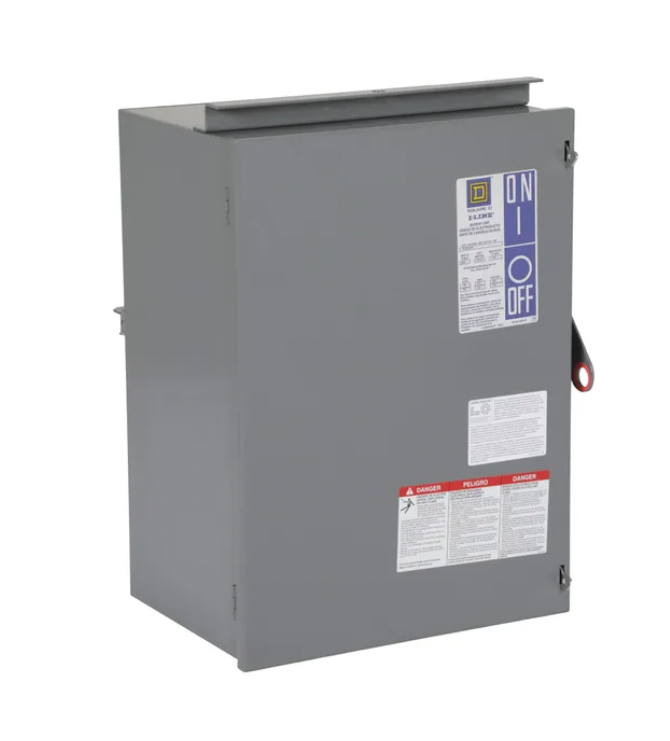

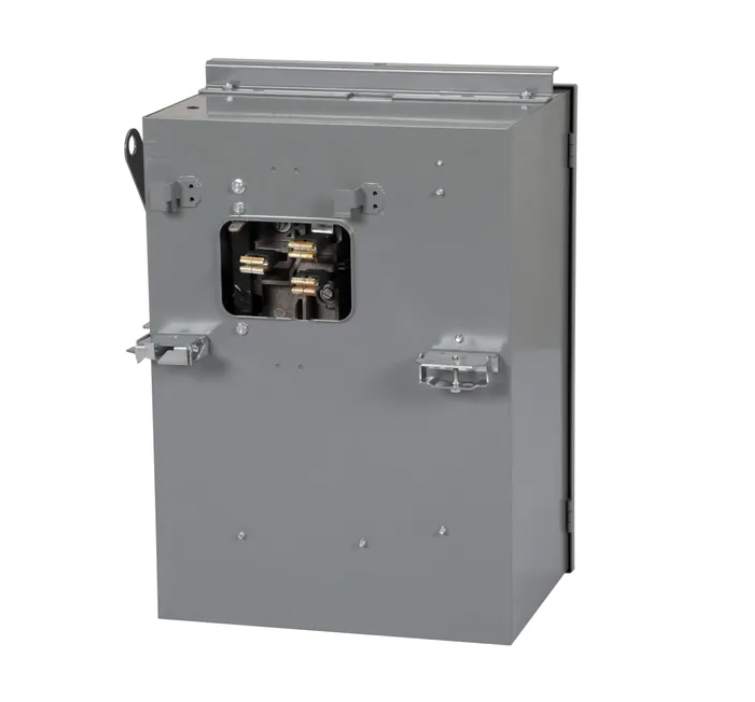

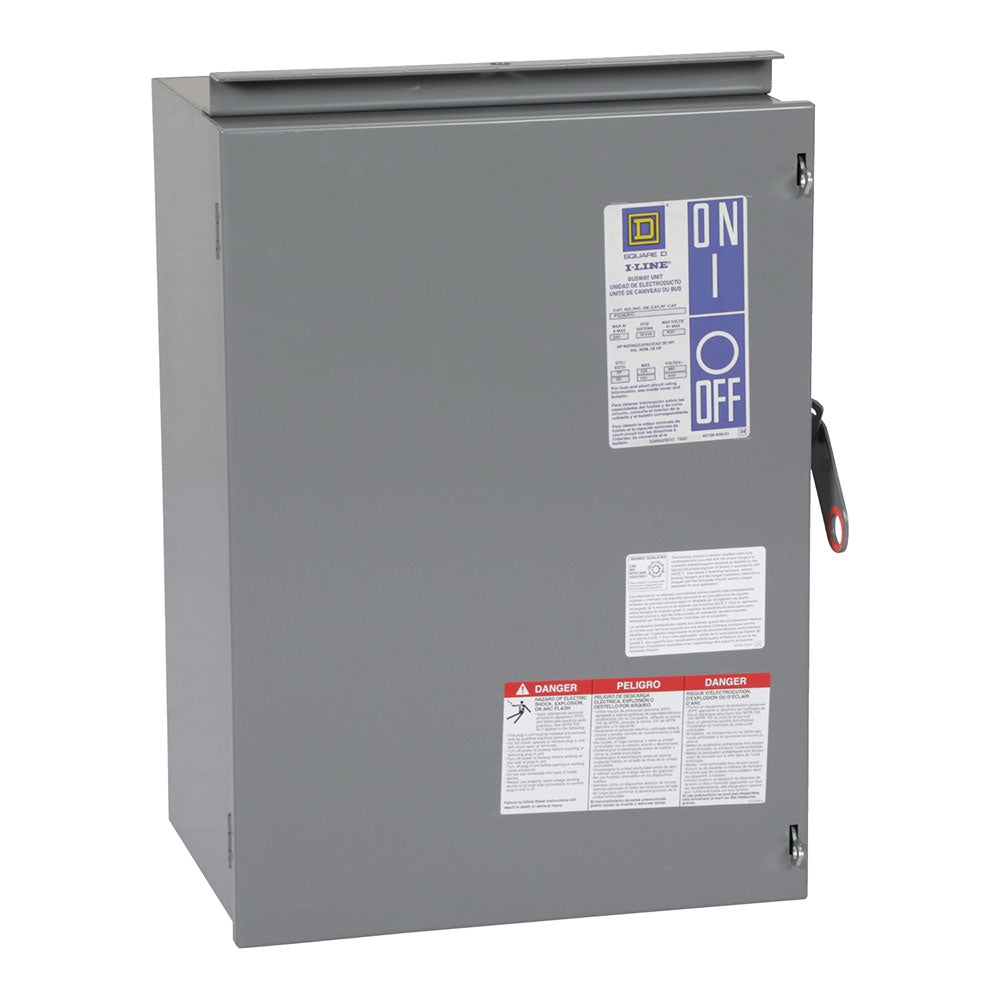

The Square D PQ3620G is a 3-phase, 3-wire fusible bus plug designed for 600 AC Volt busway systems. It is rated for 200 Amps and belongs to the I-Line series with a type PQ classification. This bus plug supports H, K, J, and R fuse types and offers an AIC rating of 200kA at 480V.

Key Features:
✔ Part Number: PQ3620G
✔ Manufacturer: Square D
✔ Category: Bus Plug
✔ Subcategory: Fusible
✔ Family: I-Line
✔ Type: PQ
✔ Voltage: 600 AC
✔ Amperage: 200
✔ Phase: 3
✔ AIC Rating: 200kA@480V
✔ Fuse Class: H, K, J, R
✔ Wire: 3
✔ UPC: 785901263937
✔ GTIN: 00785901263937
✔ Country of Origin: Mexico
✔ Dimensions: 22-1/2 in x 16-13/64 in
✔ Weight: 30.84 lb
✔ Certification: CSA Certified, UL Listed
