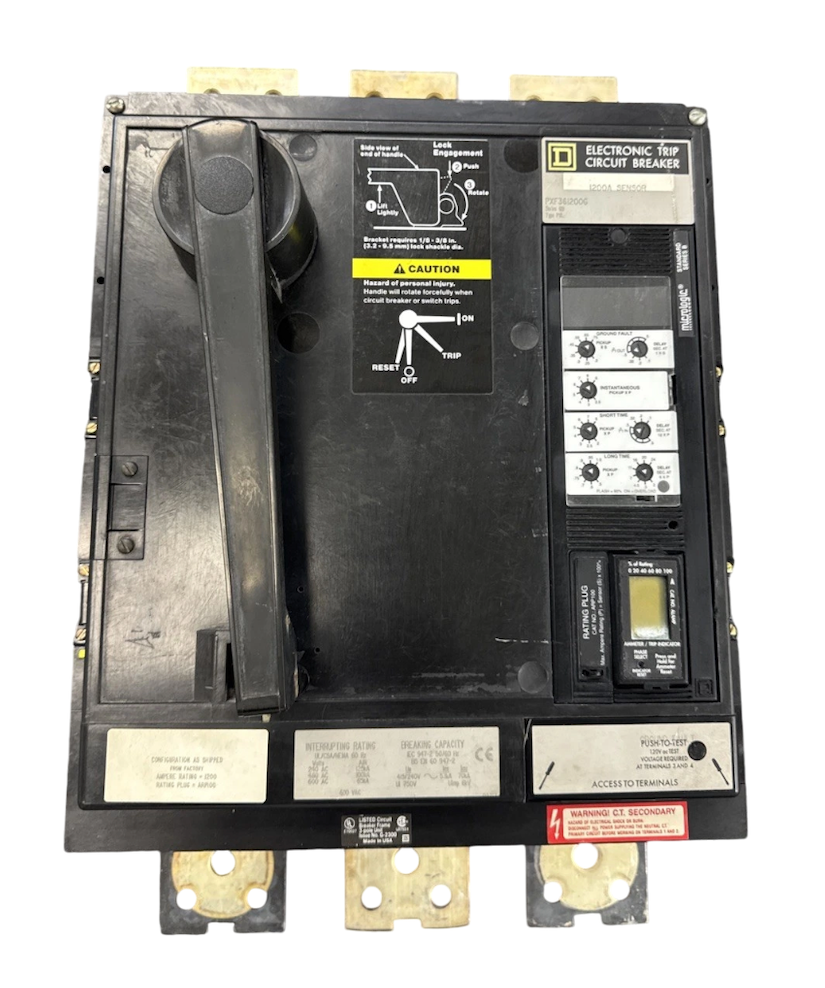

Square D PXF36600Z Molded Case Circuit Breaker | 600V 600A 3P 100kA@480V Bolt-On Micrologic
Square D PXF36600Z Molded Case Circuit Breaker | 600V 600A 3P 100kA@480V Bolt-On Micrologic
Price:
Sale
Sold out
Regular price
$9,703.17 USD
Regular price
Sale price
$9,703.17 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D PXF36600Z is a Molded Case Circuit Breaker from the Micrologic family. This 3-pole breaker is rated for 600 amps and 600 volts, with an interrupting capacity of 100kA at 480V. It features solid-state protection with Long-Time, Short-Time, and Instantaneous (LSI) functions and a bolt-on connection for secure installation.
Key Features:
✔ Part Number: PXF36600Z
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Micrologic
✔ Type: PXF
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@480V
✔ Connection: Bolt-On
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: PX Frame
✔ Protection: Solid State
✔ UPC: 762179037101
✔ Weight: 90
The Square D PXF36600Z is a Molded Case Circuit Breaker from the Micrologic family. This 3-pole breaker is rated for 600 amps and 600 volts, with an interrupting capacity of 100kA at 480V. It features solid-state protection with Long-Time, Short-Time, and Instantaneous (LSI) functions and a bolt-on connection for secure installation.
