Product Description:

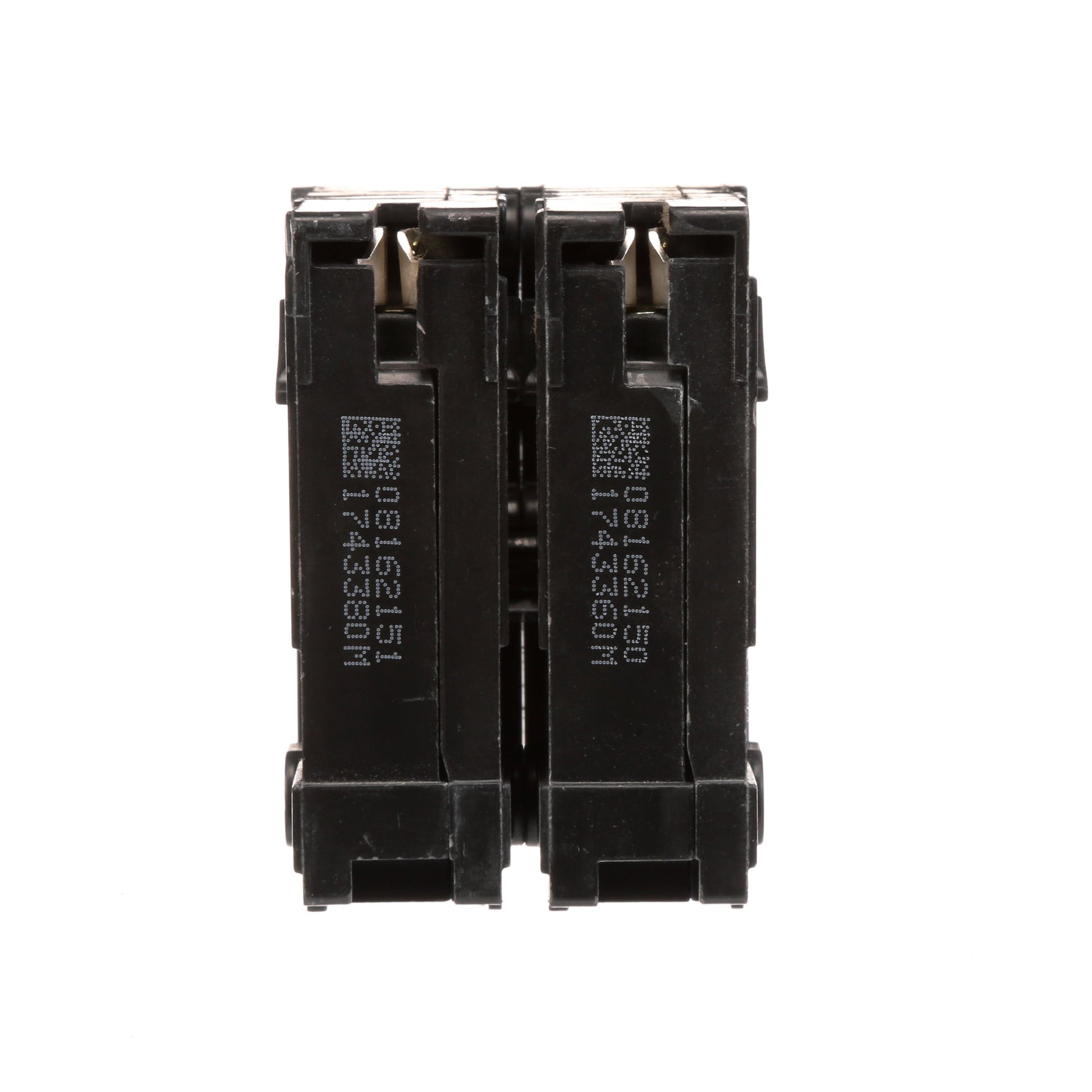

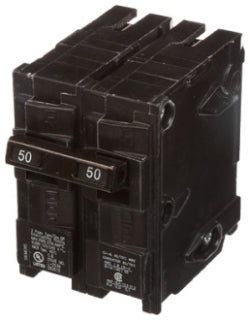

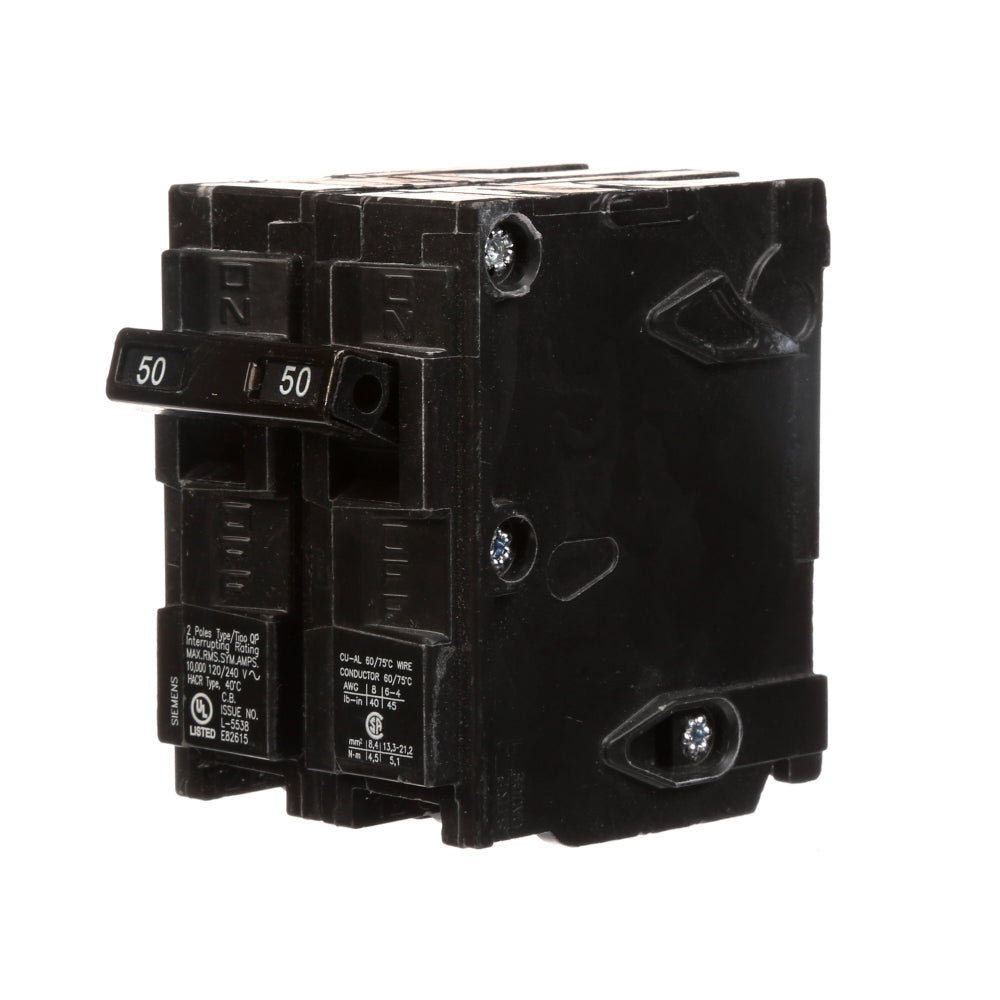

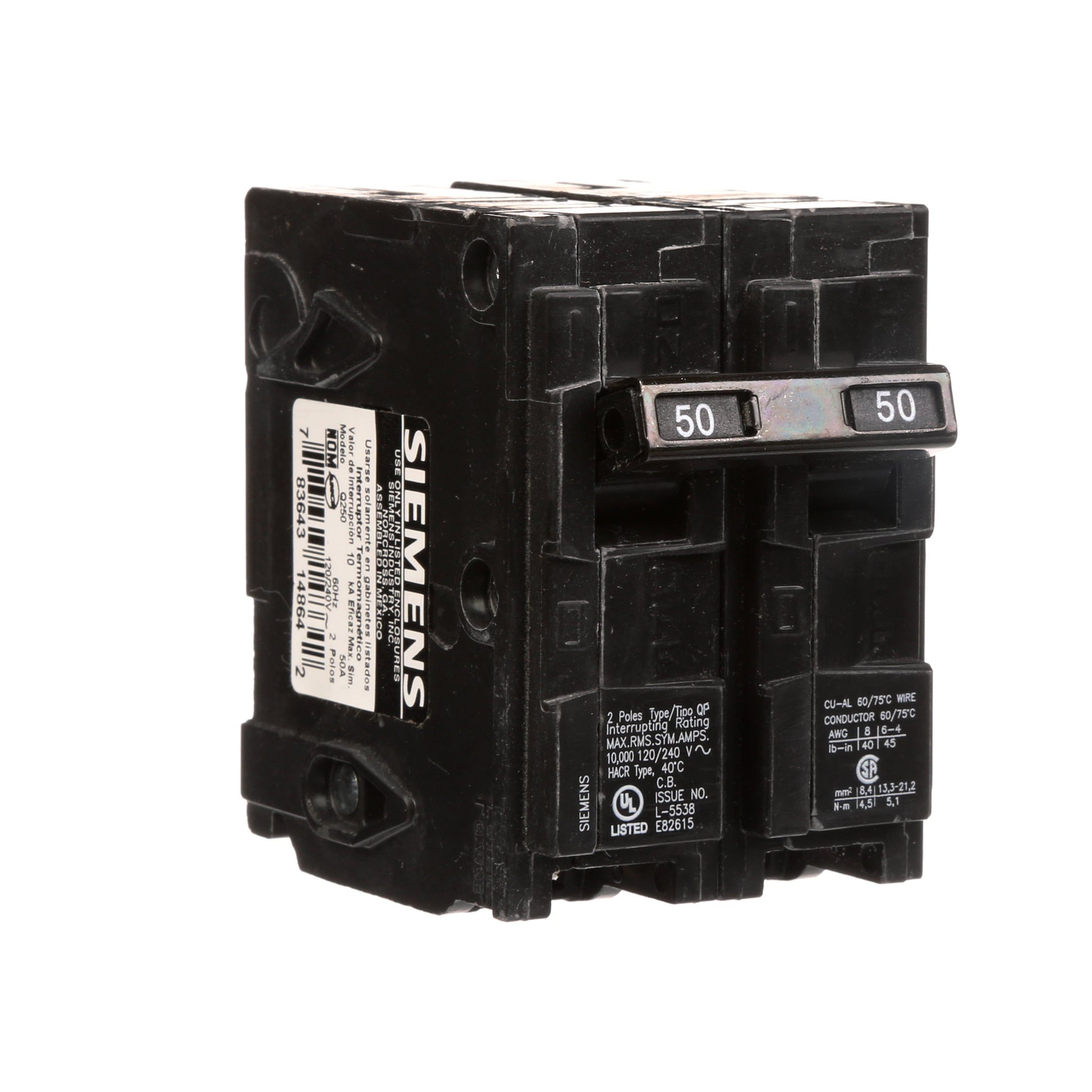

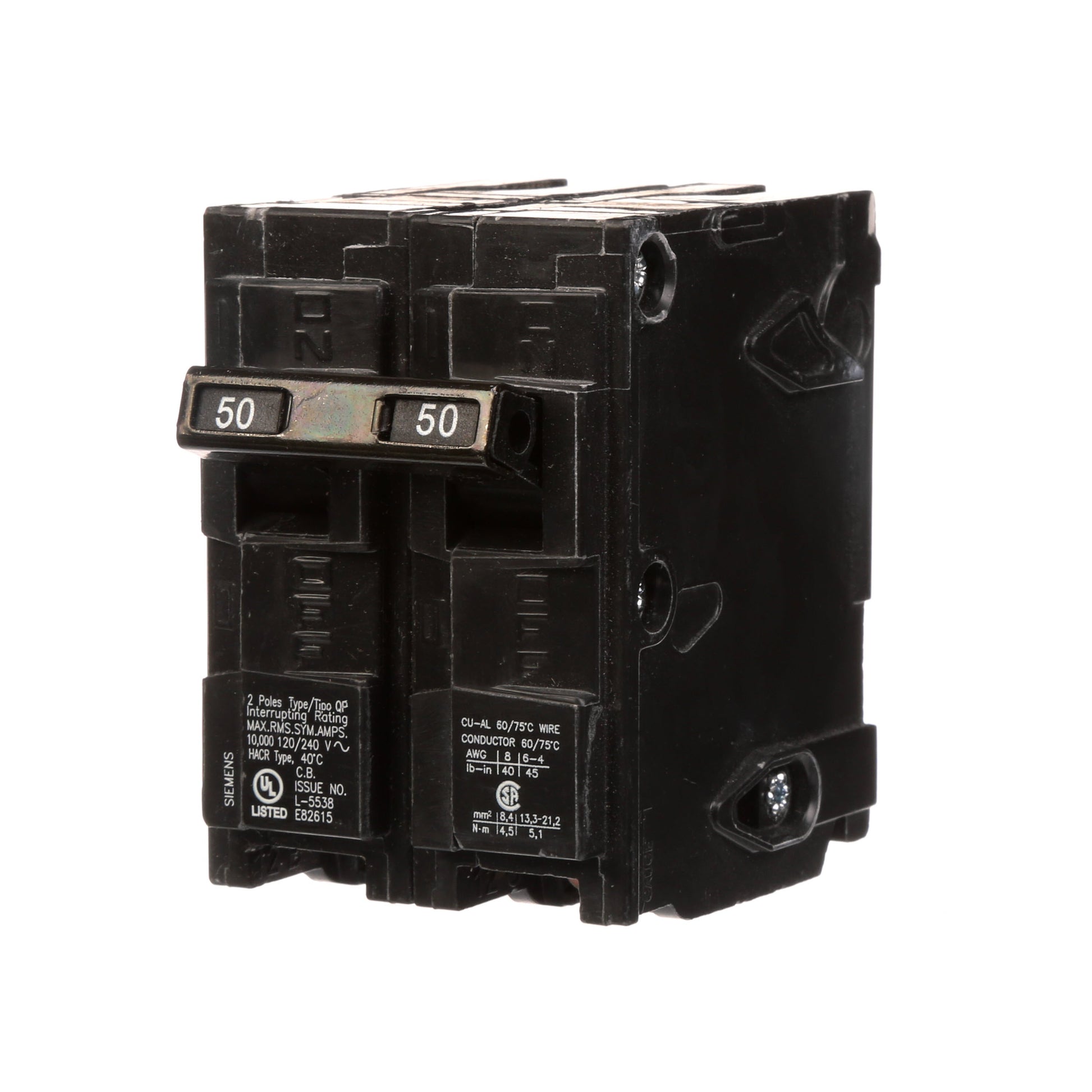

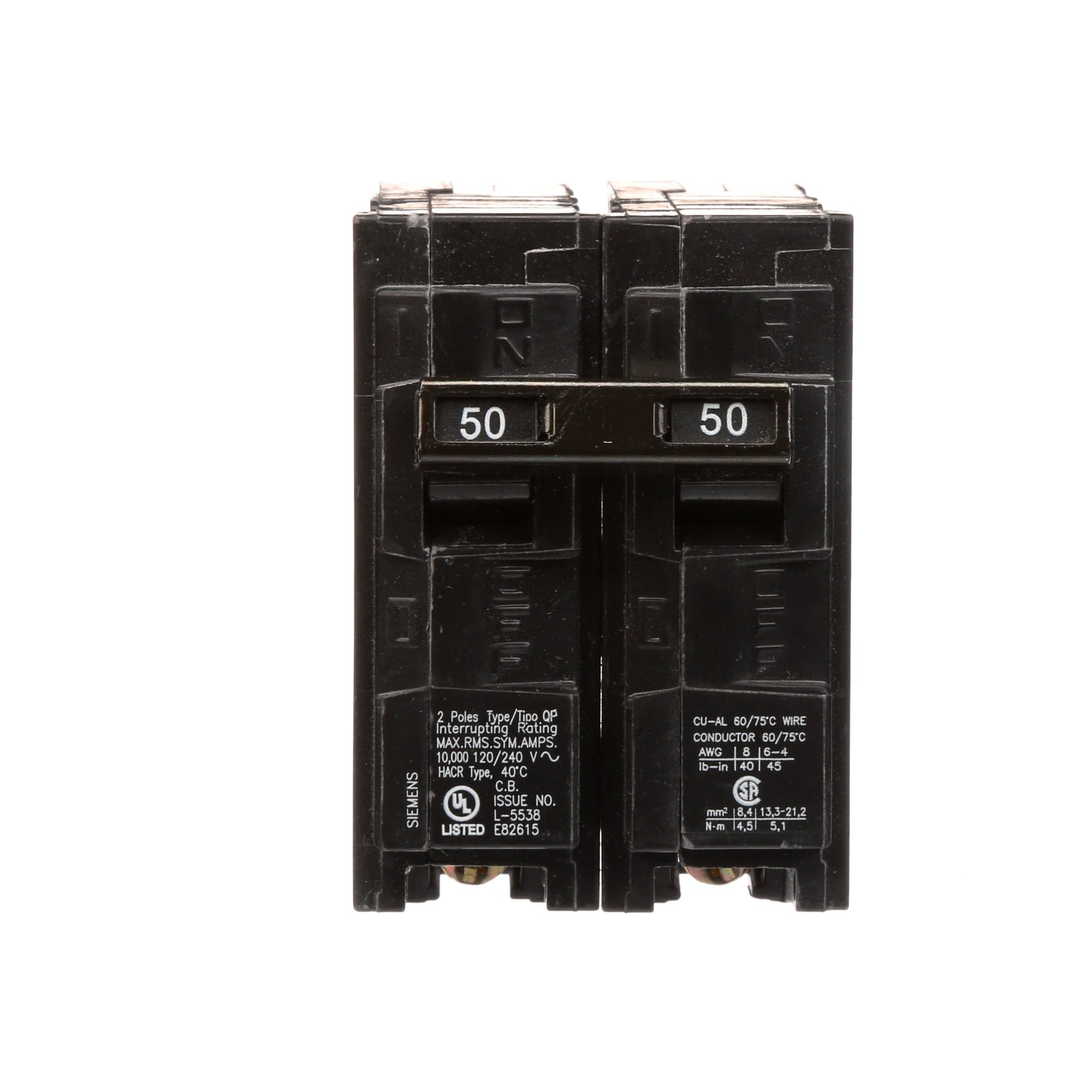

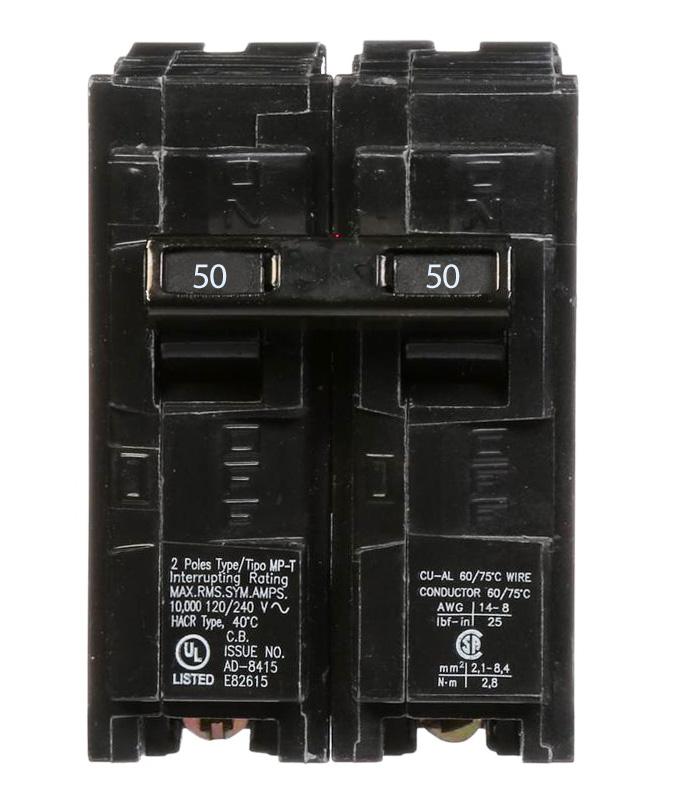

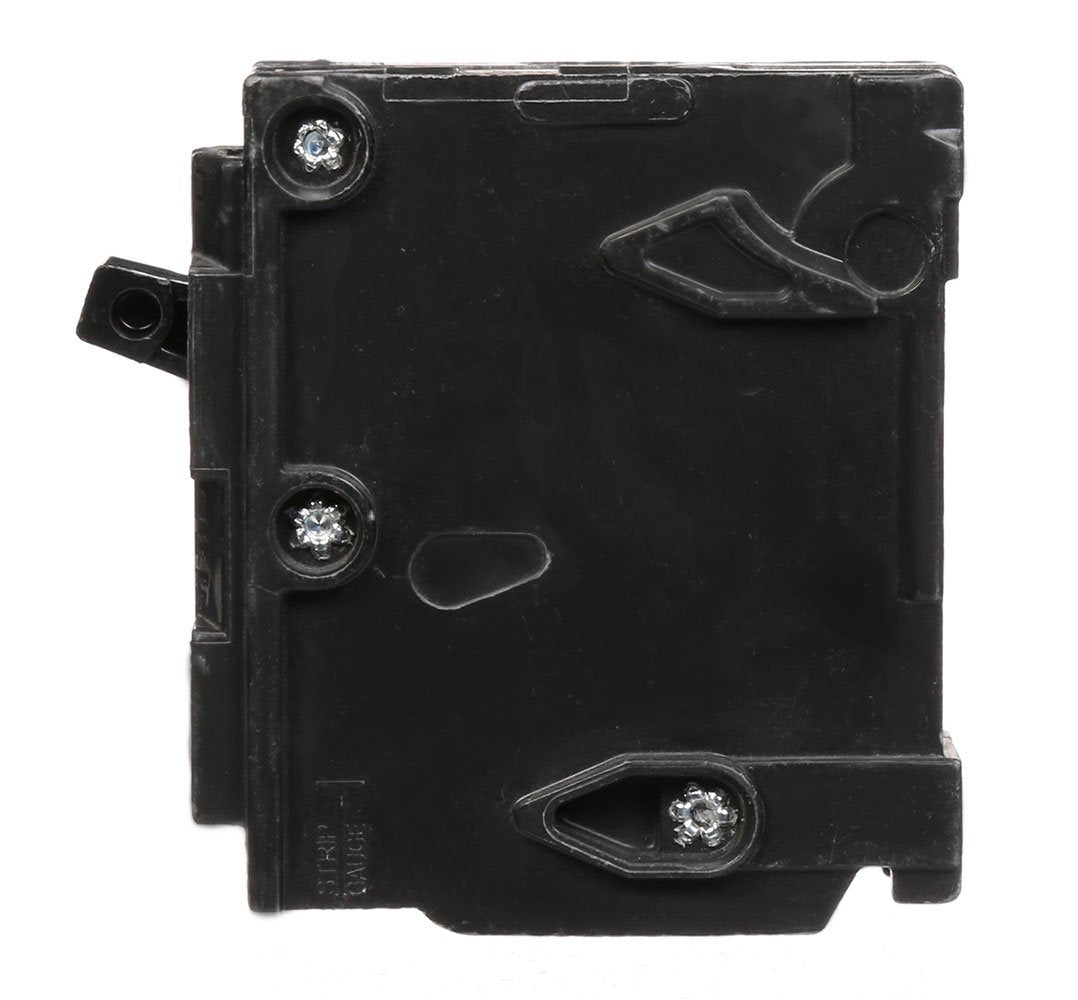

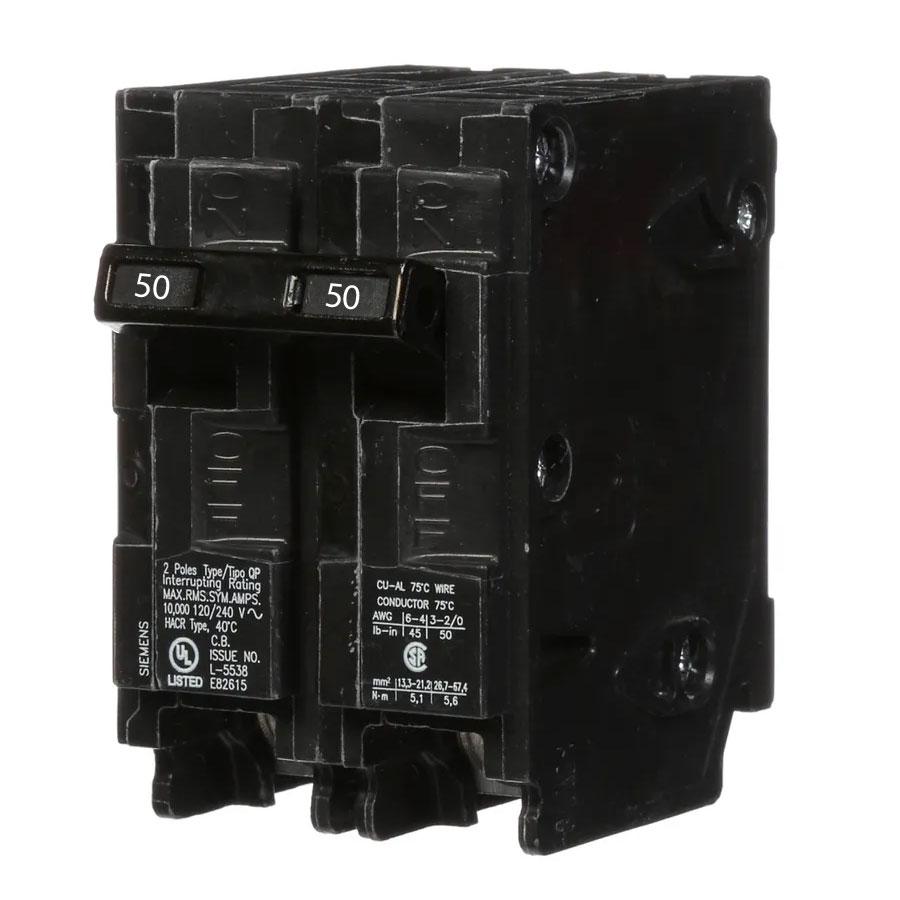

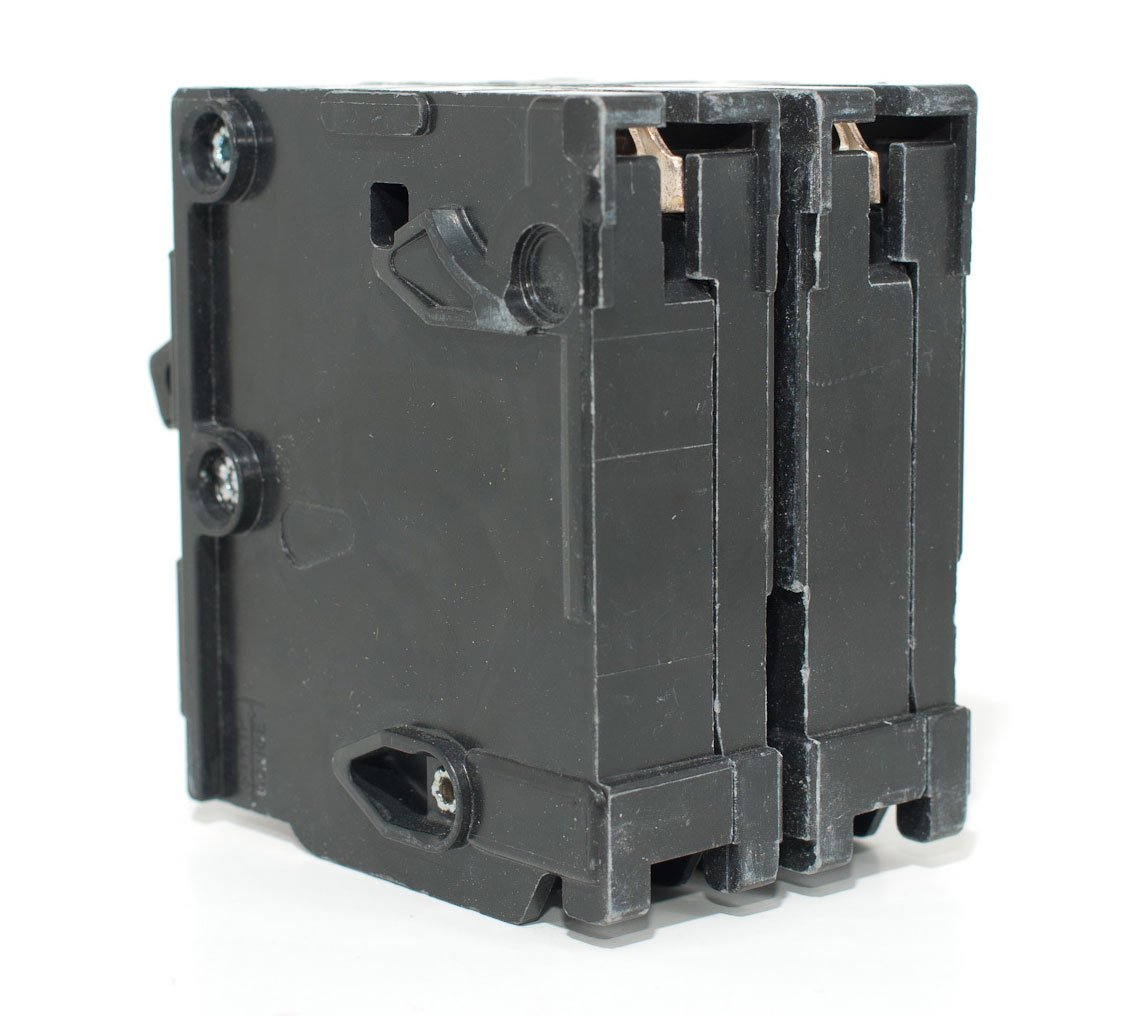

The Siemens Q250 is a Molded Case Circuit Breaker from the Q Series family. It features 2 poles, 120/240 VAC voltage, and a 50 amp rating with a 10kA@240V AIC rating. This QP-type breaker uses a plug-in connection and offers thermal magnetic protection. It is compatible with Siemens EQ Load Centers and is UL Listed.
Key Features:
✔ Part Number: Q250
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Q Series
✔ Type: QP
✔ Voltage: 120/240 VAC
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/QP
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643148642
✔ GTIN: 00783643148642
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 2 in x 2 in
✔ Weight: 1
✔ Panel Type: Siemens EQ Load Centers
✔ Standards: UL Listed
✔ Certification: UL Listed
