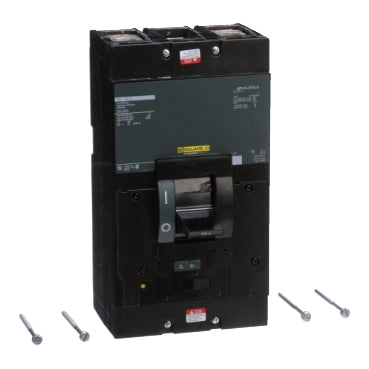

Square D Q4L2300 Molded Case Circuit Breaker | 240V 300A 2P 25kA@240V Bolt-On Q4L Series

Product Description:
The Square D Q4L2300 is a Molded Case Circuit Breaker from the Q4L Series. It is a 2-pole, 240 Volt, 300 amp rated breaker with a 25kA@240V AIC rating. This circuit breaker uses a Bolt-On connection and provides Thermal Magnetic protection. It is suitable for use in panelboards, switchboards, and motor control centers.

Key Features:
✔ Part Number: Q4L2300
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Q4L Series
✔ Type: Q4L
✔ Voltage: 240
✔ Amperage: 300
✔ Poles: 2
✔ AIC rating: 25kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 400A/Q4
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Not Applicable
✔ UPC: 785901649229
✔ GTIN: 00785901649229
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 11 in
✔ Weight: 6.6
✔ Panel Type: Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
✔ Standards: CSA, IEC, UL Listed
✔ Certification: CSA, IEC, UL Listed
