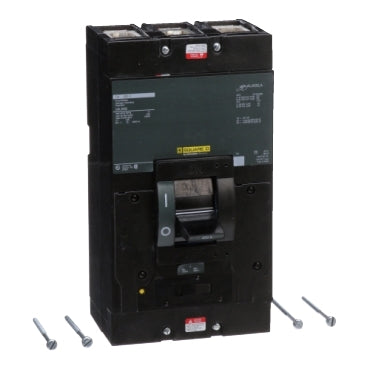

Square D Q4L3400 Circuit Breaker | 240V 400A 3P 25kA@240V Bolt-On Q4L Series
Square D Q4L3400 Circuit Breaker | 240V 400A 3P 25kA@240V Bolt-On Q4L Series
Price:
Sale
Sold out
Regular price
$2,854.21 USD
Regular price
$3,831.00 USD
Sale price
$2,854.21 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 4 left
Couldn't load pickup availability
Product Description:
The Square D Q4L3400 is a 3-pole molded case circuit breaker designed for 240V applications with a 400A rating. It features thermal magnetic protection and a bolt-on connection for secure installation. This breaker is suitable for use in panelboards, switchboards, and motor control centers, meeting CSA, IEC, and UL standards.
Key Features:
✔ Part Number: Q4L3400
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Q4L Series
✔ Type: Q4L
✔ Voltage: 240
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 25kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 400A/Q4
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901649281
✔ GTIN: 00785901649281
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 11 in
✔ Weight: 7.43
✔ Panel Type: Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
✔ Standards: CSA, IEC, UL Listed
✔ Certification: CSA, IEC, UL Listed
