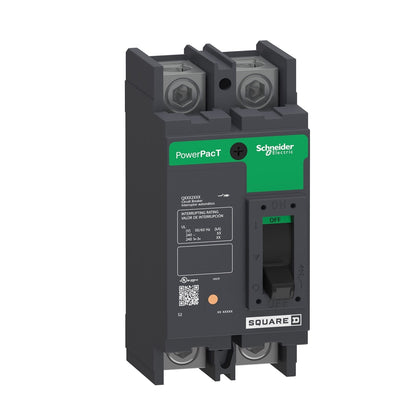

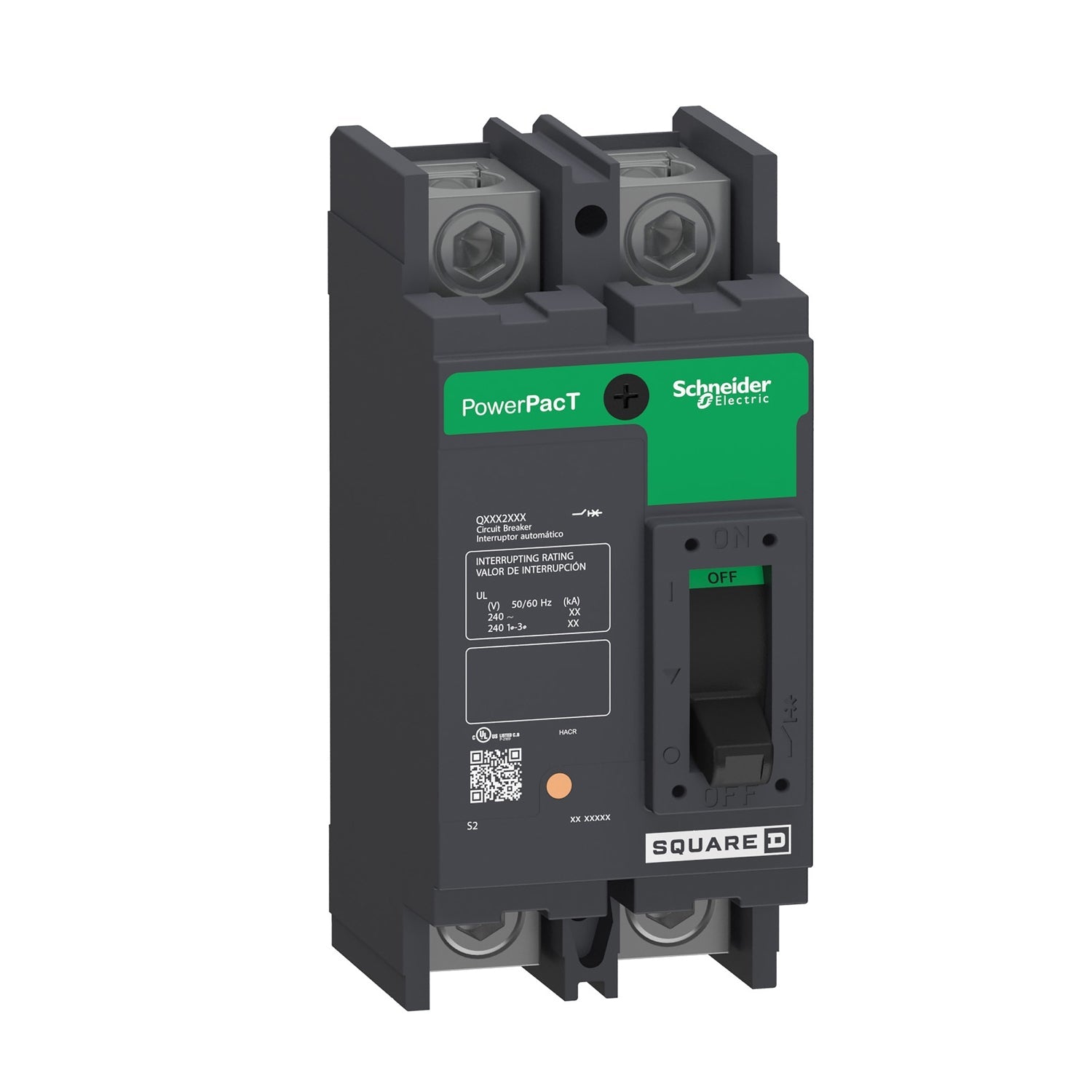

Square D QBL22090 Circuit Breaker | Powerpact QBL 240V 90A
Square D QBL22090 Circuit Breaker | Powerpact QBL 240V 90A
Price:
Sale
Sold out
Regular price
$299.39 USD
Regular price
$711.00 USD
Sale price
$299.39 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 2 left
Couldn't load pickup availability
Product Description:
The Square D QBL22090 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 240V, 90A breaker with a 10kA@240V AIC rating and Feed-Thru connection. It features Thermal Magnetic protection and operates within a temperature range of 104-158°F (40-70°C).
Key Features:
✔ Part Number: QBL22090
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QBL
✔ Voltage: 240V
✔ Amperage: 90A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: Q Frame
✔ Temp Rating: 104-158°F (40-70°C)
✔ UPC: 785901407584
✔ GTIN: 00785901407584
✔ Country of Origin: Mexico
✔ Dimensions: 6.47 x 3.09 x 4.44 in (164.34 x
The Square D QBL22090 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 240V, 90A breaker with a 10kA@240V AIC rating and Feed-Thru connection. It features Thermal Magnetic protection and operates within a temperature range of 104-158°F (40-70°C).
Key Features:
✔ Part Number: QBL22090
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QBL
✔ Voltage: 240V
✔ Amperage: 90A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: Q Frame
✔ Temp Rating: 104-158°F (40-70°C)
✔ UPC: 785901407584
✔ GTIN: 00785901407584
✔ Country of Origin: Mexico
✔ Dimensions: 6.47 x 3.09 x 4.44 in (164.34 x
