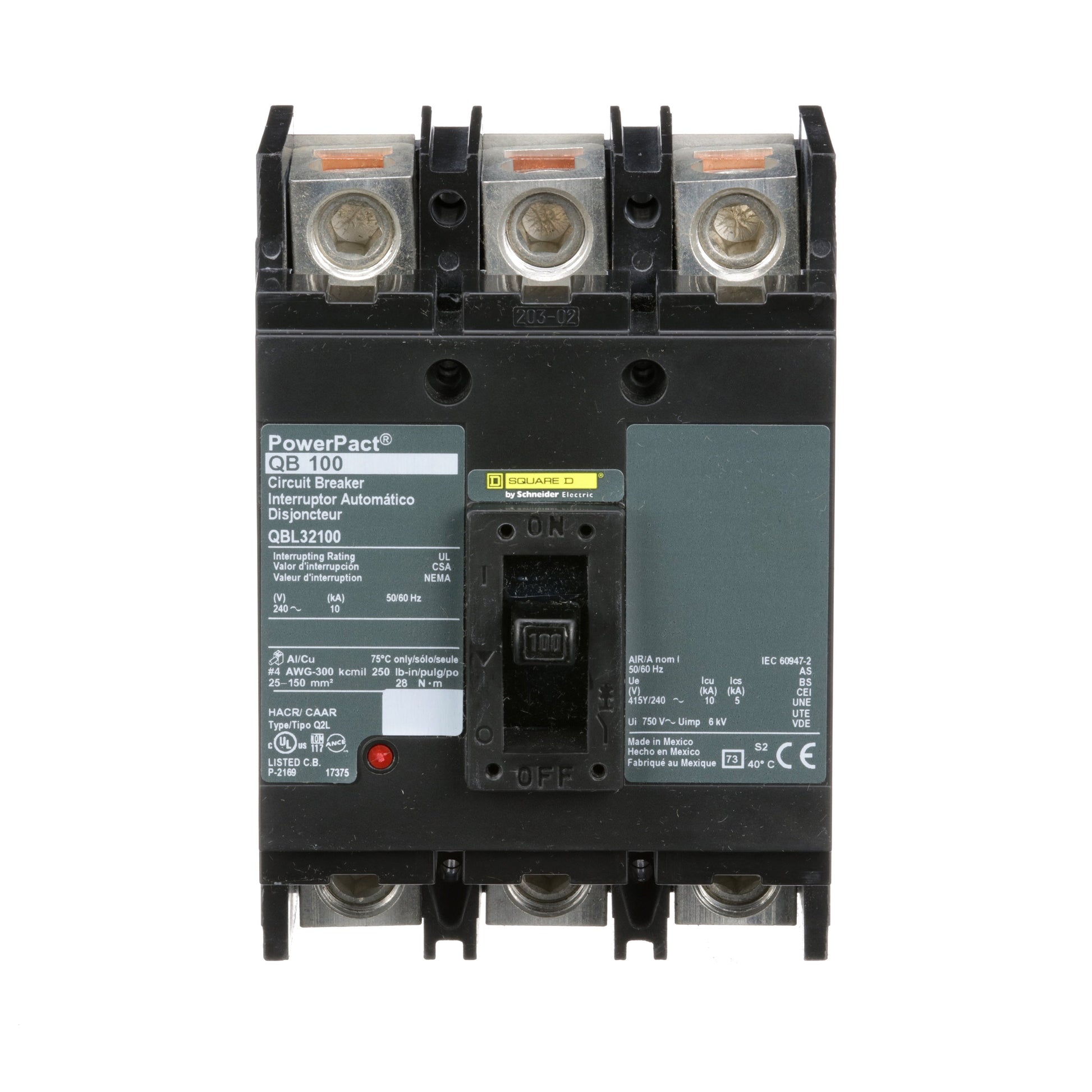

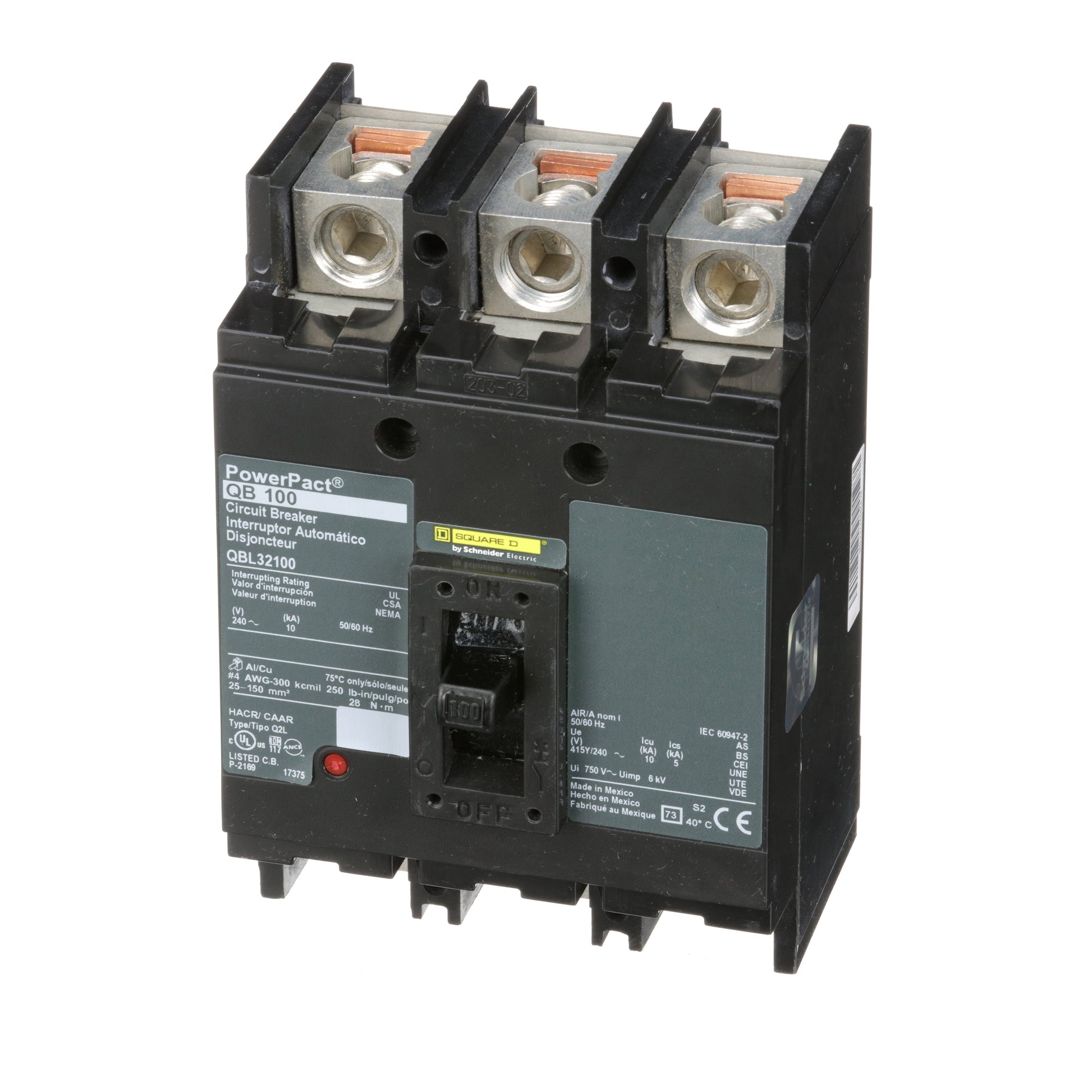

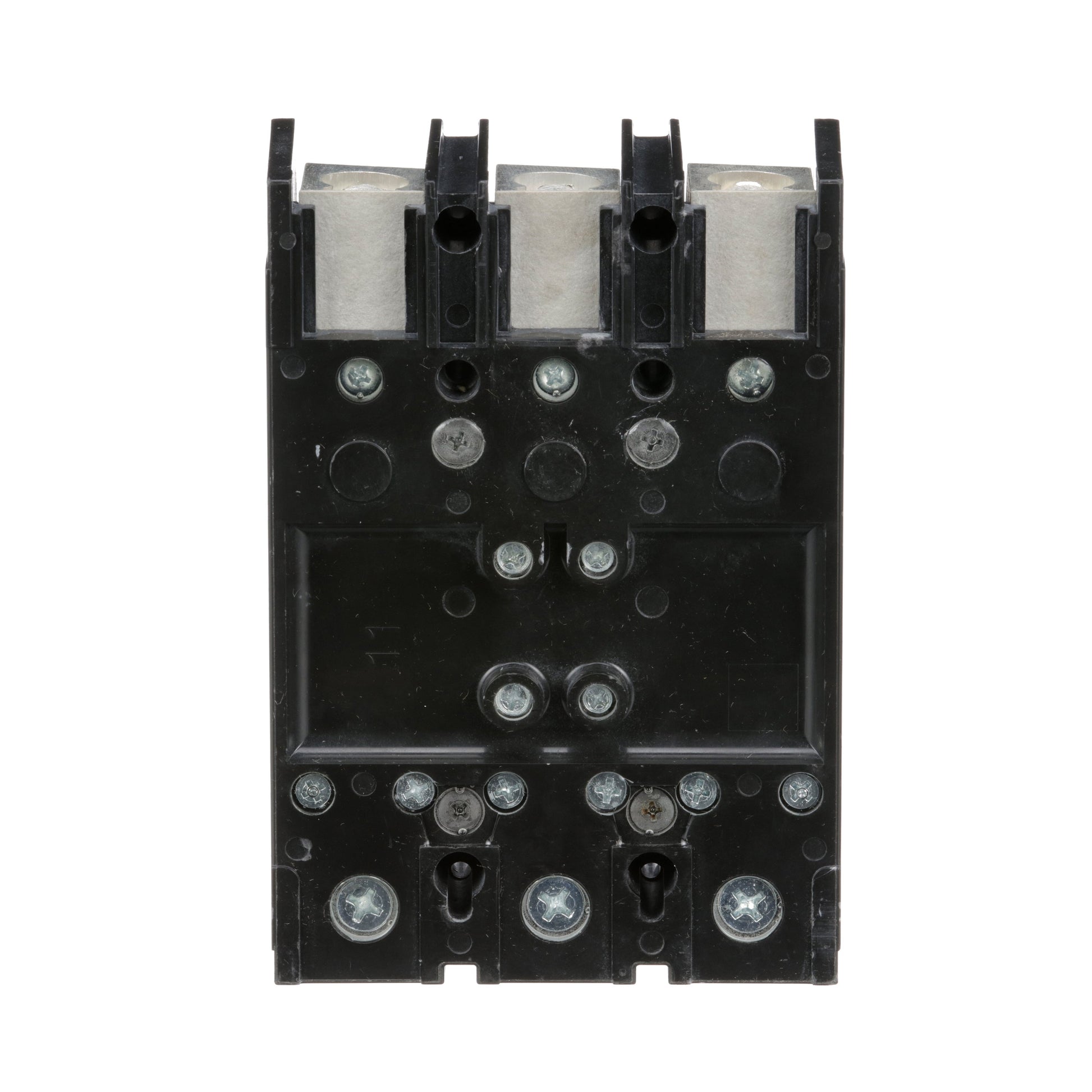

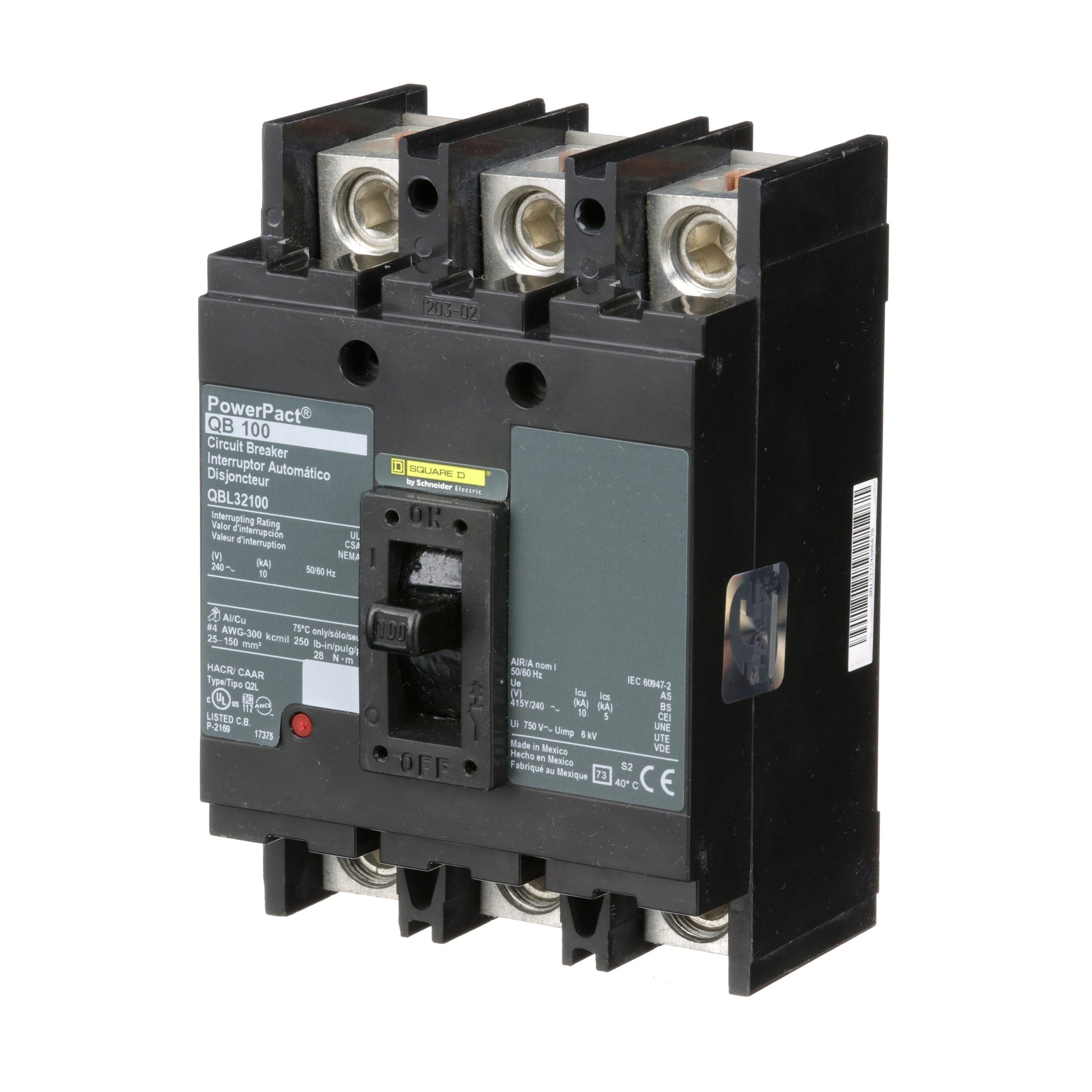

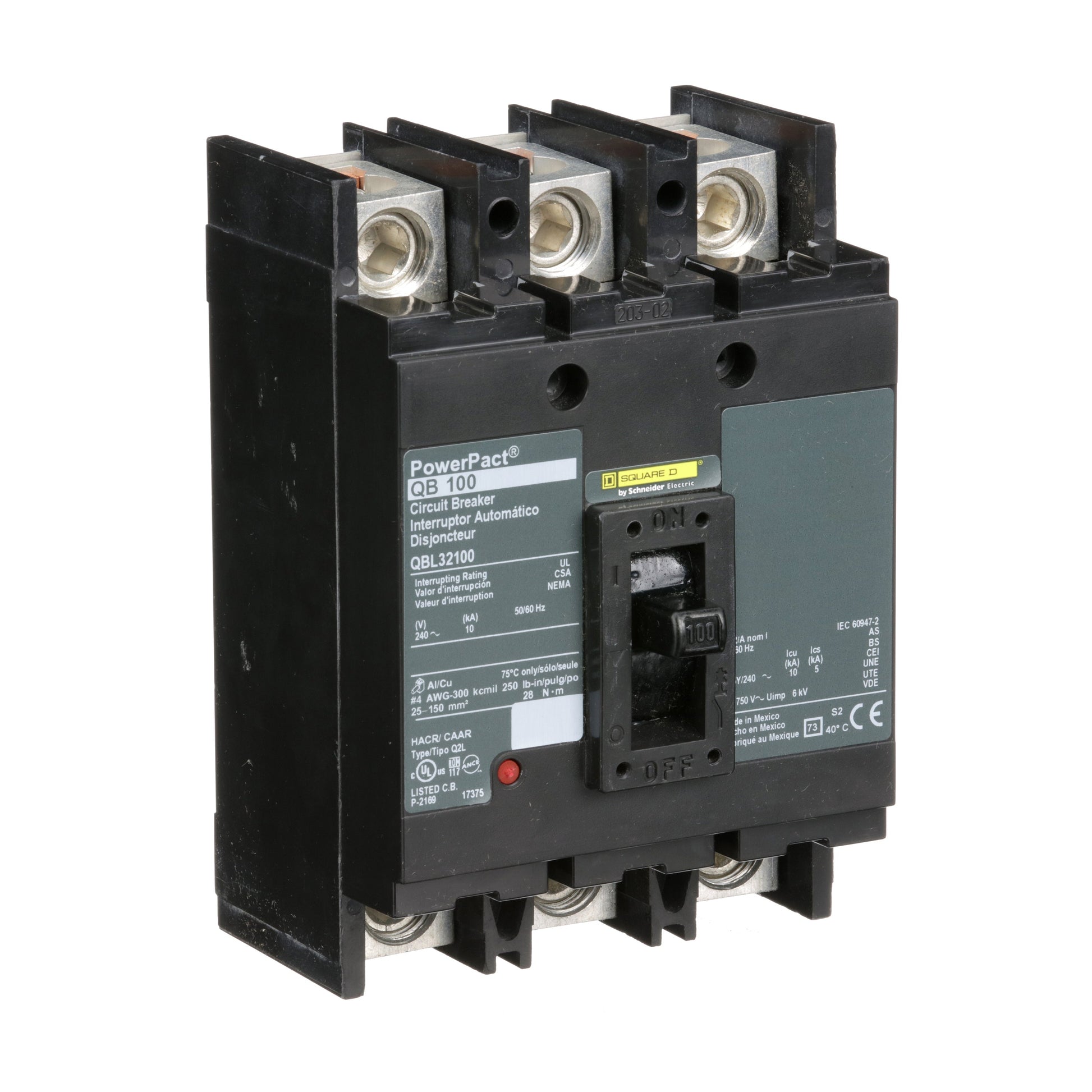

Square D QBL32100 Circuit Breaker | 240V 100A 3P 10kA@240V Feed-Thru Powerpact
Square D QBL32100 Circuit Breaker | 240V 100A 3P 10kA@240V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$442.35 USD
Regular price
$1,248.00 USD
Sale price
$442.35 USD
Unit price
per
Shipping calculated at checkout.
Stock:
48 in stock
Couldn't load pickup availability
Product Description:
The Square D QBL32100 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 100 amp breaker rated for 240 volts with a 10kA interrupting capacity. This model features thermal magnetic protection and a feed-thru lug connection for reliable electrical circuit management.
Key Features:
✔ Part Number: QBL32100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QBL
✔ Voltage: 240
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: Q
✔ Protection: Thermal Magnetic
✔ UPC: 785901702870
✔ GTIN: 00785901702870
✔ Country of Origin: Mexico
✔ Dimensions: 4-1/2 in x 6.47 in
✔ Weight: 2.15
✔ Standards: UL, CSA, NEMA, NOM
✔ Certification: UL, CSA, NEMA, NOM
The Square D QBL32100 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 100 amp breaker rated for 240 volts with a 10kA interrupting capacity. This model features thermal magnetic protection and a feed-thru lug connection for reliable electrical circuit management.
Key Features:
✔ Part Number: QBL32100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QBL
✔ Voltage: 240
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: Q
✔ Protection: Thermal Magnetic
✔ UPC: 785901702870
✔ GTIN: 00785901702870
✔ Country of Origin: Mexico
✔ Dimensions: 4-1/2 in x 6.47 in
✔ Weight: 2.15
✔ Standards: UL, CSA, NEMA, NOM
✔ Certification: UL, CSA, NEMA, NOM
