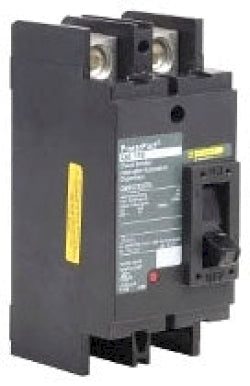

Square D QBM22150TN Circuit Breaker | Powerpact QBM 240V 150A

Product Description:
The Square D QBM22150TN is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 240V, 150A rating and a 10kA@240V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. It is UL, CSA, NEMA, and NOM certified for safety and compliance.

Key Features:
✔ Part Number: QBM22150TN
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QBM
✔ Voltage: 240V
✔ Amperage: 150A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Bolt-On
✔ Terminal Connection: Lug, Terminal Nut
✔ Frame Size: Q
✔ Temp Rating: 104-158°F (40-70°C)
✔ Certification: UL, CSA, NEMA, NOM
✔ UPC: 785901417873
✔ GTIN: 00785901417873
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 6.47 in
✔ Weight: 3.45 lbs
✔ Wire Size: AWG 4 to 300 KCmil Aluminum/Copper
