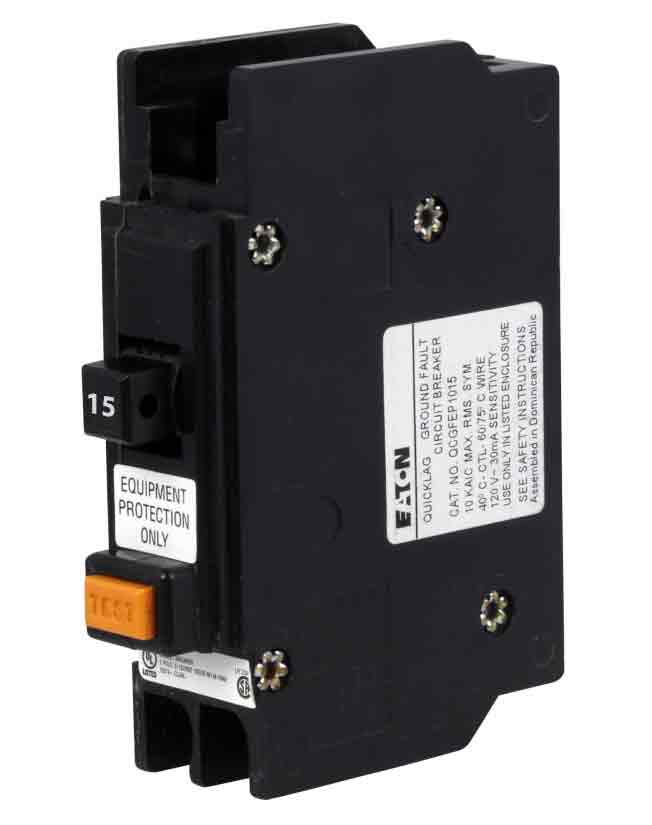

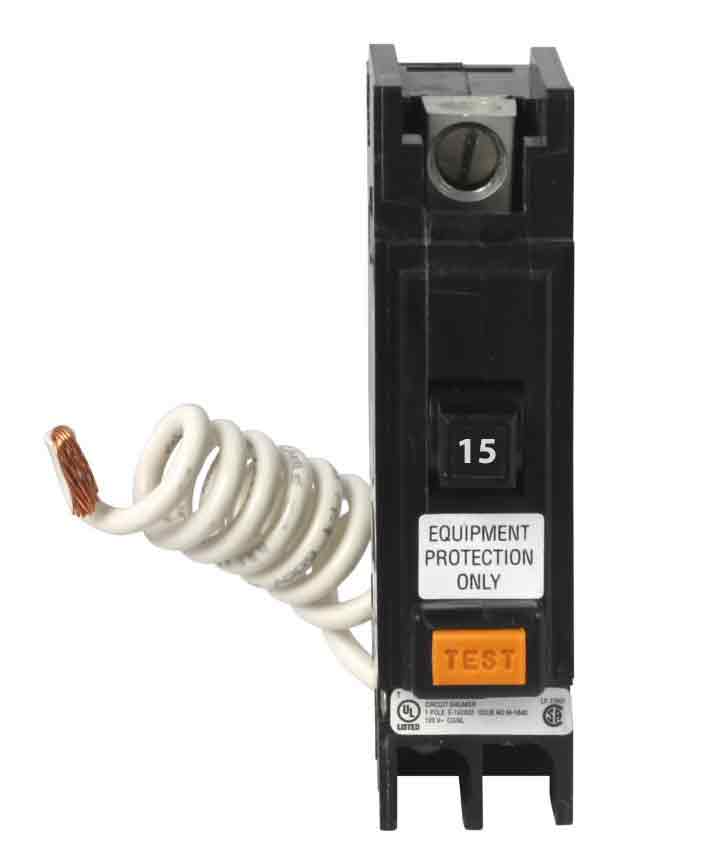

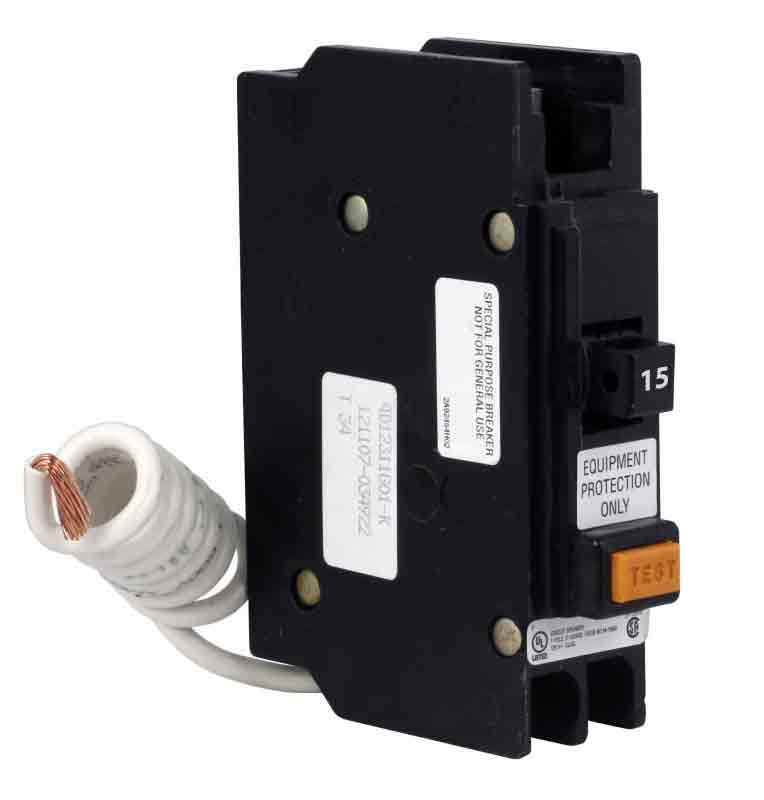

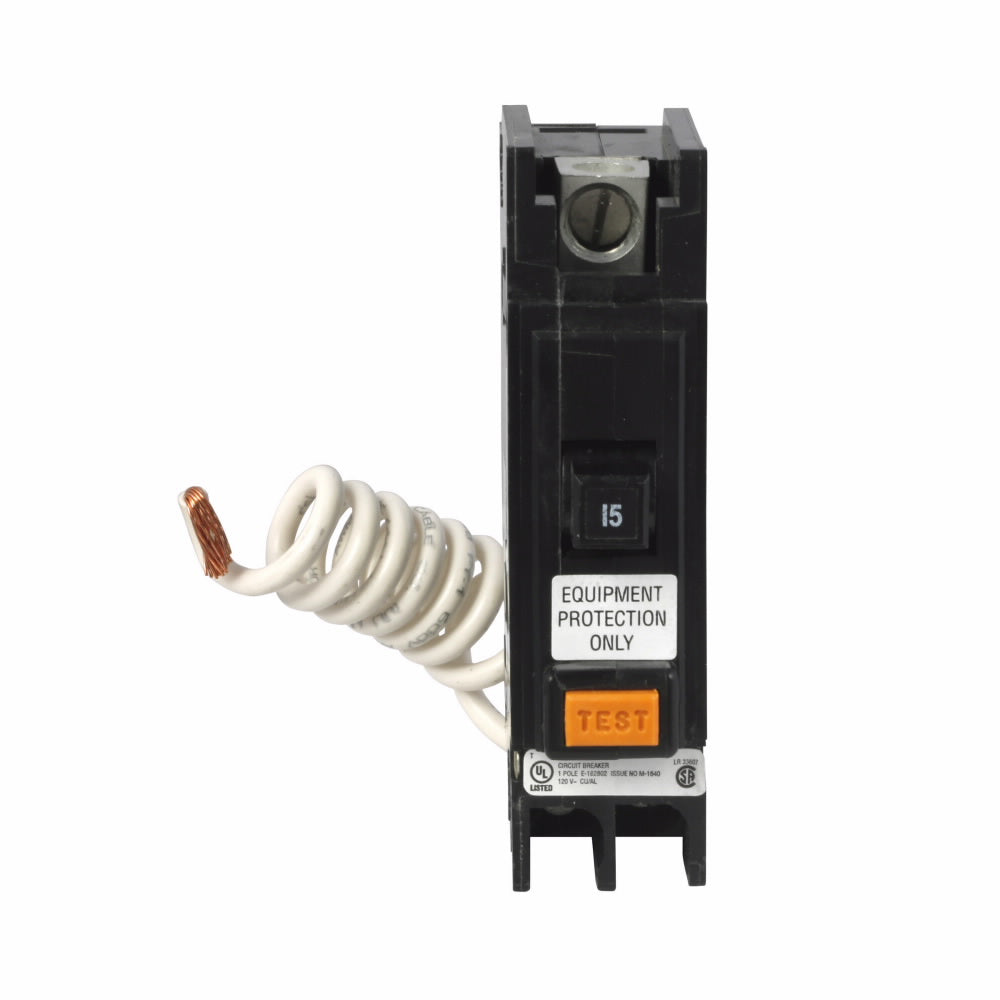

Cutler Hammer QCGFEP1015 Circuit Breaker | 120V 15A 1P 10kA@120V Feed-Thru QUICKLAG

Product Description:
The Cutler Hammer QCGFEP1015 is a 1-pole Molded Case Circuit Breaker from the QUICKLAG family. It is rated for 120 Volts and 15 amps, featuring a 10kA@120V AIC rating and Feed-Thru connection. This breaker provides Thermal Magnetic protection with Long-Time and Instantaneous functions for reliable circuit safety.

Key Features:
✔ Part Number: QCGFEP1015
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QUICKLAG
✔ Type: QCGF
✔ Voltage: 120
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Protection: Thermal Magnetic
✔ UPC: 786679146507
✔ GTIN: 00786679146507
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 5.2in Height 1.3in Width 3.3in
✔ Weight: 0.55
✔ Certification: CSA Certified,UL Listed
✔ Wire Size: 14 TO 10 AWG Aluminum/Copper (Line); 14 TO 4 AWG Aluminum/Copper (Load)
