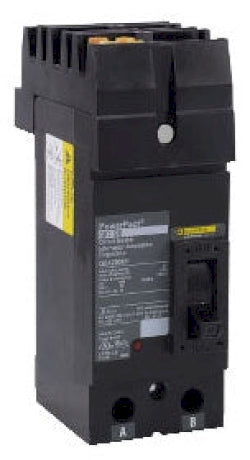

Square D QDA221101 | I-Line QDA 240V 110A

Product Description:
The Square D QDA221101 is a Molded Case Circuit Breaker from the I-Line family. It features a 2-pole design with a 240V, 110A rating and a 25kA@240V AIC rating. This breaker uses a Plug In Panelboard connection and includes Thermal Magnetic protection. It is designed for standard applications with a temperature rating of 104-158°F (40-70°C).

Key Features:
✔ Part Number: QDA221101
✔ Manufacturer: Square D
✔ Category: Molded Case
✔ Subcategory: Molded Case
✔ Family: I-Line
✔ Type: QDA
✔ Voltage: 240V
✔ Amperage: 110A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 25kA@240V
✔ Connection: Plug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 250A/QD
✔ MCM Size: Min. Wire Size 4 AWG, Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Temp Rating: 104-158°F (40-70°C)
✔ Certification: CE Marked, CSA Certified, IEC, UL Listed
✔ UPC: 785901415558
✔ GTIN: 00785901415558
✔ Country of Origin: Mexico
✔ Dimensions: 6.47 in (H) x 3.09 in (D) x 4.44 in (W)
✔ Weight: 5 lbs
✔ Panel Type: I Line Panelboards
