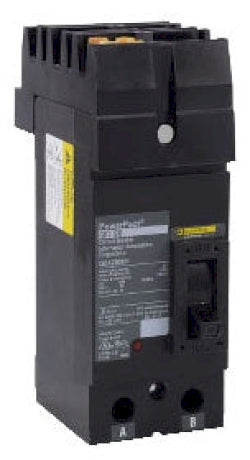

Square D QDA221752 Circuit Breaker | 240V 175A 2P 25kA@240V Plug In Panelboard I-Line

Product Description:
The Square D QDA221752 is a Molded Case Circuit Breaker from the I-Line family. It is a 2-pole, 175 amp breaker rated for 240 volts with an AIC rating of 25kA. This plug-in panelboard breaker provides thermal magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: QDA221752
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: I-Line
✔ Type: QDA
✔ Voltage: 240
✔ Amperage: 175
✔ Poles: 2
✔ AIC rating: 25kA@240V
✔ Connection: Plug In Panelboard
✔ Protection: Thermal Magnetic
✔ Frame Size: 250A/QD
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Phase: 1
✔ Terminal Connection: Lug
✔ Functions: LI - Long-Time and Instantaneous
✔ Breaker Type: Standard
✔ Phase Connection: AC
✔ UPC: 785901687184
✔ GTIN: 00785901687184
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 6.47 in
✔ Weight: 2.14
✔ Panel Type: I Line Panelboards
✔ Standards: CE Marked, CSA Certified, IEC, UL Listed
✔ Certification: CE Marked, CSA Certified, IEC, UL Listed
