Product Description:

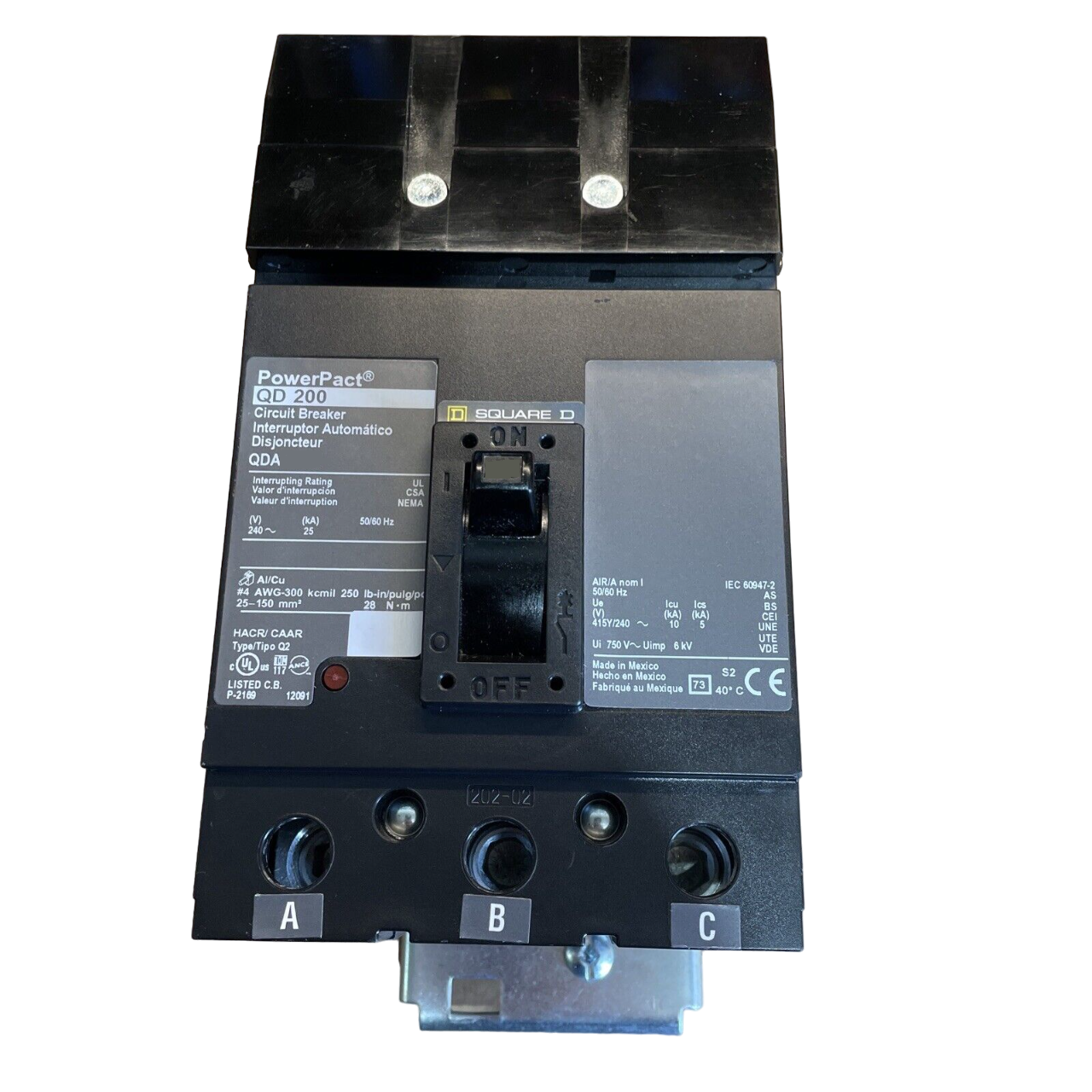

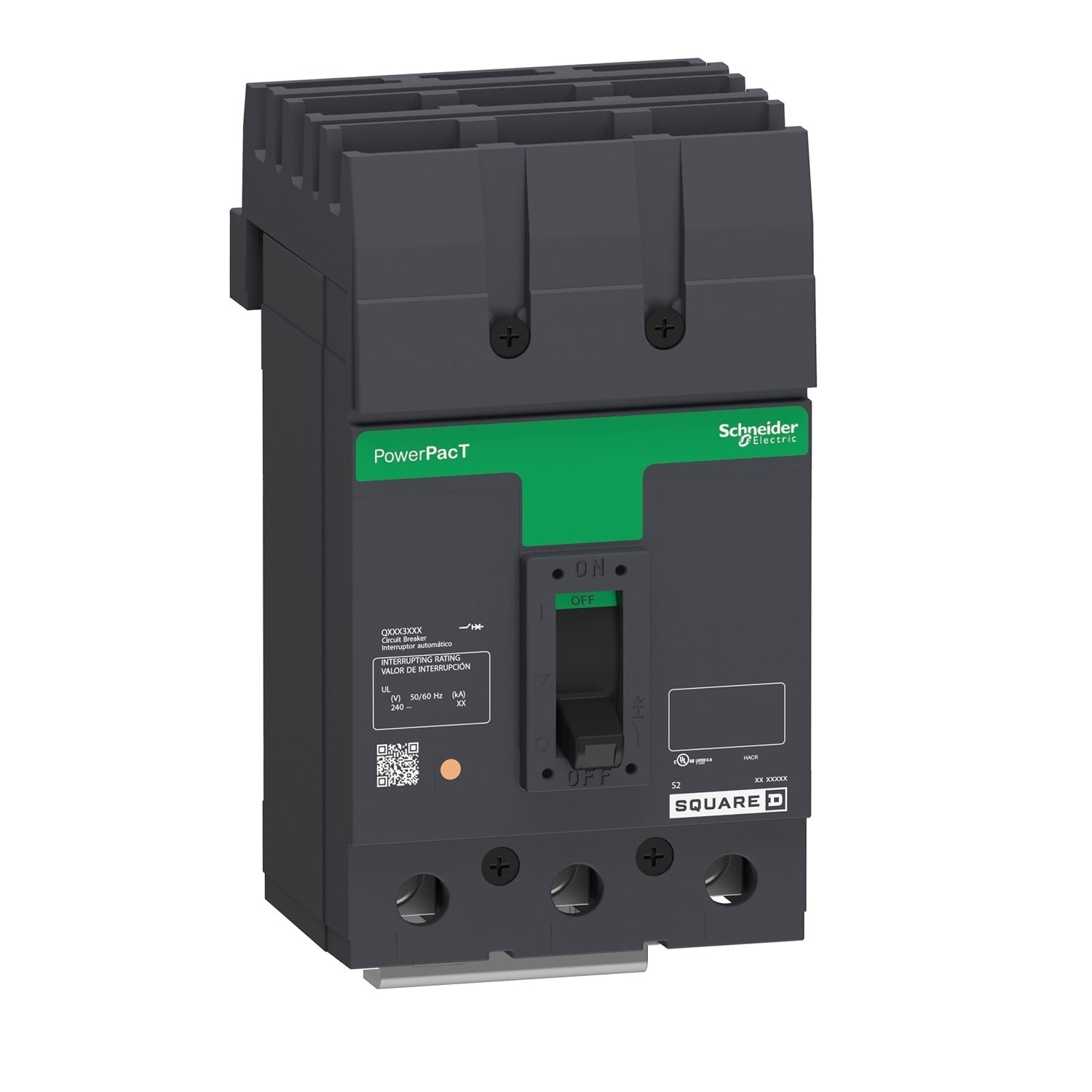

The Square D QDA32125 is a Molded Case Circuit Breaker from the I-Line family, designed for industrial and commercial electrical systems. It features a 3-pole configuration with a 240V voltage rating and 125A amperage capacity. This breaker offers reliable thermal magnetic protection and is built to meet CSA, IEC, and UL standards for safety and performance.
Key Features:
✔ Part Number: QDA32125
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: I-Line
✔ Type: QDA
✔ Voltage: 240
✔ Amperage: 125
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 25kA@240V
✔ Connection: Plug In Panelboard
✔ Terminal Connection: Lug
✔ Frame Size: 250A/QD
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901702900
✔ GTIN: 00785901702900
✔ Country of Origin: Mexico
✔ Dimensions: Height 6.47 in (164.34 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 3.03
✔ Panel Type: I Line Panelboards
✔ Standards: CSA, IEC, UL listed
✔ Certification: UL Listed CSA Certified
