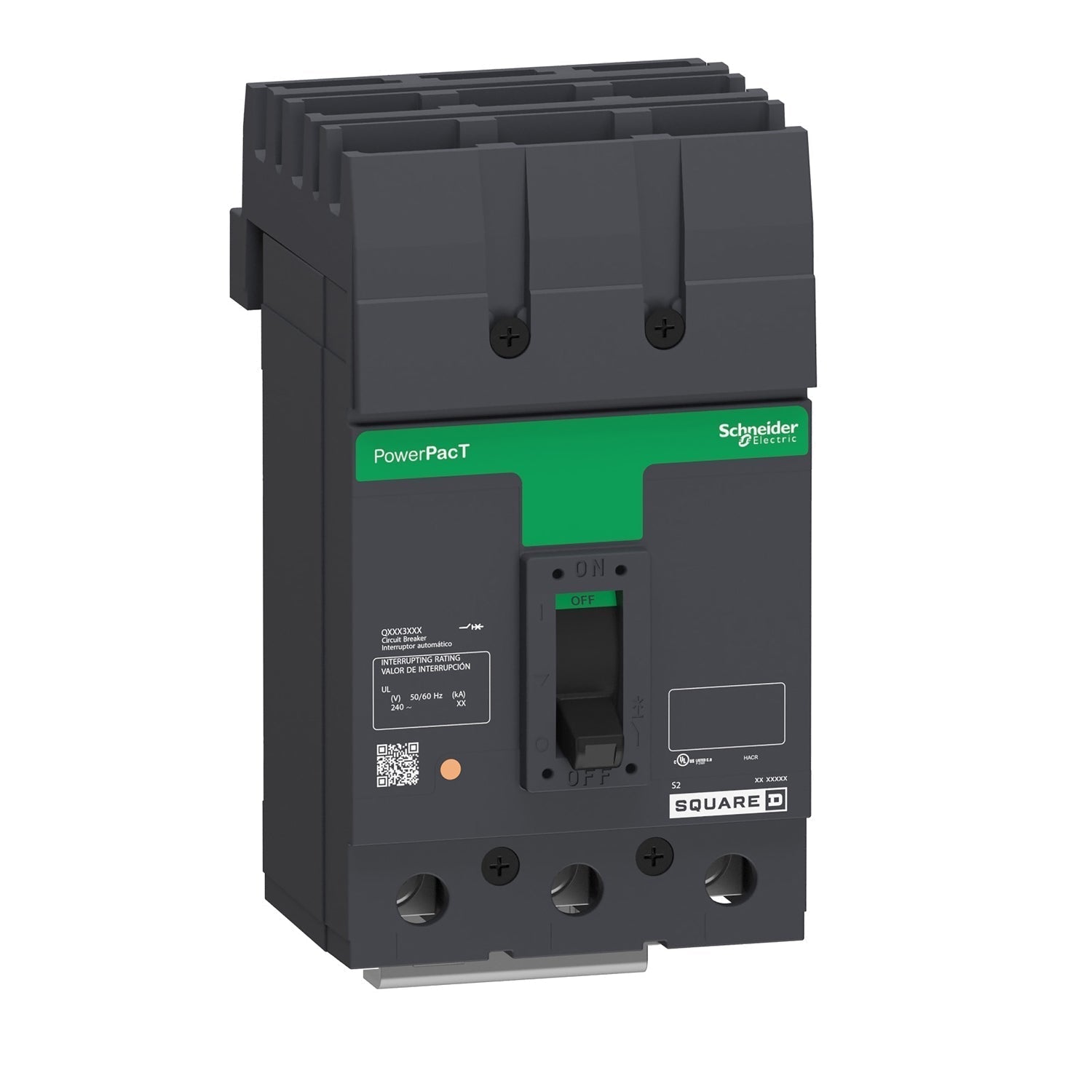

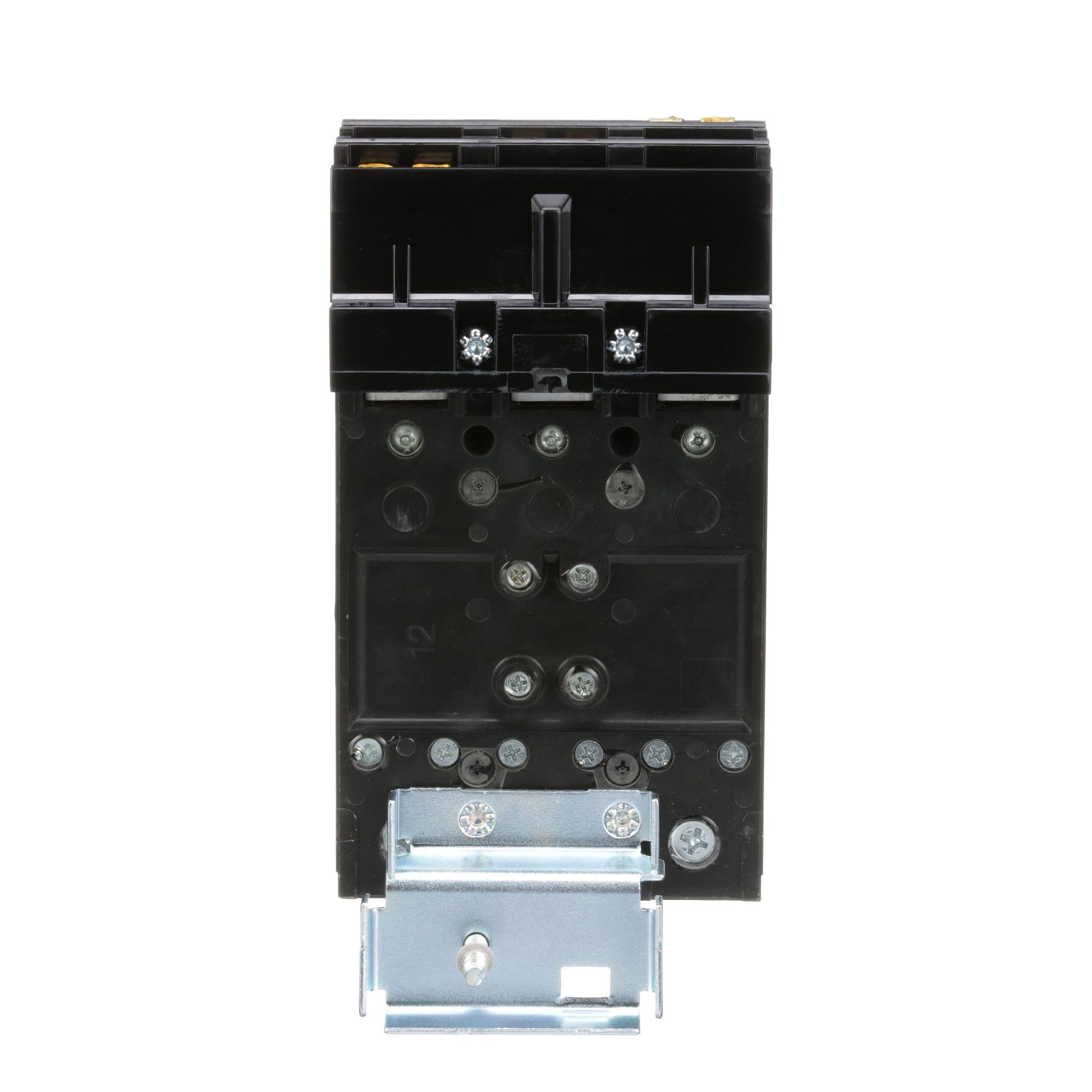

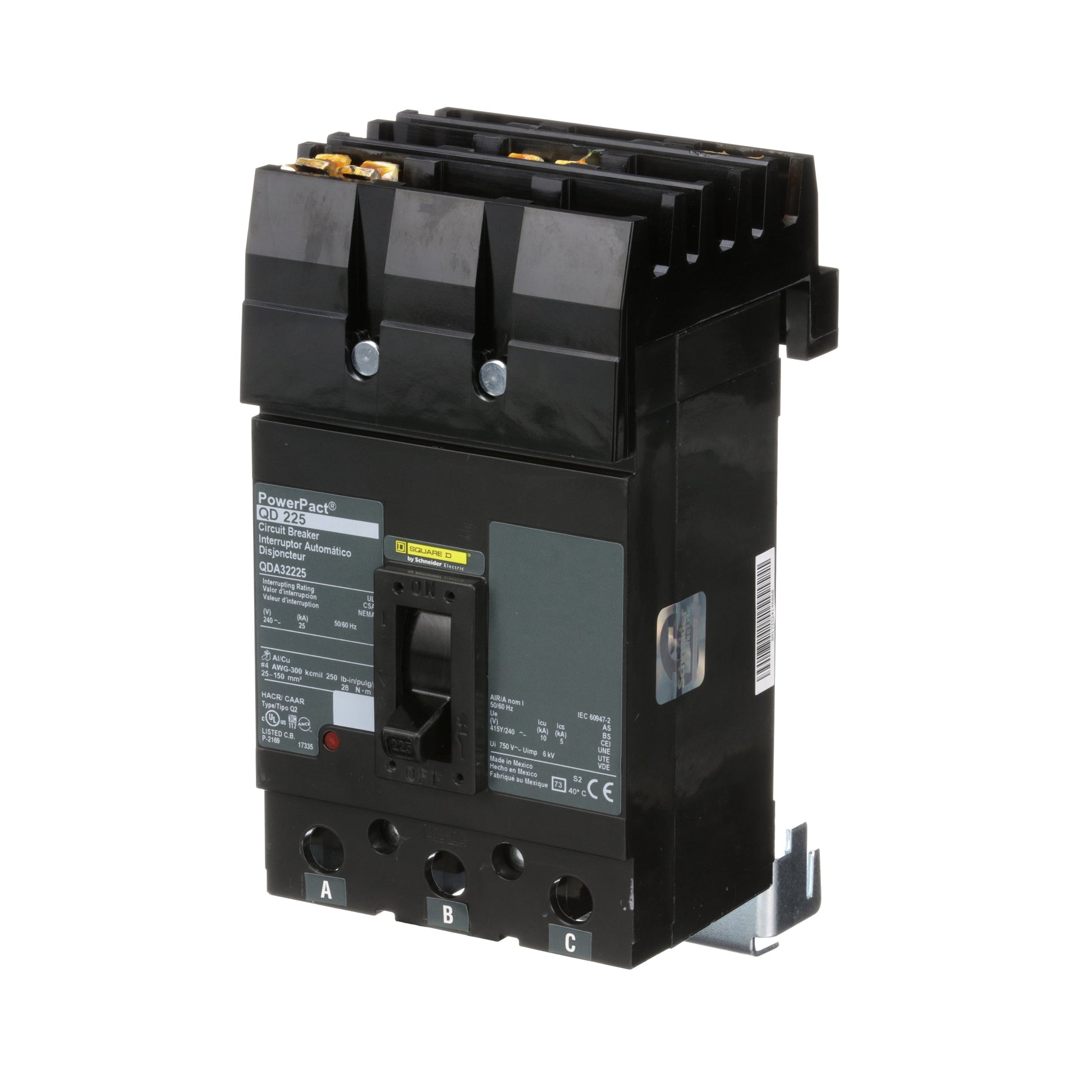

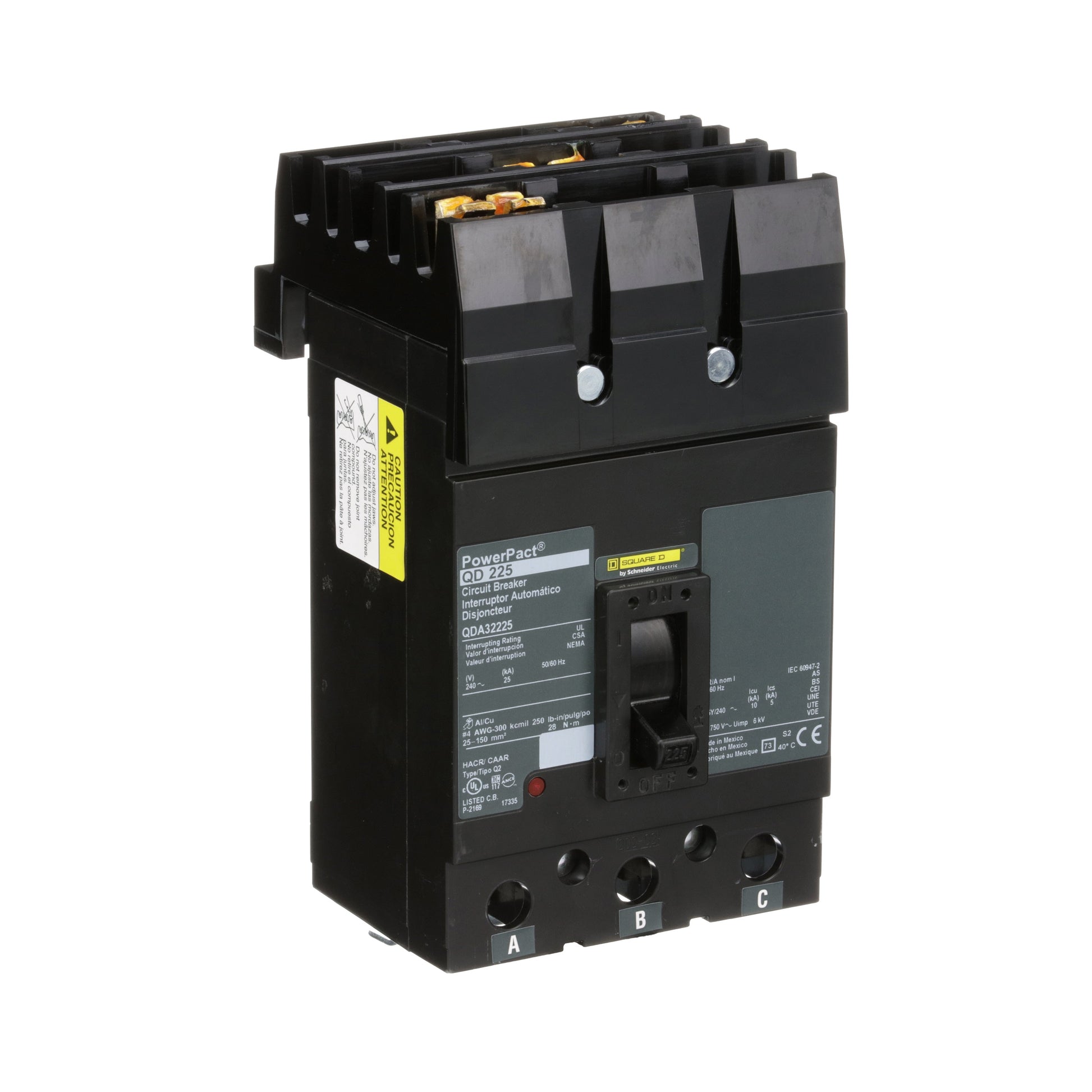

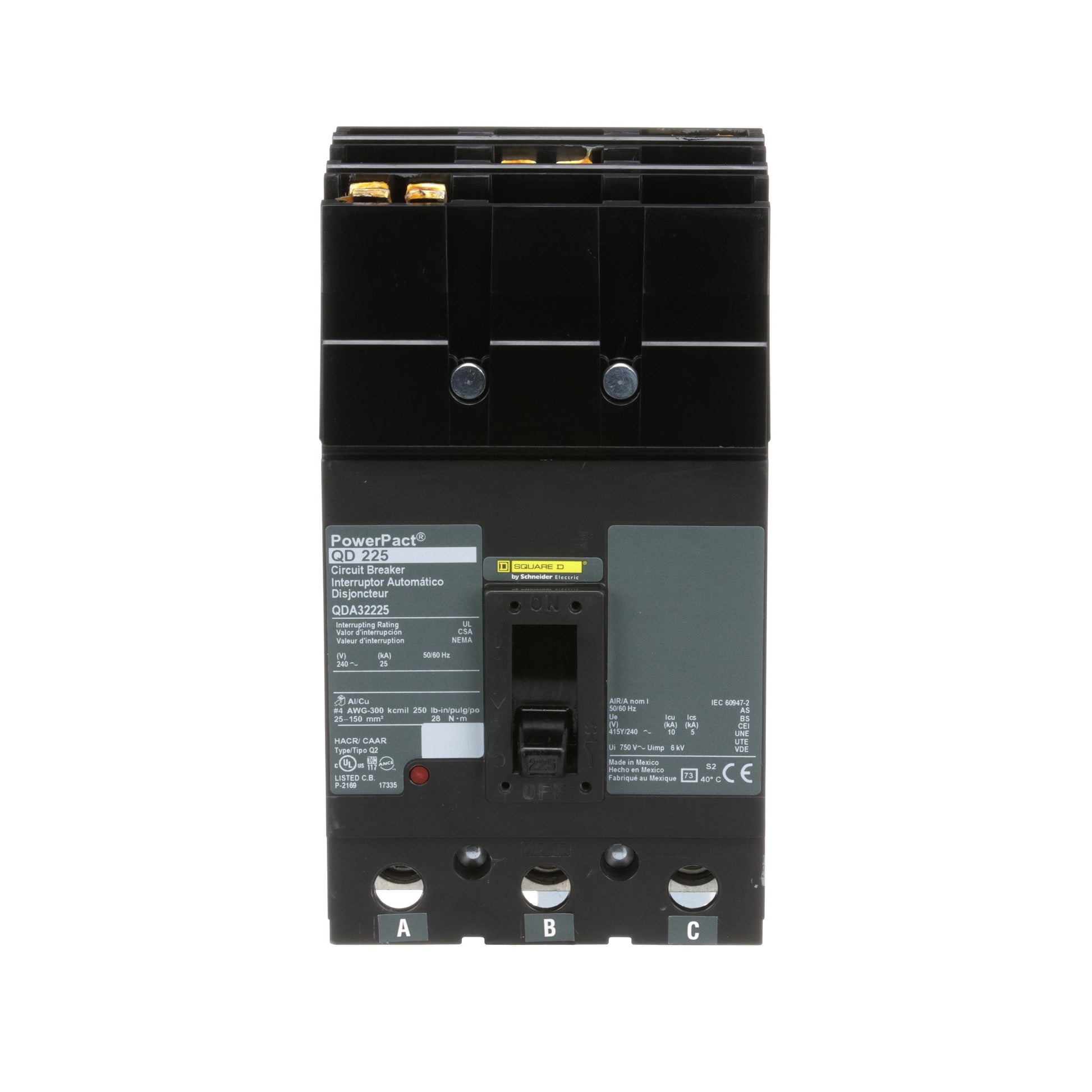

Square D QDA32225 Molded Case Circuit Breaker | 240V 225A 3P 25kA@240V I-Line

Product Description:
The Square D QDA32225 is a Molded Case Circuit Breaker from the I-Line family. It is a 3-pole, 225 amp breaker rated for 240 volts with an AIC rating of 25kA@240V. This model uses a Plug In Panelboard connection and provides Thermal Magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: QDA32225
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: I-Line
✔ Type: QDA
✔ Voltage: 240
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 25kA@240V
✔ Connection: Plug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 250A/QD
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901405115
✔ GTIN: 00785901405115
✔ Country of Origin: United States
✔ Dimensions: Height 6.47 in (164.34 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 3.02
✔ Panel Type: I Line Panelboards
✔ Standards: CSA, IEC, UL Listed
✔ Certification: UL Listed CSA Certified
