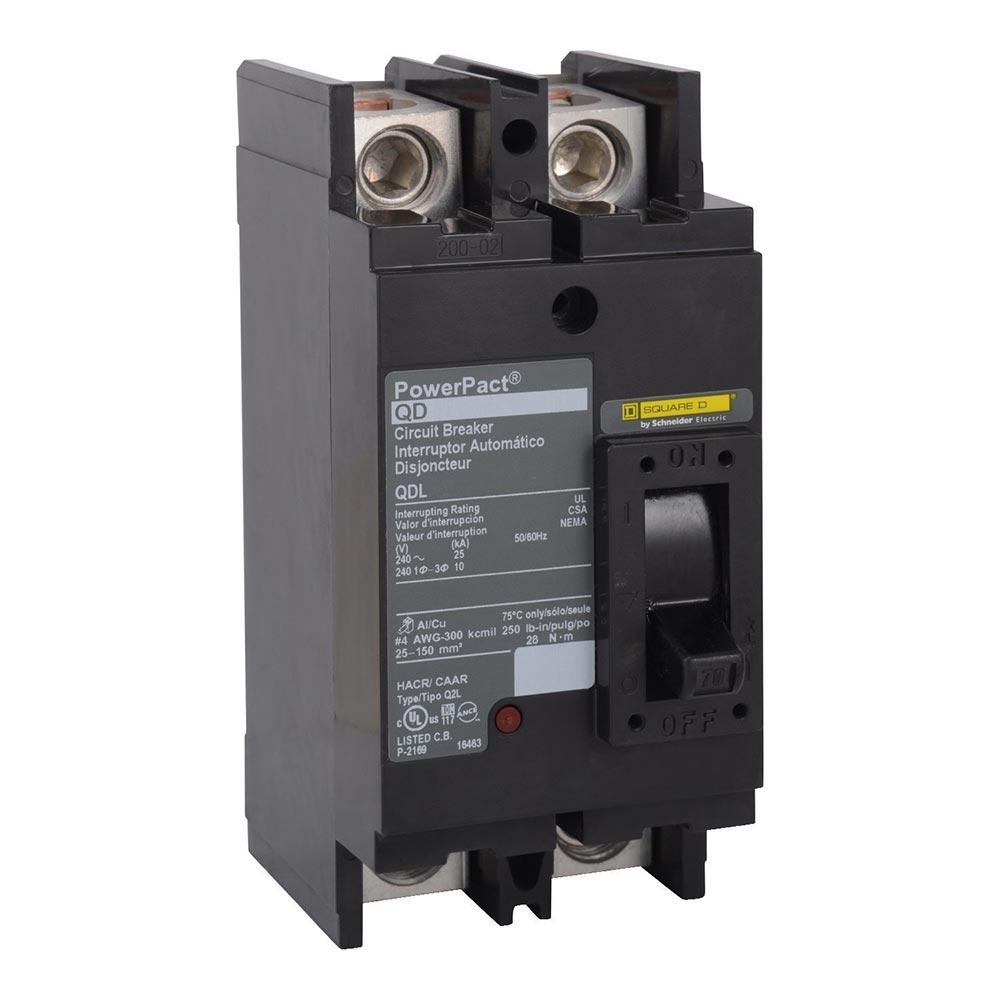

Square D QDL22100 Circuit Breaker | 240V 100A 2P 25kA@240V Bolt-On Powerpact QDL

Product Description:
The Square D QDL22100 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 240 Volt, 100 amp rated breaker with a 25kA@240V AIC rating and uses a Bolt-On connection. This circuit breaker provides reliable Thermal Magnetic protection for electrical systems.

Key Features:
✔ Part Number: QDL22100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QDL
✔ Voltage: 240
✔ Amperage: 100
✔ Poles: 2
✔ AIC rating: 25kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 250A/QD
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Not Applicable
✔ UPC: 785901522812
✔ GTIN: 00785901522812
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 6.47 in
✔ Weight: 1.51
✔ Standards: CSA, IEC, UL Listed
✔ Certification: CSA, IEC, UL Listed
