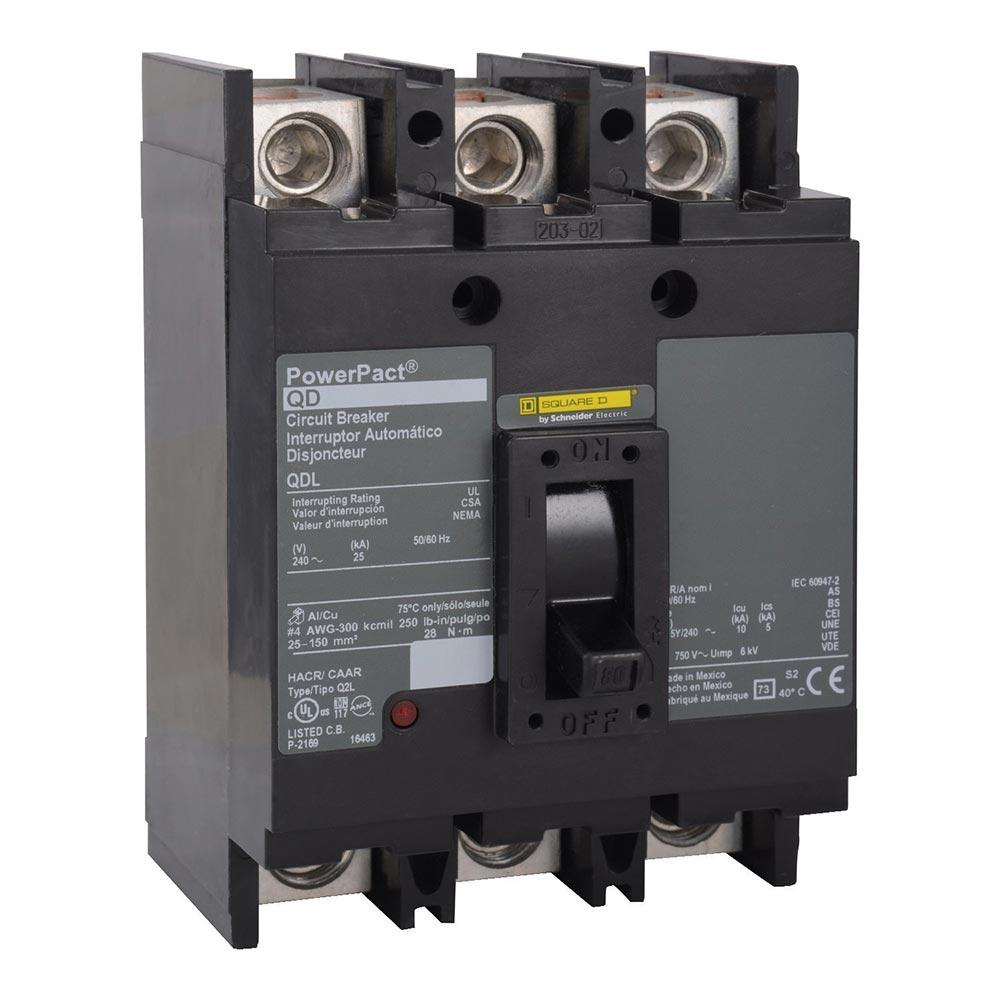

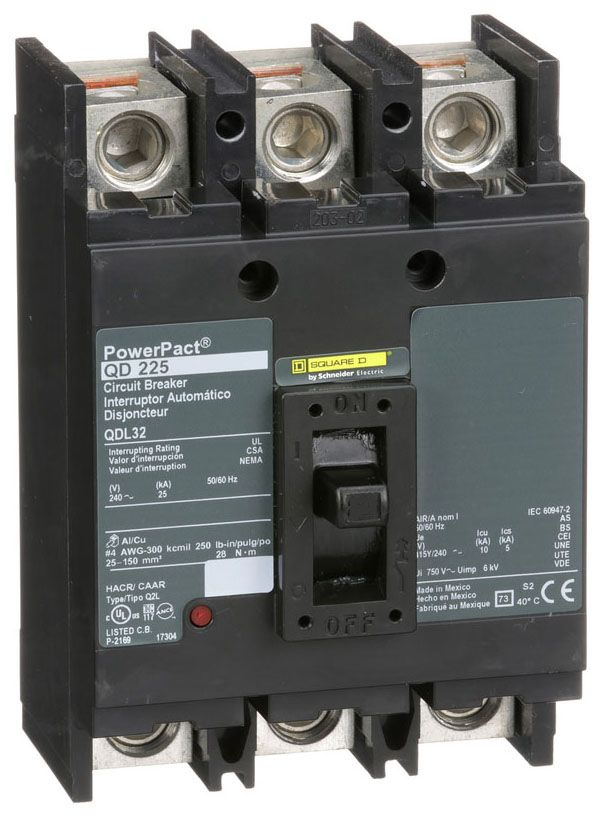

Square D QDL32090 Circuit Breaker | 240V 90A 3P 25kA@240V Bolt-On Powerpact
Square D QDL32090 Circuit Breaker | 240V 90A 3P 25kA@240V Bolt-On Powerpact
Price:
Sale
Sold out
Regular price
$427.67 USD
Regular price
$1,784.00 USD
Sale price
$427.67 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
Product Description:
The Square D QDL32090 is a 3-pole Molded Case Circuit Breaker from the Powerpact family. It is rated for 90 amps at 240 volts and features a 25kA interrupting capacity. This bolt-on breaker provides reliable thermal magnetic protection for electrical systems.
Key Features:
✔ Part Number: QDL32090
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QDL
✔ Voltage: 240
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 25kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 250A/QD
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901522874
✔ GTIN: 00785901522874
✔ Country of Origin: United States
✔ Dimensions: Height 6.47 in (164.34 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 2.16
✔ Standards: CSA, IEC, UL Listed
The Square D QDL32090 is a 3-pole Molded Case Circuit Breaker from the Powerpact family. It is rated for 90 amps at 240 volts and features a 25kA interrupting capacity. This bolt-on breaker provides reliable thermal magnetic protection for electrical systems.
Key Features:
✔ Part Number: QDL32090
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QDL
✔ Voltage: 240
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 25kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 250A/QD
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901522874
✔ GTIN: 00785901522874
✔ Country of Origin: United States
✔ Dimensions: Height 6.47 in (164.34 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 2.16
✔ Standards: CSA, IEC, UL Listed
