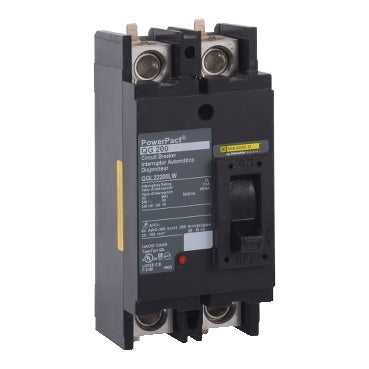

Square D QGL22200LW Circuit Breaker | Powerpact QGL 240V 200A

Product Description:
The Square D QGL22200LW is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 240V, 200A rating and a 65kA@240V AIC rating. This breaker includes Thermal Magnetic protection and uses a Feed-Thru connection. It is suitable for industrial and commercial applications.

Key Features:
✔ Part Number: QGL22200LW
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QGL
✔ Voltage: 240V
✔ Amperage: 200A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 65kA@240V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: Q
✔ Temp Rating: 104-158°F (40-70°C)
✔ Certification: UL, CSA, NEMA, NOM
✔ UPC: 785901926023
✔ GTIN: 00785901926023
✔ Country of Origin: Mexico
✔ Dimensions: 6.47 x 5.38 x 5.64 in (164.34 x 136.65 x 143.26 mm)
✔ Weight: 1.55 lbs
