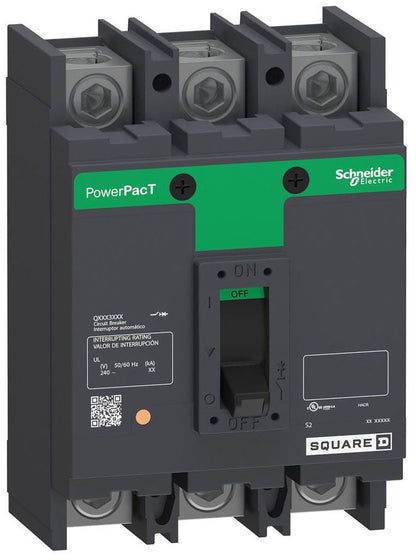

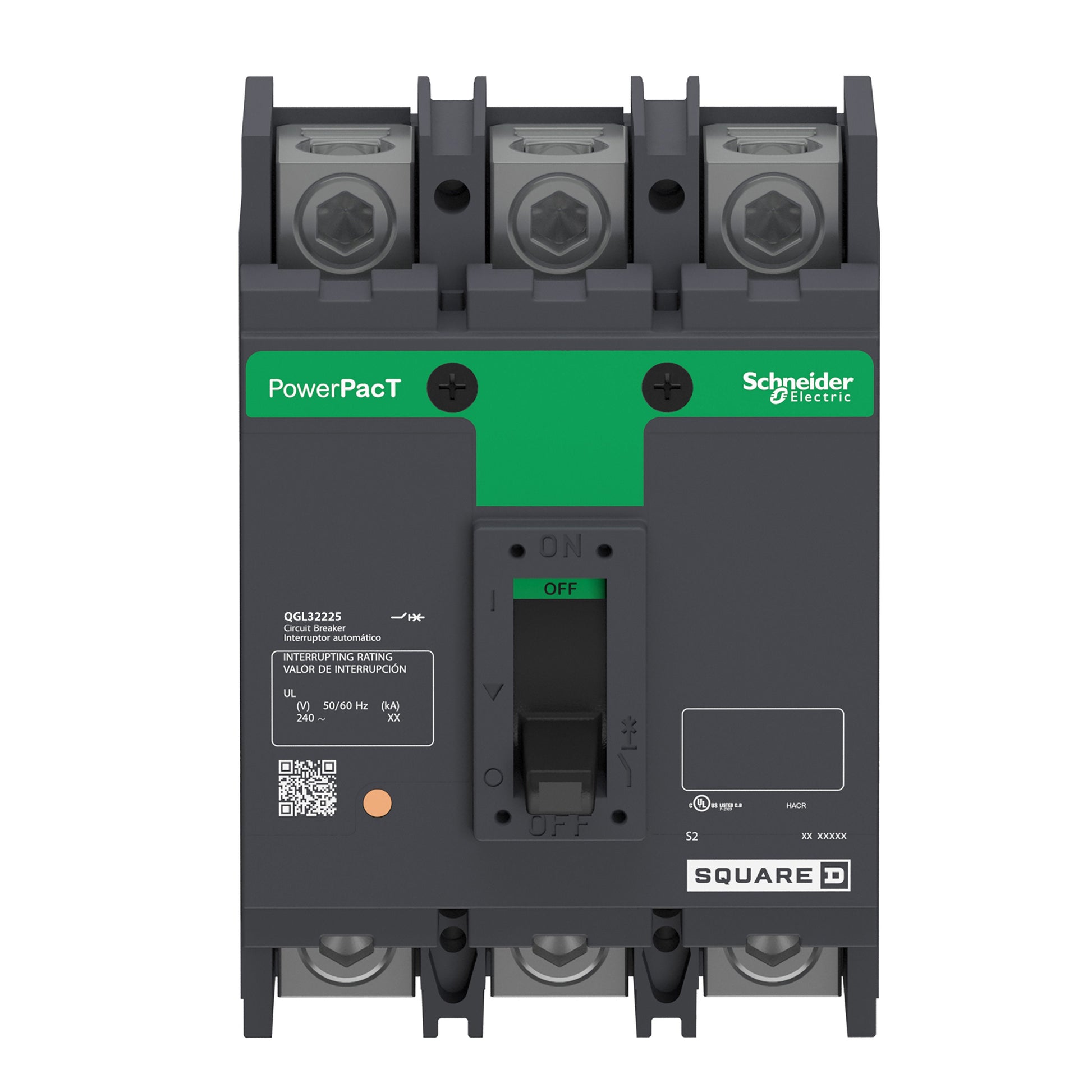

Square D QGL32225 Circuit Breaker | 240V 225A 3P 65kA@240V Feed-Thru Powerpact QGL

Product Description:
The Square D QGL32225 is a Powerpact family molded case circuit breaker designed for robust electrical protection. It is a 3-pole, 225 amp breaker rated for 240 volts with a 65kA interrupting capacity. This unit features thermal magnetic protection and a convenient feed-thru lug connection for reliable performance in industrial and commercial applications.

Key Features:
✔ Part Number: QGL32225
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QGL
✔ Voltage: 240
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@240V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: Q
✔ Protection: Thermal Magnetic
✔ UPC: 785901603559
✔ GTIN: 00785901603559
✔ Country of Origin: Mexico
✔ Dimensions: Height 6.47 in (164.34 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 2.16
✔ Standards: UL, CSA, NEMA, NOM
✔ Certification: UL, CSA, IEC
✔ Wire Size: 4 to 300 AWG/KCmil Aluminum/Copper
