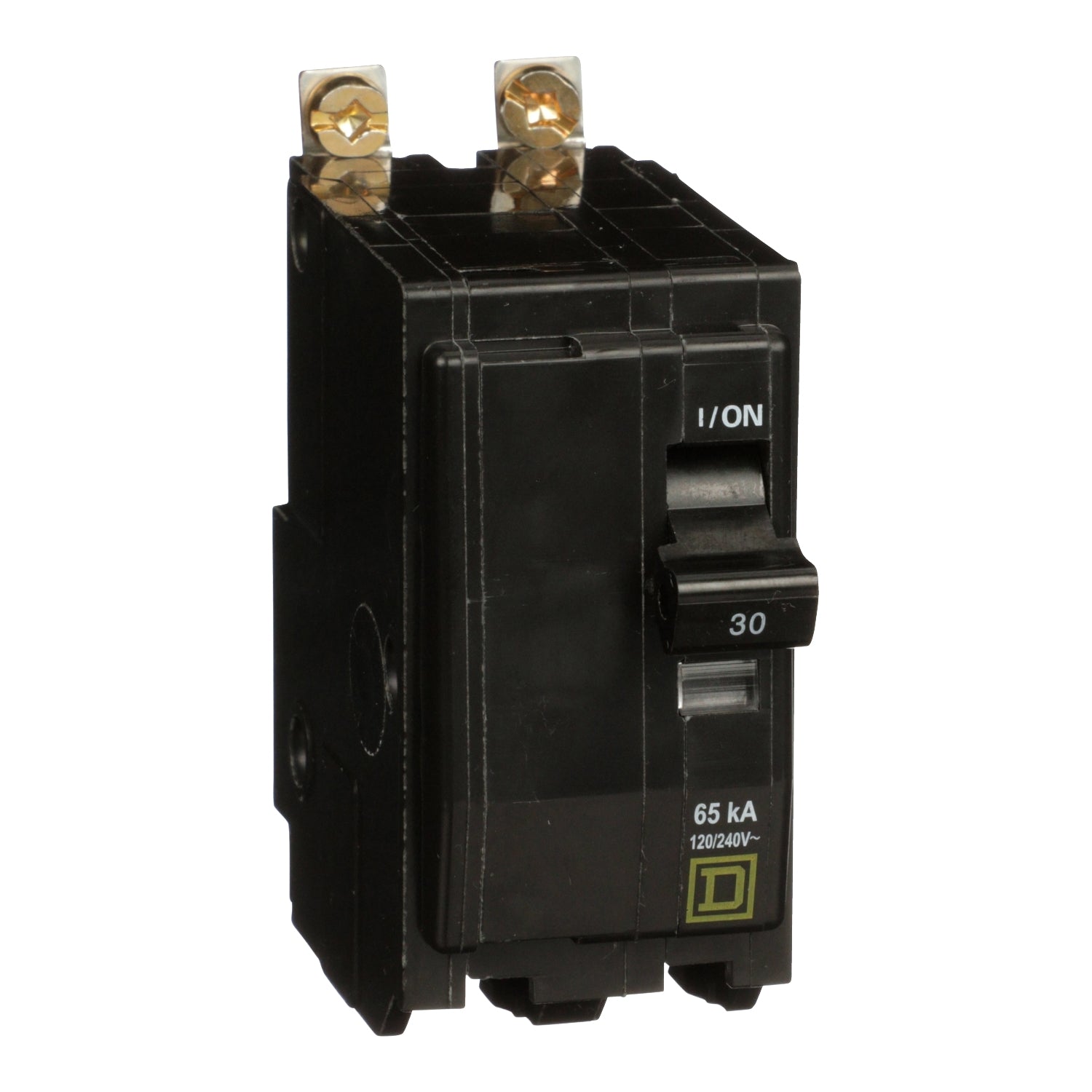

Square D QHB230 Circuit Breaker | 240V 30A 2P 65kA@240V Bolt-On QOB Series

Product Description:
The Square D QHB230 is a Molded Case Circuit Breaker from the QOB Series family. It is a 2-pole, 240 Volt, 30 amp circuit breaker with a 65kA@240V AIC rating and uses a Bolt-On connection. This breaker includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: QHB230
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QHB
✔ Voltage: 240
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 65kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901341642
✔ GTIN: 00785901341642
✔ Country of Origin: Mexico
✔ Dimensions: 1.50 in x 2.99 in
✔ Weight: 1
✔ Standards: UL Listed, CSA
✔ Certification: UL Listed, CSA
✔ Wire Size: AWG 14 to AWG 8 Copper/Aluminum
