Product Description:

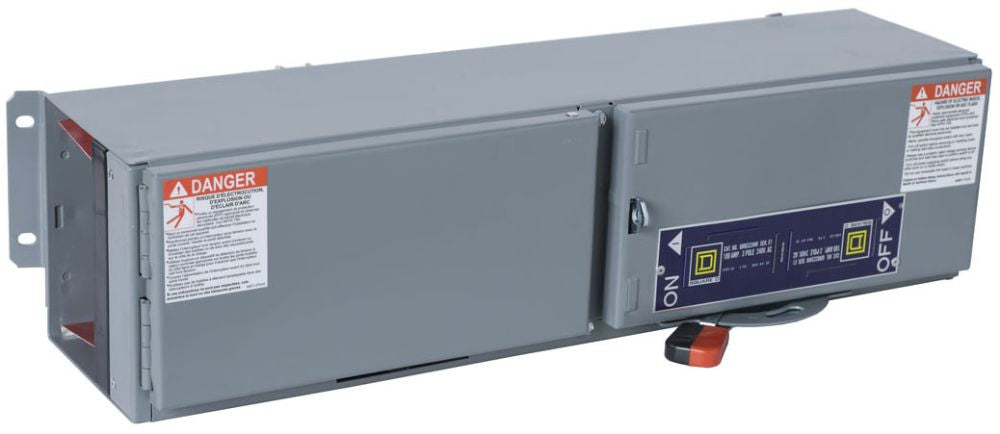

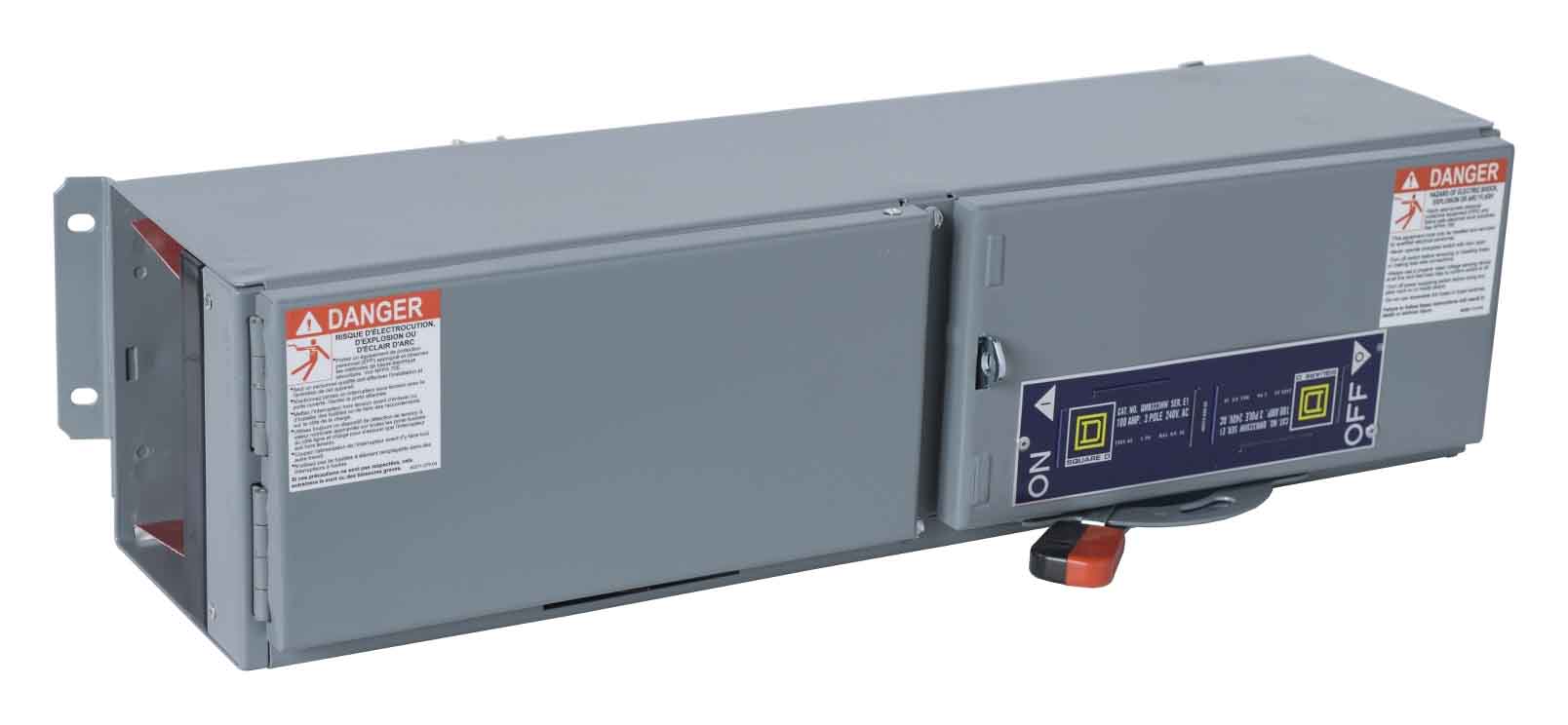

The Square D QMB323HW is a 3-phase, 3-pole panel mount switch rated for 240V and 100A. It features a NEMA 1 enclosure and a high AIC rating of 200kA@240V for reliable performance. This fusible switch is compatible with ED frames and designed for industrial or commercial electrical applications.
Key Features:
✔ Part Number: QMB323HW
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Panel Mount
✔ Family: QMB Series E1-E2
✔ Type: QMB
✔ Voltage: 240
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@240V
✔ Fuse Class: R,H,K
✔ Configuration: Single
✔ Switch Style: Fusible
✔ Nema Rating: 1
✔ Compatible Frames: ED
✔ UPC: 785901765738
✔ GTIN: 00785901765738
✔ Dimensions: Height 6 in (152.40 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 8.9
✔ Certification: UL listed
