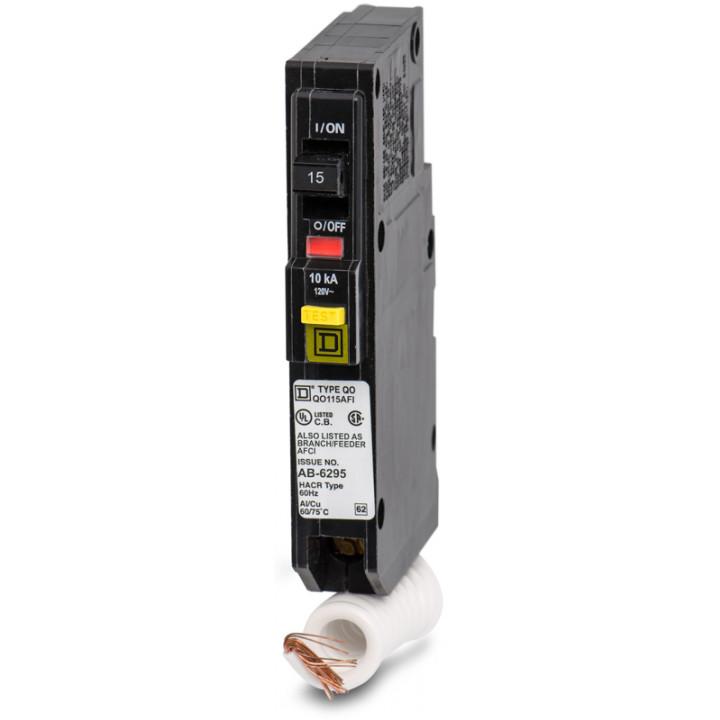

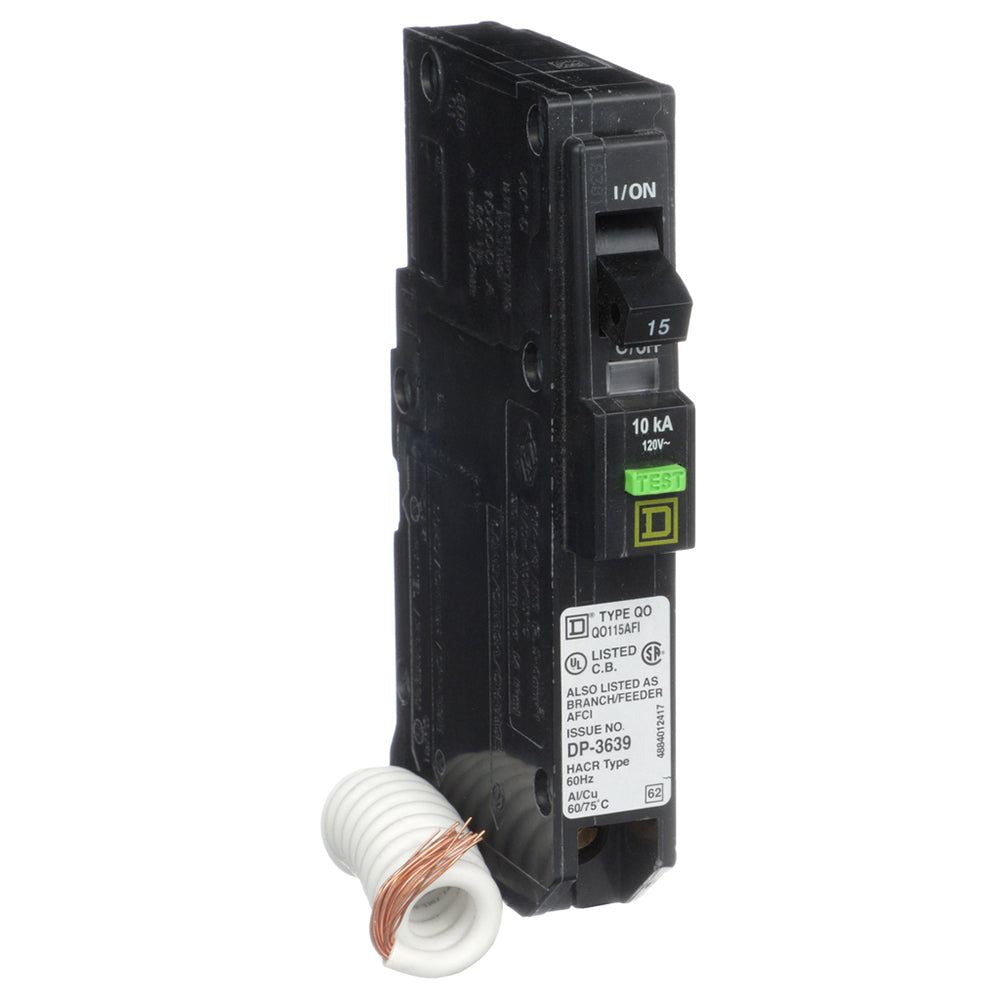

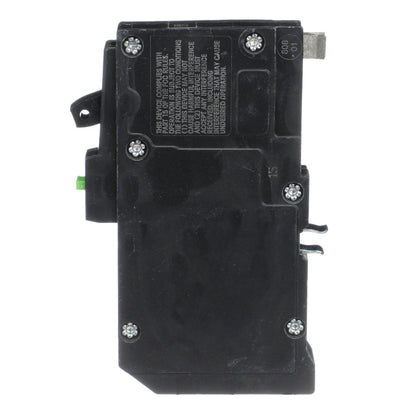

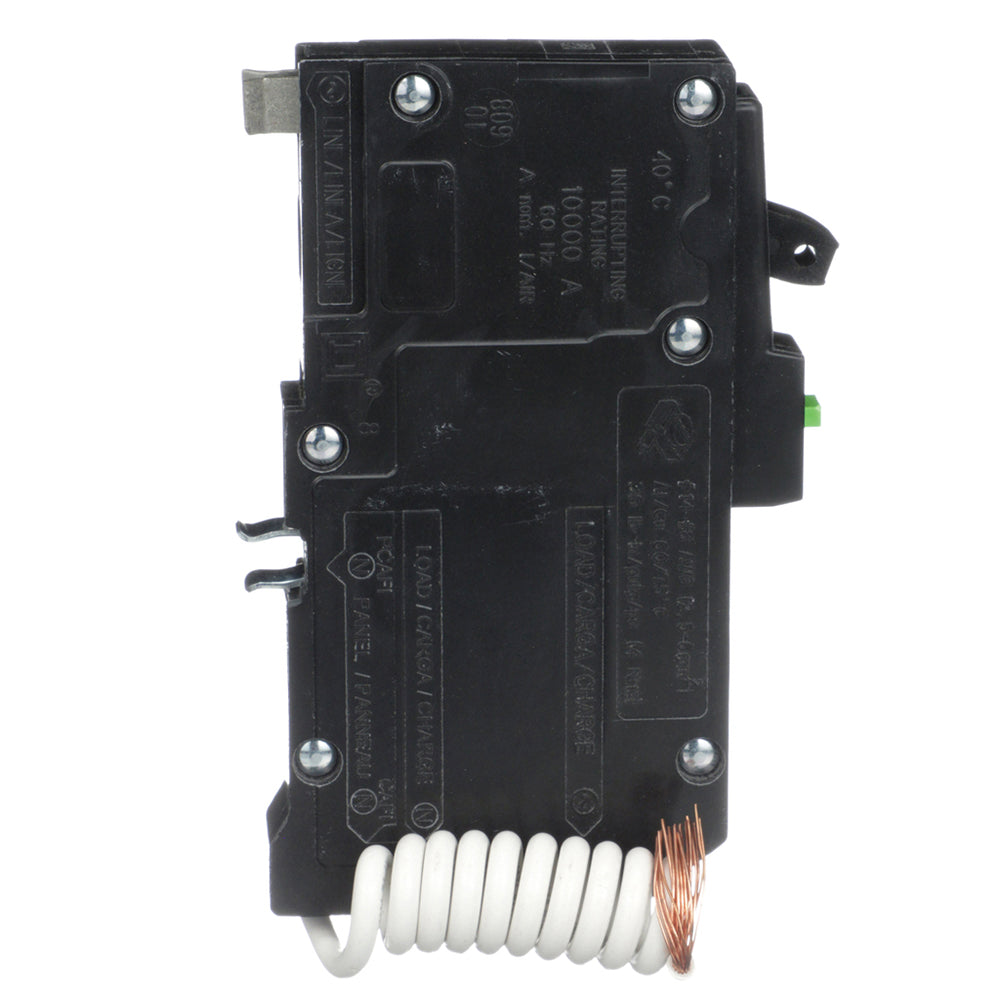

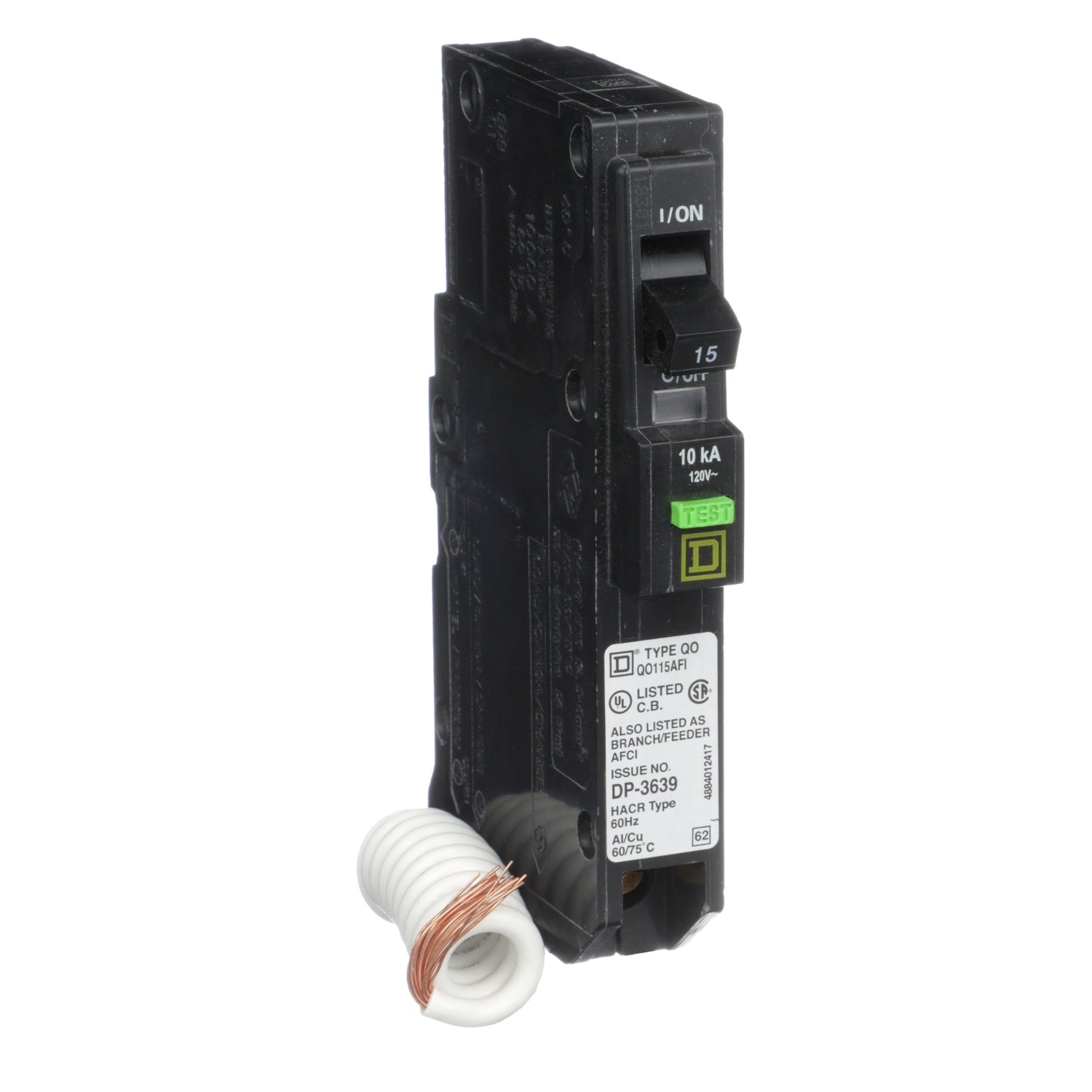

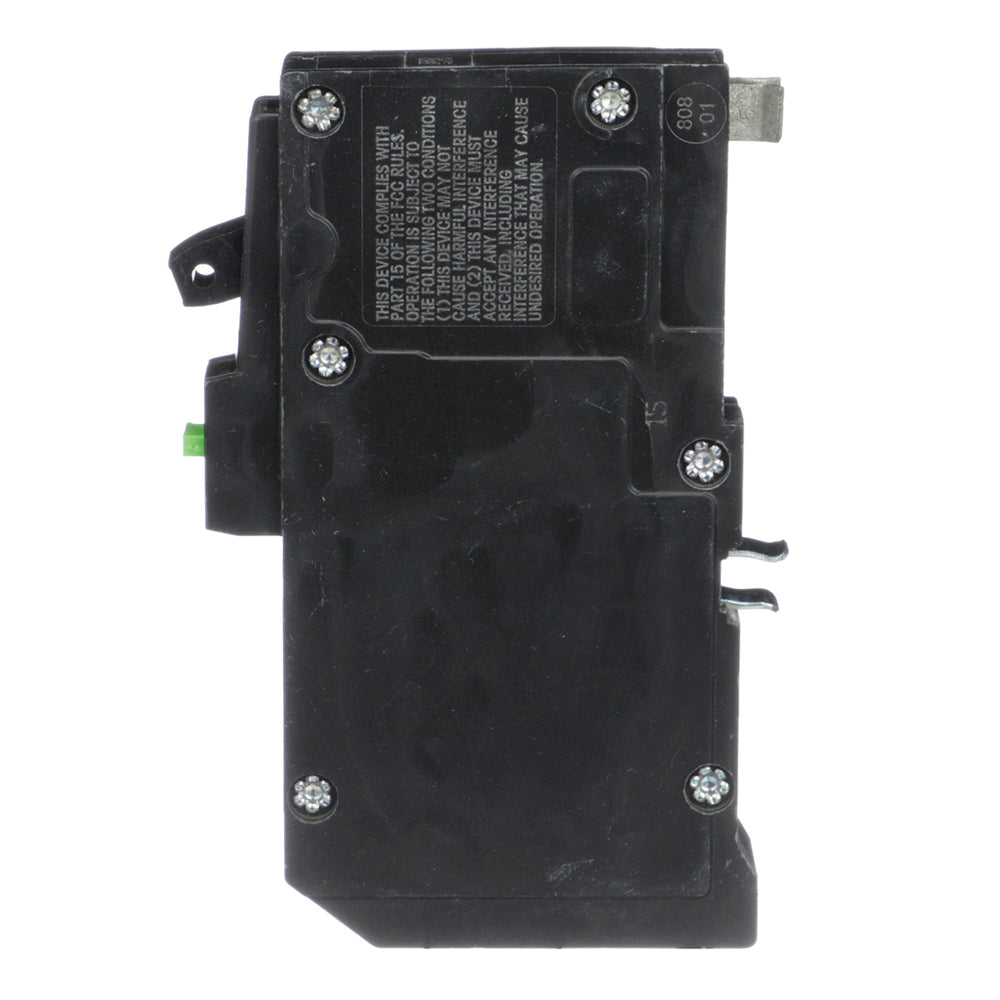

Square D QO115AFI Circuit Breaker | 120/240V 15A 1P 10kA@120V Plug-In QO Series

Product Description:
The Square D QO115AFI is a Molded Case Circuit Breaker designed for reliable electrical protection. It is a 1-pole, 15-amp breaker rated for 120/240 volts with a 10kA interrupting capacity at 120V. This arc fault circuit interrupter features thermal magnetic protection and a plug-in connection for easy installation. It is compatible with QO Load Centers and NQ Panelboards.

Key Features:
✔ Part Number: QO115AFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO SEries
✔ Type: QO-AF
✔ Voltage: 120/240
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Arc Fault Circuit Interrupter
✔ Protection: Thermal Magnetic
✔ UPC: 785901301295
✔ GTIN: 00785901301295
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 3 in x 4.76 in
✔ Weight: 1
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
