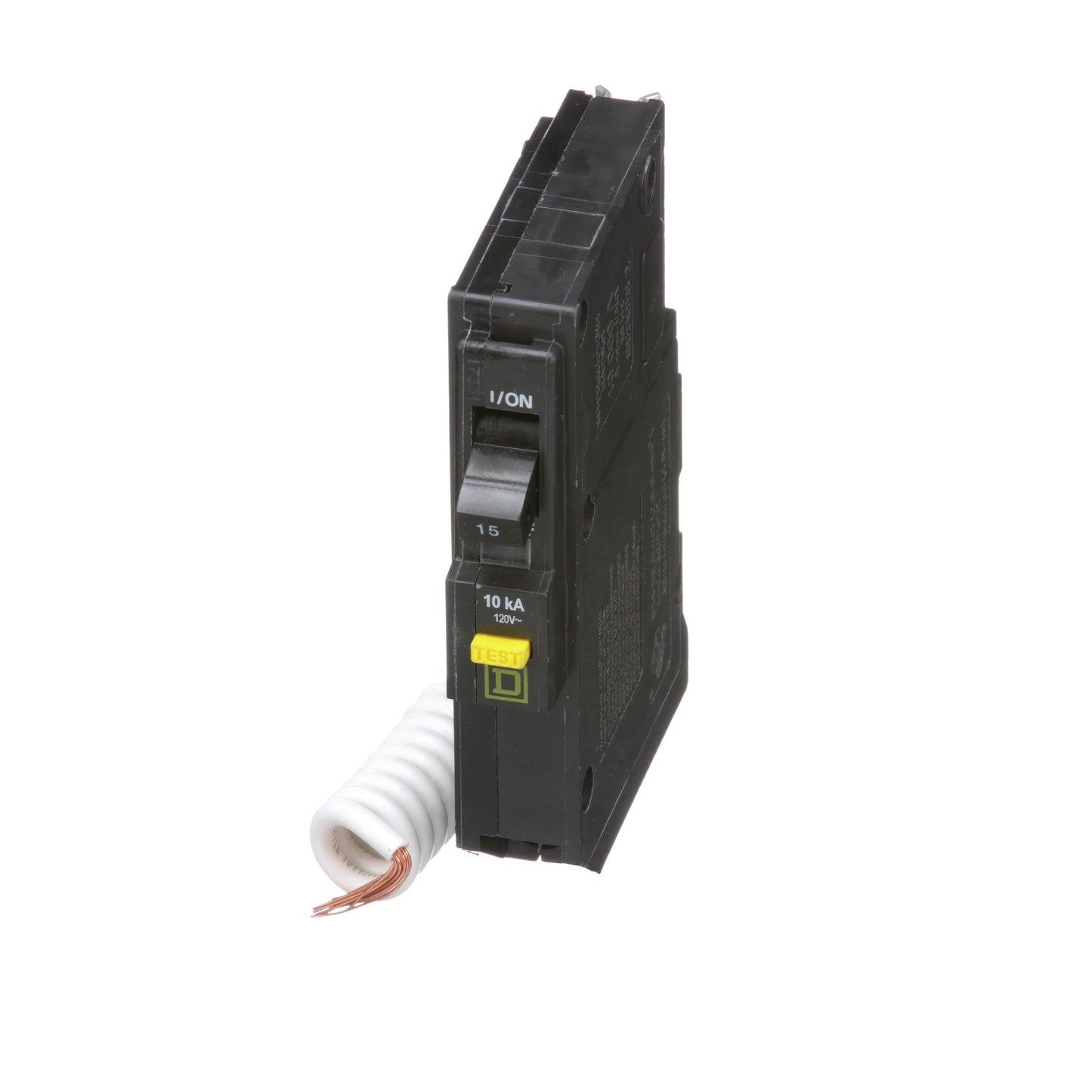

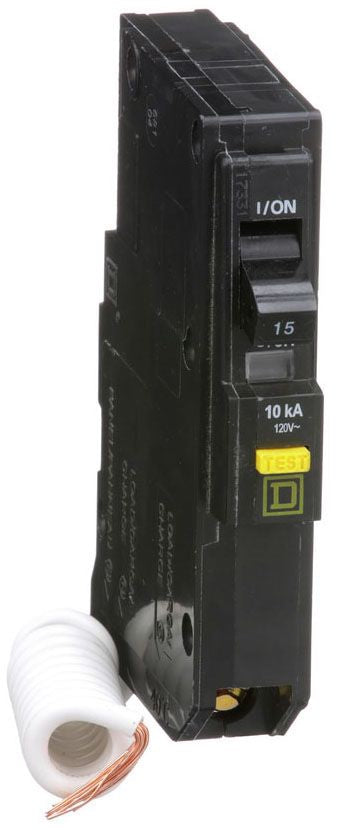

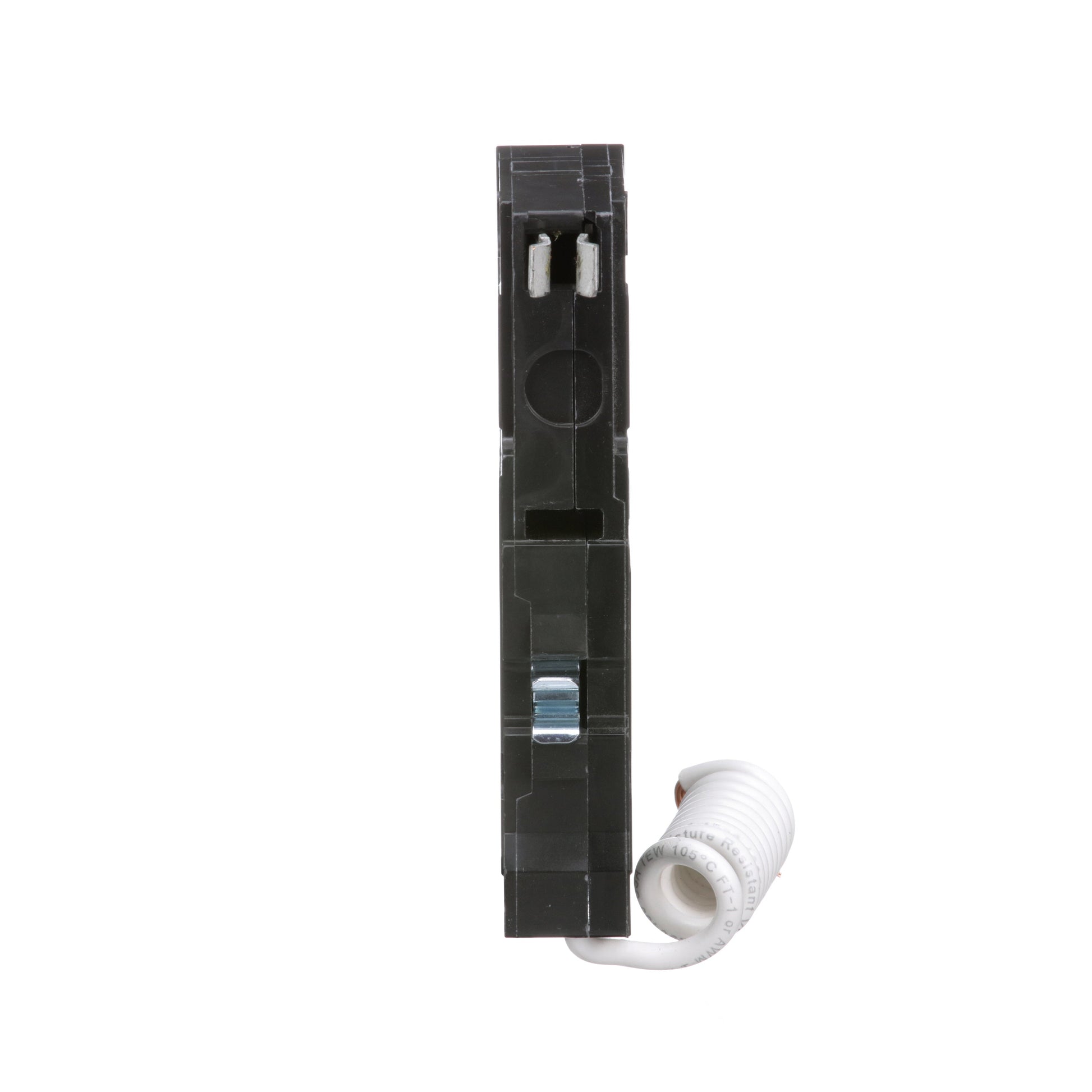

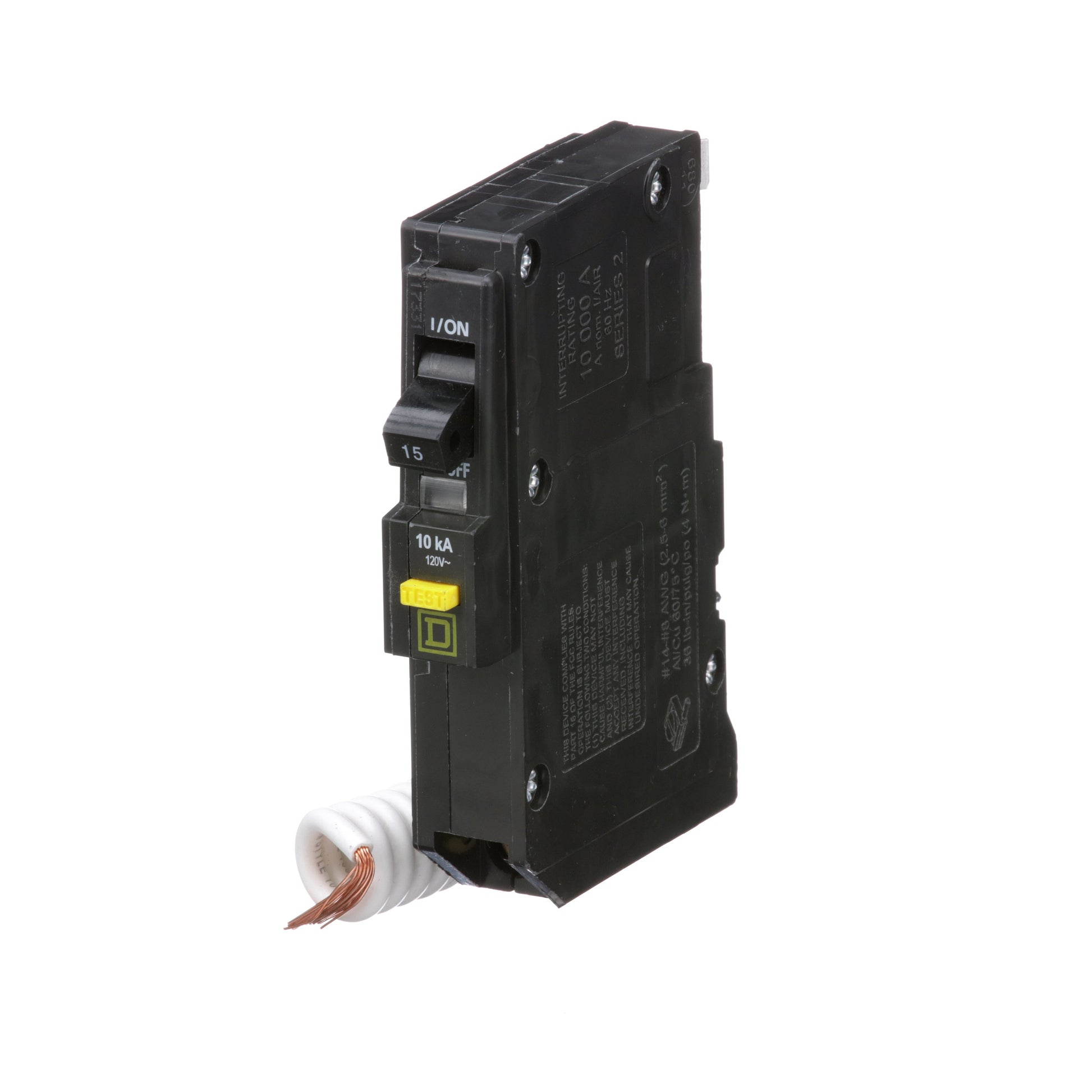

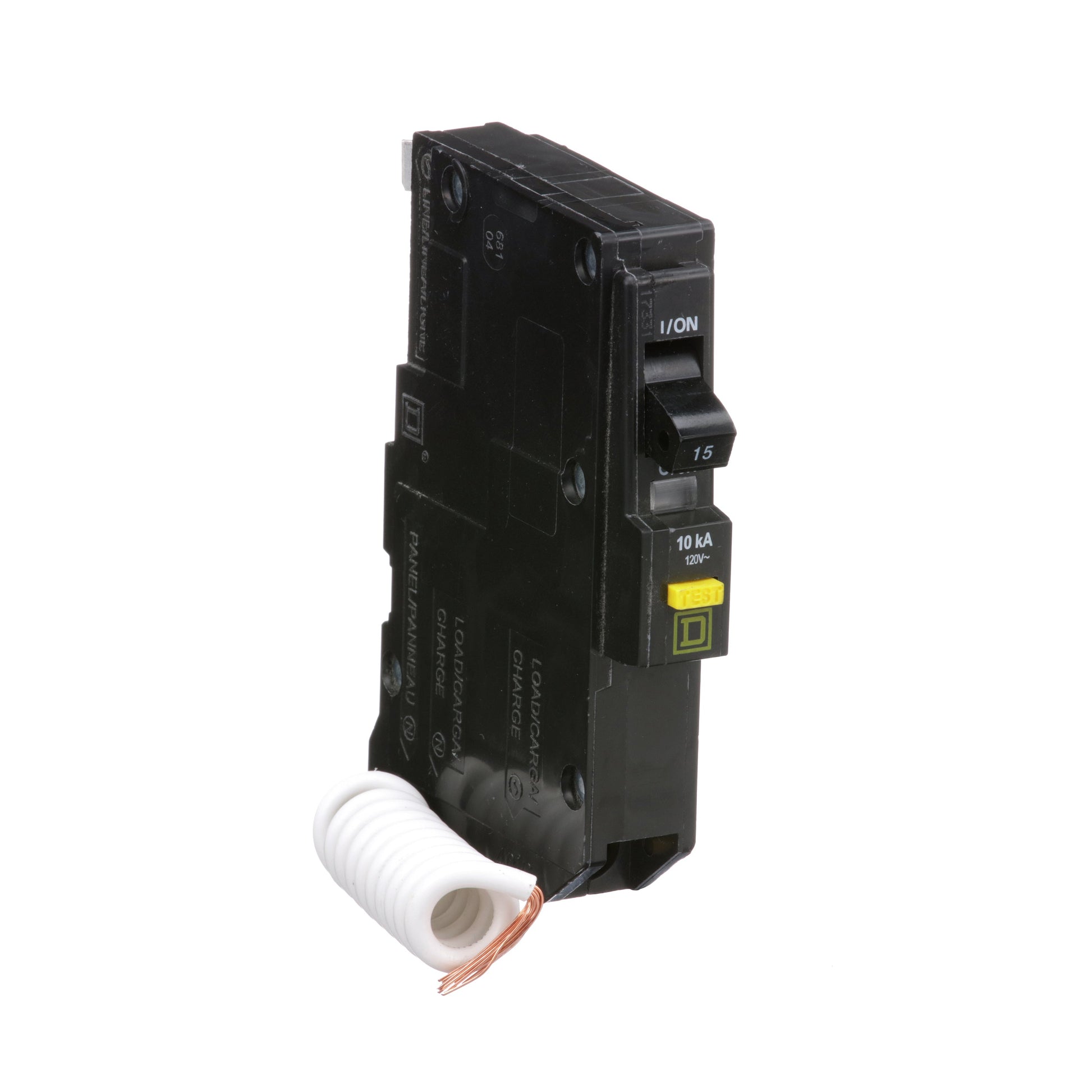

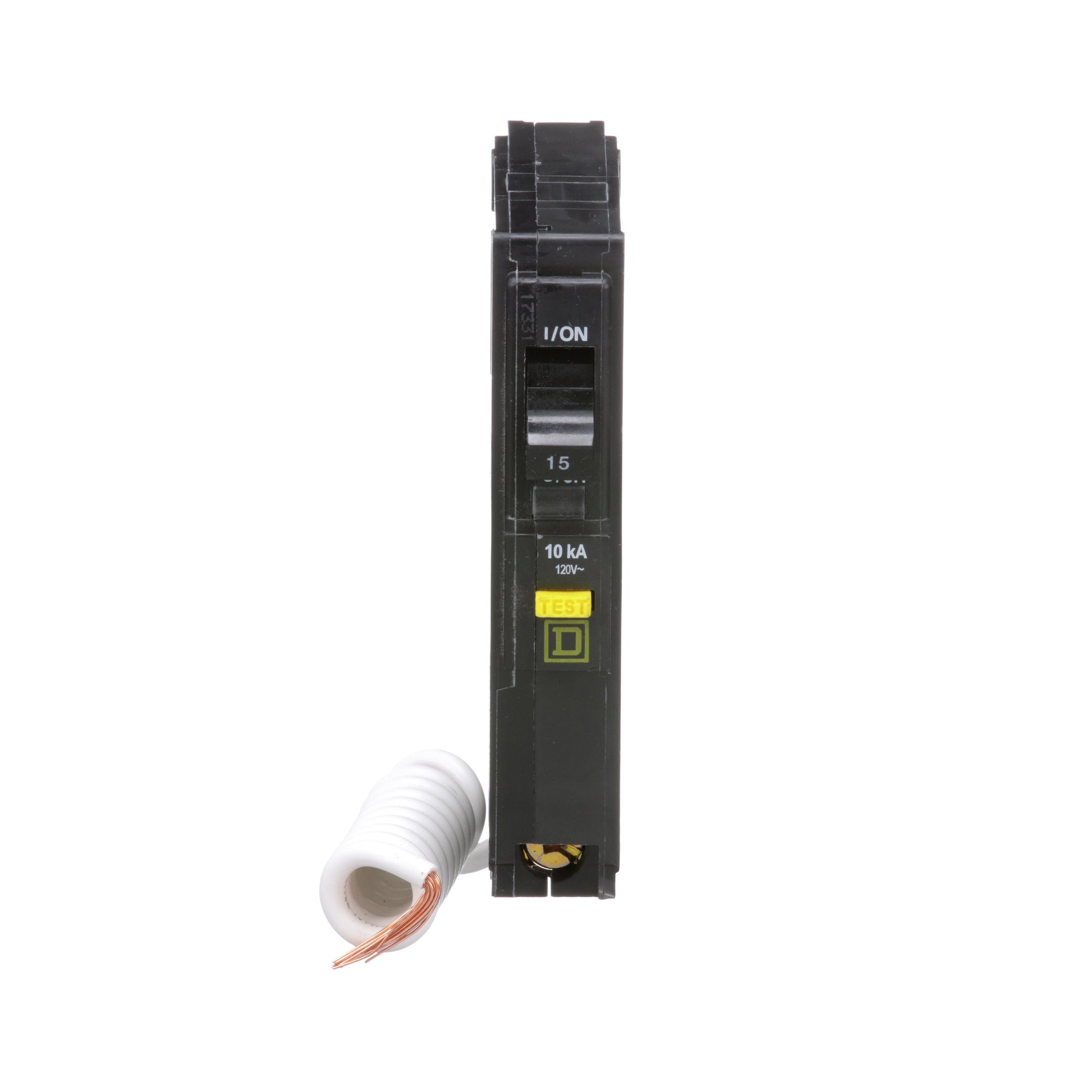

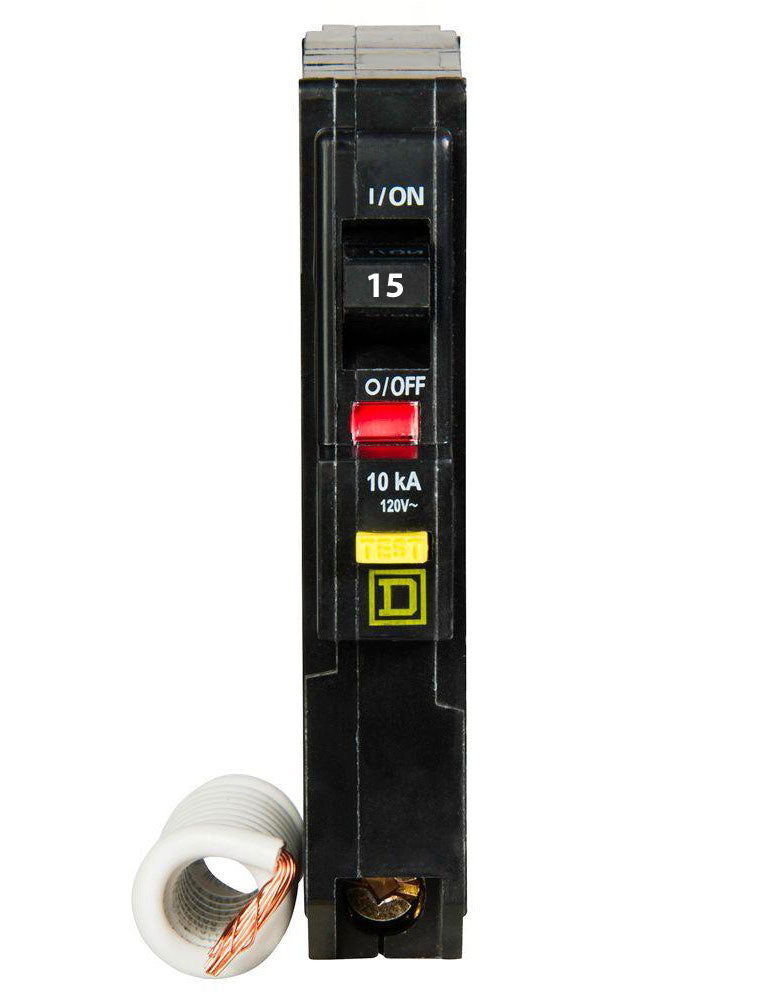

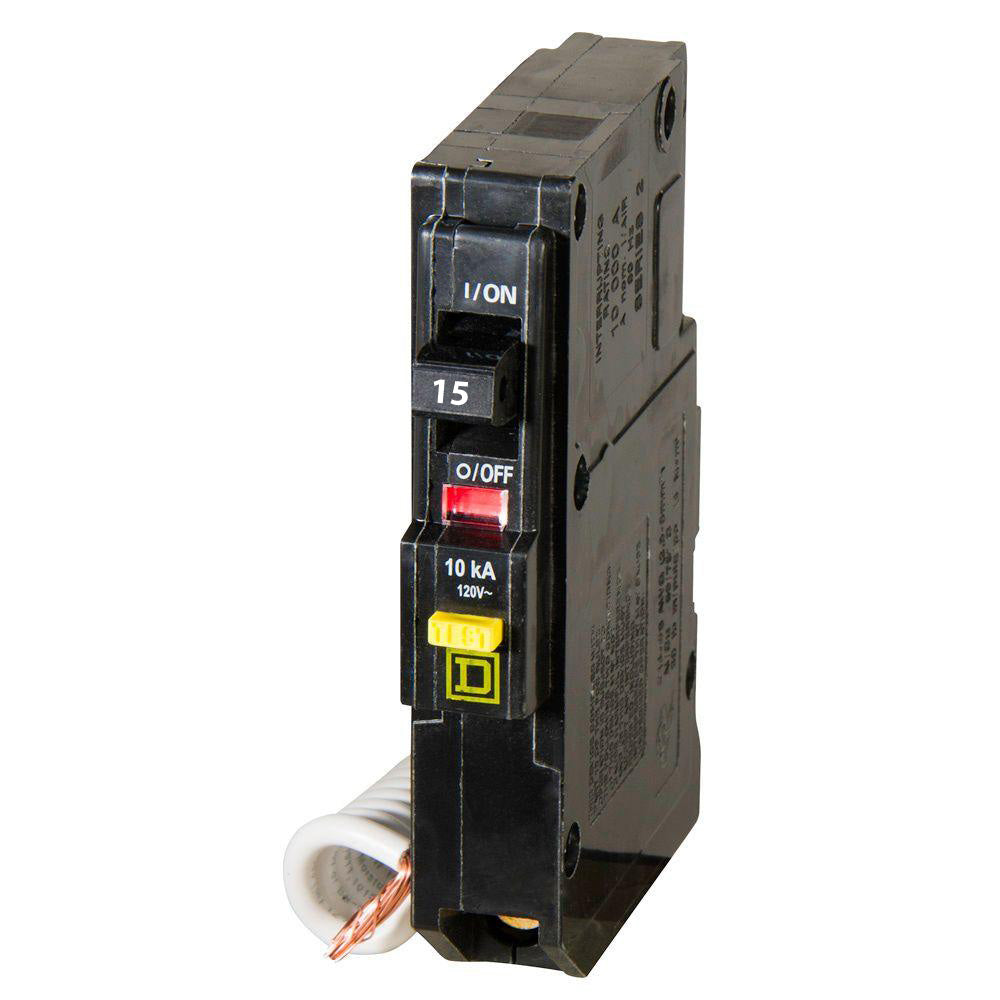

Square D QO115GFI Circuit Breaker 120V 15A 1P 10kA@120V Plug-In QO Series

Product Description:
The Square D QO115GFI is a molded case circuit breaker designed for reliable electrical protection. It is a 1-pole, 15-amp, 120-volt ground fault circuit interrupter with a 10kA AIC rating. This breaker features thermal magnetic protection and a plug-in connection for easy installation. It is compatible with QO load centers and NQ panelboards.

Key Features:
✔ Part Number: QO115GFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO-GF
✔ Voltage: 120
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 785901255062
✔ GTIN: 00785901255062
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 3 in x 105 mm
✔ Weight: 1
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
✔ Wire Size: 14 To 8 Awg (Copper) 12 To 8 Awg (Aluminum)
