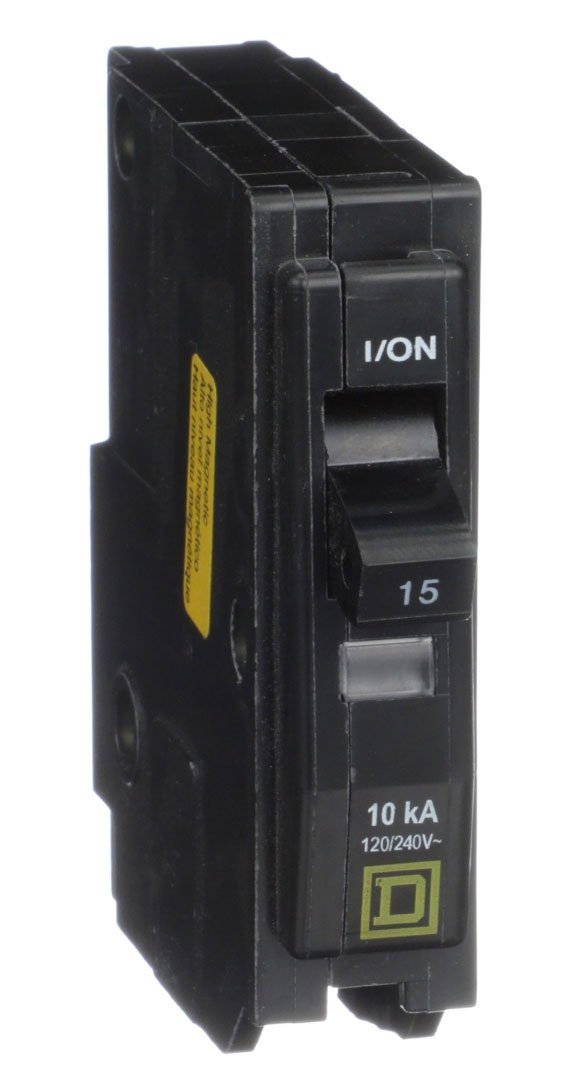

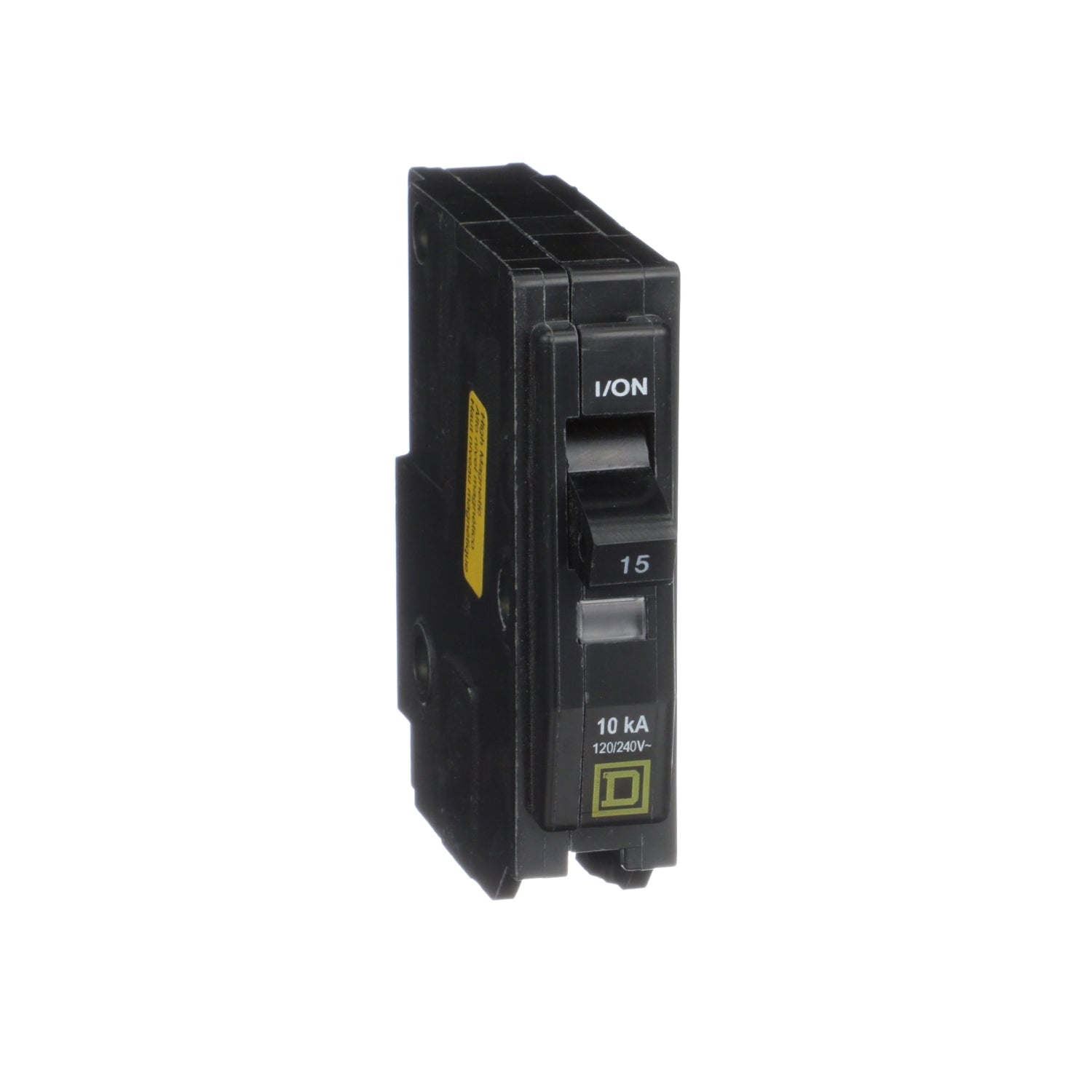

Square D QO115HM Circuit Breaker | 120/240V 15A 1 Pole 10kA@120V Plug-In QO Series

Product Description:
The Square D QO115HM is a Molded Case Circuit Breaker from the QO Series family. It is a 1 pole, 15 amp breaker rated for 120/240 Volt applications with a 10kA@120V AIC rating. This circuit breaker uses a Plug-In connection and provides Thermal Magnetic protection for reliable operation.

Key Features:
✔ Part Number: QO115HM
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: High Magnetic
✔ Protection: Thermal Magnetic
✔ UPC: 785901400073
✔ GTIN: 00785901400073
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 3 in x 76 mm
✔ Weight: 1.02
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
