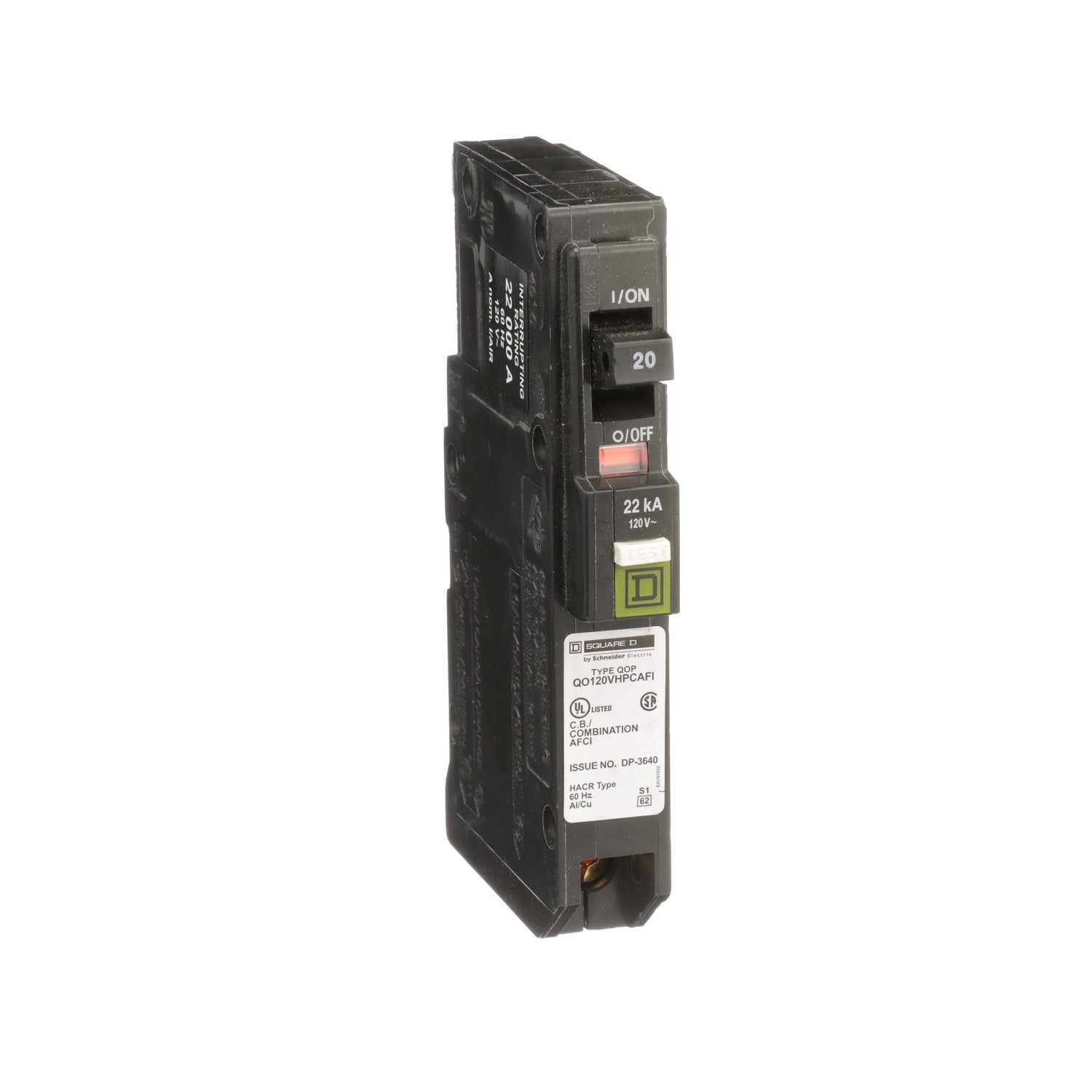

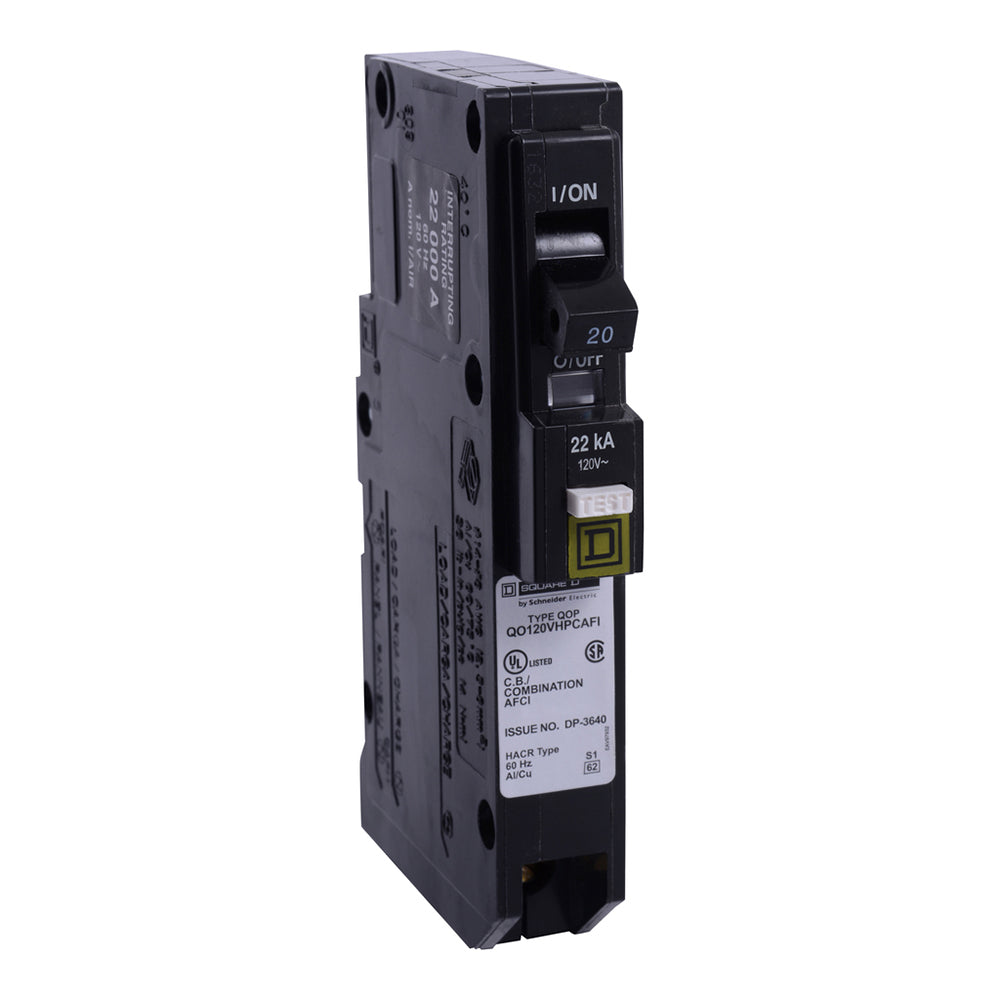

Square D QO120VHPCAFI Circuit Breaker | 120V 20A 1P 22kA@120V Plug-In QO Series

Product Description:
The Square D QO120VHPCAFI is a 1-pole, 20-amp molded case circuit breaker designed for 120-volt systems. It features a plug-in connection and provides thermal magnetic protection. This combination arc fault circuit interrupter is part of the QO Series and is suitable for use in QO Plug-On Neutral Load Centers.

Key Features:
✔ Part Number: QO120VHPCAFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO-AF
✔ Voltage: 120
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 22kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Combination Arc Fault Circuit Interrupter
✔ Protection: Thermal Magnetic
✔ UPC: 785901743941
✔ GTIN: 00785901743941
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 4.75 in x 4.76 in
✔ Weight: 1
✔ Panel Type: QO Plug-On Neutral Load Centers
✔ Standards: CSA Certified, UL Listed
✔ Certification: UL Listed
✔ Wire Size: AWG 14 to AWG 8 Copper, AWG 12 to AWG 8 Aluminum
