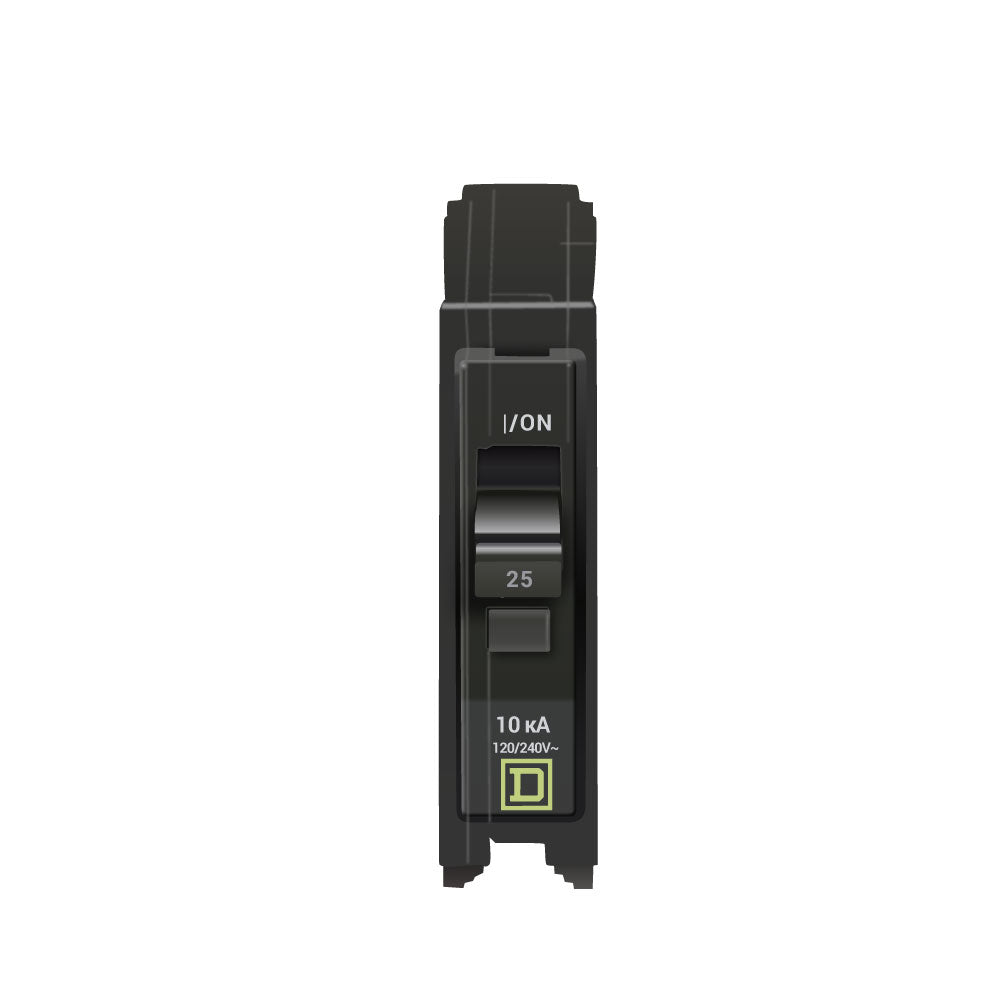

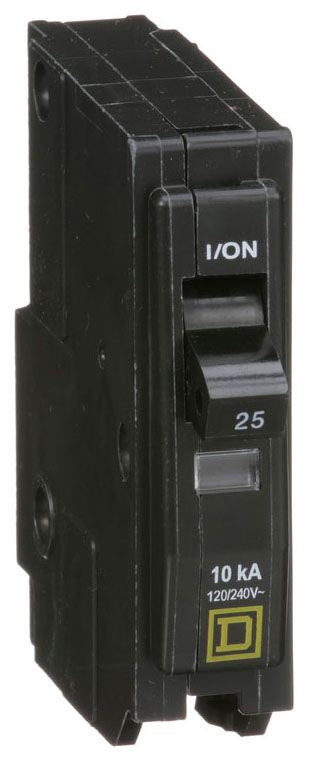

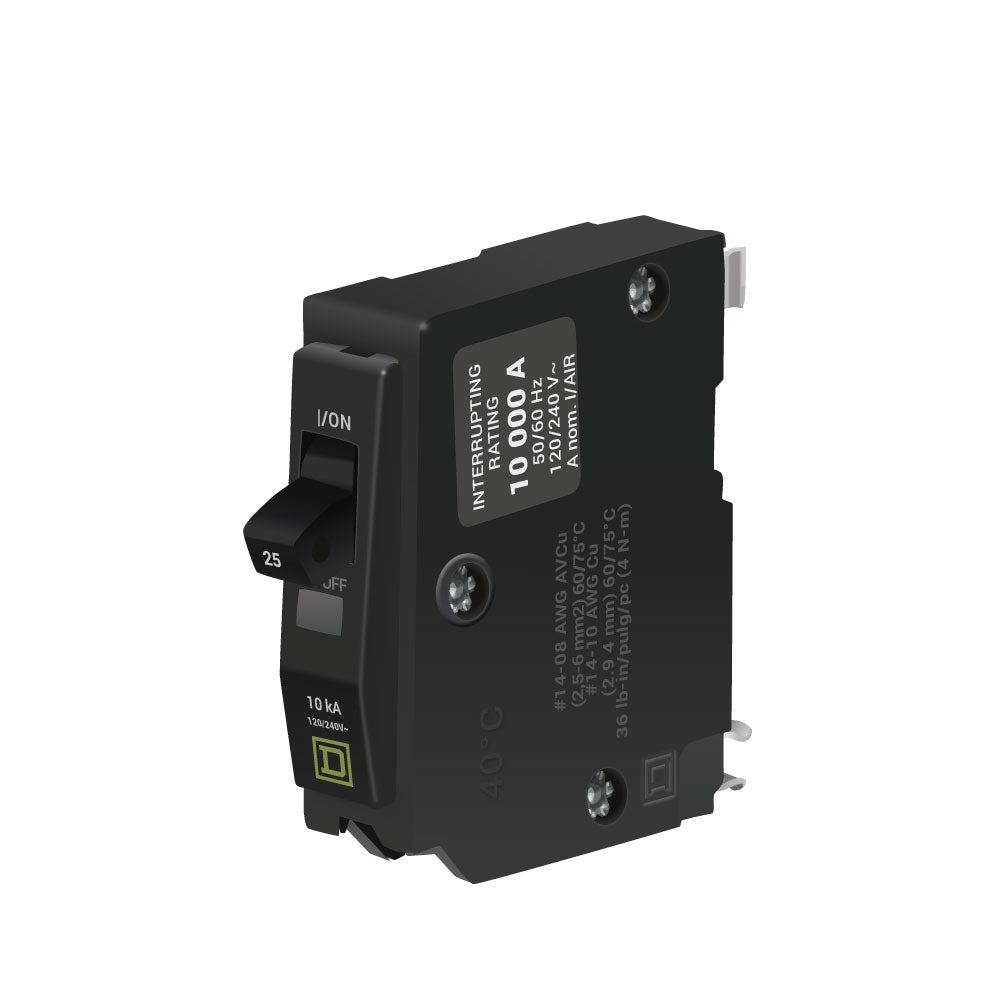

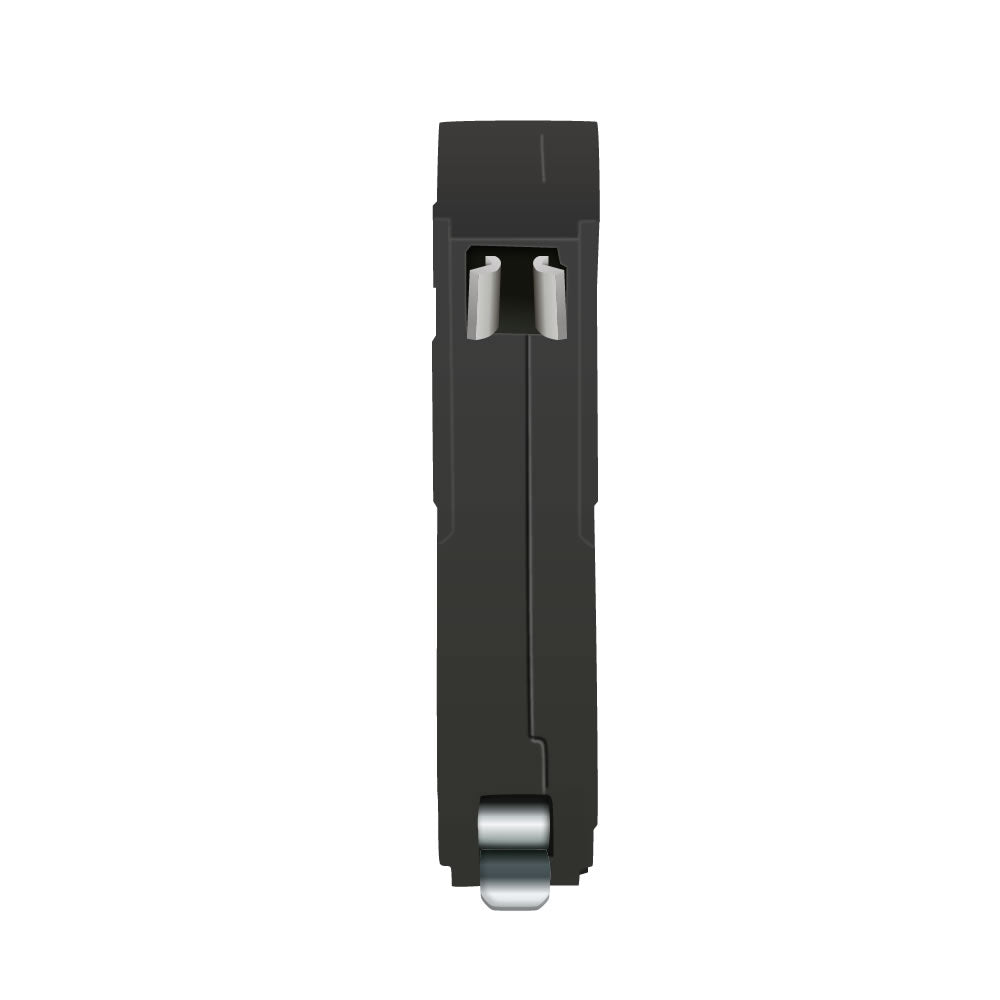

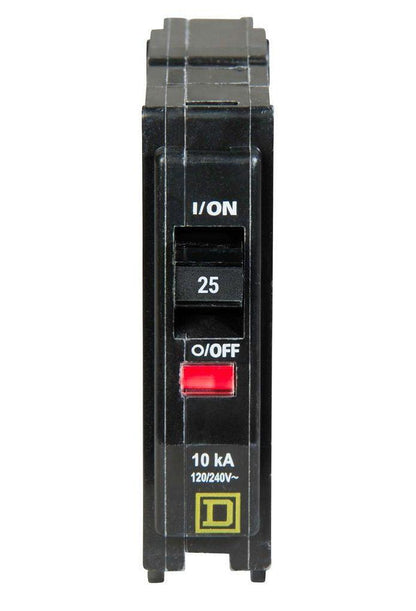

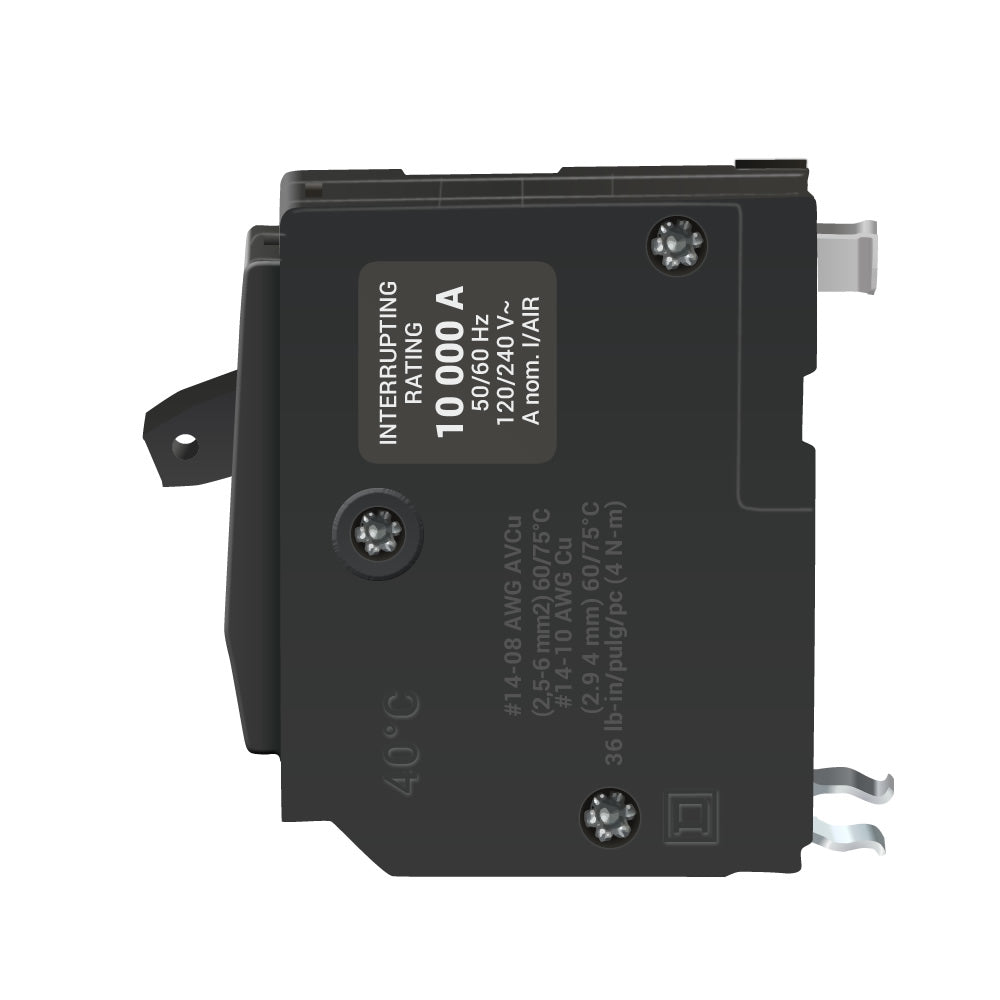

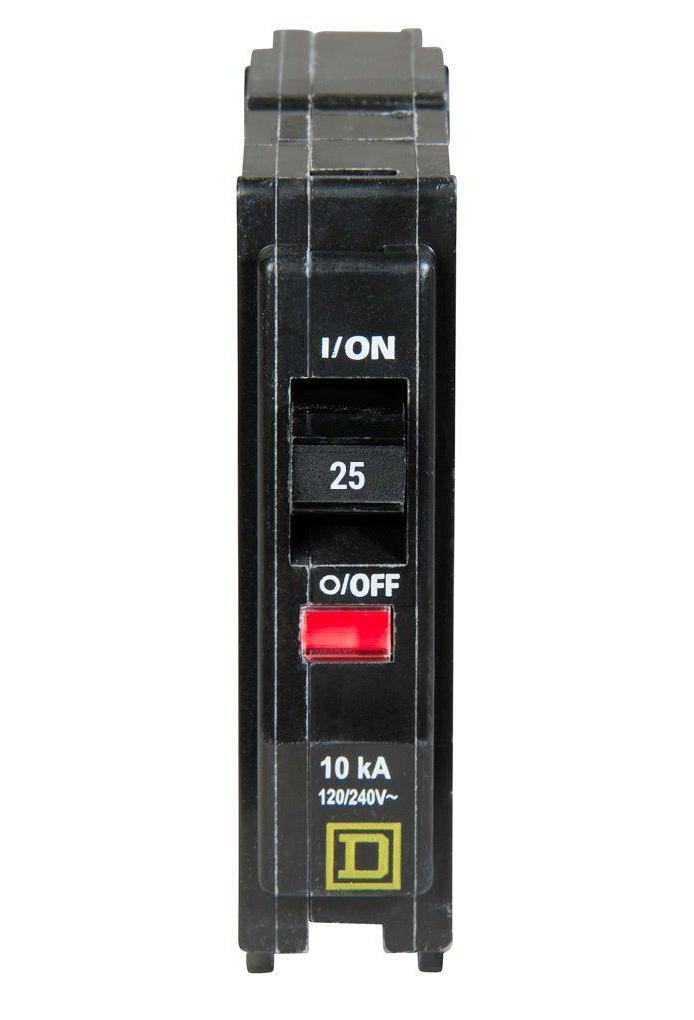

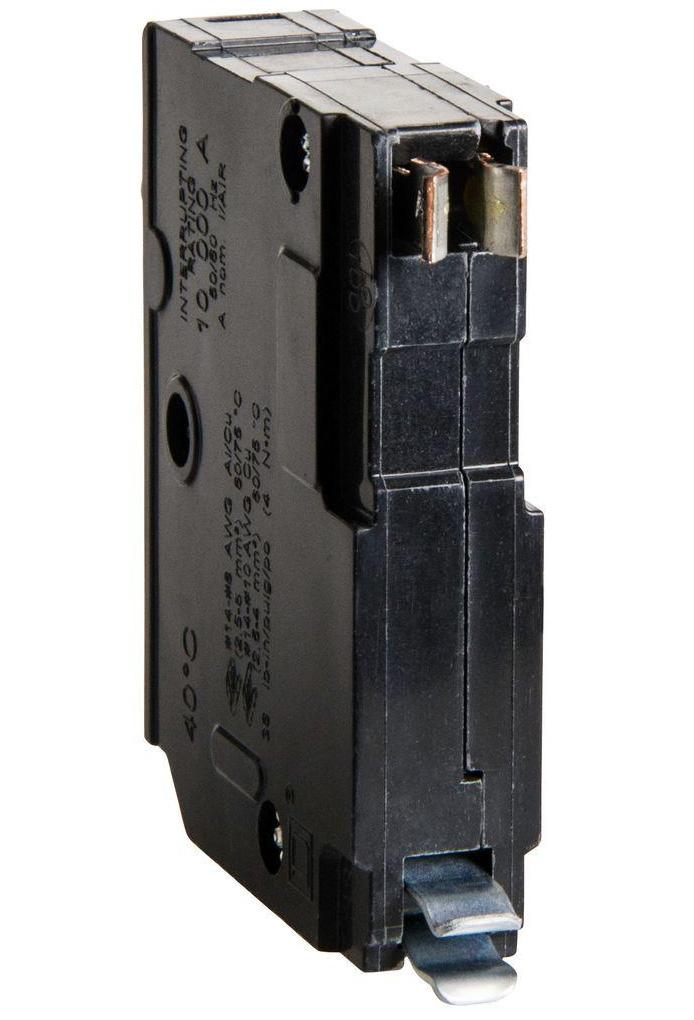

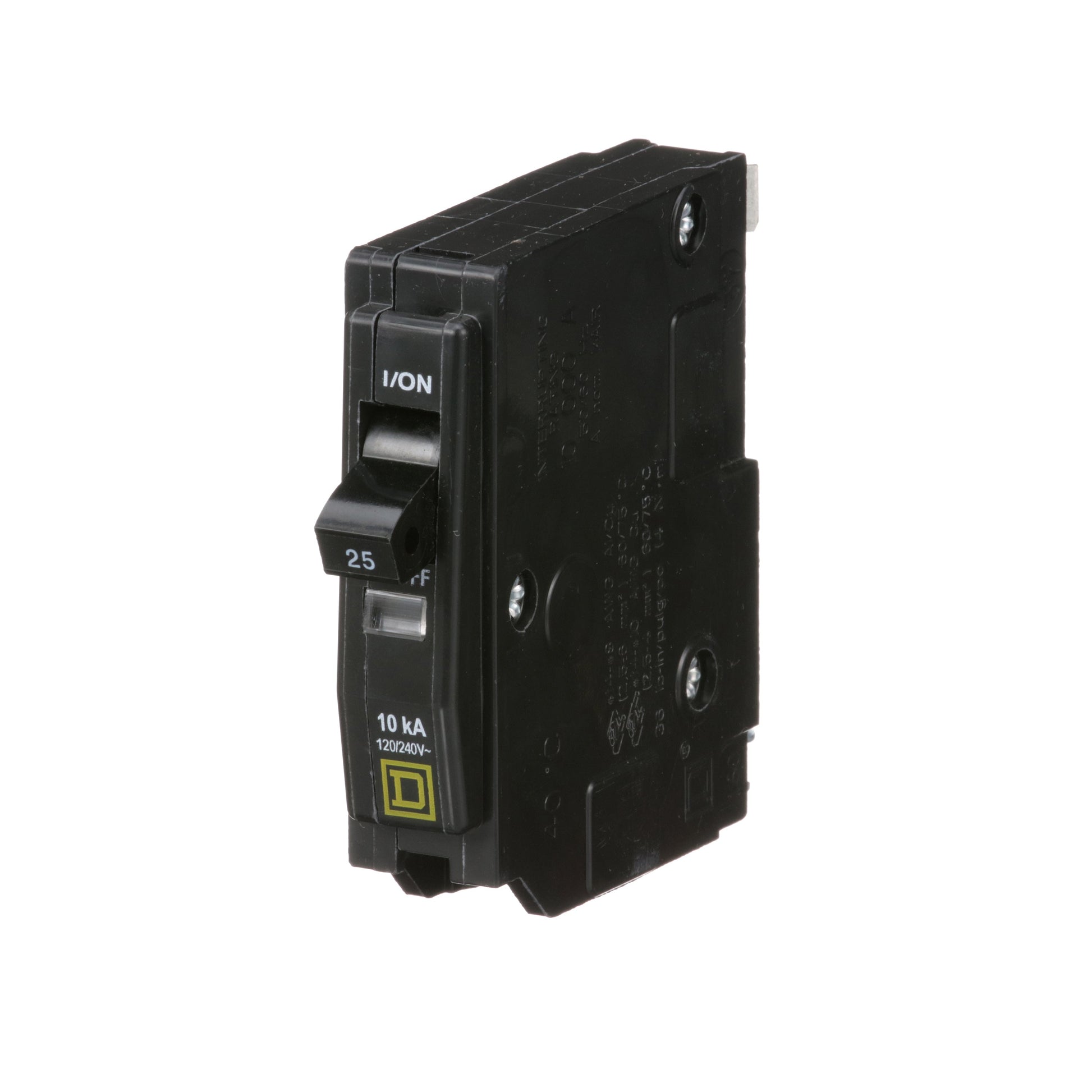

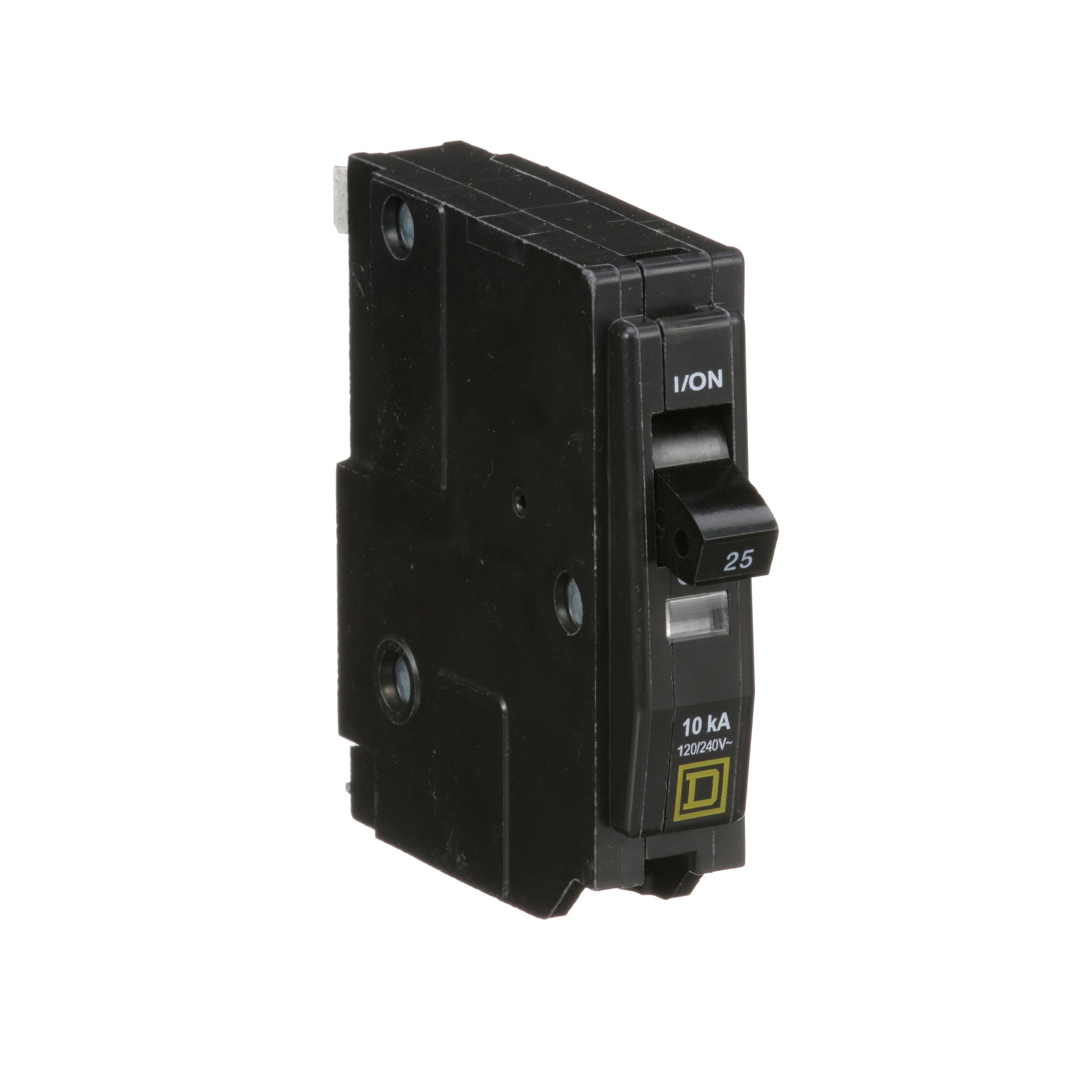

Square D QO125 Circuit Breaker | 120/240V 25A 1P 10kA@240V Plug-In QO Series

Product Description:
The Square D QO125 is a Molded Case Circuit Breaker from the QO Series family. It is a 1-pole, 25 amp breaker rated for 120/240 volts with a 10kA AIC rating at 240V. This plug-in breaker features thermal magnetic protection and is designed for use in QO Load Centers and NQ Panelboards.

Key Features:
✔ Part Number: QO125
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 25
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901010418
✔ GTIN: 00785901010418
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 3 in x 2.99 in
✔ Weight: 0.2
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: HACR, UL Listed
✔ Wire Size: 14 To 8 Awg (Aluminum/Copper) (2) 14 To 10 Awg (Copper)
