Product Description:

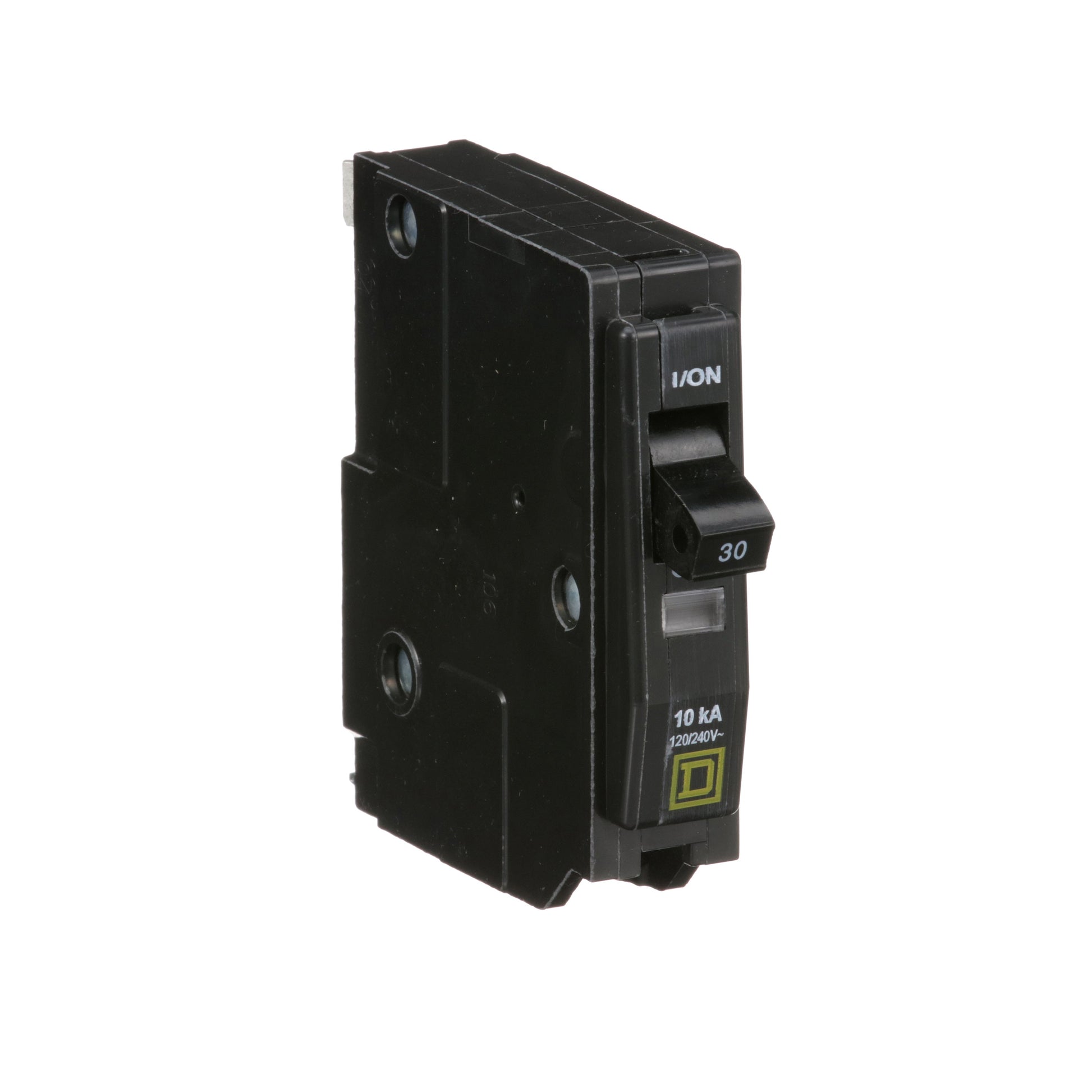

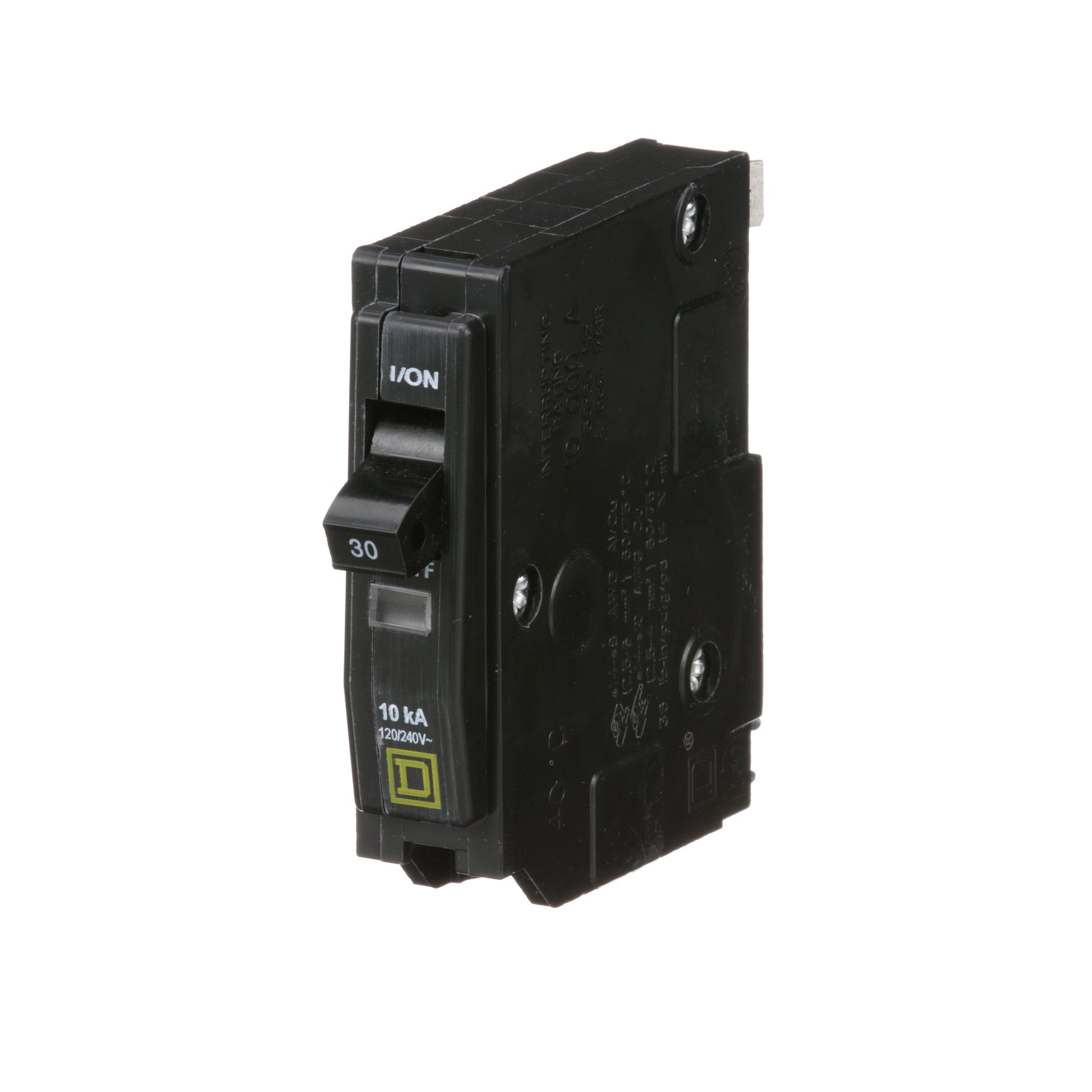

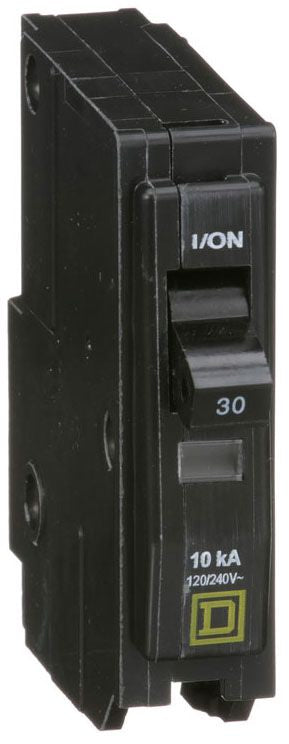

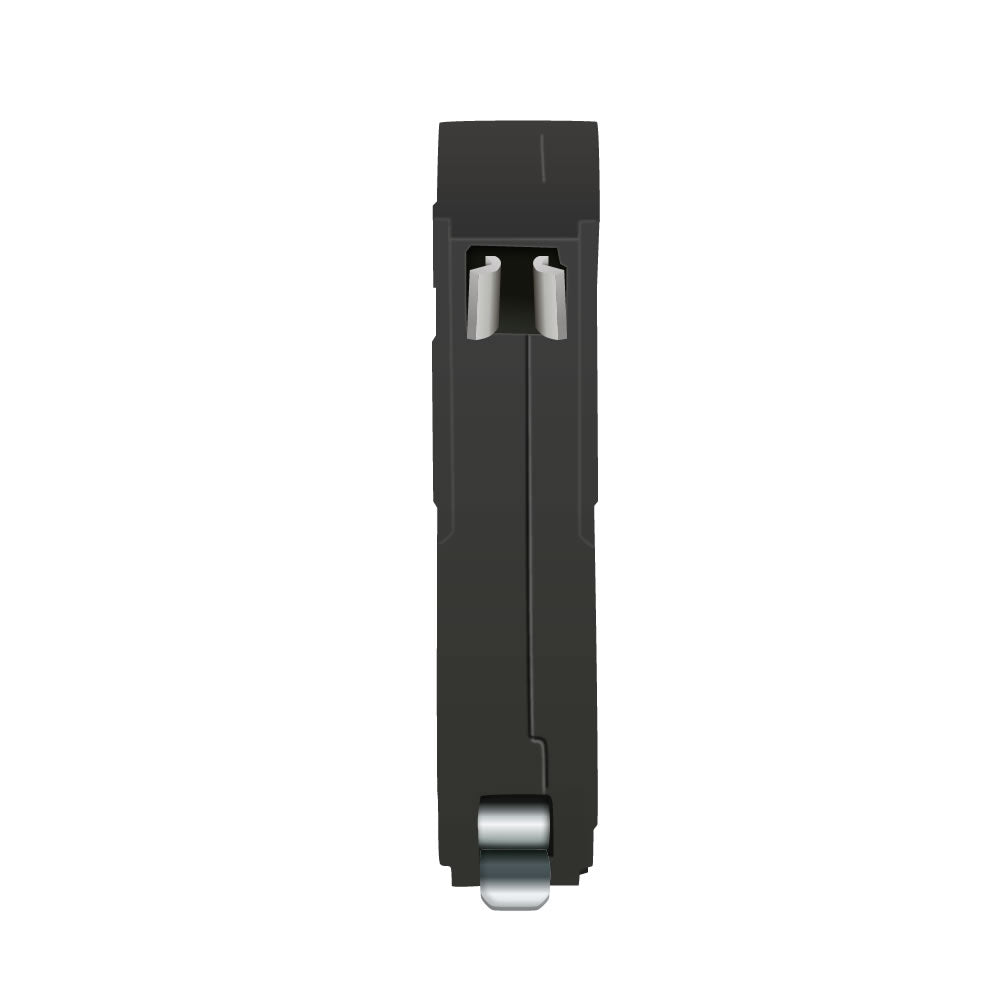

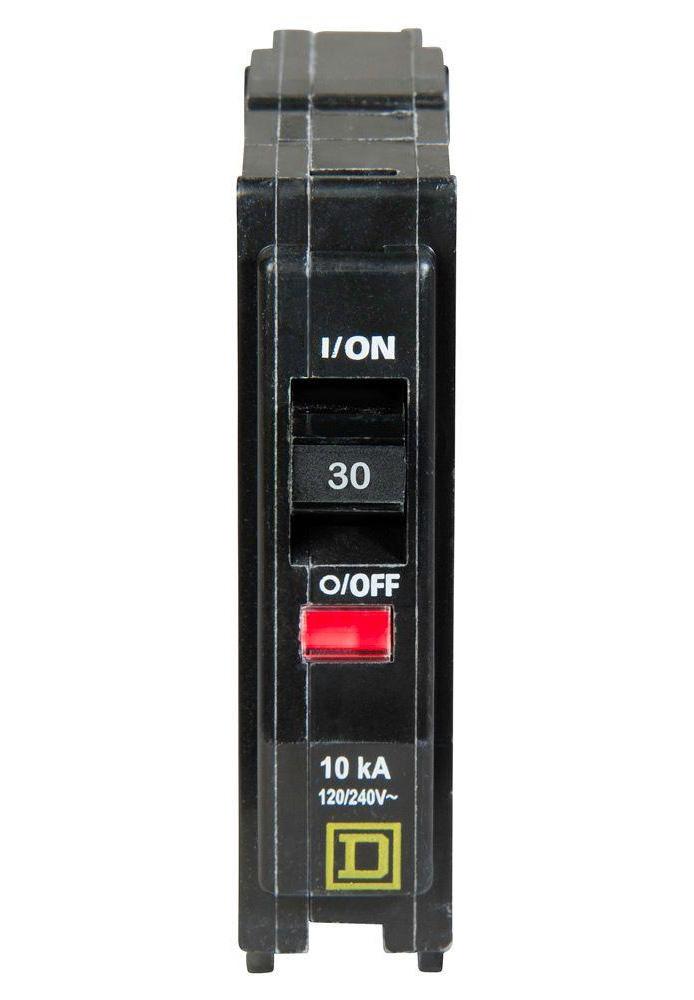

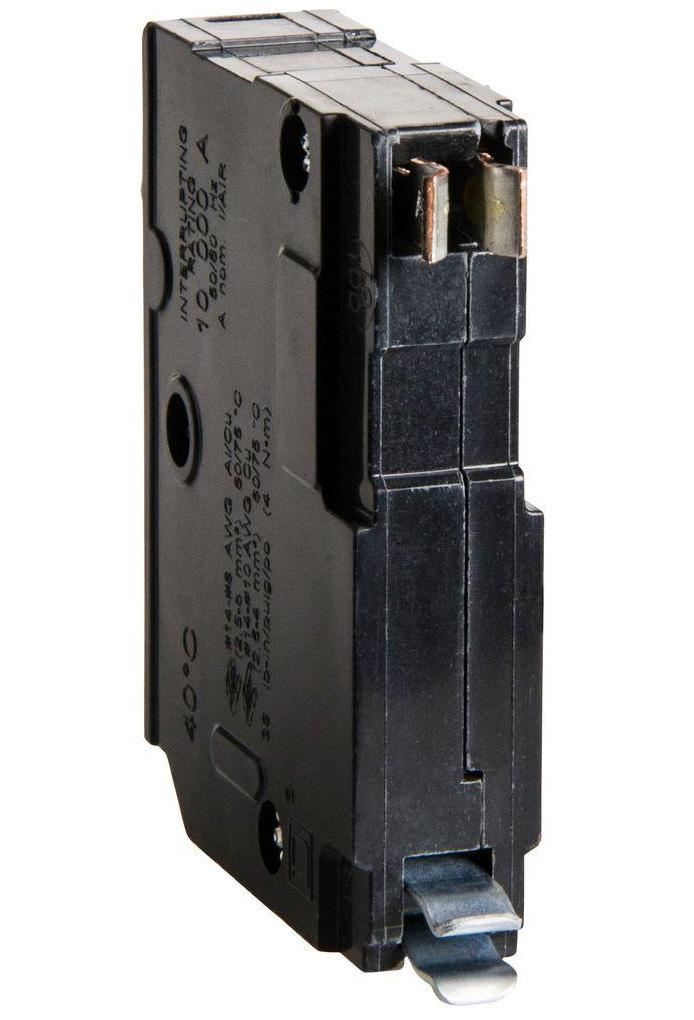

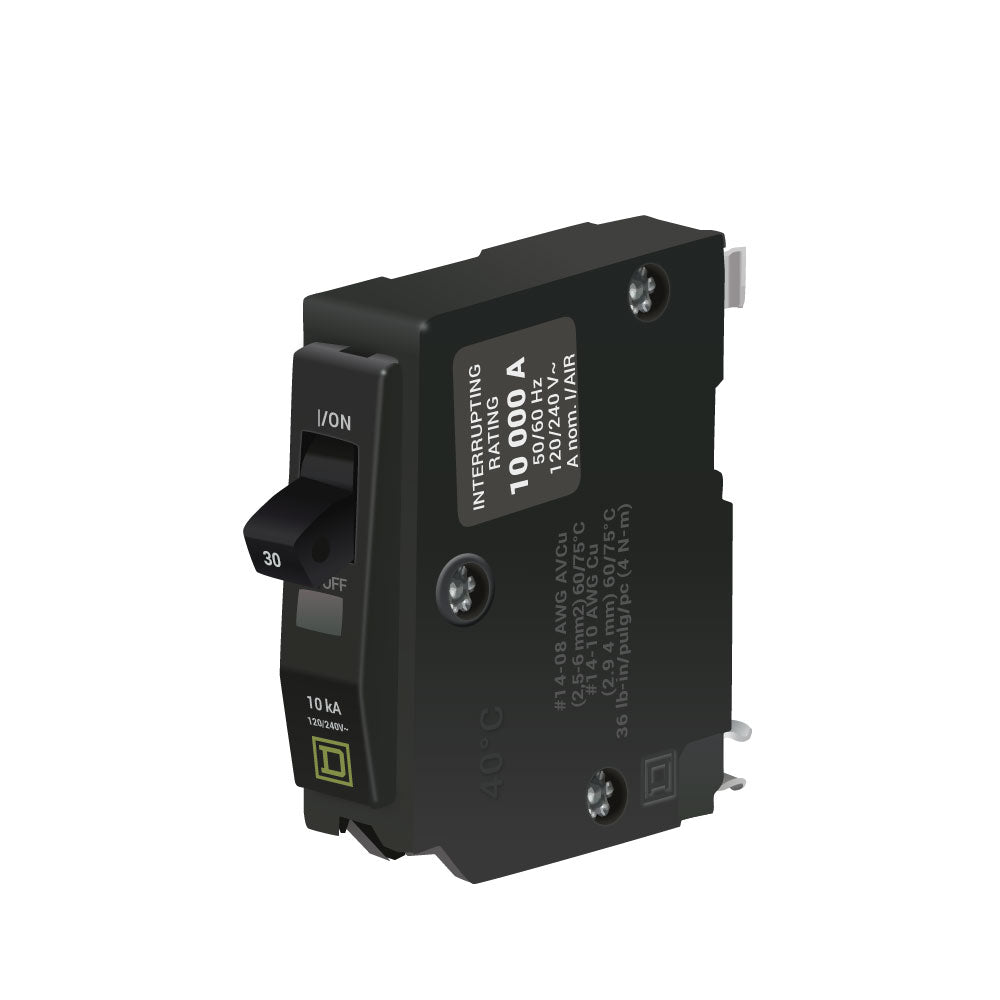

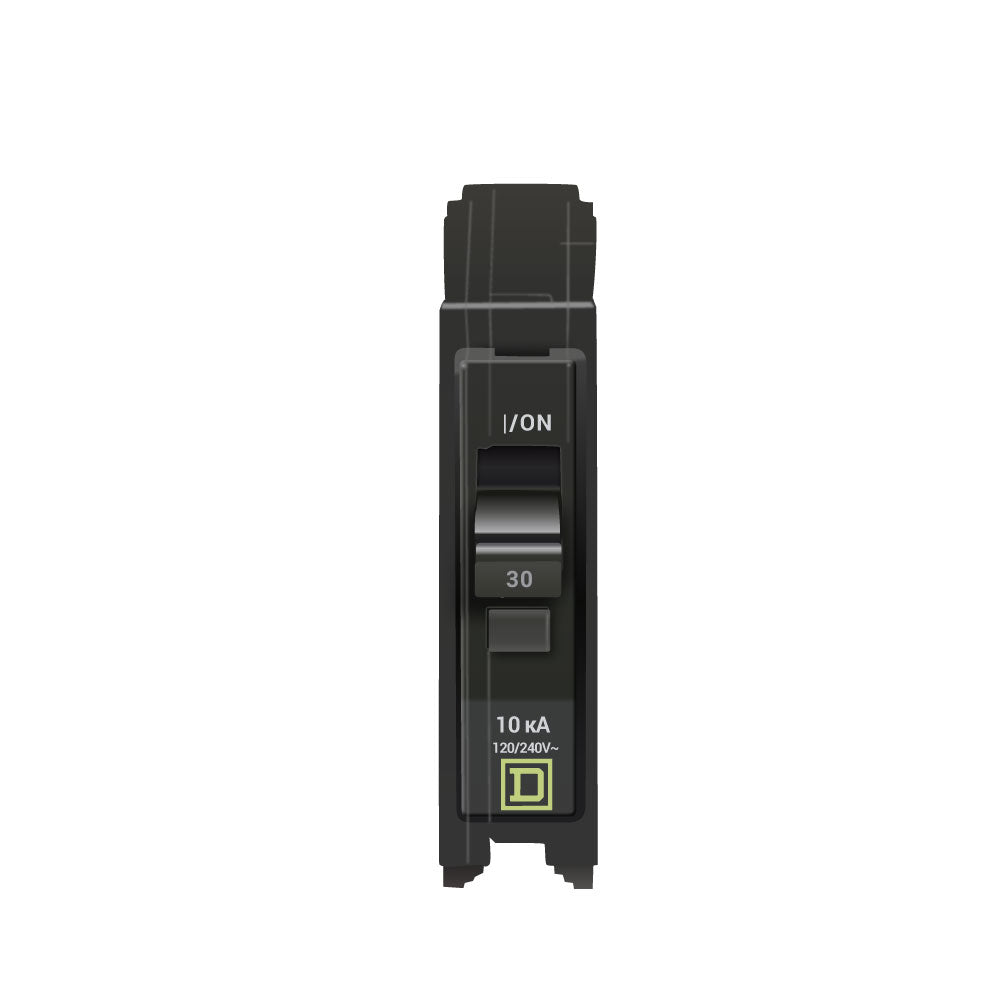

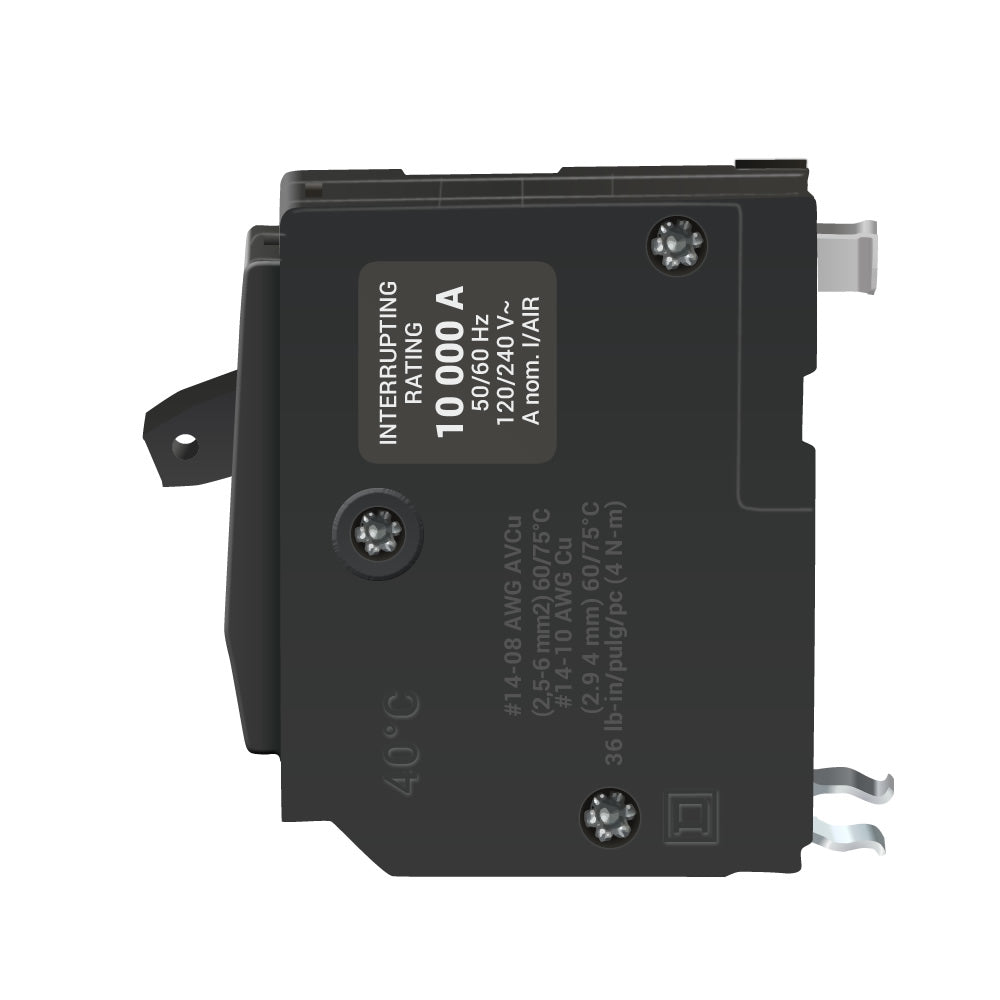

The Square D QO130 is a Molded Case Circuit Breaker from the QO Series. It features a 1-pole design with a 120/240 VAC voltage rating and 30 amp capacity. This breaker offers thermal magnetic protection and has an AIC rating of 10kA@240V. It uses a plug-in connection and is compatible with QO load centers and NQ panelboards.
Key Features:
✔ Part Number: QO130
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240 VAC
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 8 AWG
✔ Breaker Type: Standard
✔ Temp Rating: Minimum 104°F, Maximum 104°F
✔ Wire Size: 14 to 8
