Product Description:

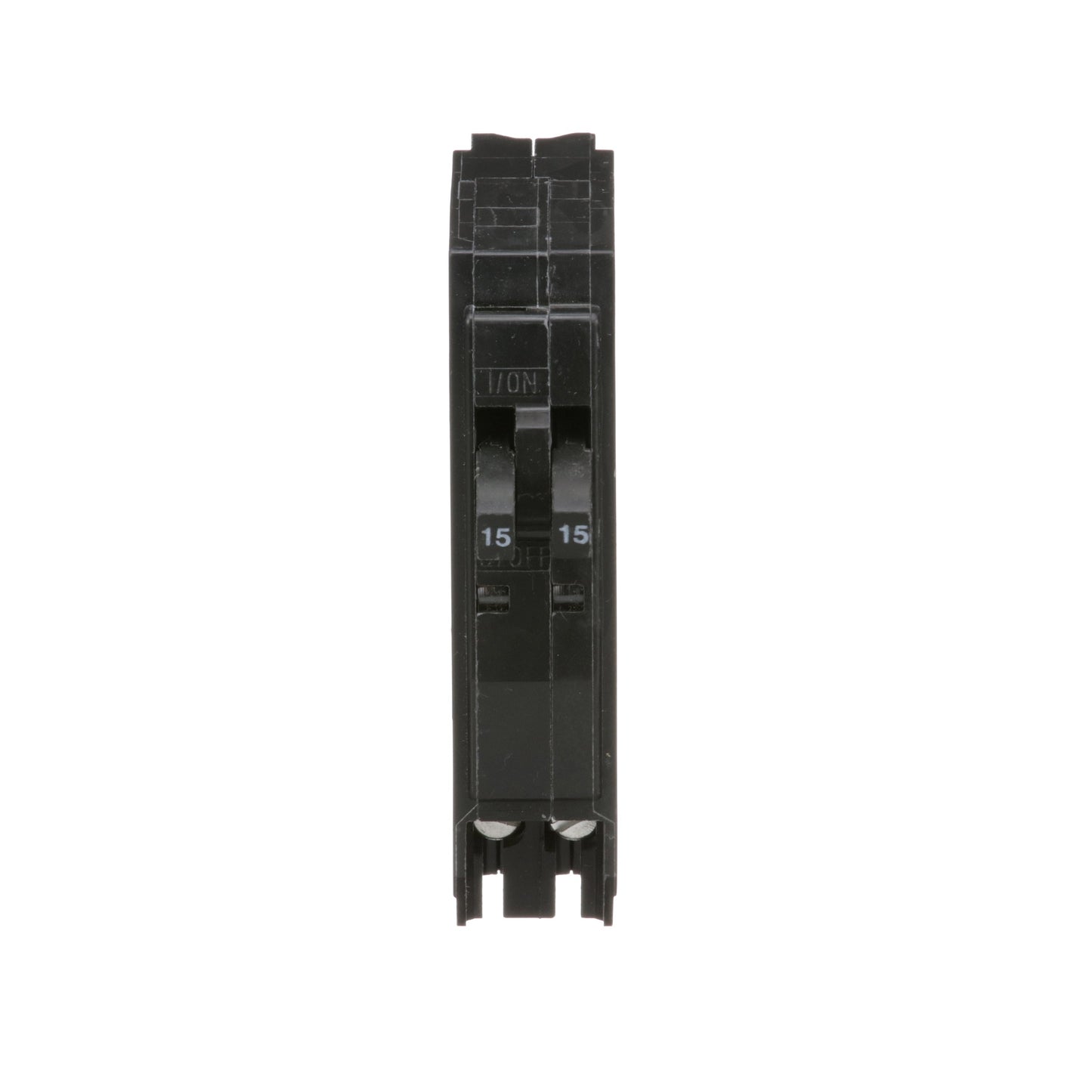

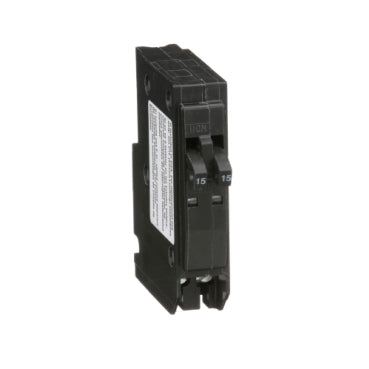

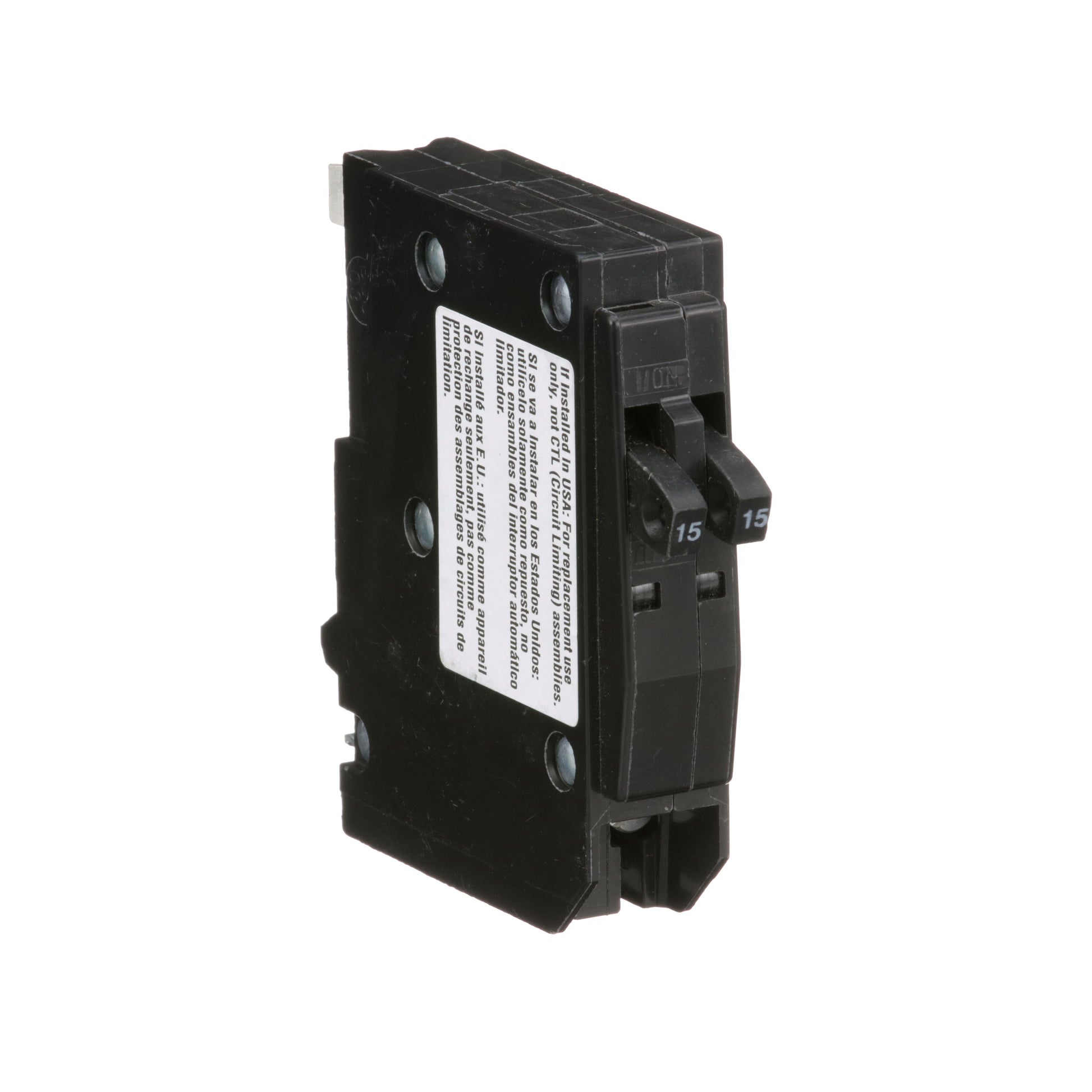

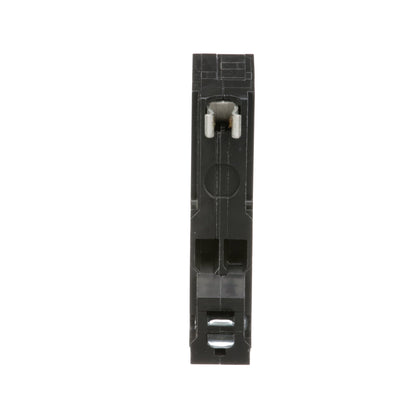

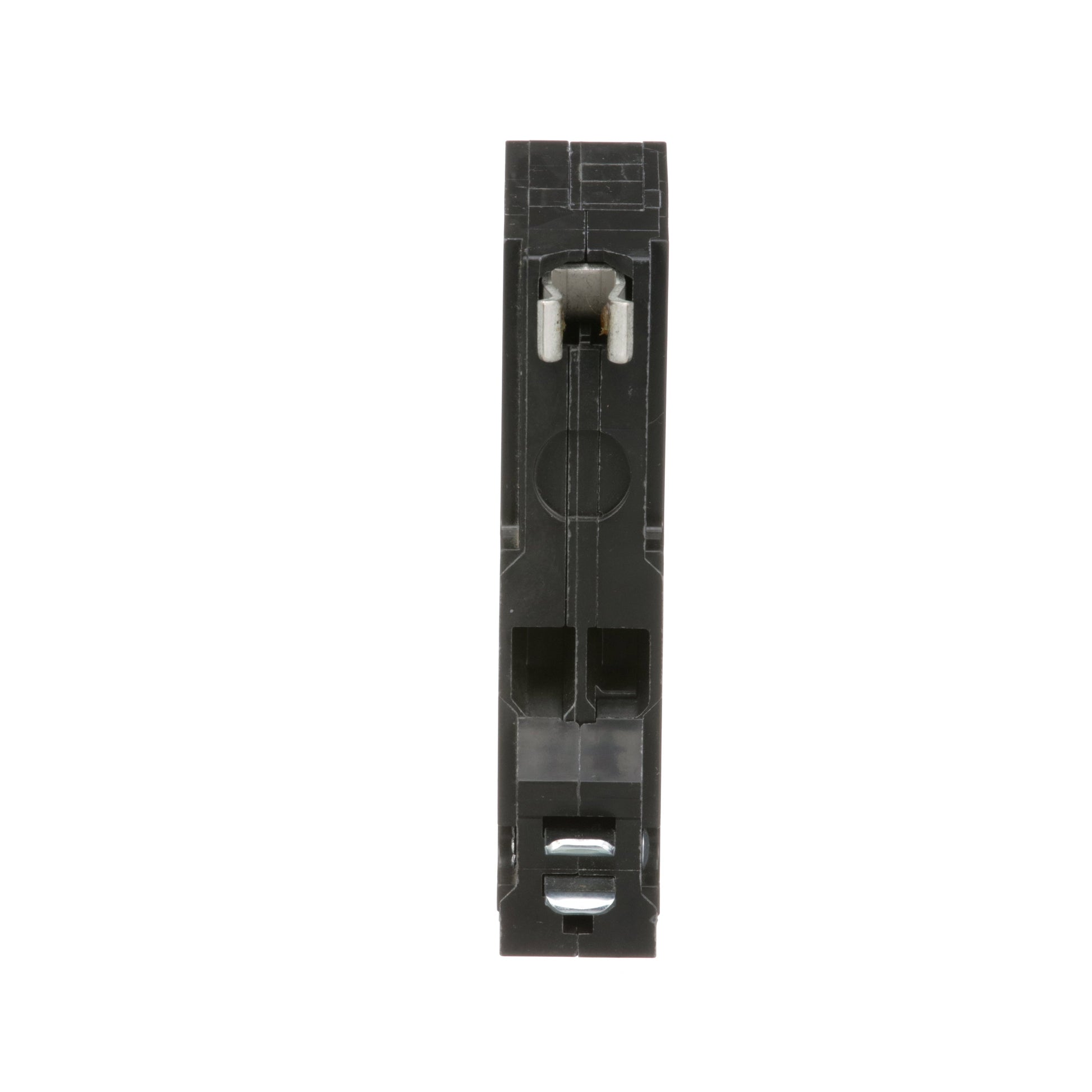

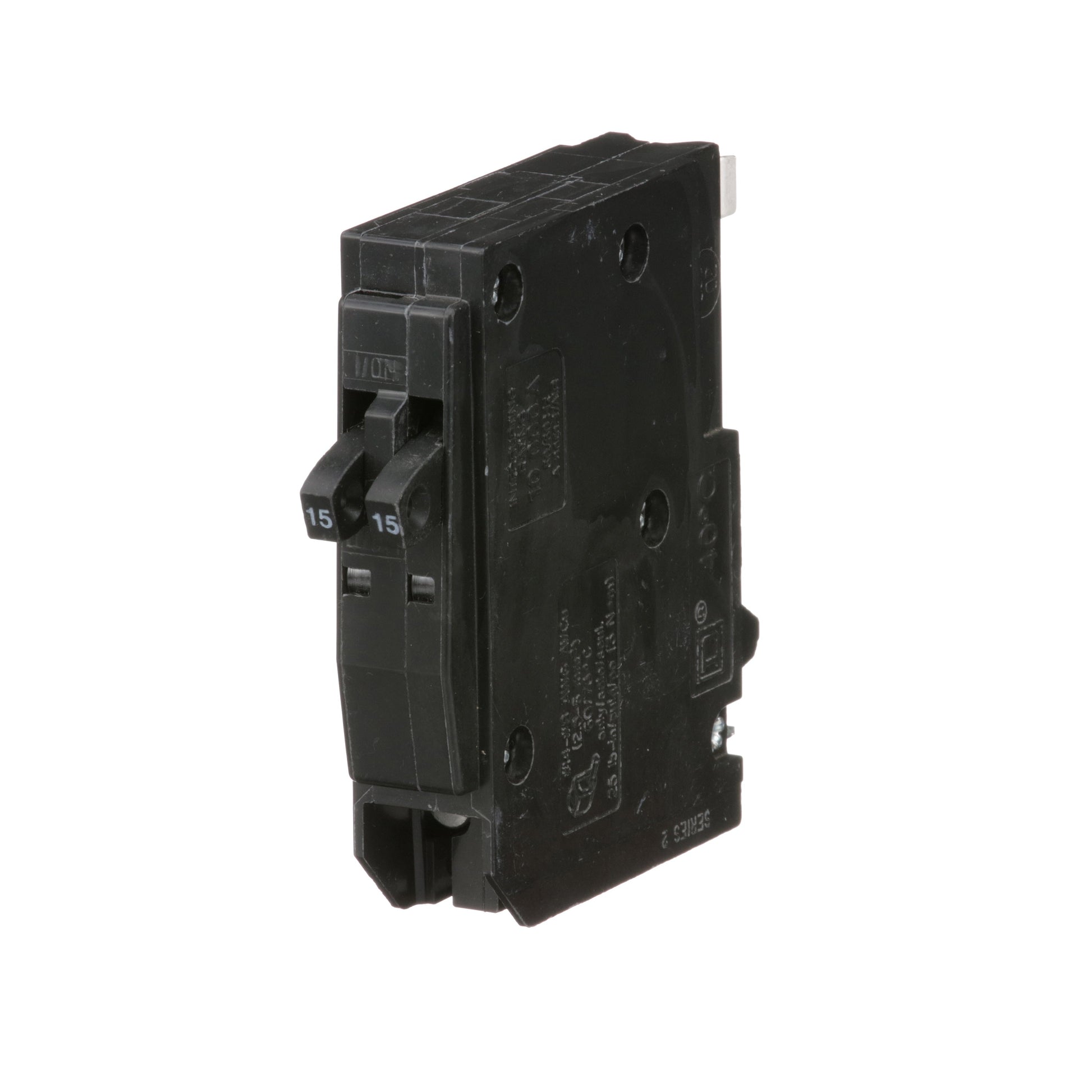

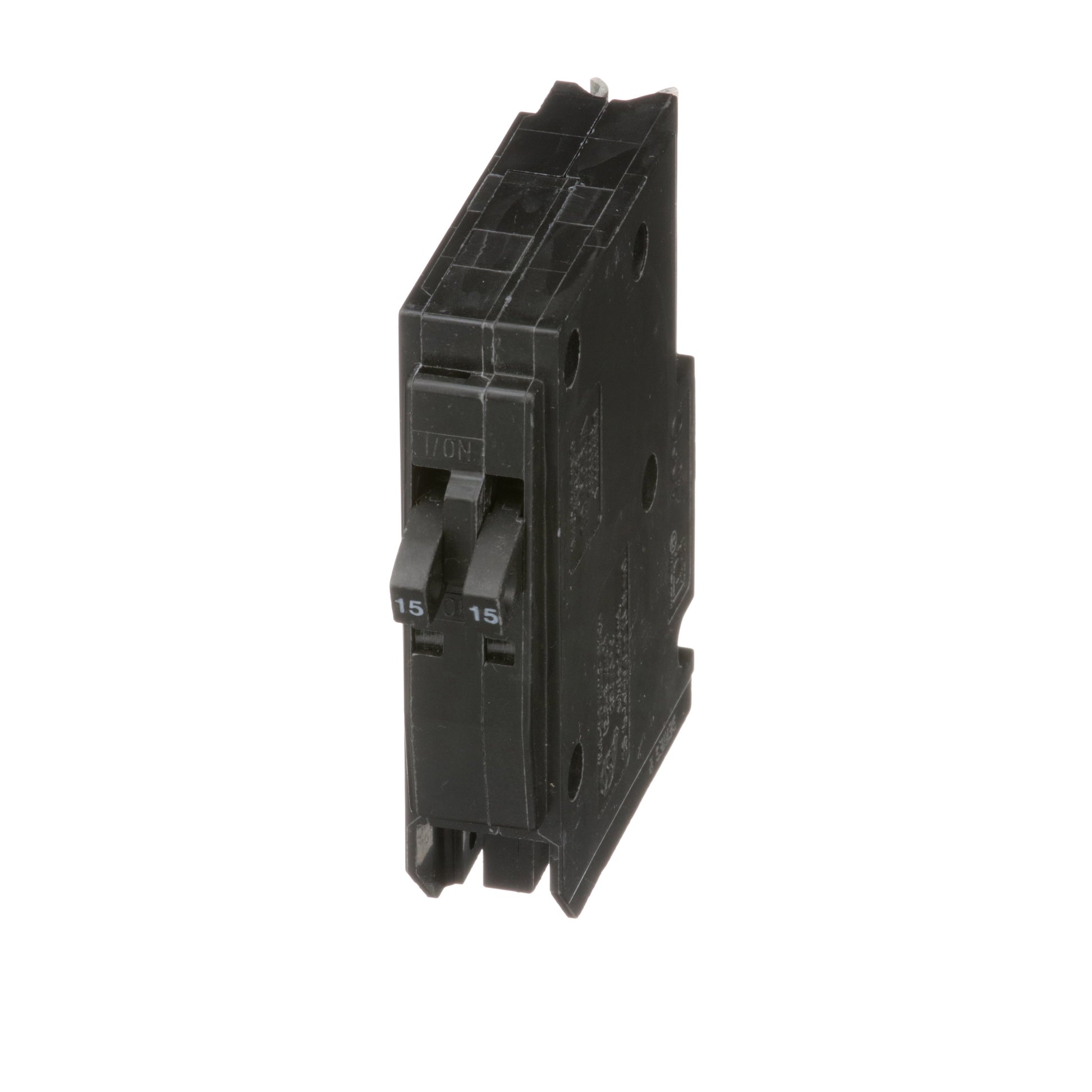

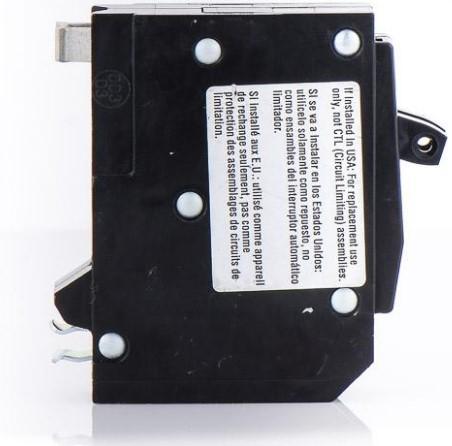

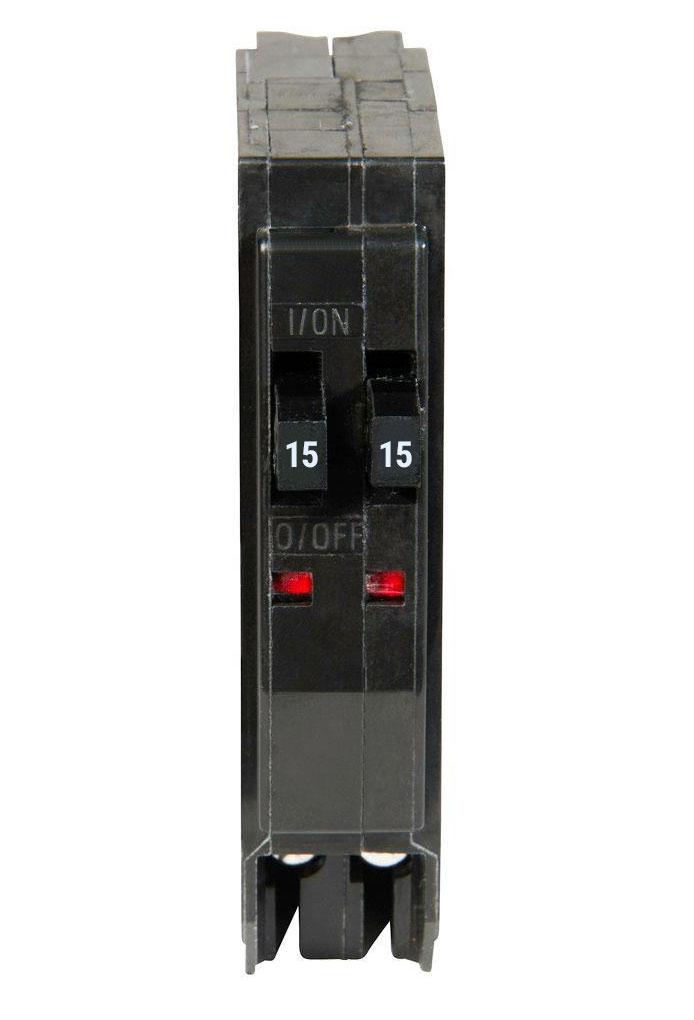

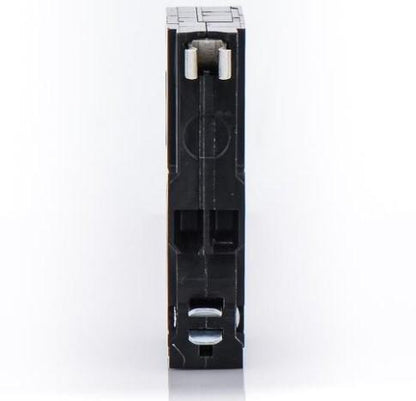

The Square D QO1515 is a 2-pole molded case circuit breaker from the QO Series. It operates at 120/240 VAC with a 15 amp rating and a 10kA@120V AIC rating. This breaker features Plug-In connection and Thermal Magnetic protection. It is compatible with QO Load Centers and NQ Panelboards.
Key Features:
✔ Part Number: QO1515
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240 VAC
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Tandem
✔ Wire Size: 14 To 8 Awg (Aluminum/Copper) (2) 14 To
