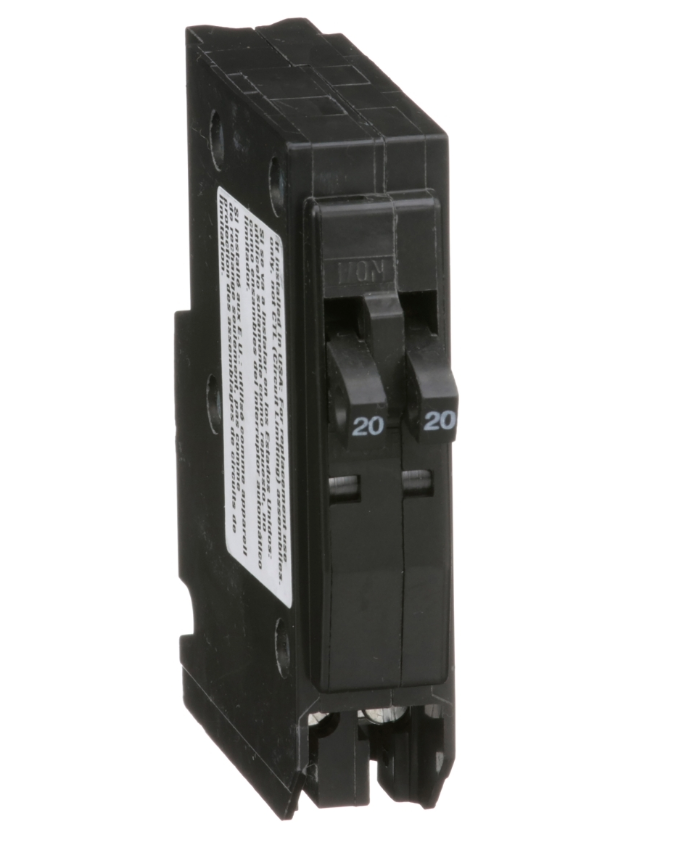

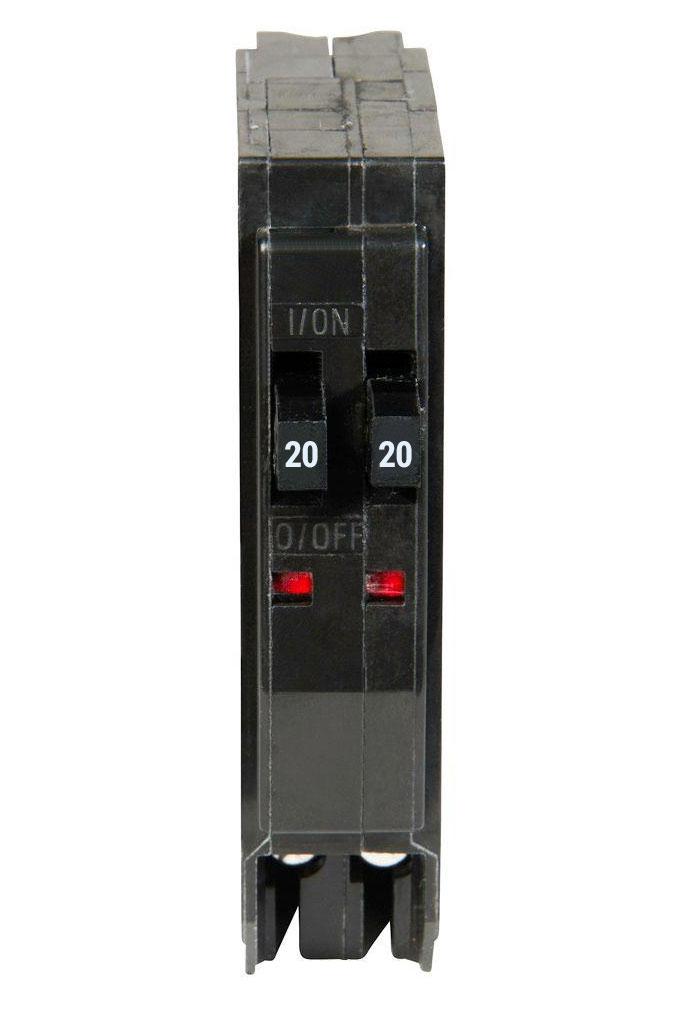

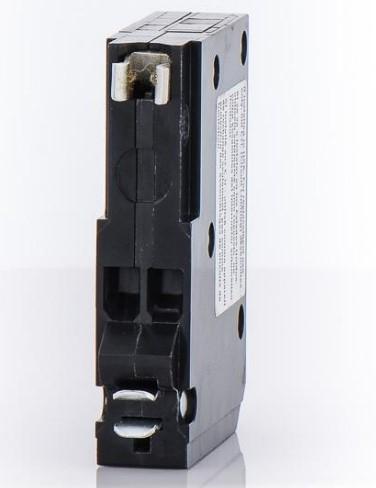

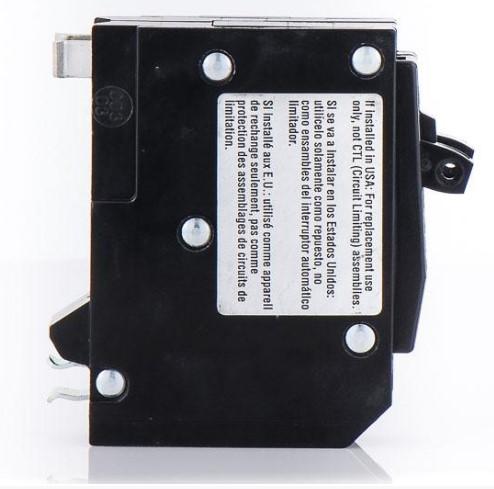

Square D QO2020 Circuit Breaker | 120/240V 20A 2P Plug-In 10kA@120V QO Series

Product Description:
The Square D QO2020 is a Molded Case Circuit Breaker from the QO Series family. It is a 2-pole, 20 amp breaker rated for 120/240 volts with a 10kA AIC rating at 120V. This circuit breaker features Plug-In connections and provides Thermal Magnetic protection for reliable performance. It is designed for use in QO Load Centers and NQ Panelboards.

Key Features:
✔ Part Number: QO2020
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 20
✔ Poles: 2
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Tandem
✔ Protection: Thermal Magnetic
✔ UPC: 785901400943
✔ GTIN: 00785901400943
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 3.22 in x 82 mm
✔ Weight: 0.34
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 14 To 8 Awg (Aluminum/Copper) (2) 14 To 10 Awg (Copper)
