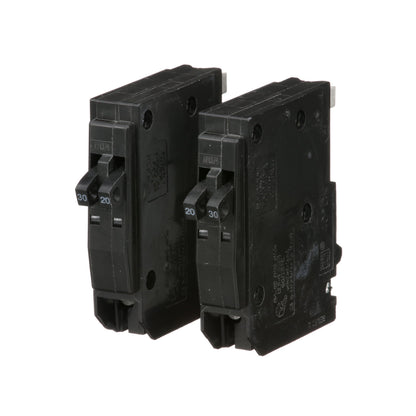

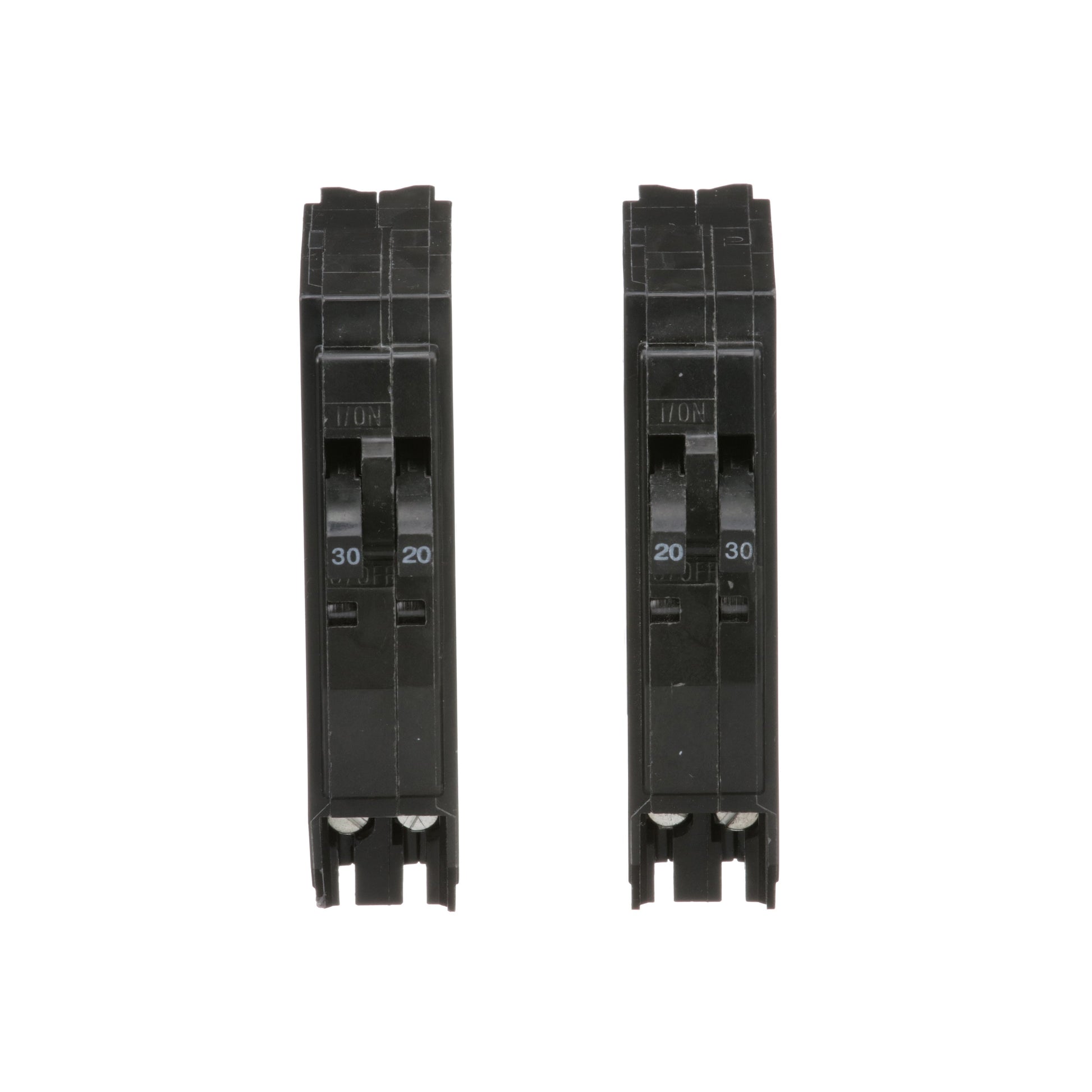

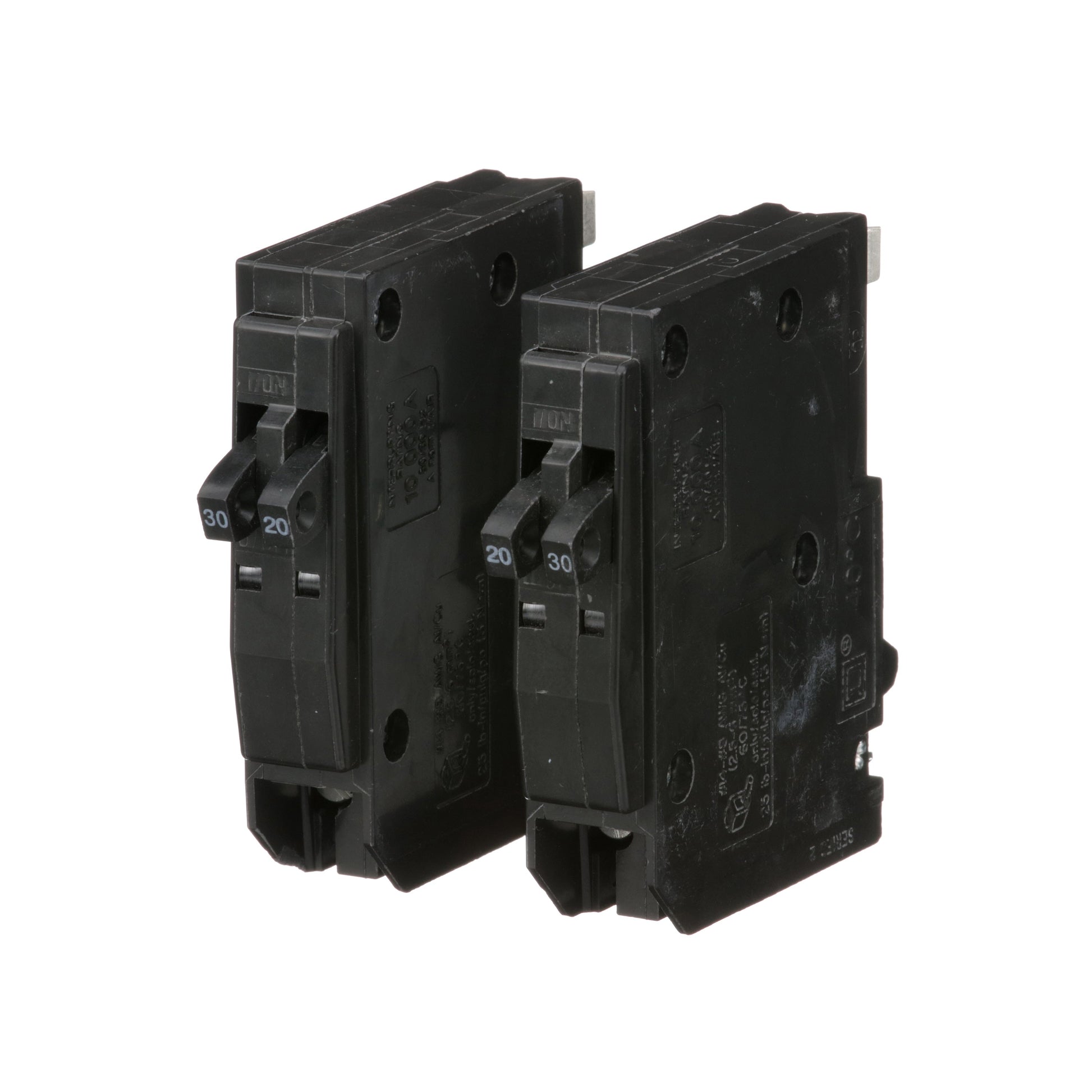

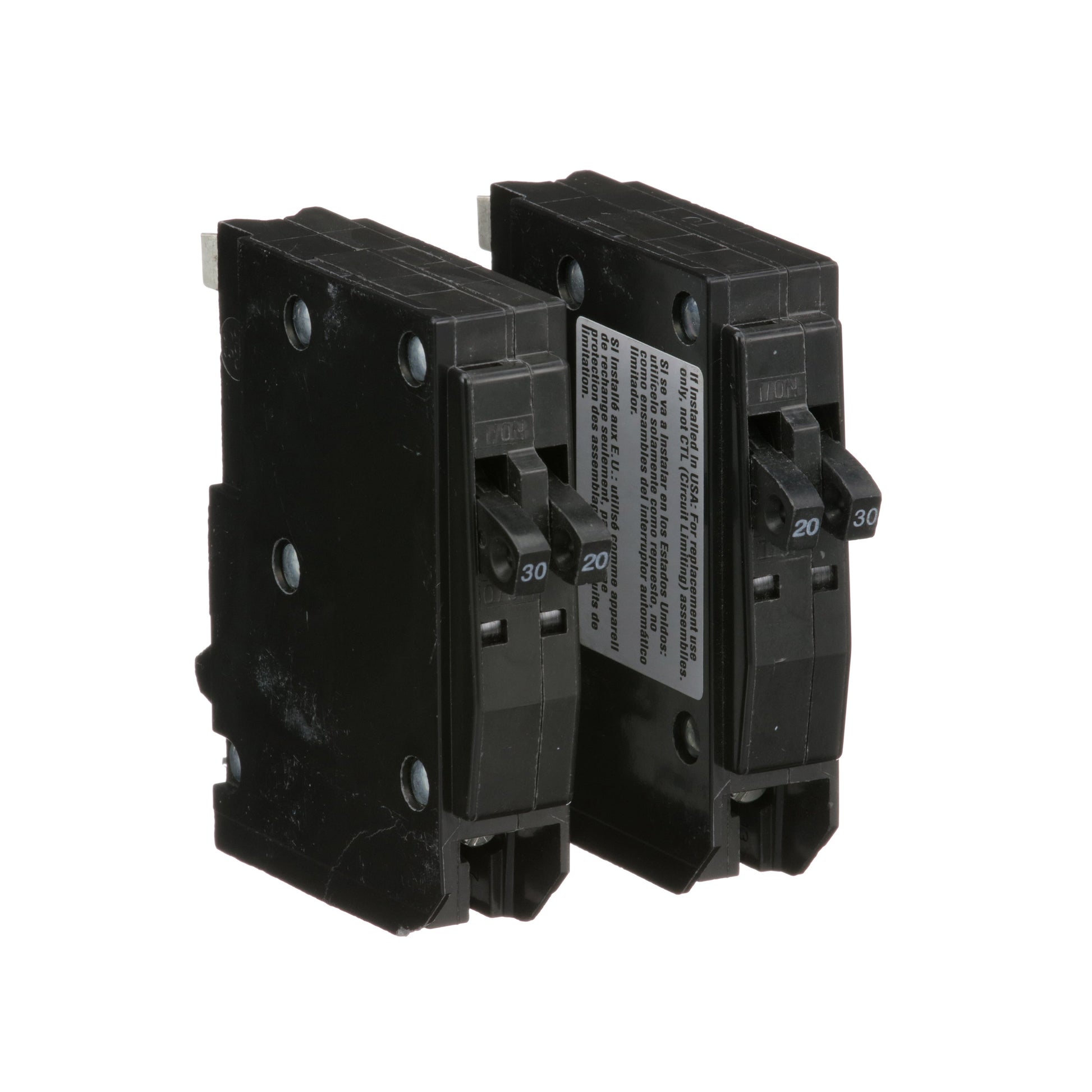

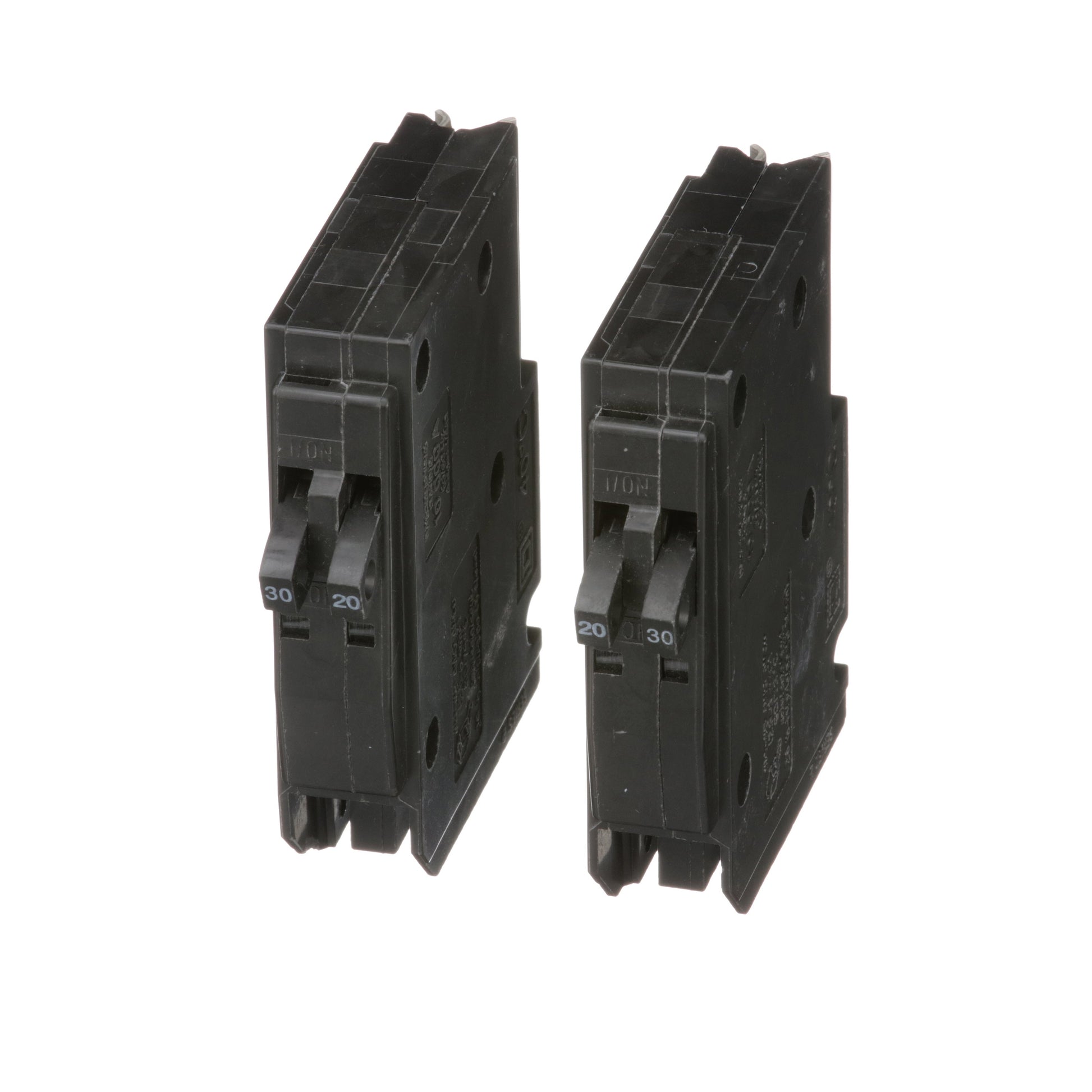

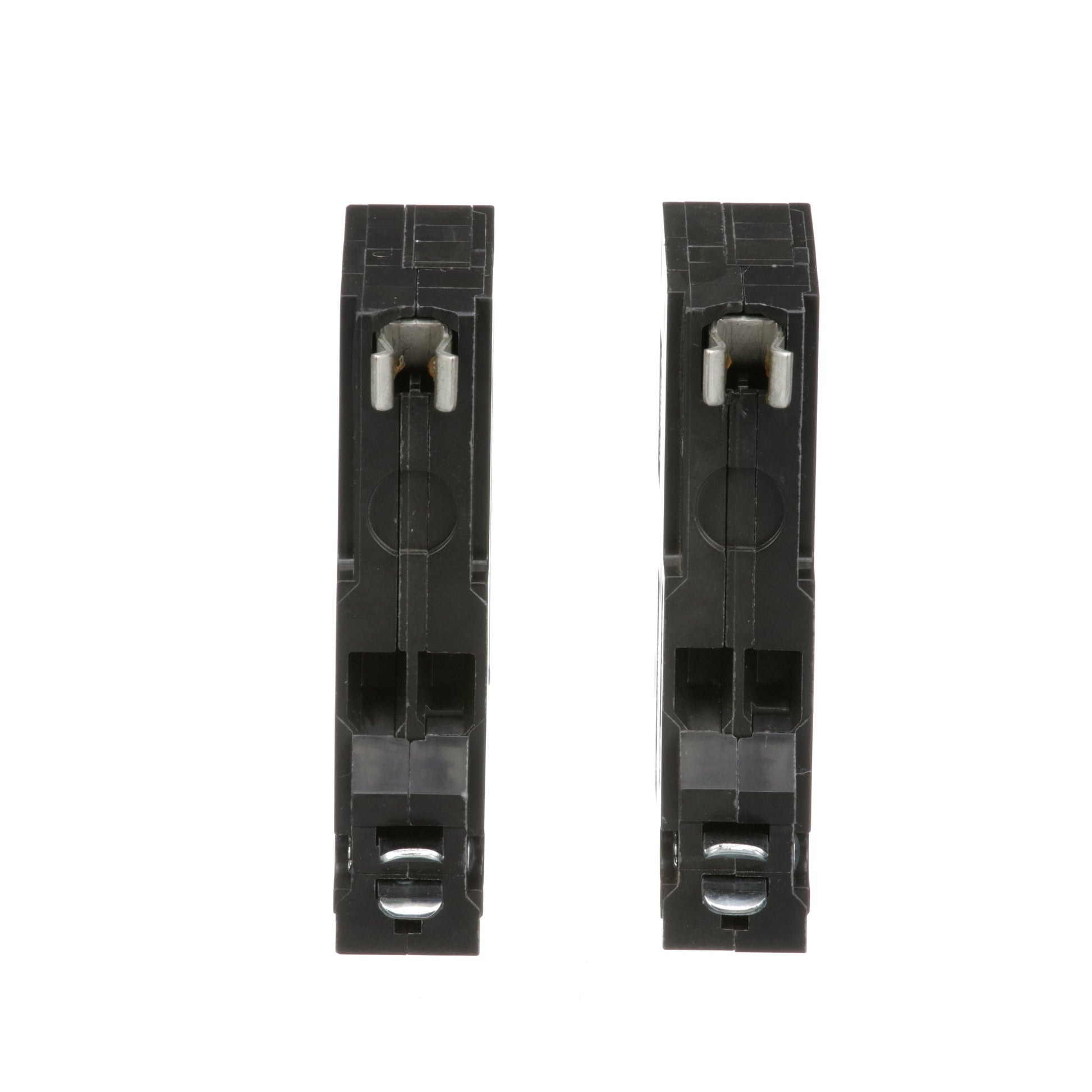

Square D QO20303020 Circuit Breaker | 120/240V 30A 4P Plug-In QO Series

Product Description:
The Square D QO20303020 is a 4-pole molded case circuit breaker rated for 30 amps and 120/240 volts. It features a plug-in connection and provides reliable thermal magnetic protection. This breaker is designed for use in QO load centers and NQ panelboards, ensuring safe and efficient electrical distribution.

Key Features:
✔ Part Number: QO20303020
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 4
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Tandem
✔ Protection: Thermal Magnetic
✔ UPC: 785901764922
✔ GTIN: 00785901764922
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.22 in x 82 mm
✔ Weight: 0.67 lb
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: UL Listed
