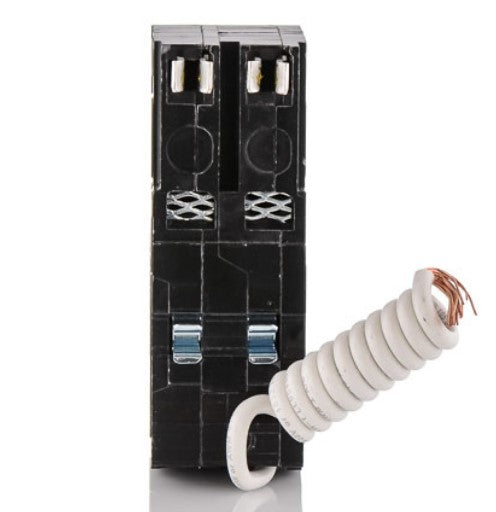

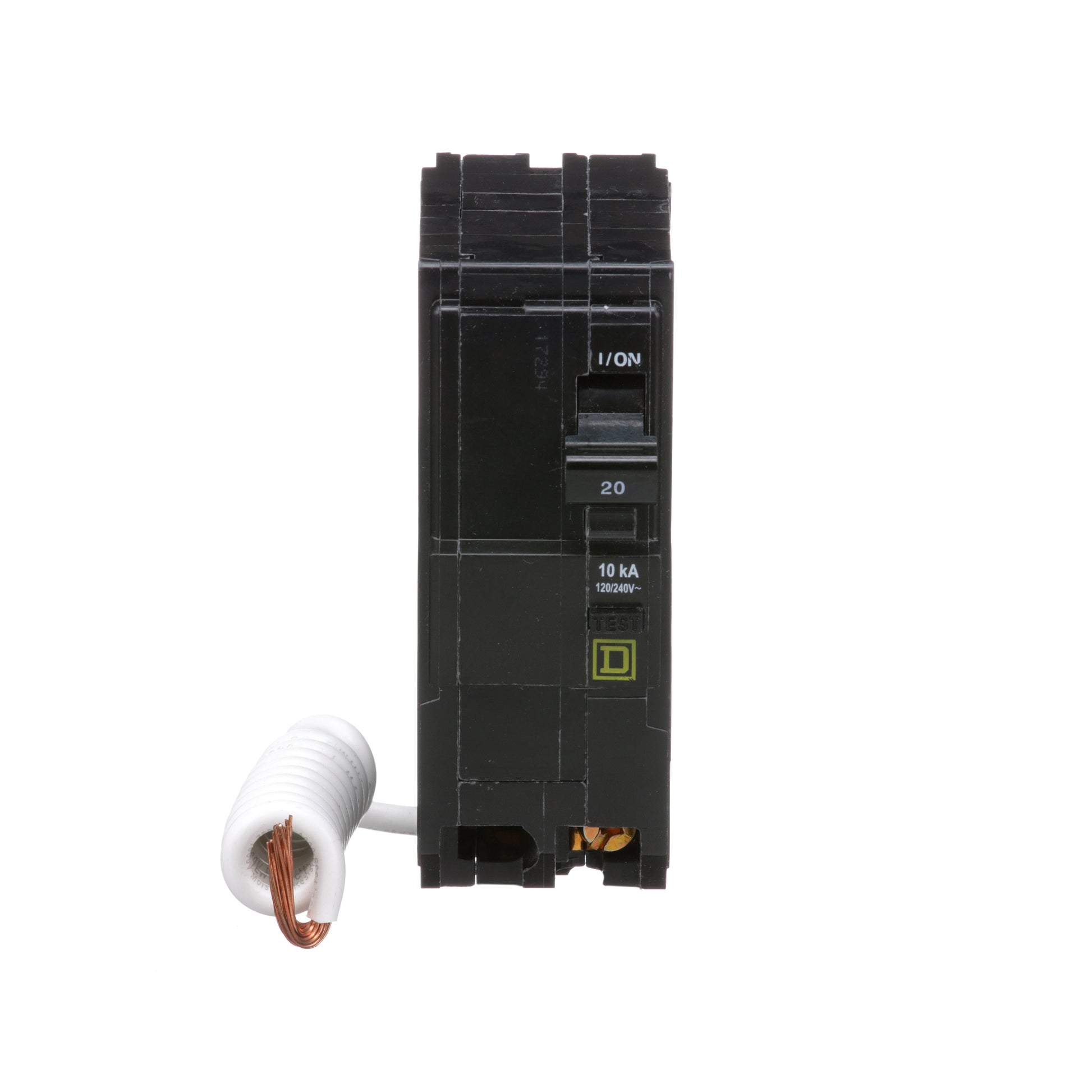

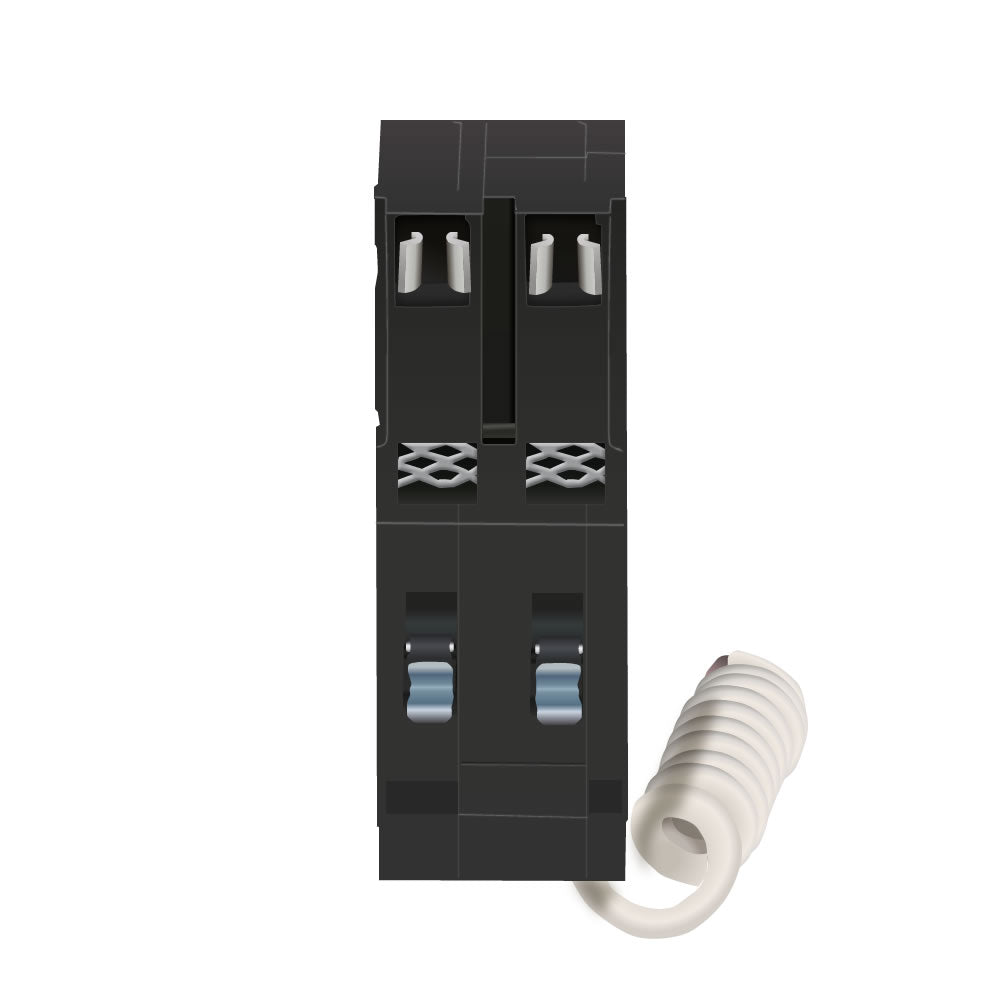

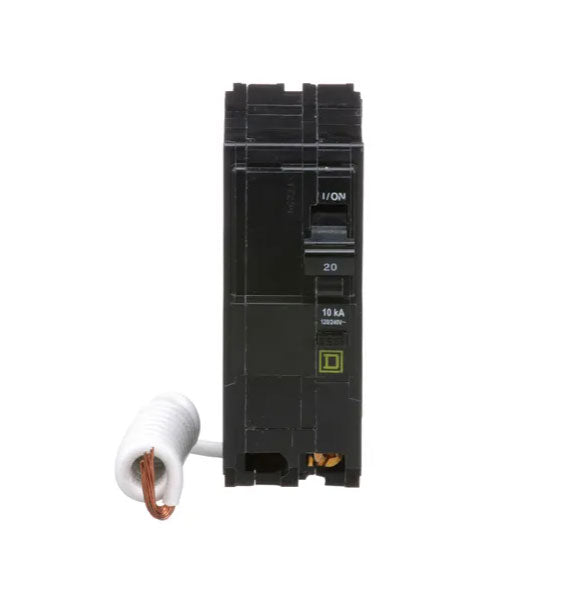

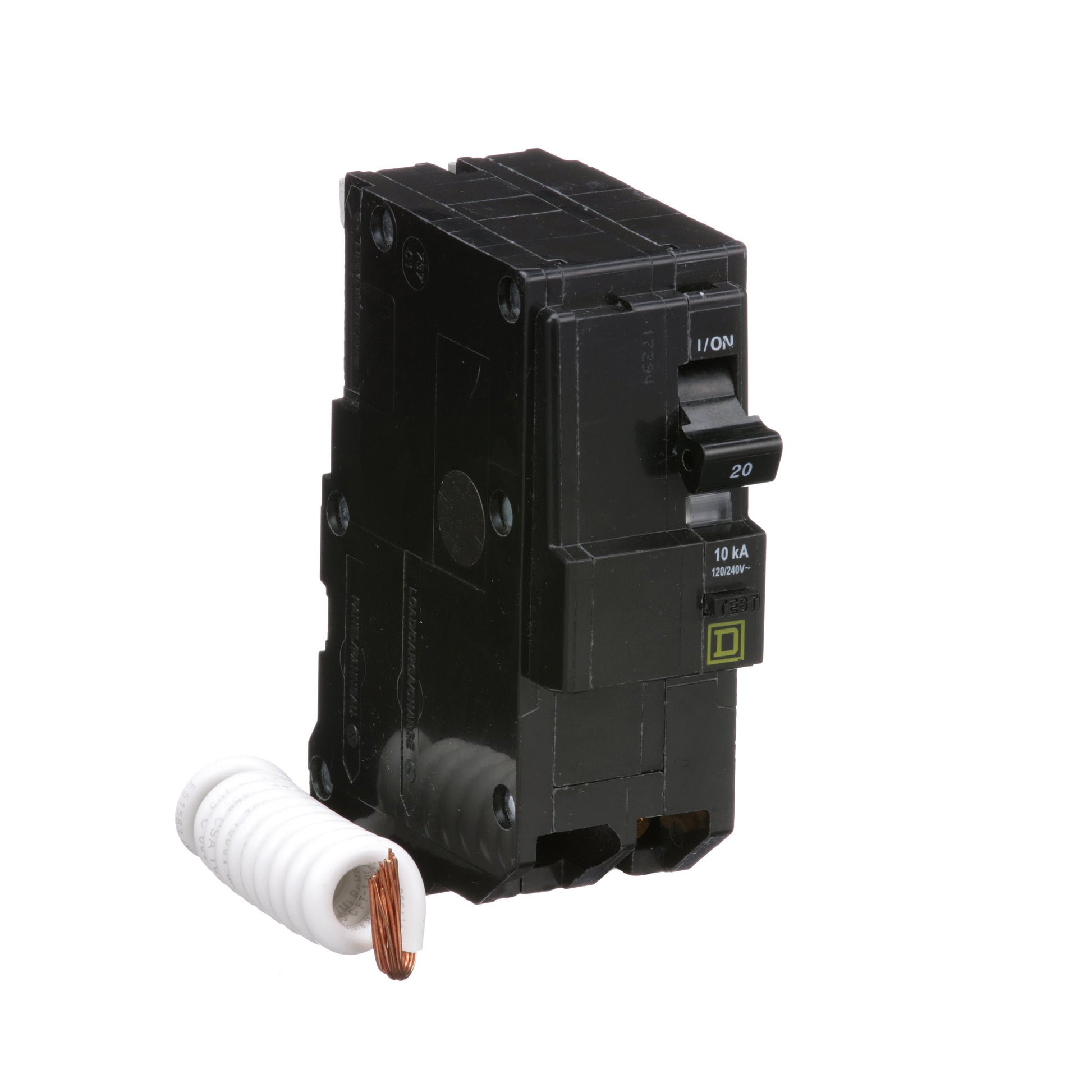

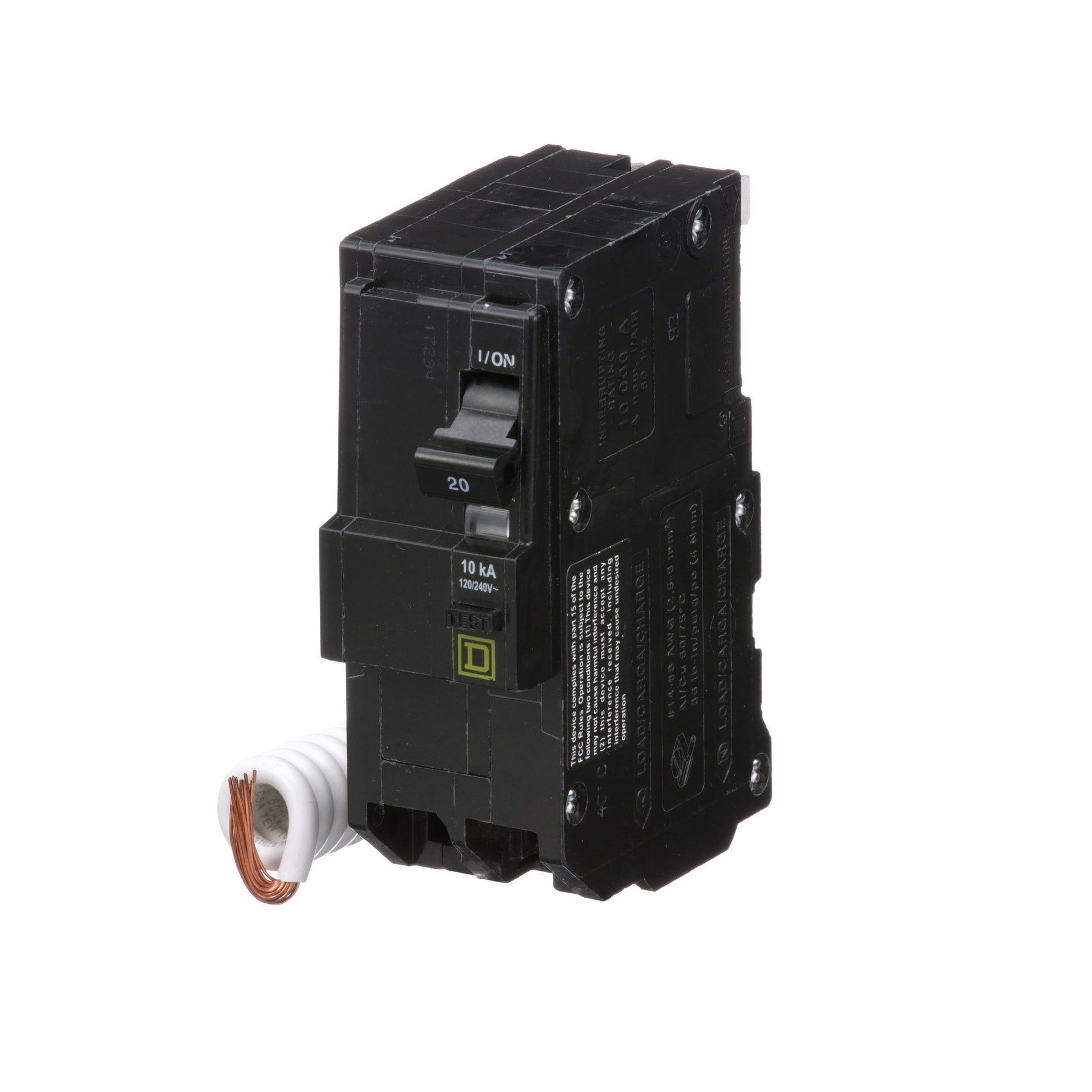

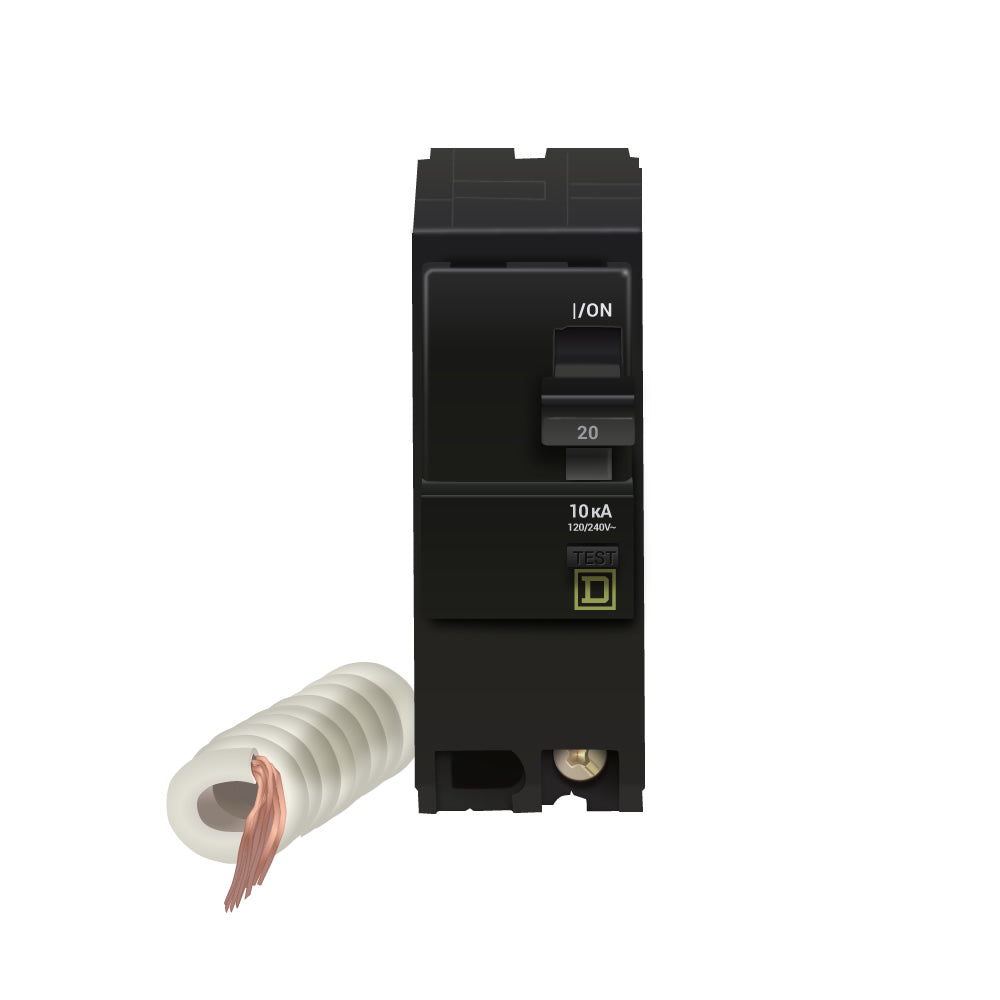

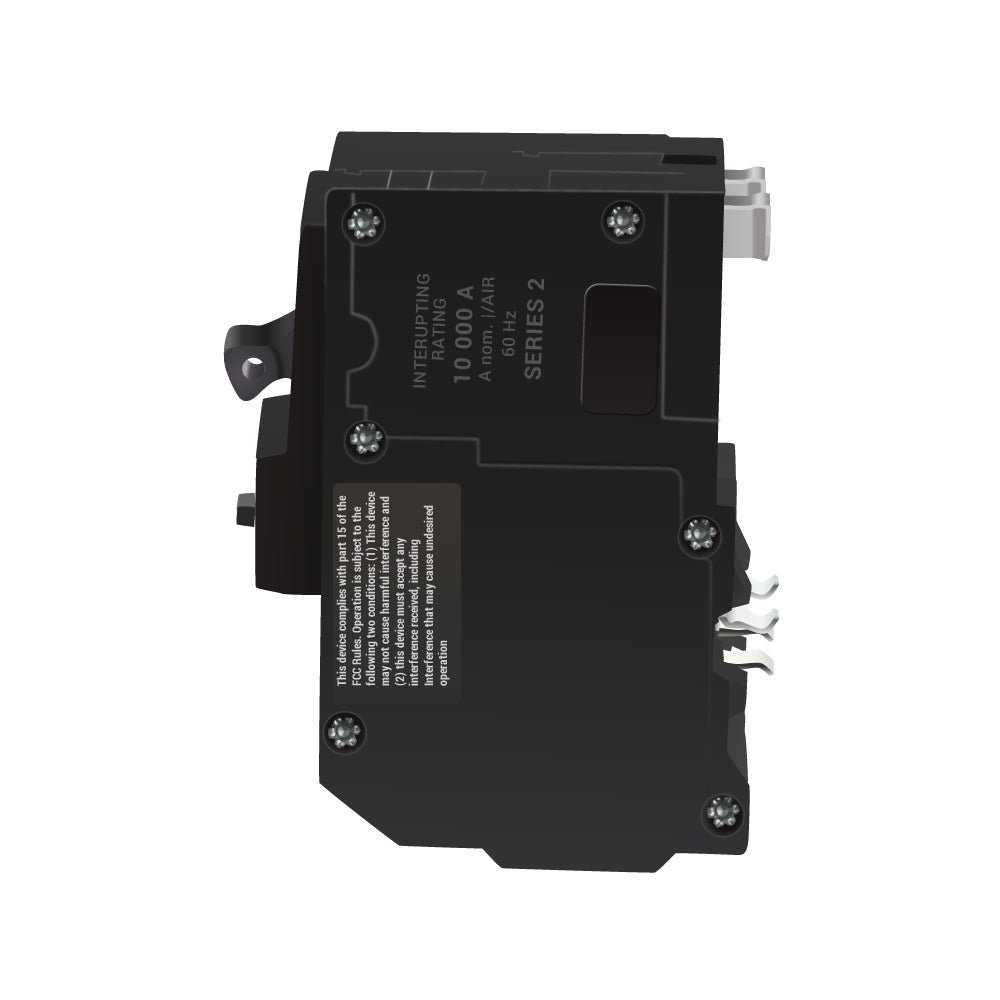

Square D QO220EPD Circuit Breaker | QO Series QO 240V 20A

Product Description:

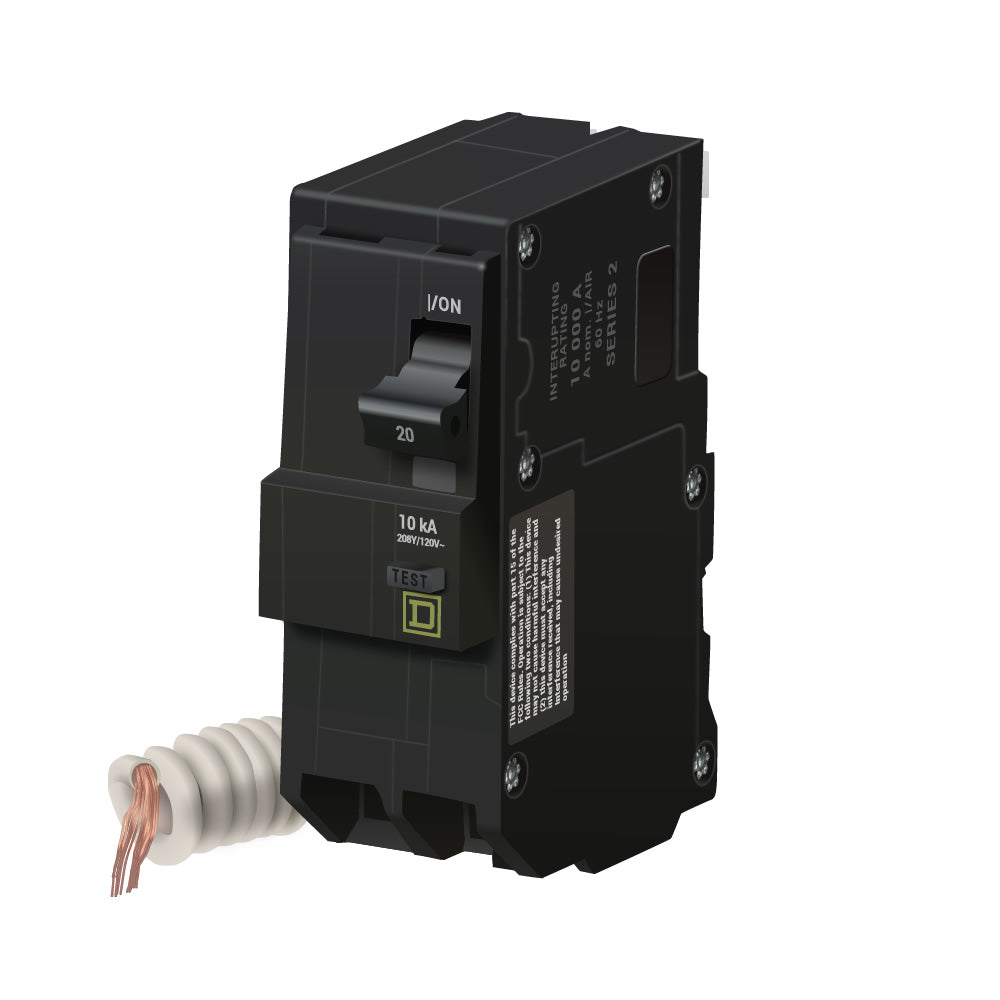

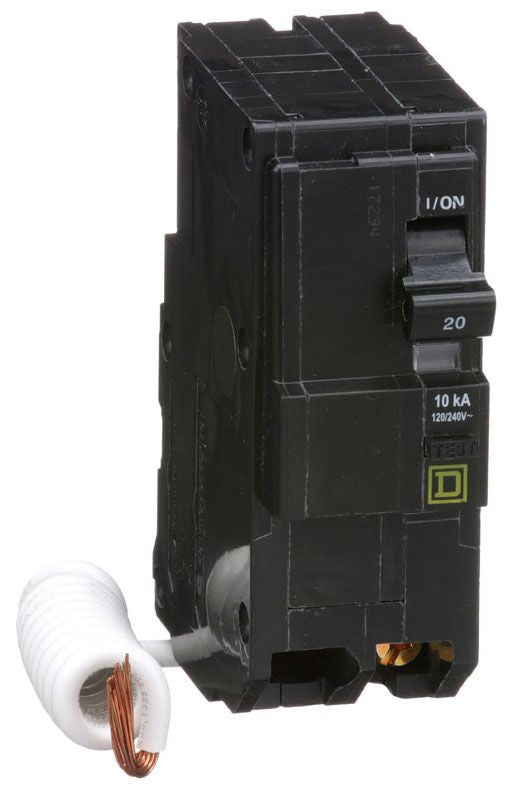

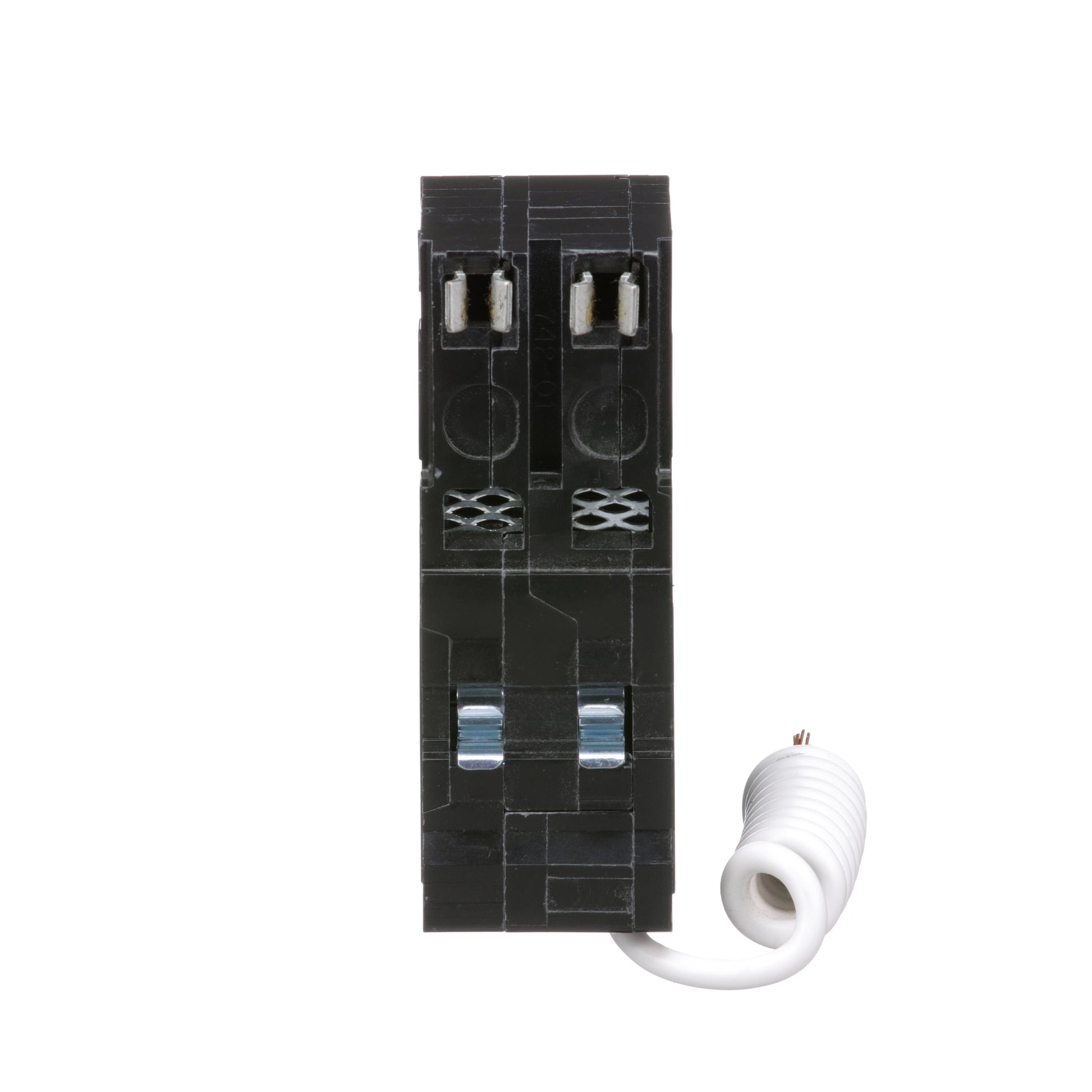

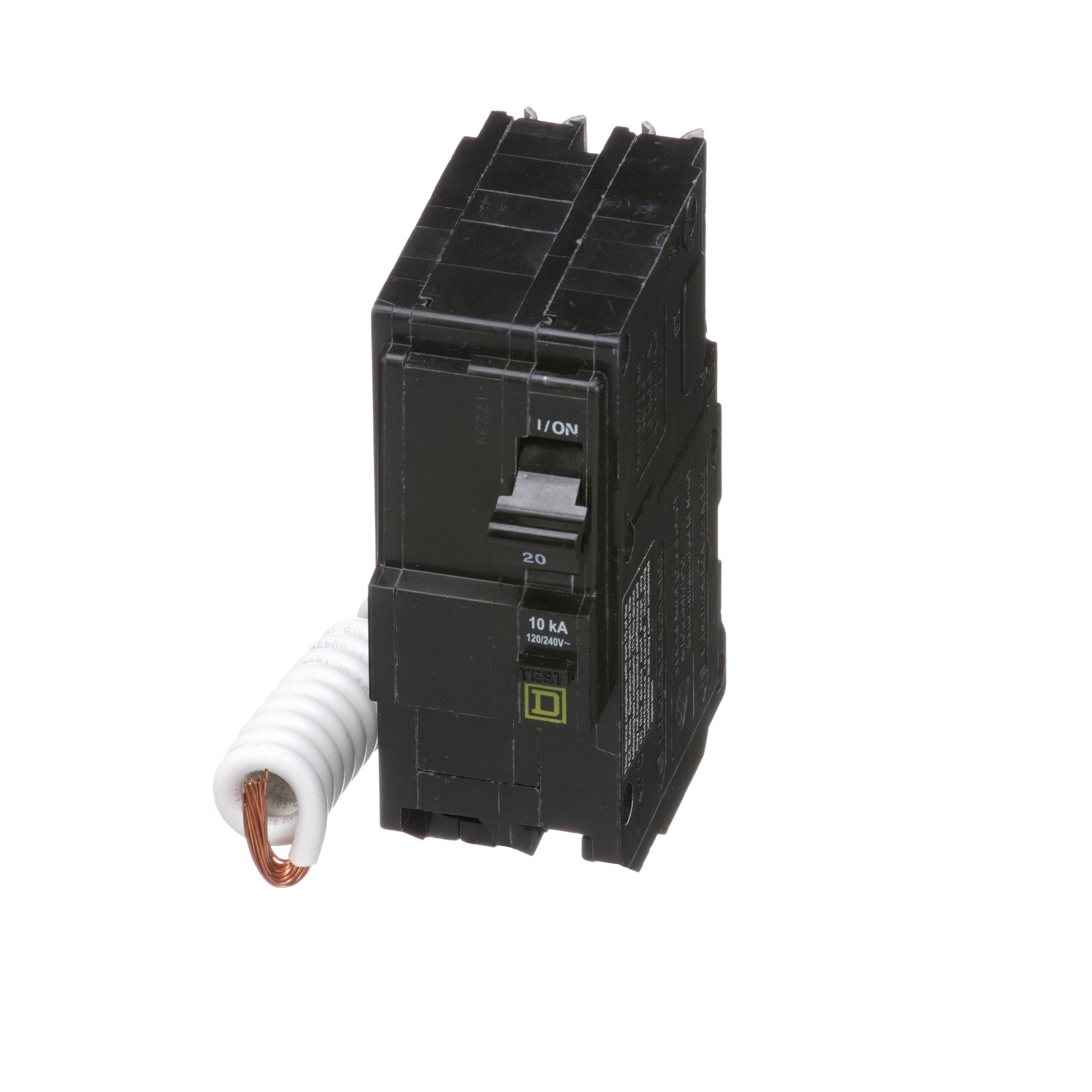

The Square D QO220EPD is a 2-pole, 240V, 20A molded case circuit breaker from the QO Series. It features a 10kA@240V AIC rating and plug-in connection. This breaker includes thermal magnetic protection and is compatible with QO load centers and NQ panelboards. It supports wire sizes from 12-8 AWG (Aluminum) and 14-8 AWG (Copper).

Key Features:
✔ Part Number: QO220EPD
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 240V
✔ Amperage: 20A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
✔ Max. Wire Size: 8 AWG
✔ Breaker Type: Ground Fault Equipment Protection
