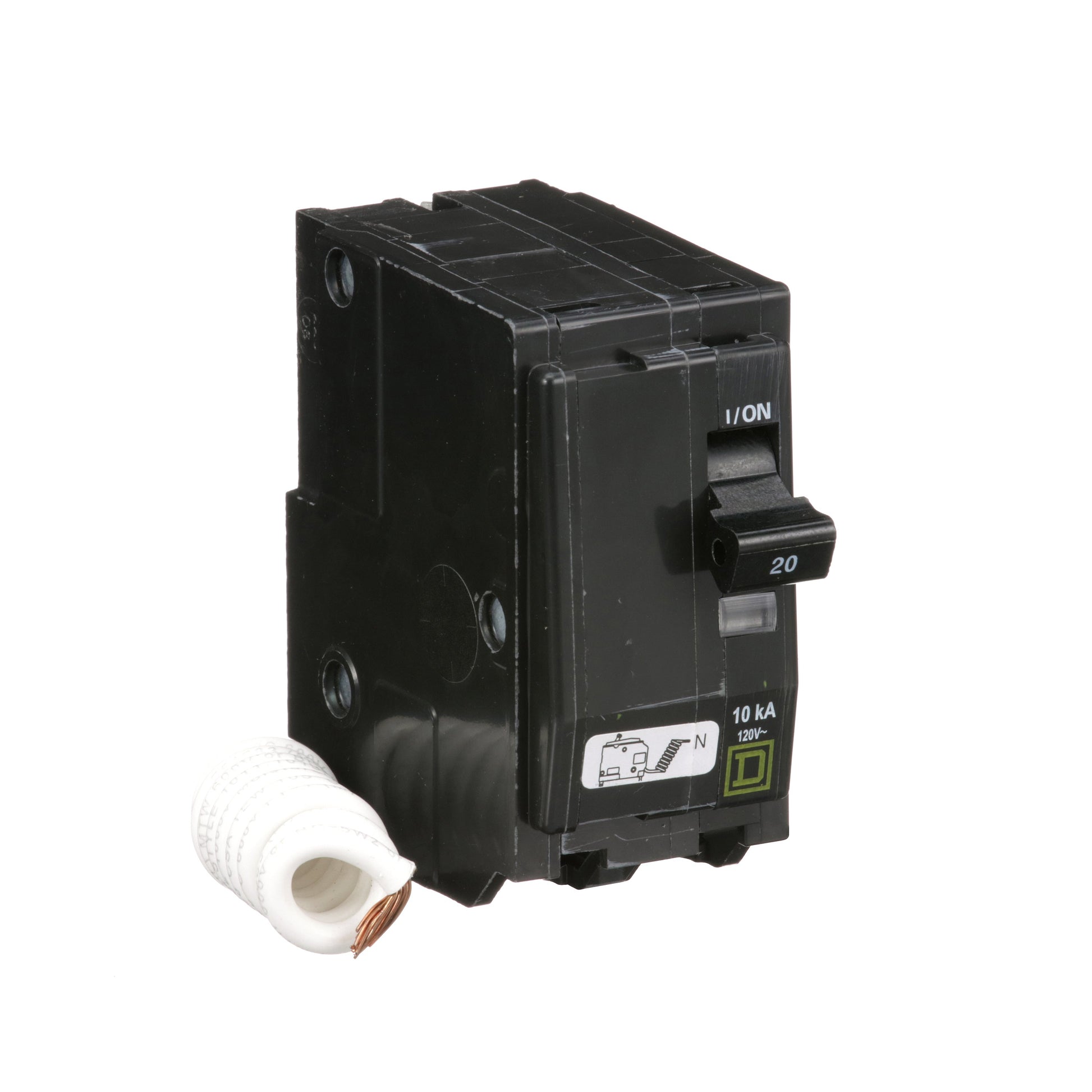

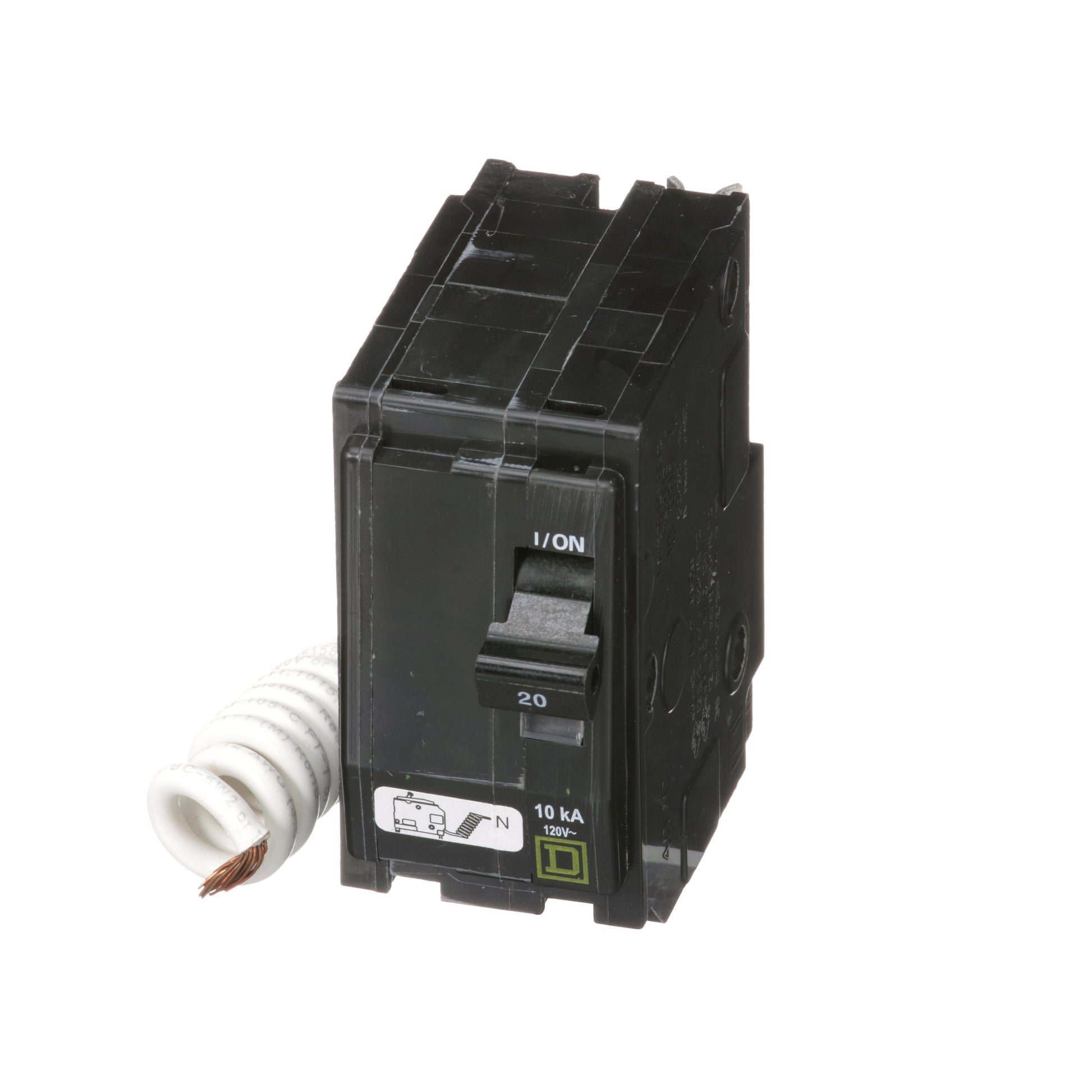

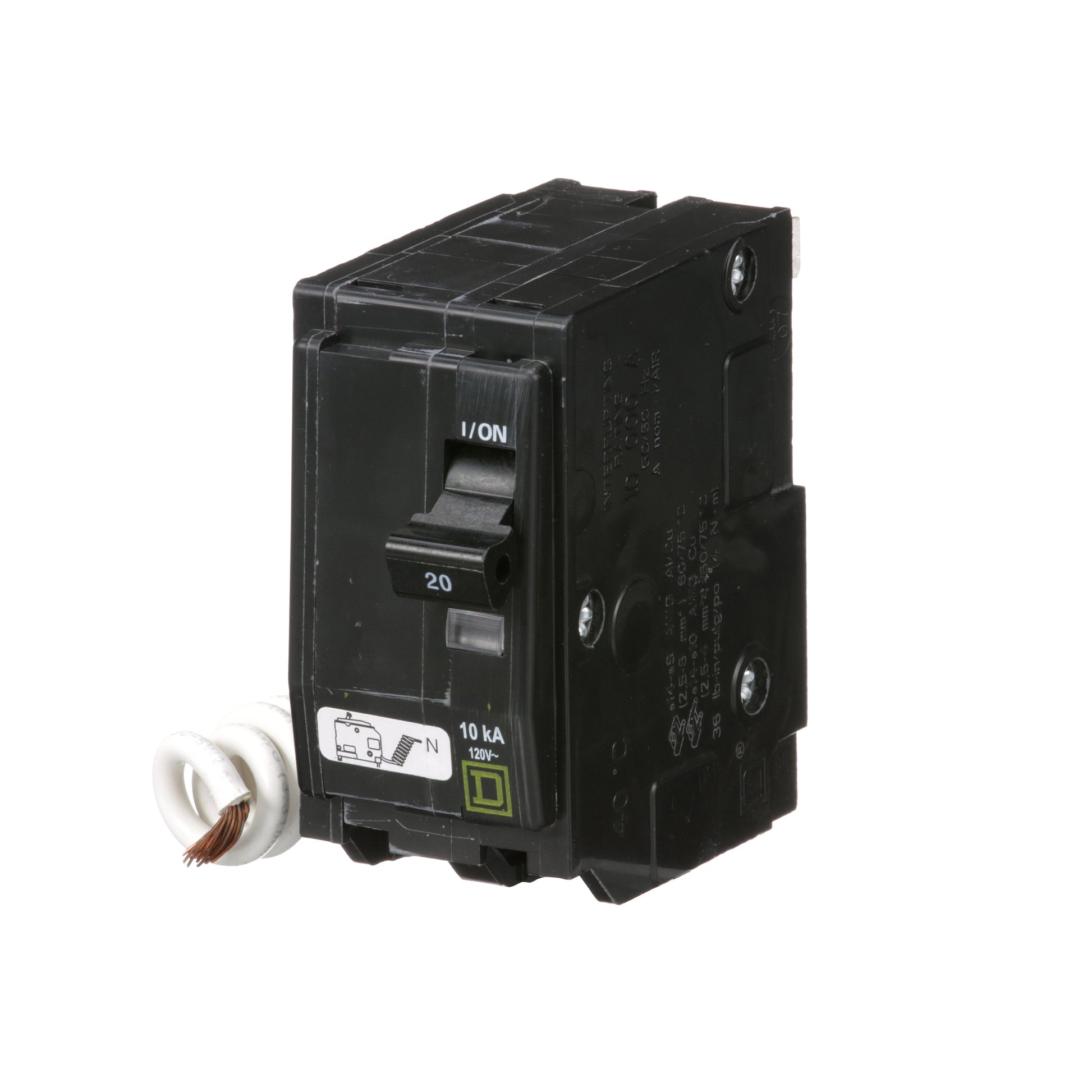

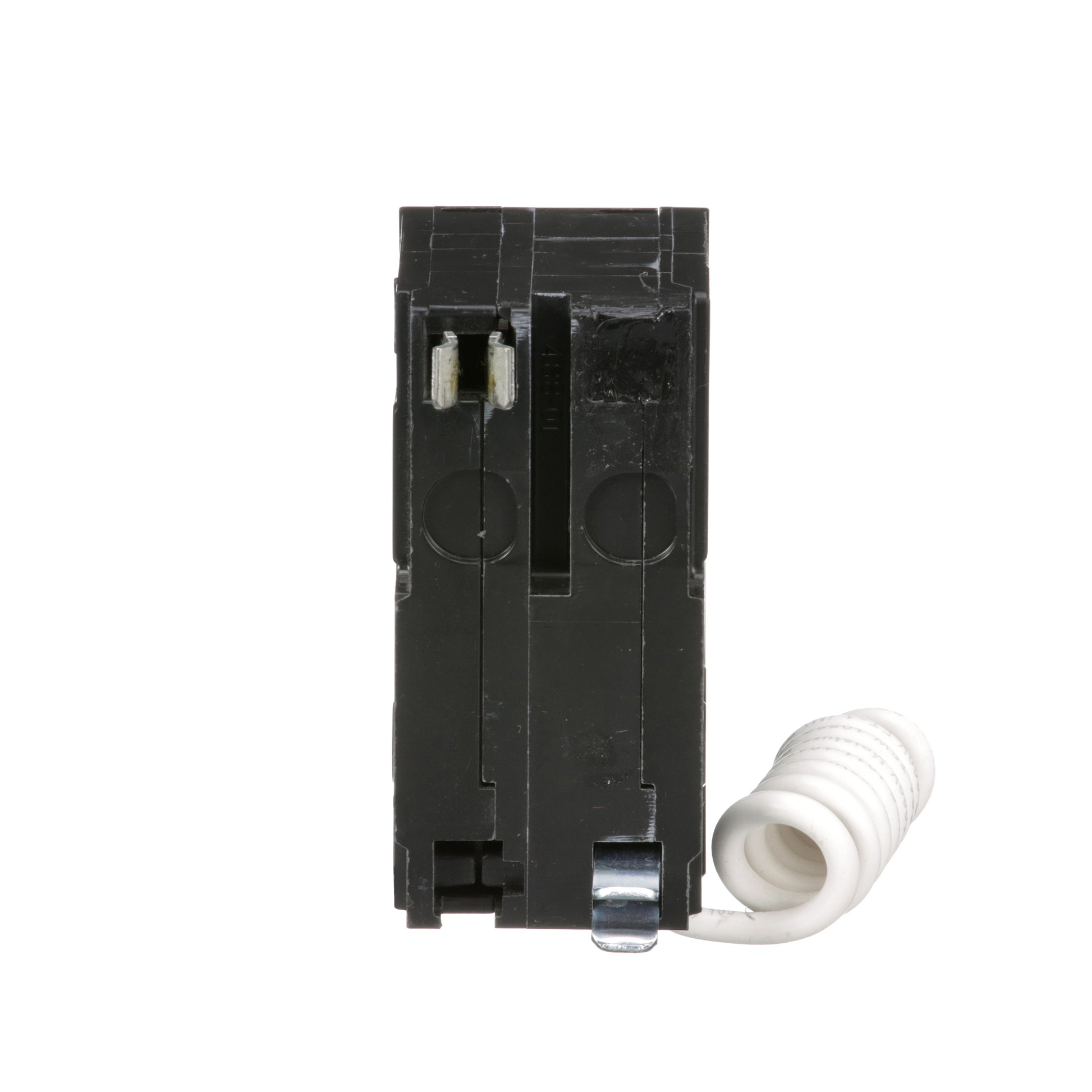

Square D QO220SWN Circuit Breaker 120/240V 20A 2P 10kA@120V Plug-In QO Series

Product Description:
The Square D QO220SWN is a Molded Case Circuit Breaker designed for reliable electrical protection. It is a 2-pole, 20-amp breaker rated for 120/240V systems with a 10kA interrupting capacity. This Plug-In type breaker features Thermal Magnetic protection for both overload and short-circuit conditions. It is compatible with QO Load Centers and NQ Panelboards.

Key Features:
✔ Part Number: QO220SWN
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO-SW
✔ Voltage: 120/240
✔ Amperage: 20
✔ Poles: 2
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Switched Neutral
✔ UPC: 785901400394
✔ GTIN: 00785901400394
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3 in x 2.99 in
✔ Weight: 1.35
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: UL Listed
