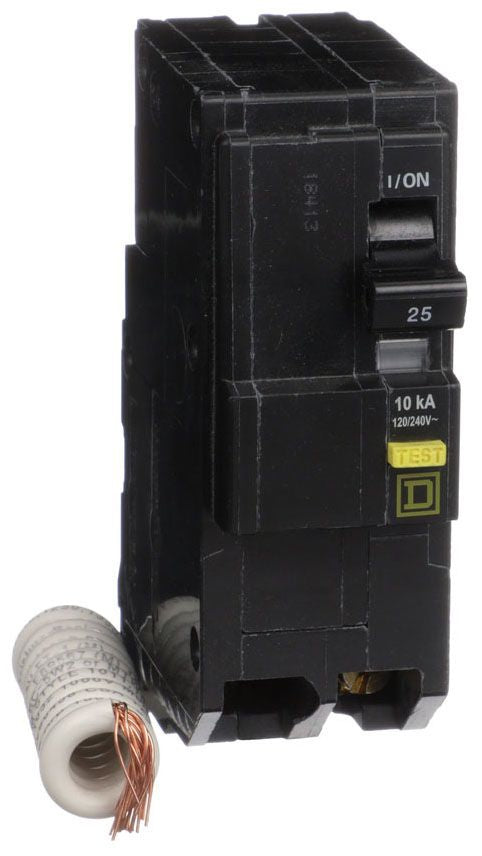

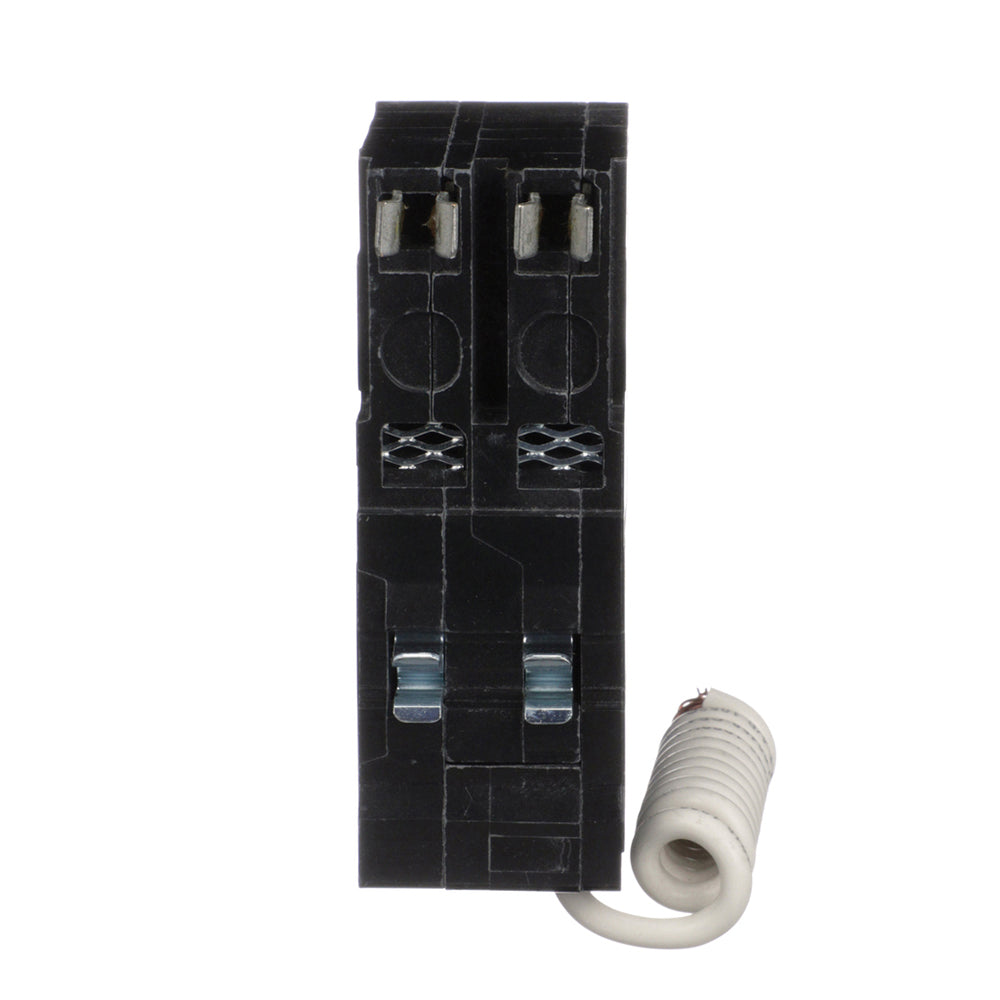

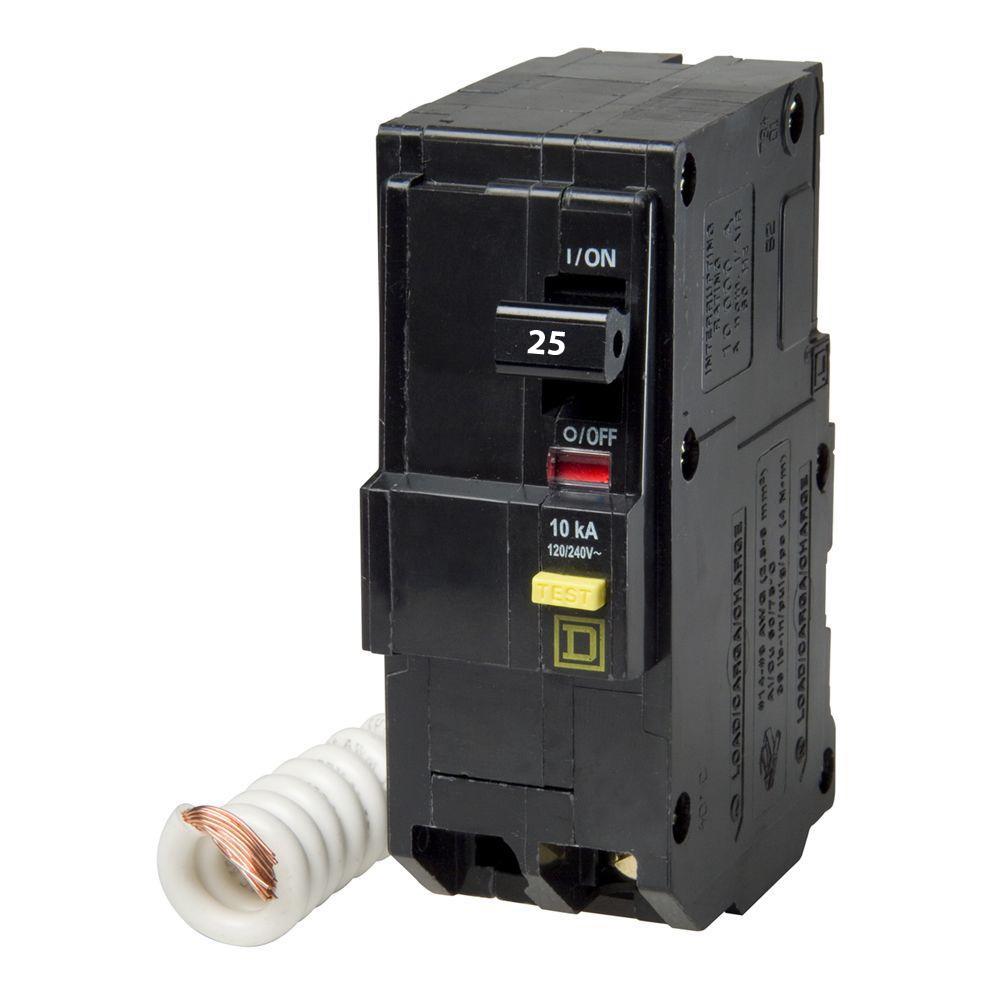

Square D QO225GFI Circuit Breaker | 120/240V 25A 2P 10kA@120V QO-GF QO Series

Product Description:
The Square D QO225GFI is a Molded Case Circuit Breaker from the QO Series family. This 2-pole, 25 amp breaker operates at 120/240 volts and features a Plug-In connection. It provides Thermal Magnetic protection and is a Ground Fault Circuit Interrupter (Class A - 5mA). It is designed for use in QO Load Centers and NQ Panelboards.

Key Features:
✔ Part Number: QO225GFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO-GF
✔ Voltage: 120/240
✔ Amperage: 25
✔ Poles: 2
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 785901562962
✔ GTIN: 00785901562962
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.12 in x 4.13 in
✔ Weight: 0.95 lb
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: UL Listed
