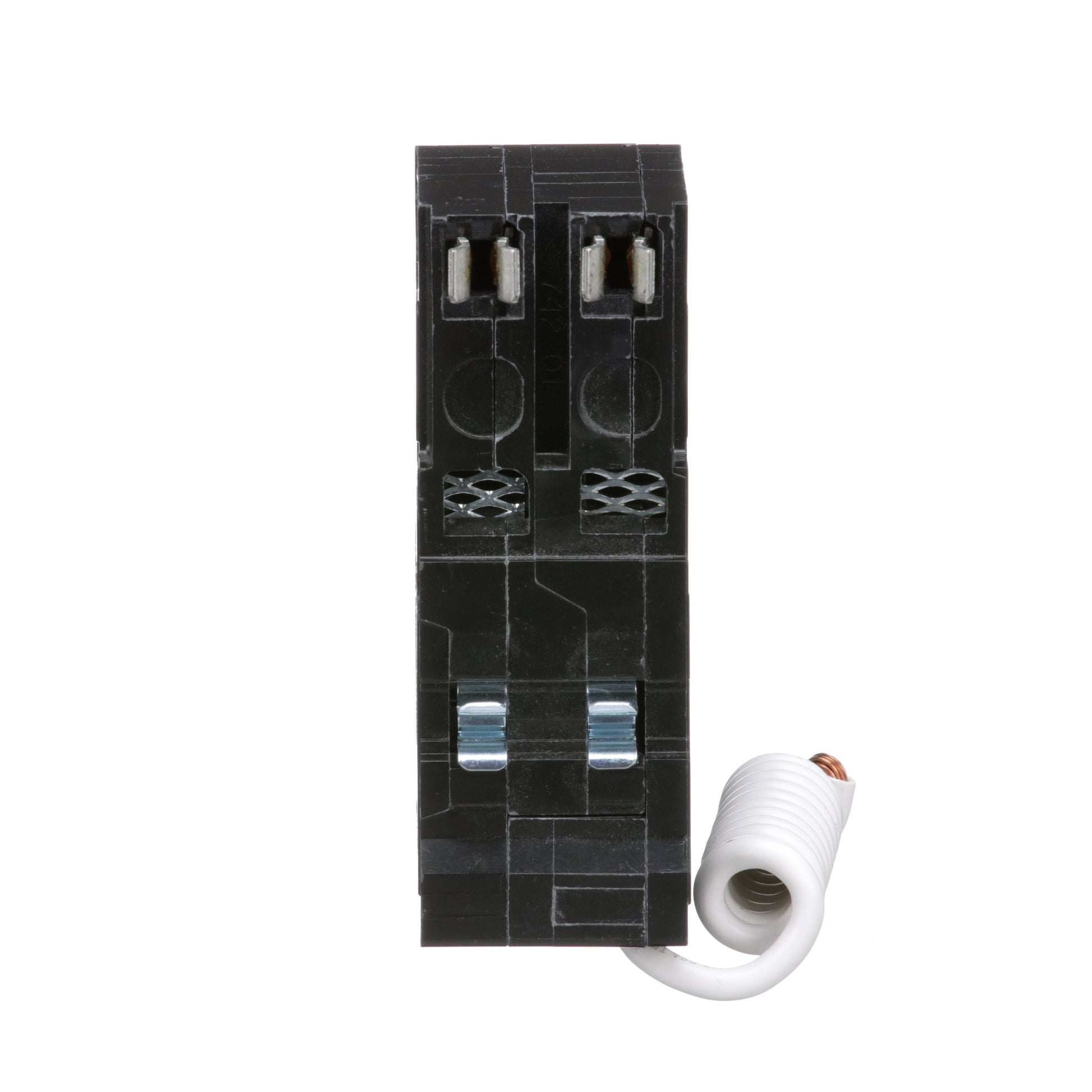

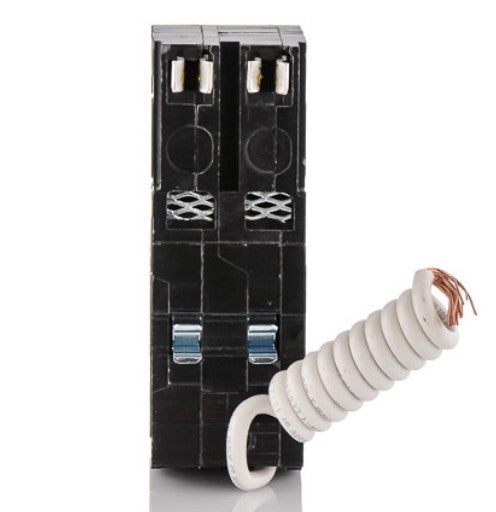

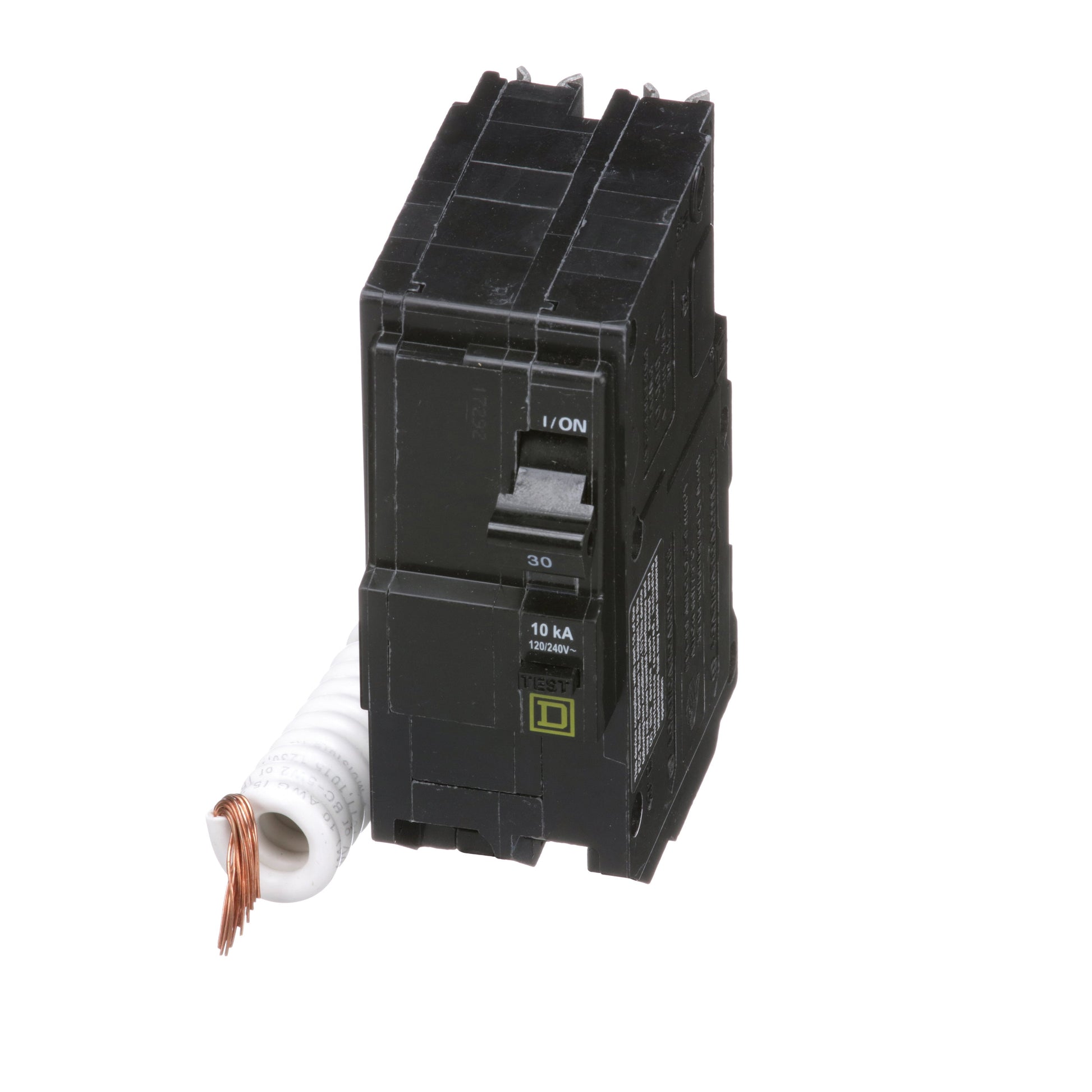

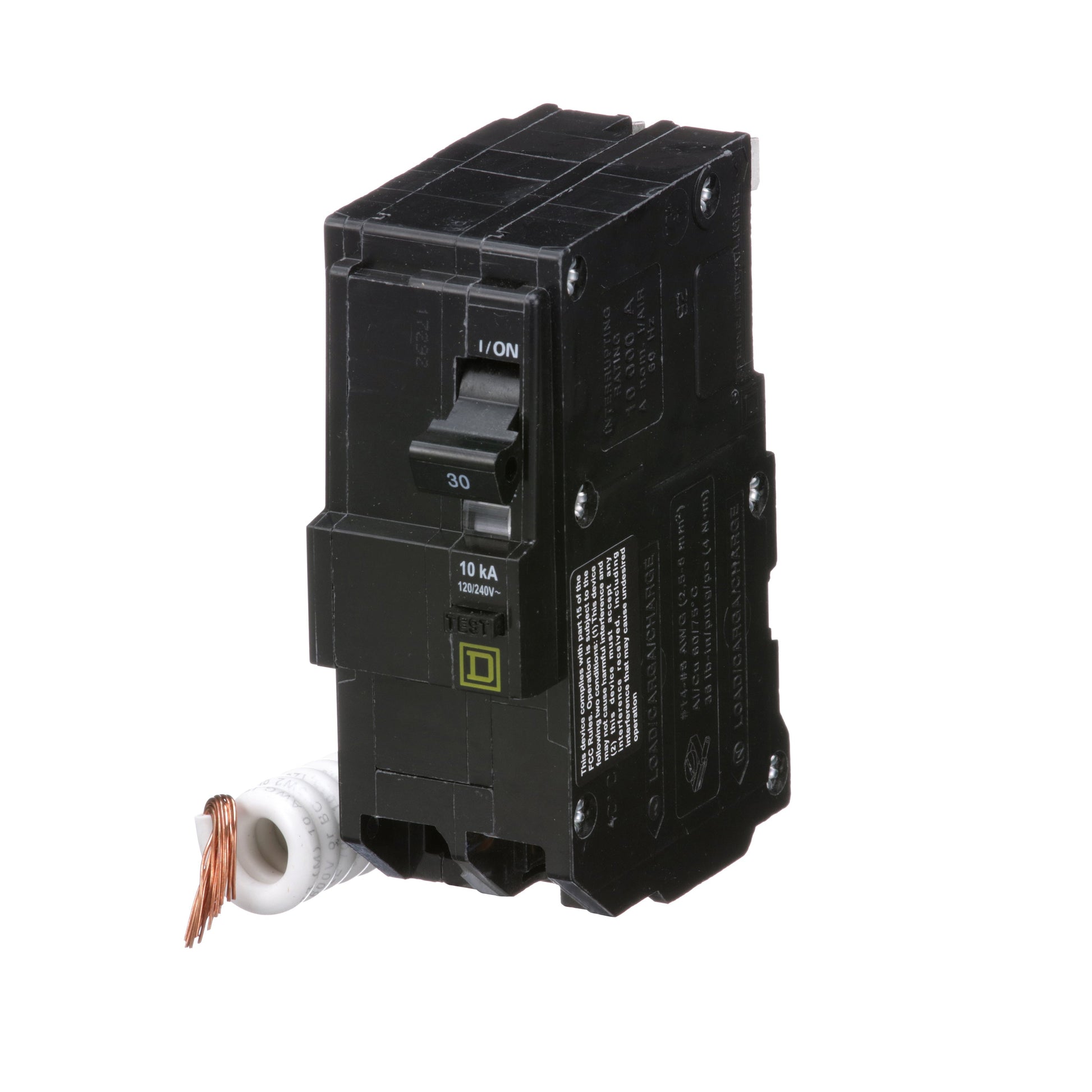

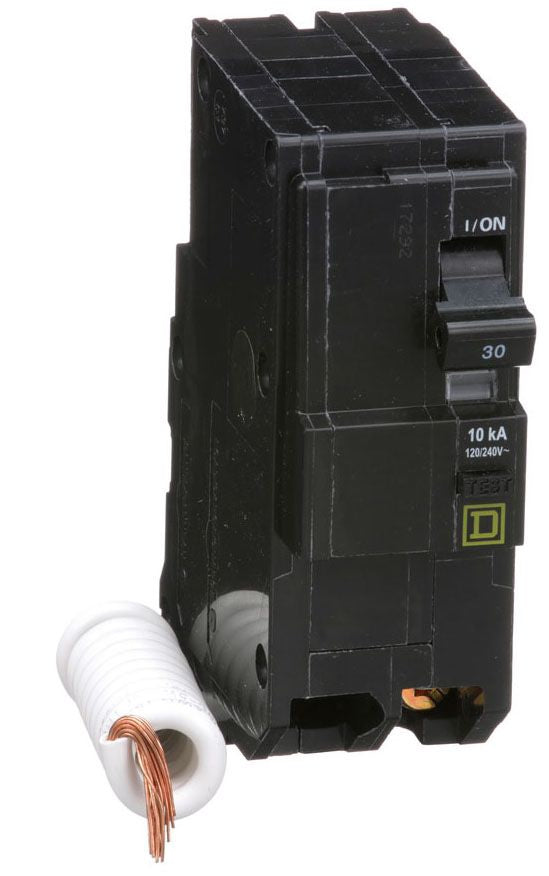

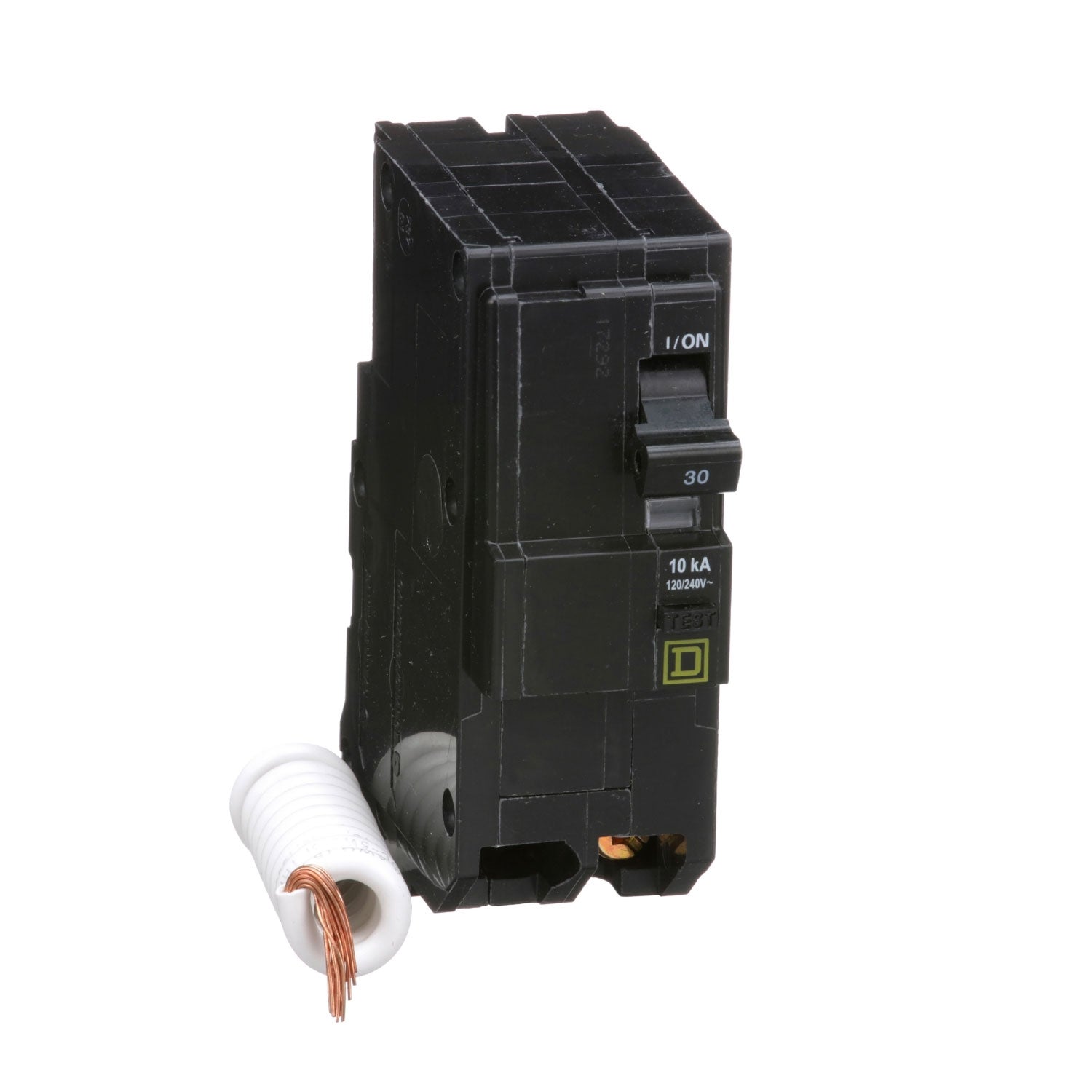

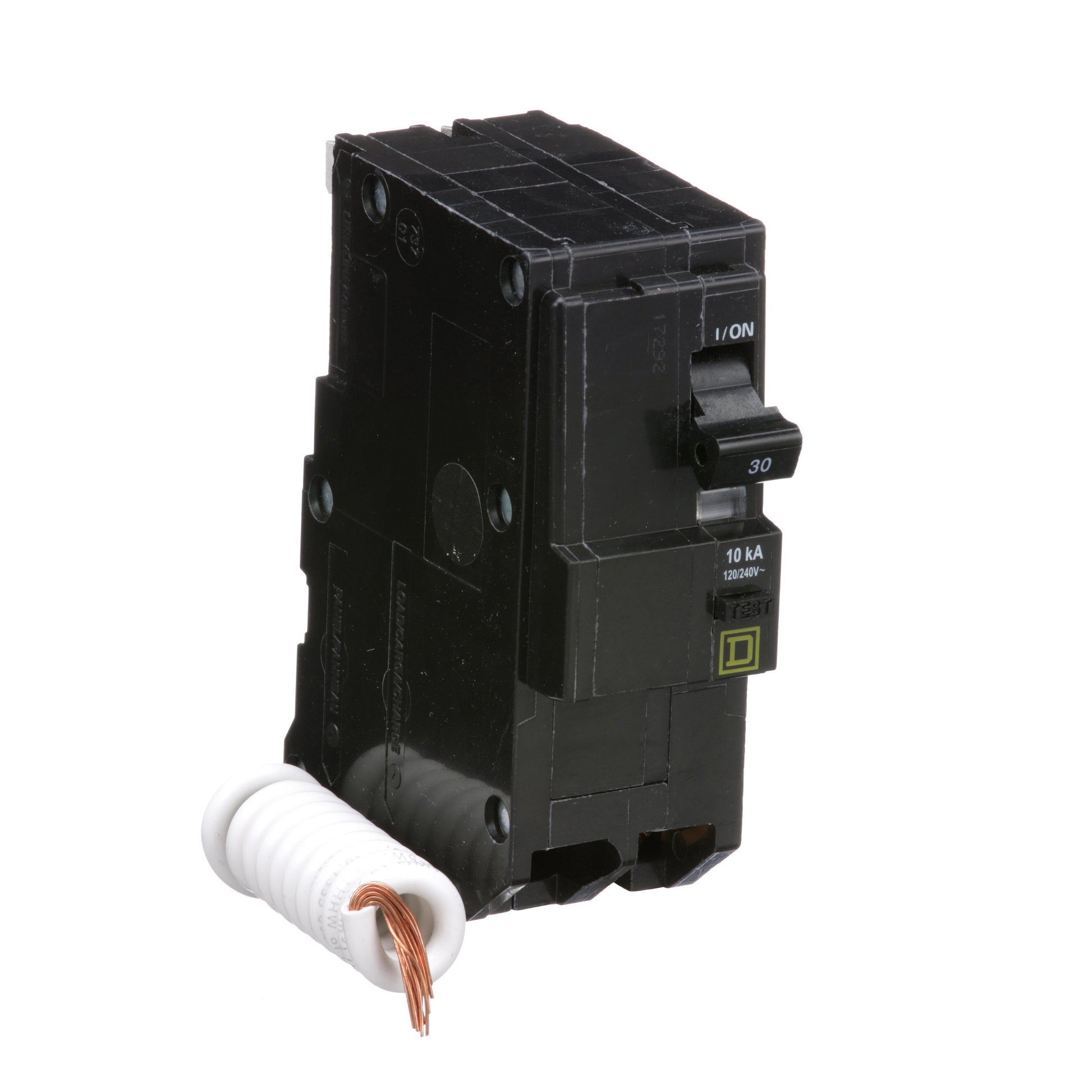

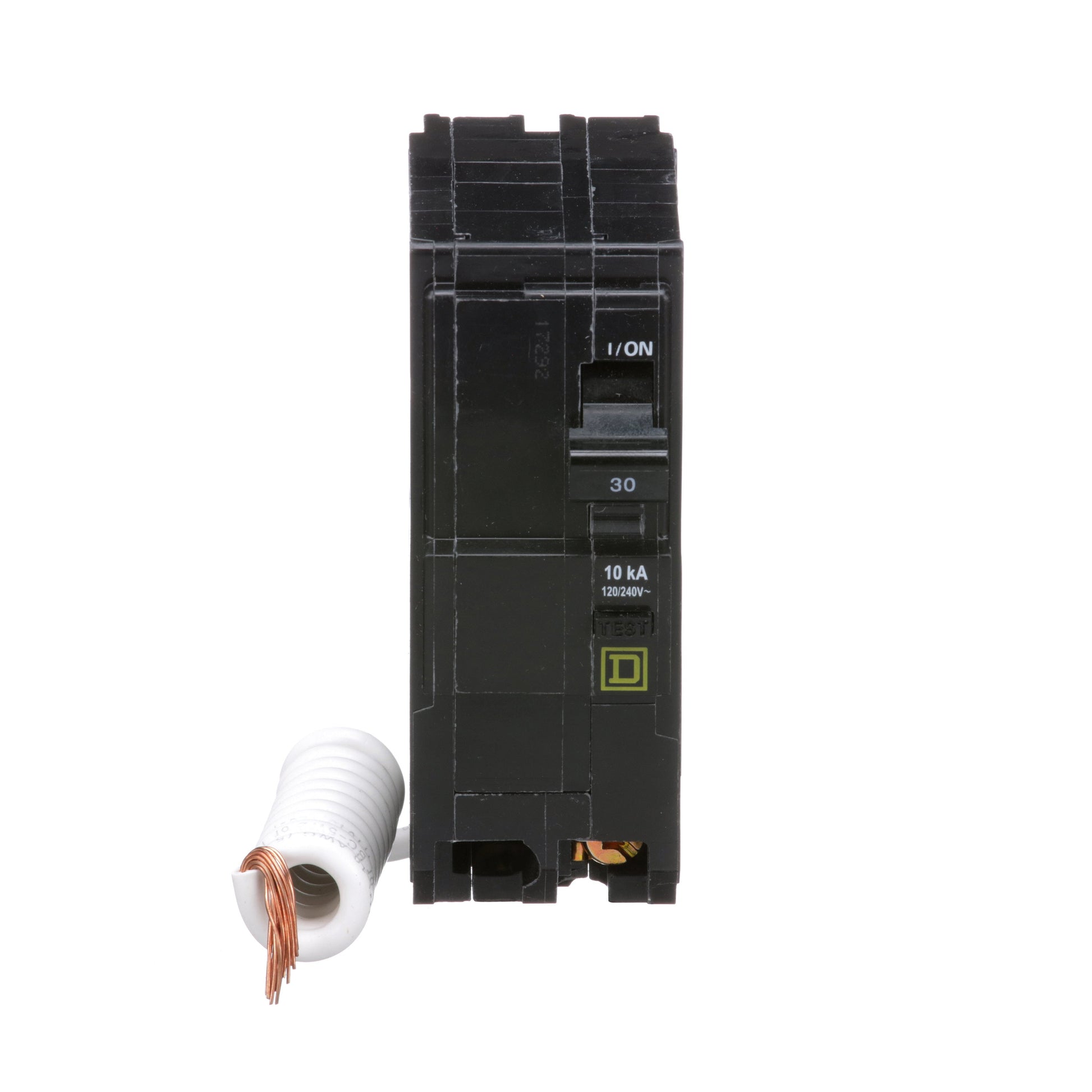

Square D QO230EPD Circuit Breaker 120/240V 30A 2P 10kA@240V Plug-In QO Series

Product Description:
The Square D QO230EPD is a Molded Case Circuit Breaker from the QO Series family. It is a 2-pole, 30 amp breaker rated for 120/240 volts with a 10kA AIC rating at 240V. This model features Plug-In connection and Thermal Magnetic protection for reliable performance. It is designed for use in QO Load Centers and NQ Panelboards.

Key Features:
✔ Part Number: QO230EPD
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Ground Fault Equipment Protection (30mA)
✔ Protection: Thermal Magnetic
✔ UPC: 785901120759
✔ GTIN: 00785901120759
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.12 in x 4.13 in
✔ Weight: 0.95
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 12-8 AWG (Aluminum) 14-8 AWG (Copper)
