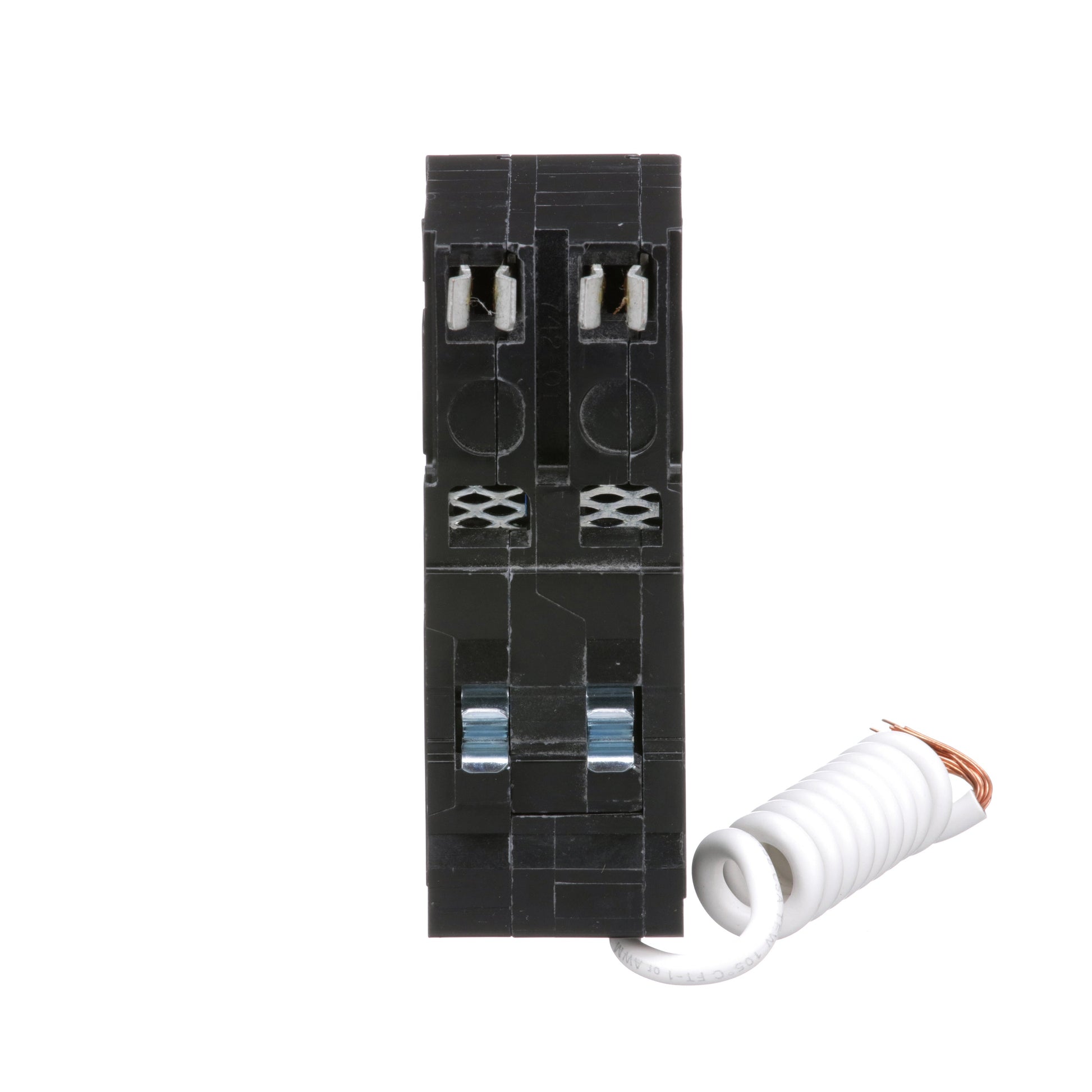

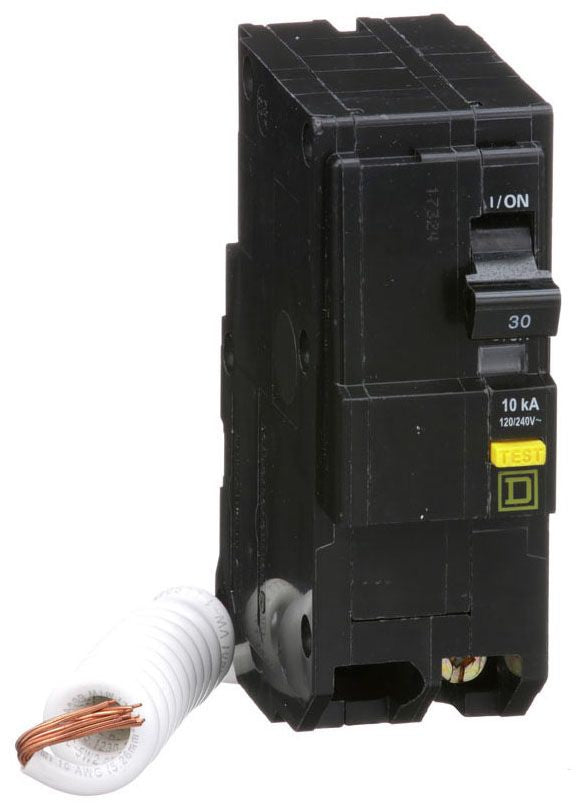

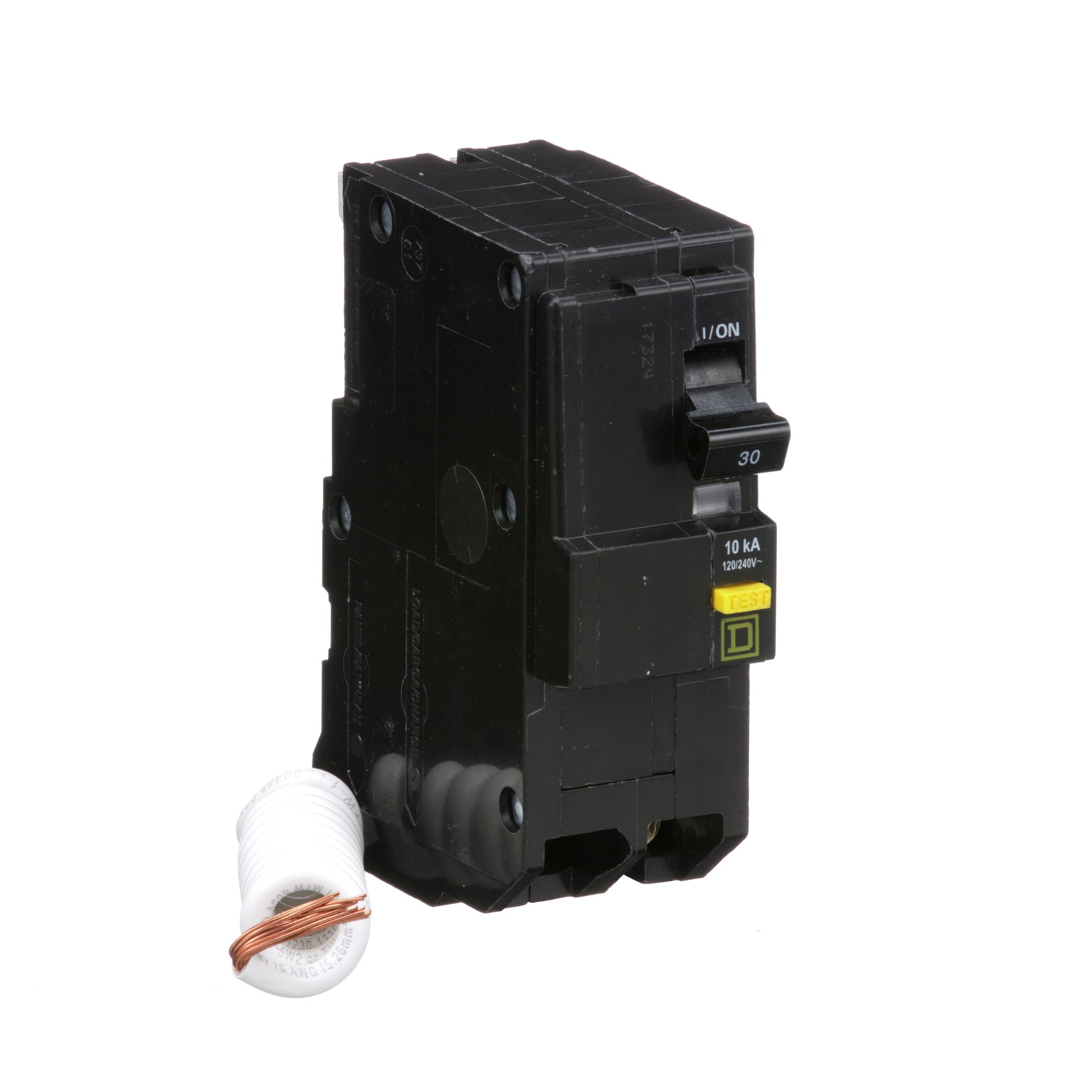

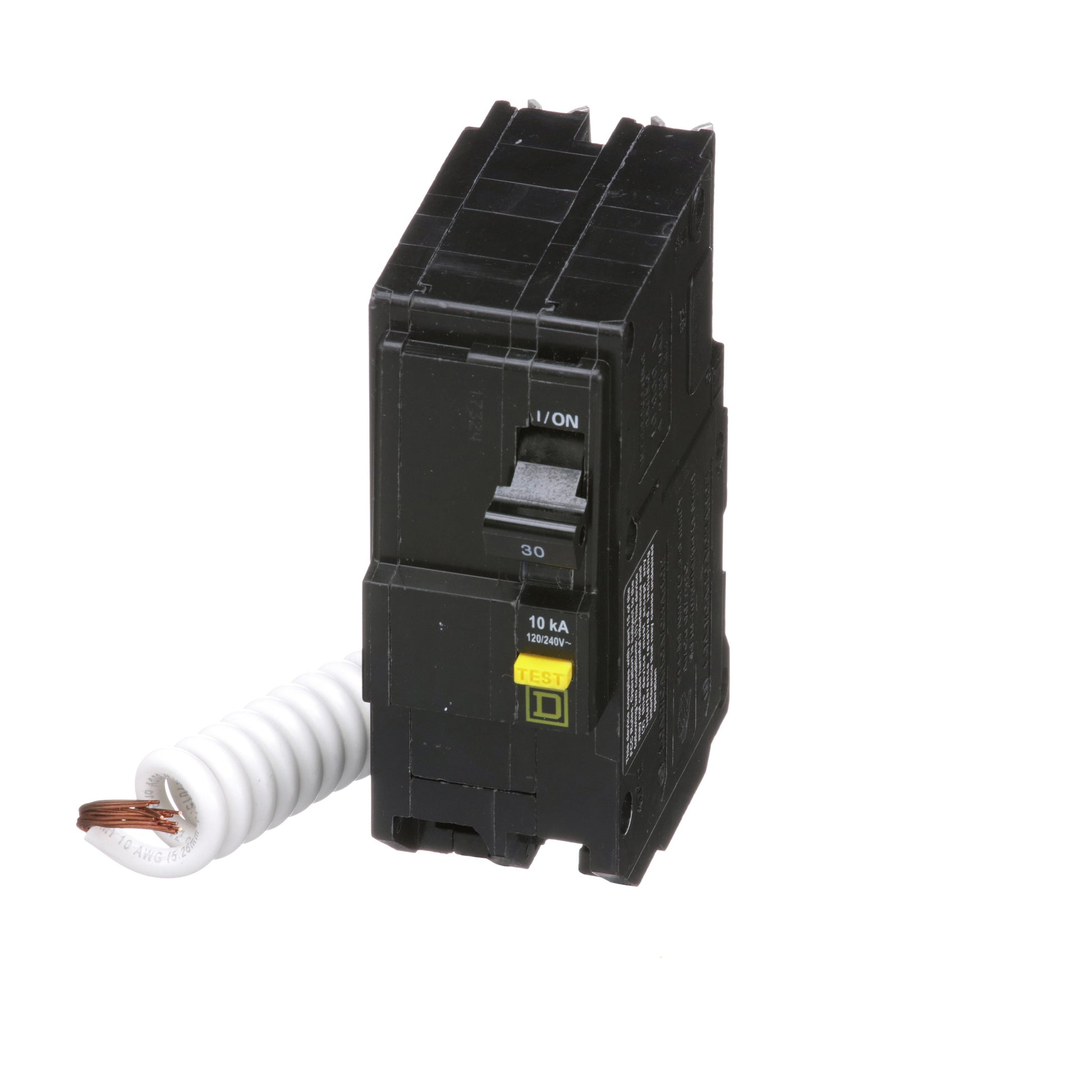

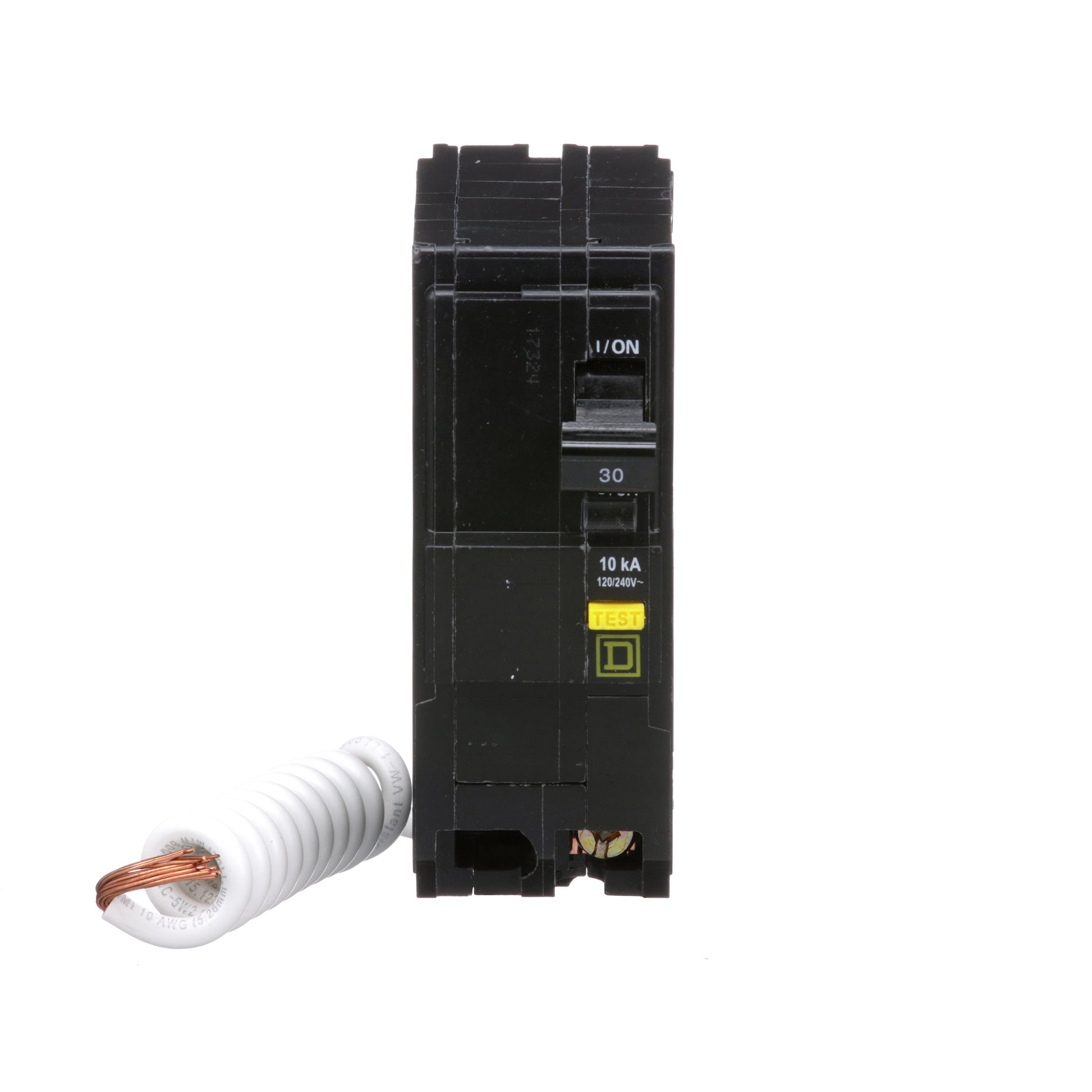

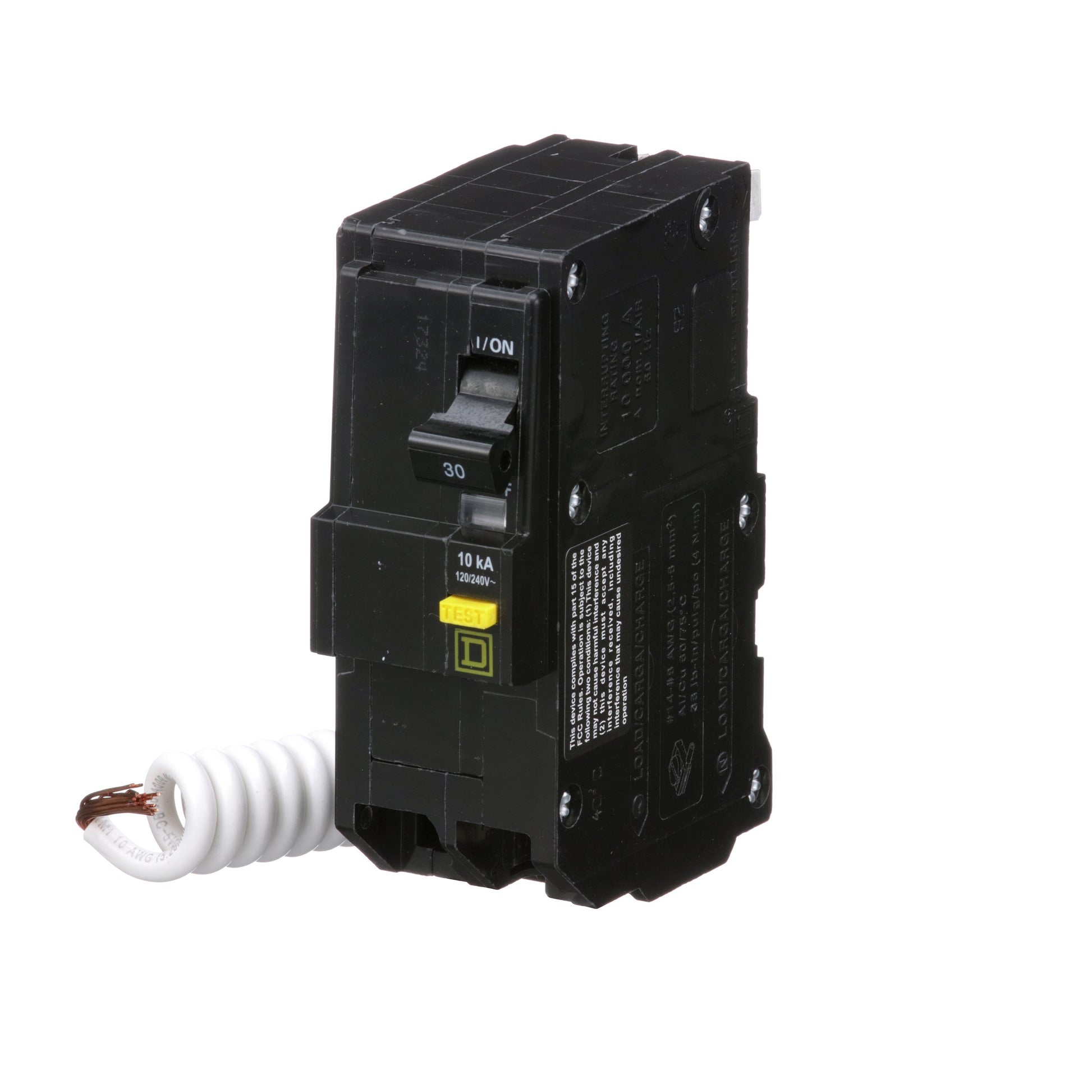

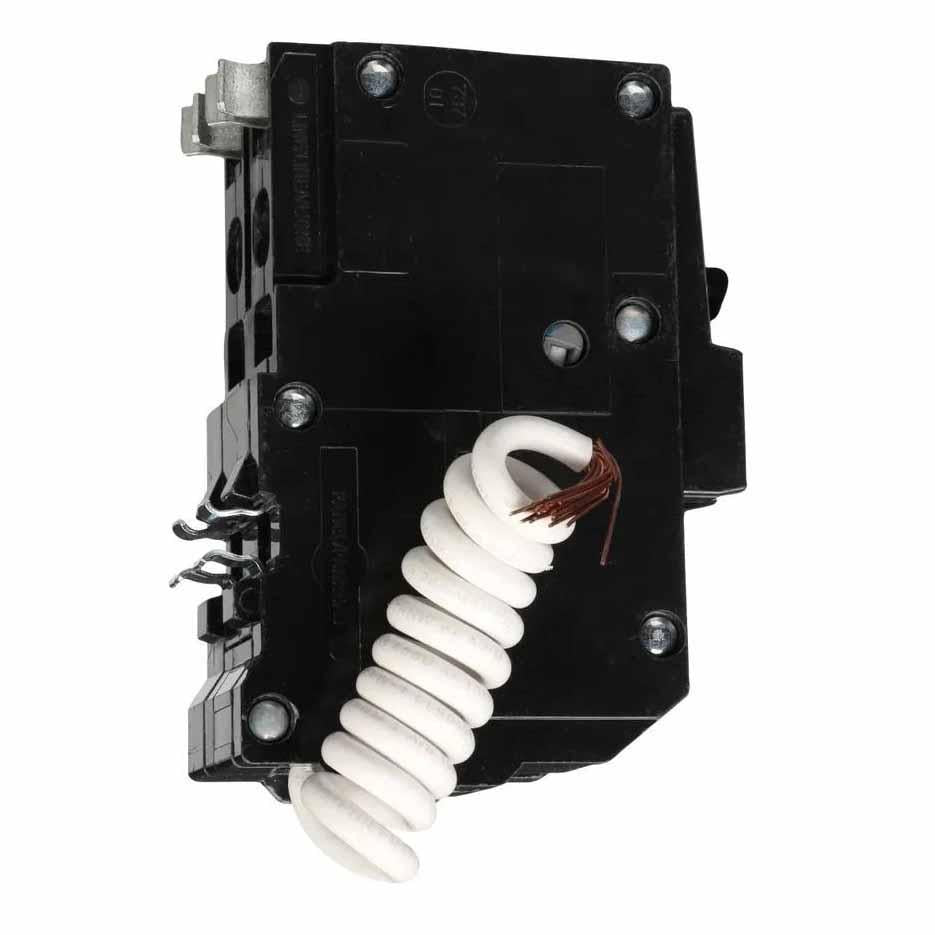

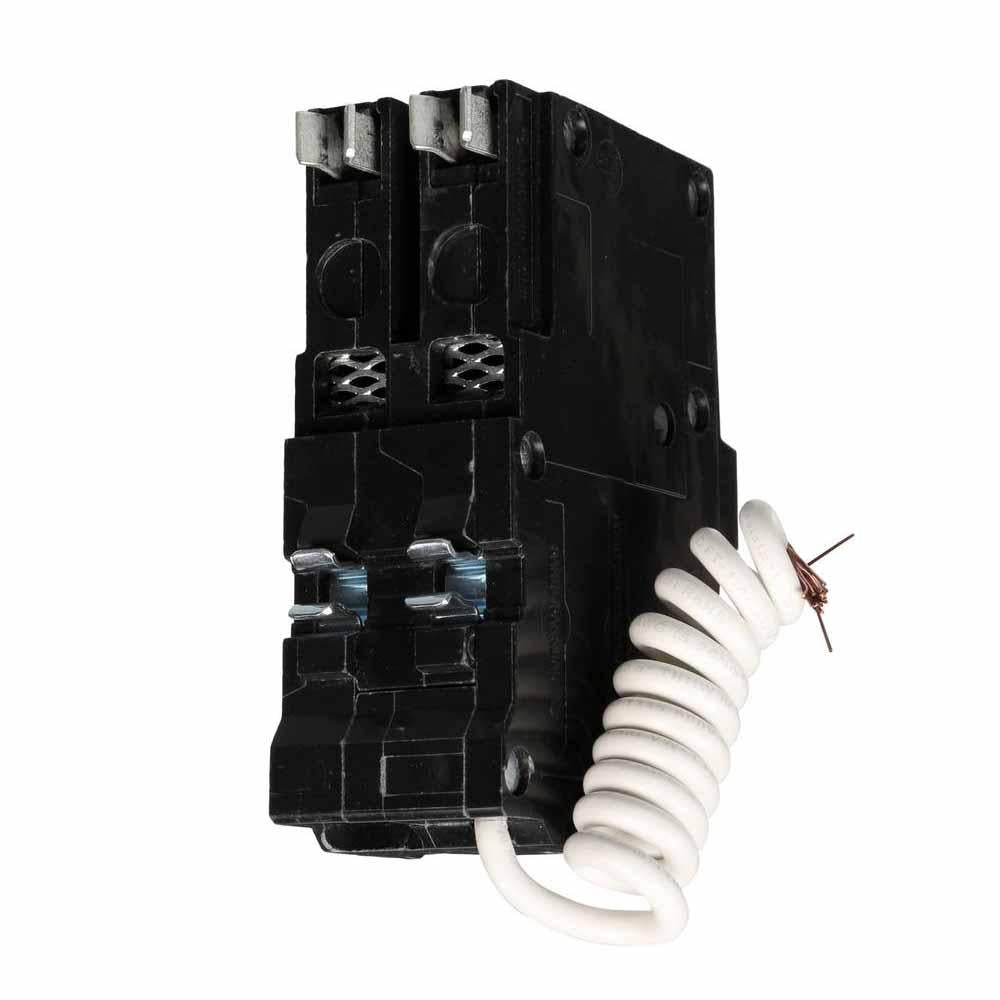

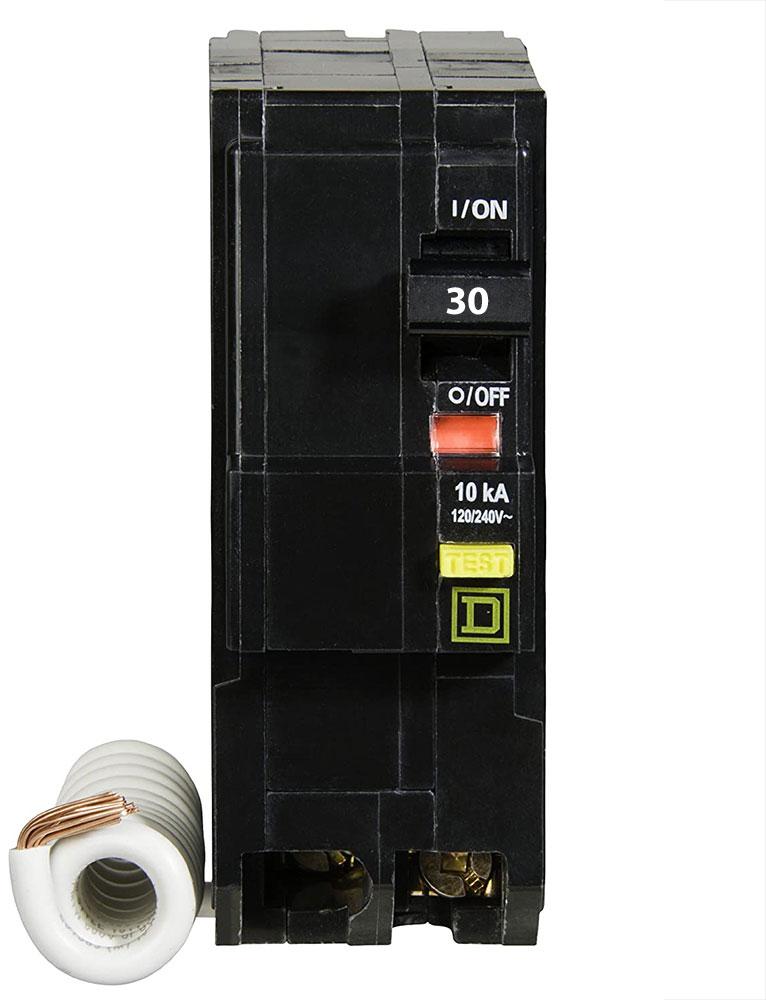

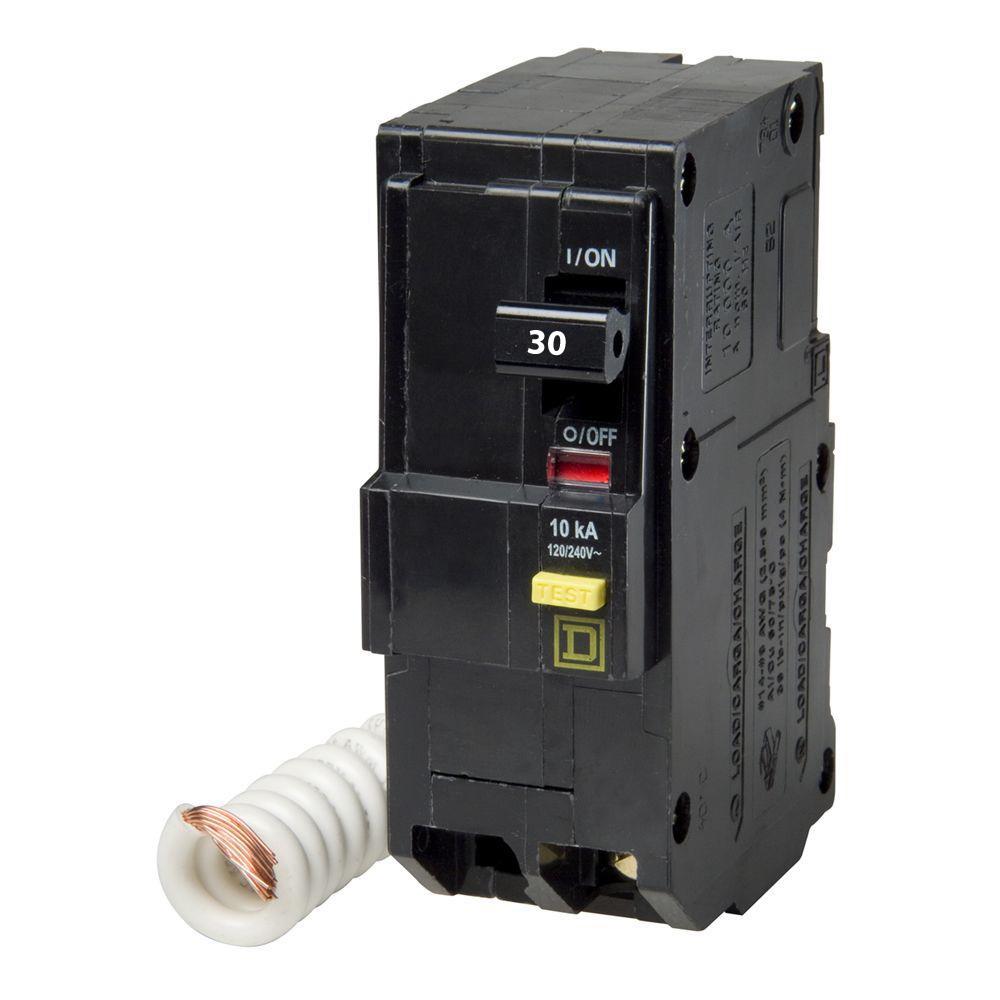

Square D QO230GFI Circuit Breaker 120/240V 30A 2Pole 10kA@120V Plug-In QO Series

Product Description:
The Square D QO230GFI is a Molded Case Circuit Breaker designed for reliable electrical protection. It is a 2-pole, 30-amp breaker rated for 120/240 volts with a 10kA interrupting capacity. This GFCI model provides Class A ground fault protection and is compatible with QO load centers and NQ panelboards. It features thermal magnetic protection and a plug-in connection for easy installation.

Key Features:
✔ Part Number: QO230GFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO SEries
✔ Type: QO-GF
✔ Voltage: 120/240
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 785901563006
✔ GTIN: 00785901563006
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.12 in x 4.13 in
✔ Weight: 0.8
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 12-8 AWG (Aluminum) 14-8 AWG (Copper)
