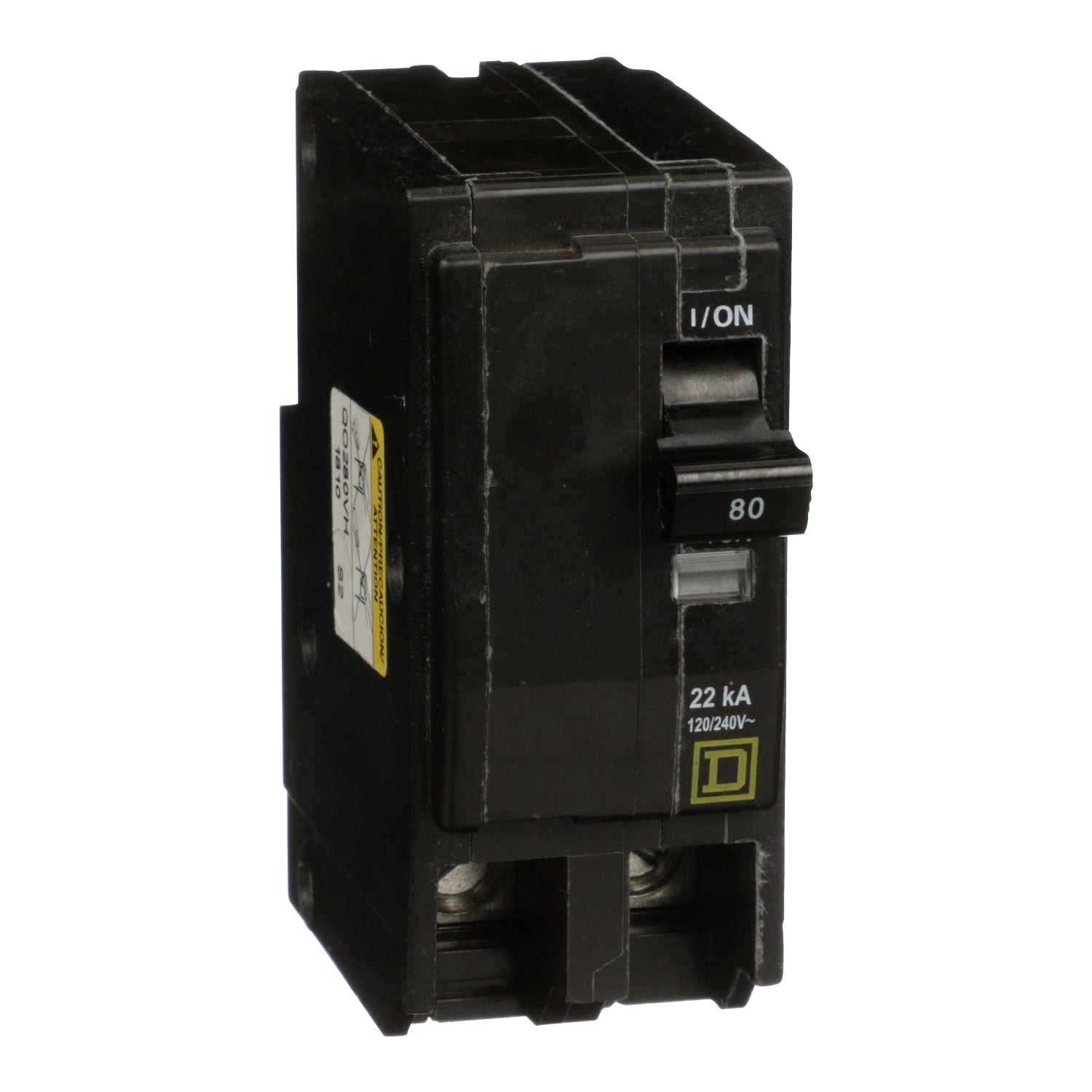

Square D QO280VH Circuit Breaker | 120/240V 80A 2P 22kA@120V Plug-In QO Series

Product Description:
The Square D QO280VH is a Molded Case Circuit Breaker from the QO Series family. It is a 2-pole, 80 amp breaker rated for 120/240 volts with a 22kA interrupting capacity at 120V. This plug-in circuit breaker provides thermal magnetic protection for reliable performance in residential and light commercial applications.

Key Features:
✔ Part Number: QO280VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 80
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 22kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ Wire Size: Min. 8 AWG Max. 2 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901054993
✔ GTIN: 00785901054993
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.5 in x 3.5 in
✔ Weight: 0.75 lb
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
