Product Description:

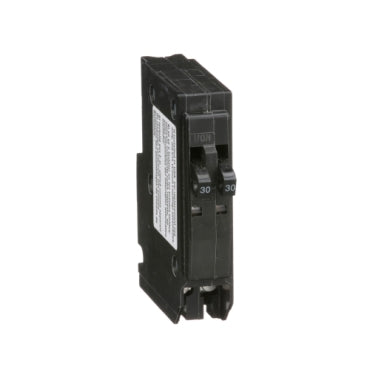

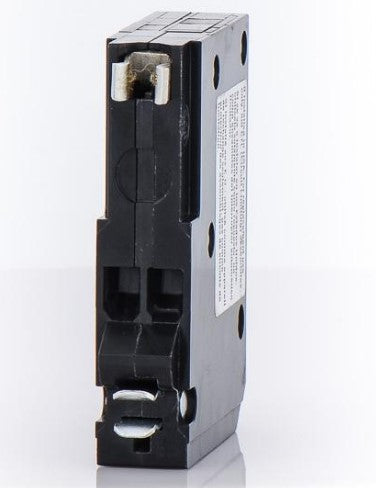

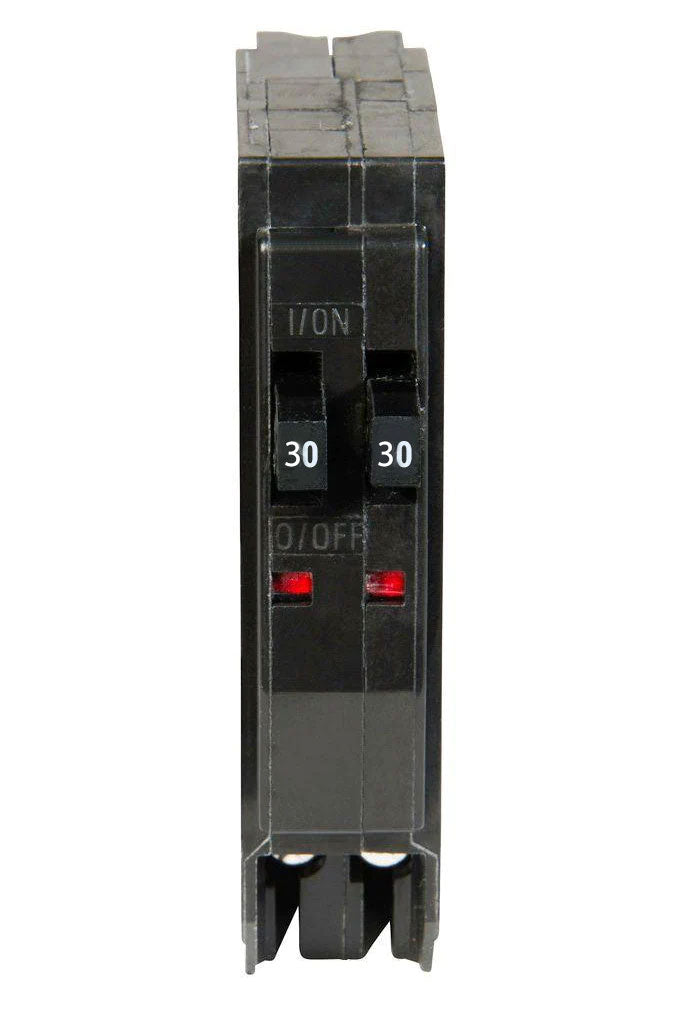

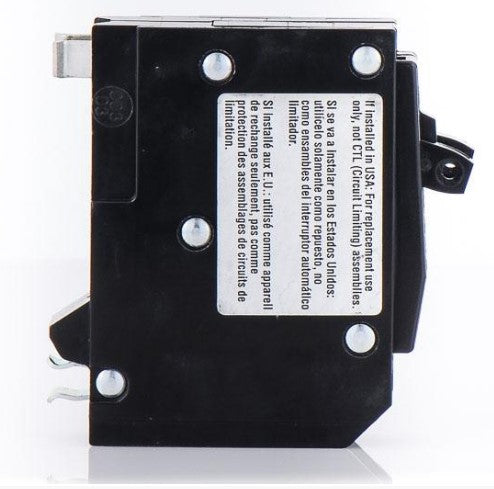

The Square D QO3030 is a 2-pole, 30-amp molded case circuit breaker with a 120V rating. It features thermal magnetic protection and a plug-in connection for easy installation. The breaker has an AIC rating of 10kA@120V and supports wire sizes from AWG 14 to AWG 8 for both copper and aluminum.
Key Features:
✔ Part Number: QO3030
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120V
✔ Amperage: 30A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Box Lugs
✔ Wire Size: AWG 14 to AWG 8 (Cu/Al)
✔ Breaker Type: Tandem
✔ Certification: UL Listed, CSA
✔ UPC: 785901400967
✔ GTIN: 00785901400967
✔ Country of Origin: Mexico
✔ Dimensions: 19 mm x 82
