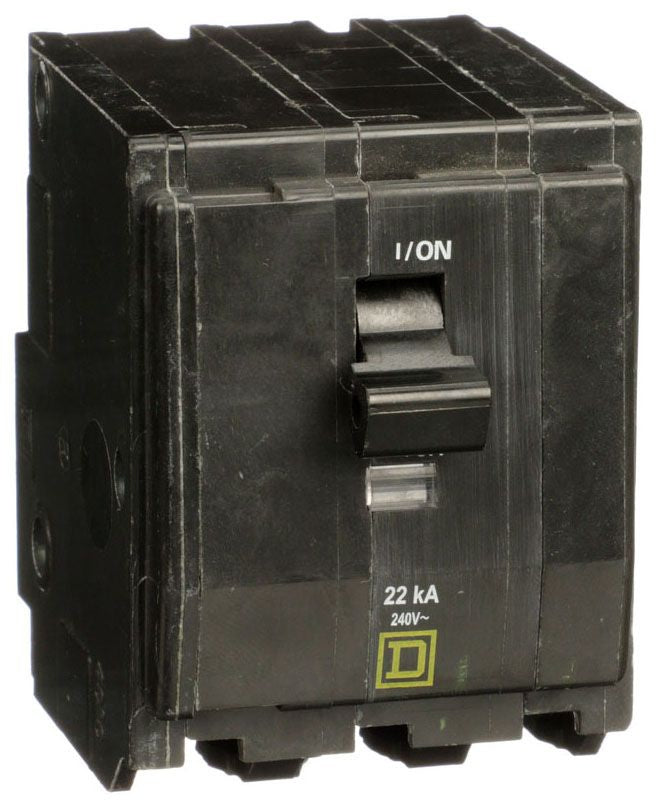

Square D QO370VH Circuit Breaker | 240V 70A 3P 22kA@240V Plug-In QO Series

Product Description:
The Square D QO370VH is a 3-pole molded case circuit breaker rated for 70 amps at 240 volts. It features thermal magnetic protection and a plug-in connection for easy installation. This high interrupting capacity breaker is designed for use in QO load centers and NQ panelboards. It is UL Listed and CSA certified for safety and reliability.

Key Features:
✔ Part Number: QO370VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 240
✔ Amperage: 70
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 2 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901060239
✔ GTIN: 00785901060239
✔ Country of Origin: Mexico
✔ Dimensions: 2.24 in x 3.12 in x 3.11 in
✔ Weight: 1.04
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: AWG 8, AWG 2 Copper or Aluminium
